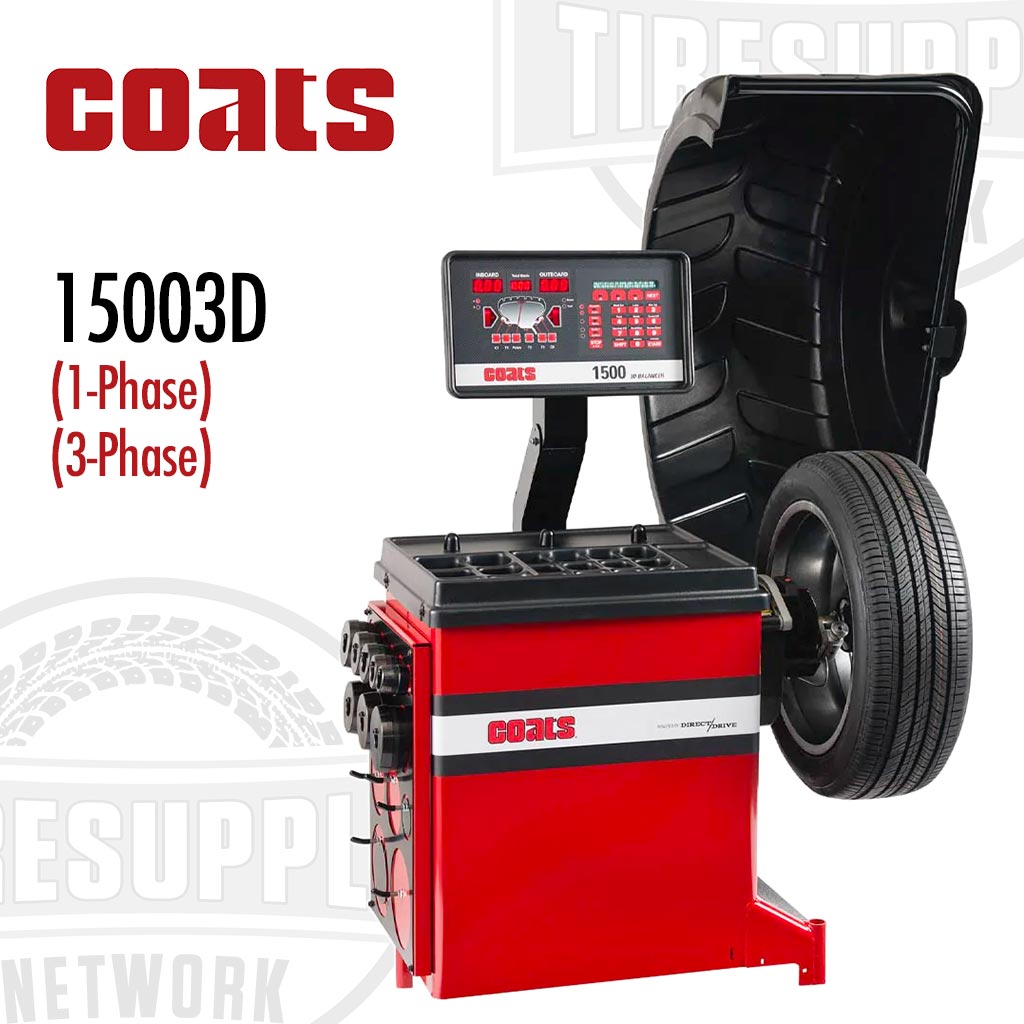

Coats | 1500 3D Direct Drive Wheel Balancer - 1-Phase (80015003D) 3-Phase (80015003D01)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Packed with features for front line tire service! The Direct Drive Series combines the accuracy and durability of Coats Direct Drive system with an exclusive set of easy to use balancing features designed to get the job done right the first time, every time.
Features:
- Powered by Direct Drive
- Premium Quicknut
- Stop, Lock & Index
- 8 Balancing Modes
- Automatic 3-D Data Entry
- Basic Adapter Kit Included

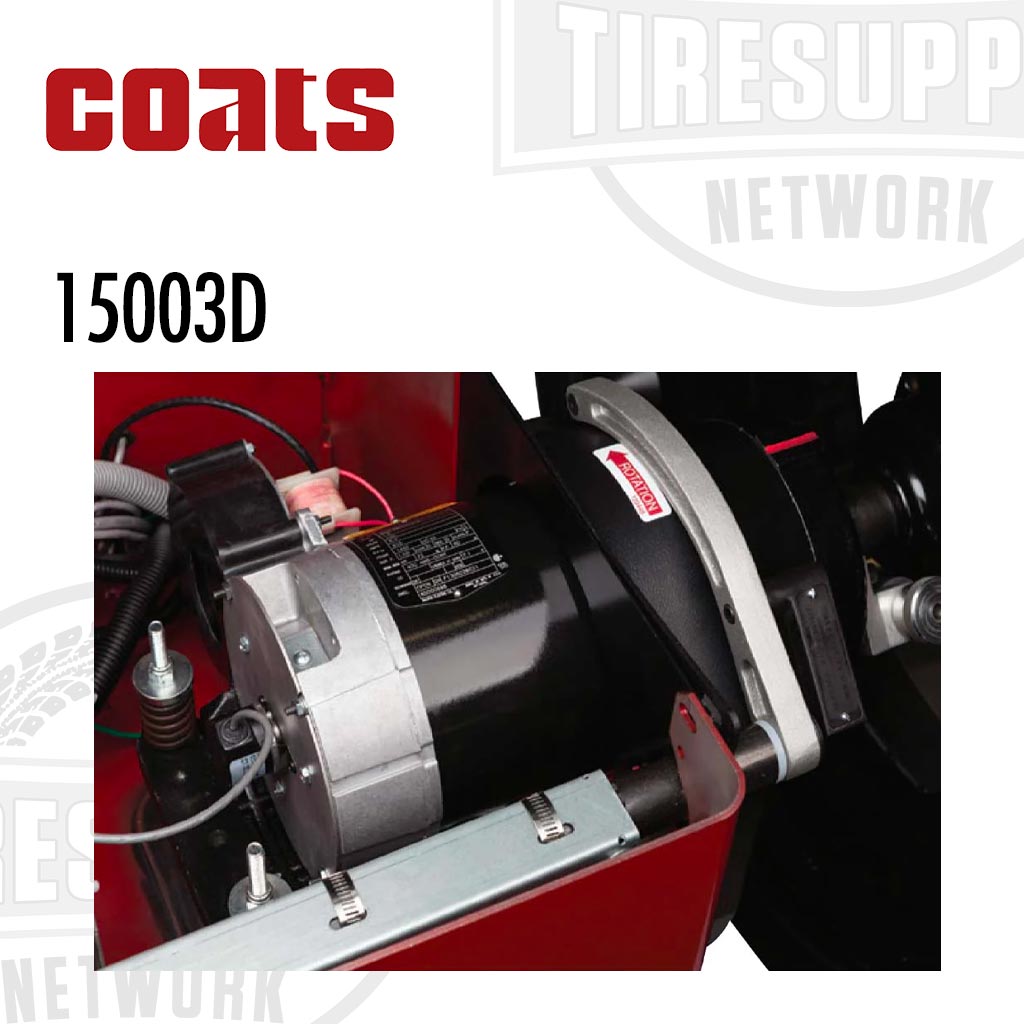

Powered By Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

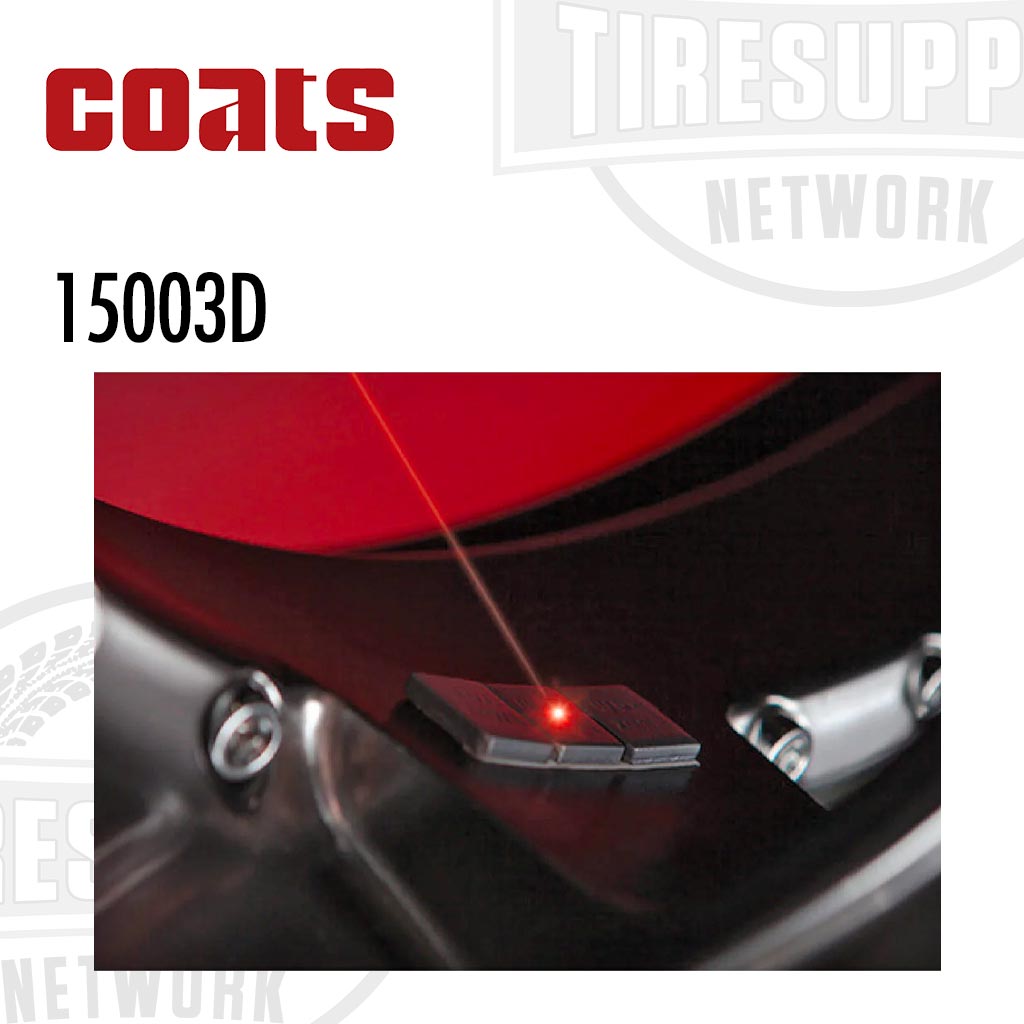

Laser Guided Operation System: Pinpoints the exact weight location, both radially and axially and eliminates trial and error.
Stop, Lock & Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application
3D Automatic Data Entry: Offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process.

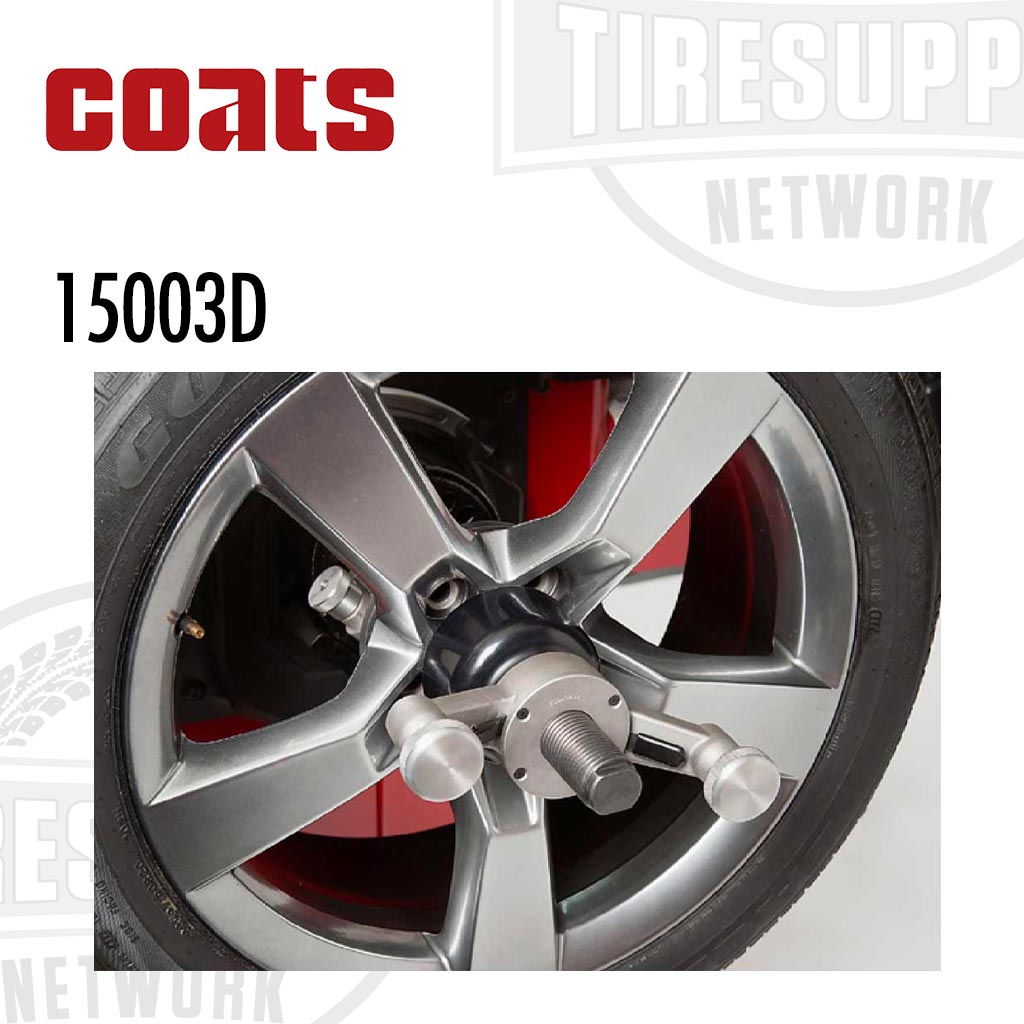

Behind-The-Spoke: Behind-the-Spoke mode allows you to hide the Tape-A-Weight behind the spokes of a decorative wheel quickly and easily. This keeps the weights hidden from view. Now balancing more complex wheel designs, the Coats 1300 is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.
Side Shadow Board: The side shadow board with basic accessory kit comes standard on the 1500 balancer.
Included Accessories:
- Coats 85608850 Stud - Weight Tray (3)
- Coats 85609499 Double Sided Collets (2.04"-5.20")
- Coats 8309011 Calipers
- Coats 85607780 Premium Wheel Weight Hammer
- Coats 85607503 Premium Quicknut
- Coats 8112106 Small Pressure Cup & Rubber Lip
- Coats 85608312 No Mar Ring
- Coats 8112107 Spring
- Coats 8113390 Scraper
- Coats 85610715 Side Shadow Board
Specifications:
| Coats Part Number | 80015003D (1-Phase), 80015003D01 (3-Phase) |
| Balancing Modes |
8 |
| Wheel Diameter Range |
8″ - 30″ |
| Wheel Width Range |
2″ - 20″ |
| Maximum Tire Weight |
160 lbs |
| Maximum Tire Diameter |
Up to 44″ |
| Shaft Diameter | 40mm (1.57″) |

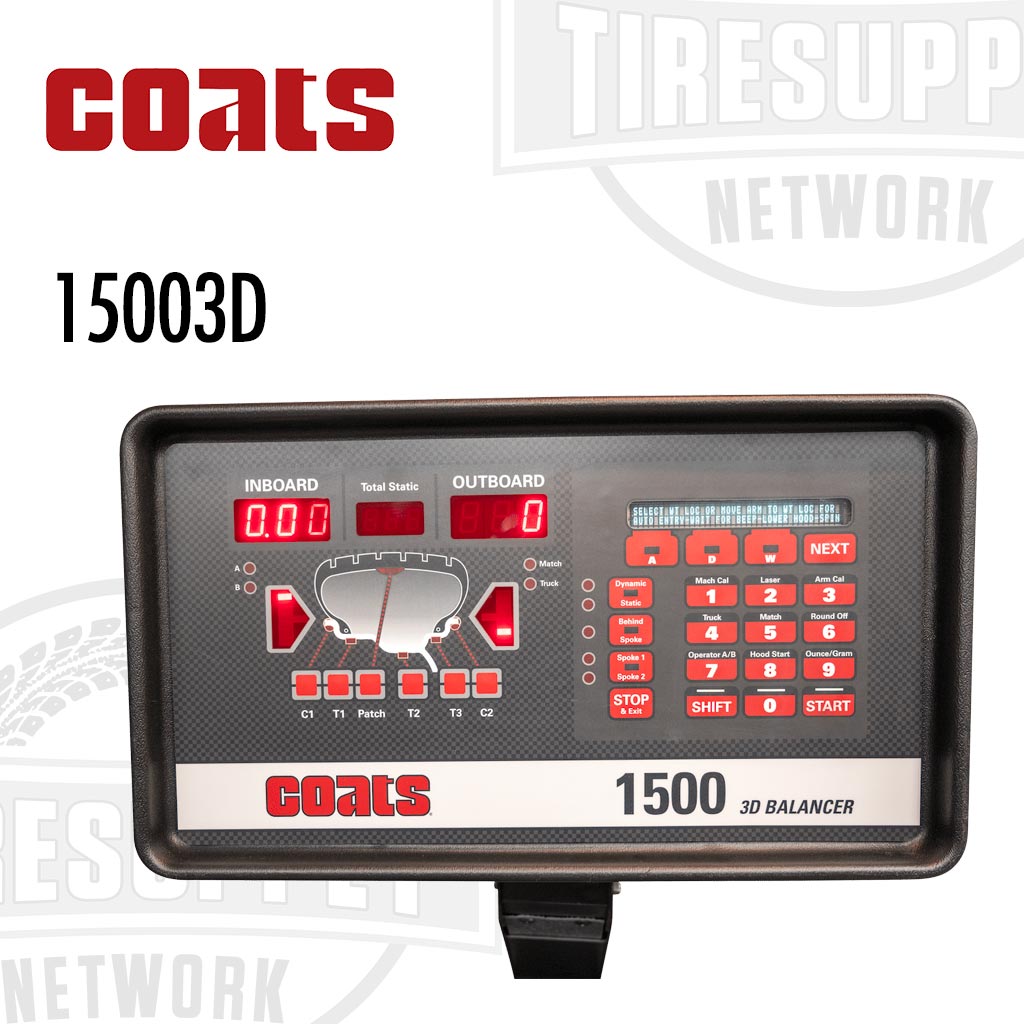

| Interface |
LED Display |
| Automatic Data Entry |
Distance / Diameter / Width |
| Electrical Requirements |
220V, 1 ph or 220V, 3 ph |
| Footprint (WxDxH) |
57″ x 55″ x 75″ |
| Weight |
616 lbs |
| Warranty |
3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
