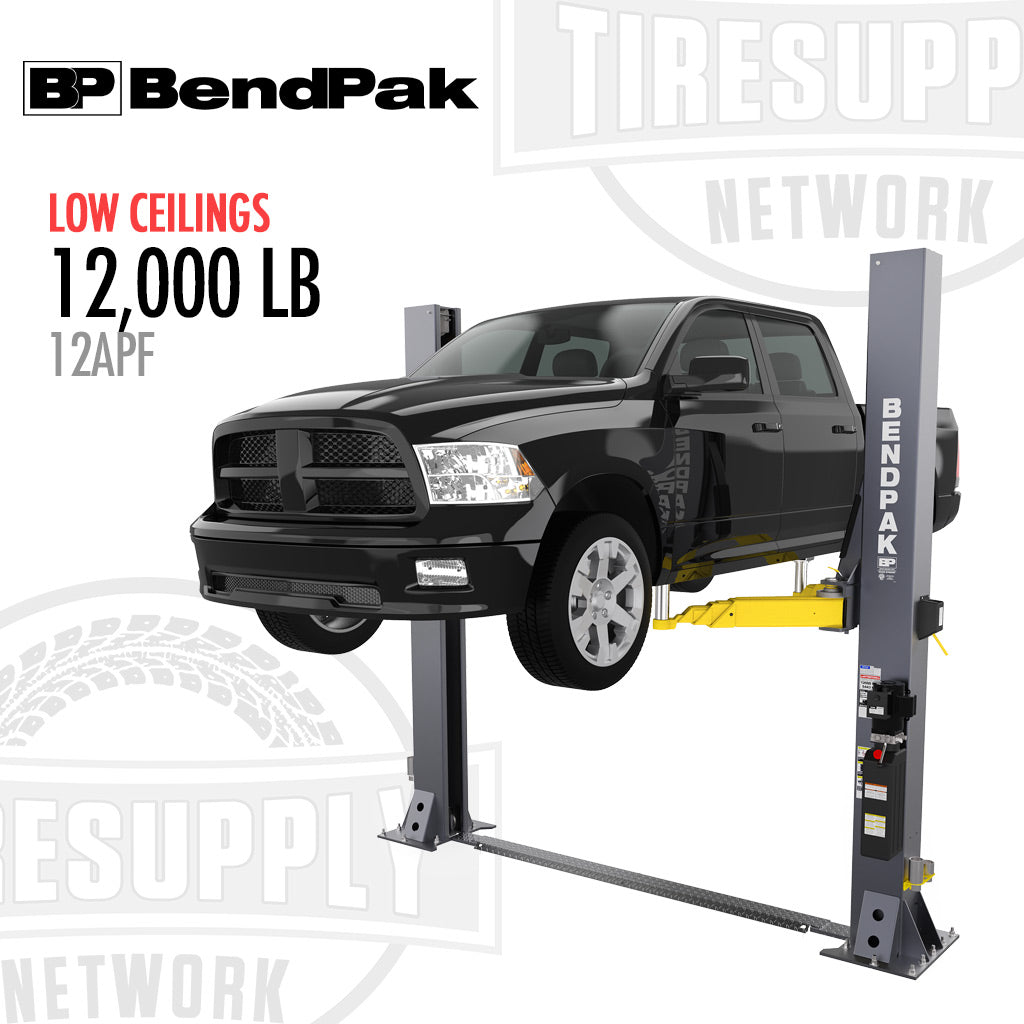

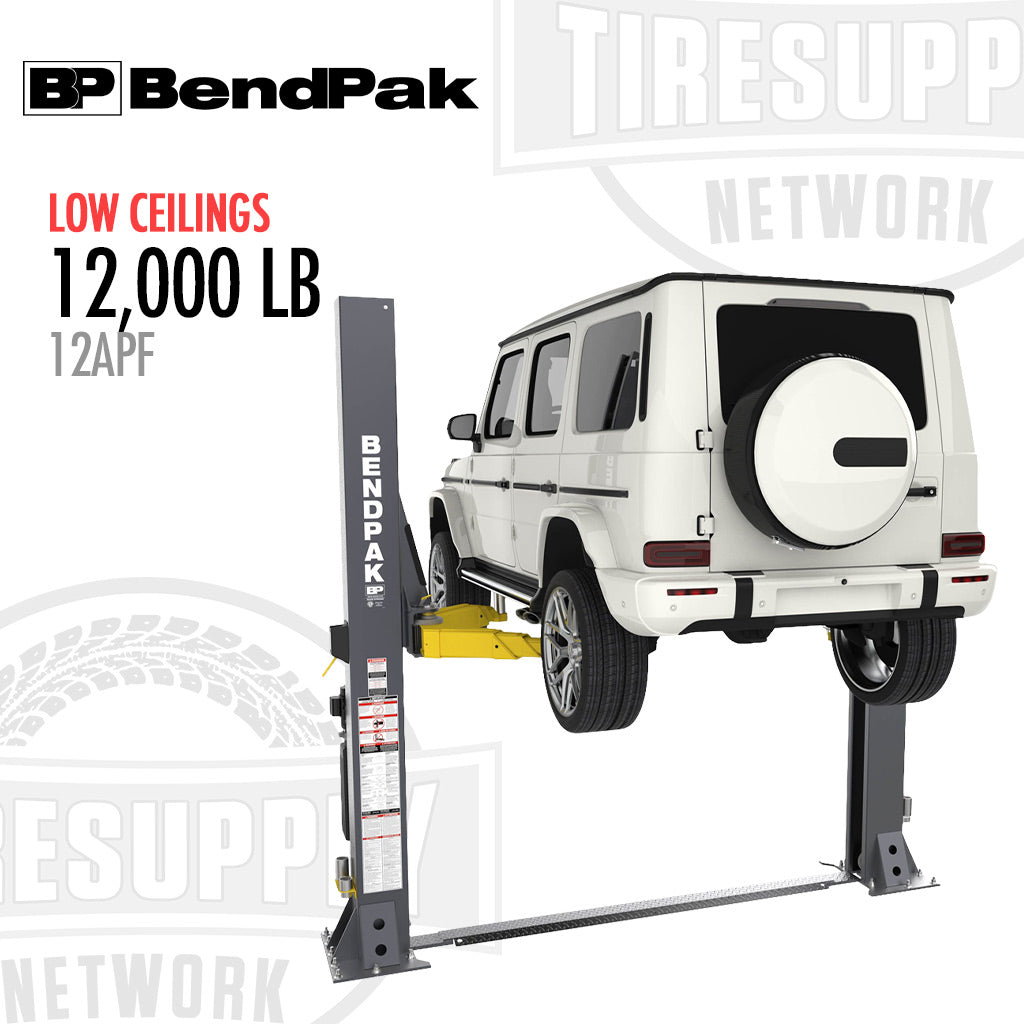

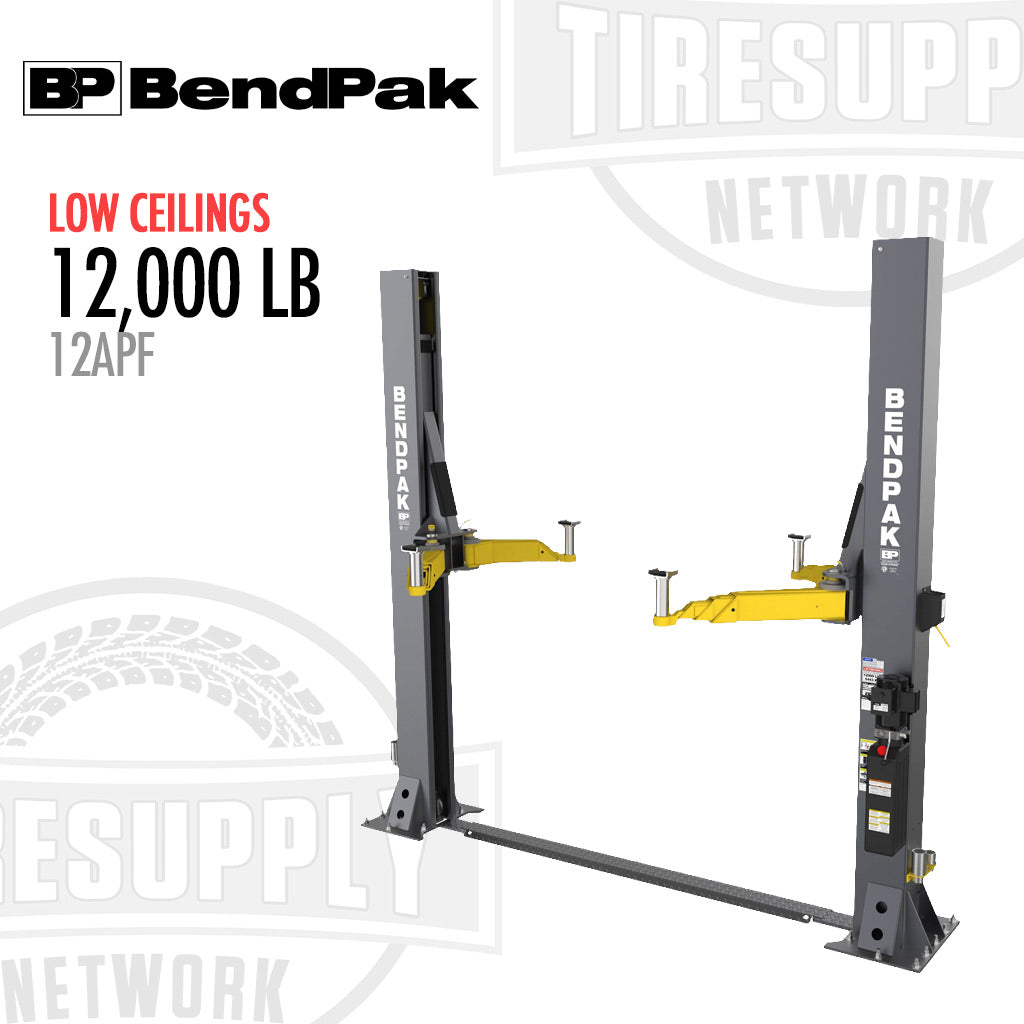

BendPak 12APF | 2-Post Lift 12,000 lb Capacity Open-Top - Low Ceilings

The BendPak 12APF is a 12,000 lb two-post floorplate lift built for low ceilings, commercial vehicles, and high-roof service applications. Its open-top design eliminates overhead obstructions, while a steel floorplate protects all hydraulic and equalizer lines for a clean and safe workspace. The exclusive Bi-Metric arm design offers superior versatility, letting techs spot vehicles in symmetric or asymmetric configurations instantly. With drop-end arms, stacked adapter options, and a fully automatic swing arm restraint system, the 12APF is ideal for professional repair shops, fleet service centers, tire facilities, and dealerships looking to expand their heavy-duty capability.

Built for strength, safety, and simplicity
The BendPak 12APF was engineered for shops that need true heavy-duty lifting power in spaces where overhead lifts simply won’t fit. With shortened columns and no overhead beam, the lift performs exceptionally well in low-ceiling repair bays and older buildings with height limitations.

Better access under tall vehicles
The open-top architecture delivers clean vertical clearance, making it a go-to solution for commercial vans, lifted trucks, and large SUVs. Techs can work upright and maneuver around the vehicle without fighting overhead obstructions.

Concealed routing for a cleaner workspace
A durable steel floorplate houses all hydraulic and equalizer lines. The result is a safer, cleaner shop with smoother movement of jacks, drain pans, and equipment across the bay.

Exclusive Bi-Metric arm design
The 12APF includes BendPak's exclusive Bi-Metric arm system, allowing fast and flexible arm positioning. Techs can choose symmetric spotting for balance or asymmetric spotting for better door and cabin access.

Drop-end arms and included adapters
Drop-end arms create a lower pad height for easy positioning under low cars. Frame cradle pads, medium adapters, and tall adapters come standard to accommodate trucks, vans, and wider frame variations.

Advanced ASARS safety system
BendPak's Automatic Swing Arm Restraint System provides a full 360-degree grip around the arm head. With over 2,000 pounds of holding force and a forged-steel construction, the ASARS system is engineered to lock arms firmly under real service loads, including braking, suspension work, and directional torque.

Built for long-term commercial use
Single-piece columns, dual 3/8 inch equalizer cables, oversized sheaves, and self-lubricating bearings keep the lift operating smoothly even in high-volume shops. Fifteen lock positions spaced every four inches give techs precise height control.

Who the 12APF is for

• Commercial and fleet garages servicing vans, work trucks, upfits, and loaded rigs. Open-top clearance handles ladder racks, upfit gear, and tall delivery vans with ease.
• Independent shops doing heavy-duty service or maintenance on SUVs, 3/4- and 1 ton pickups, light commercial trucks, and vans — all under one lift.
• Restoration, performance, and custom shops that work on lowered cars in the morning and heavy-duty trucks in the afternoon. With dropped pad receivers and high capacity, one lift handles them all.
• Dealership quick-service lanes, tire bays, and service centers juggling diverse vehicles from lowered performance cars to heavy SUVs and light trucks.
• Growing operations converting storage bays or tight garages into full-featured service bays. Short columns and open-top design make efficient use of space while supporting heavier vehicle loads.

Features:

• 12,000 lb Lifting Capacity — Supports heavy-duty trucks, vans, SUVs, and commercial vehicles.
• Open-Top Design — Perfect for low ceilings and high-profile vehicles.
• Shortened Columns — Allows installation in low-clearance shops without sacrificing lift height.
• Extended Rise — Offers more than 6 feet of under-car clearance.
• Exclusive Bi-Metric Arm Design — Provides more versatile arm positioning for both symmetric and asymmetric spotting.
• Automatic Swing Arm Restraint System (ASARS) — Patented forged-steel restraint with 360-degree load holding and over 2,000 pounds of holding force.
• Single-Piece Columns — Maximizes rigidity and long-term durability.

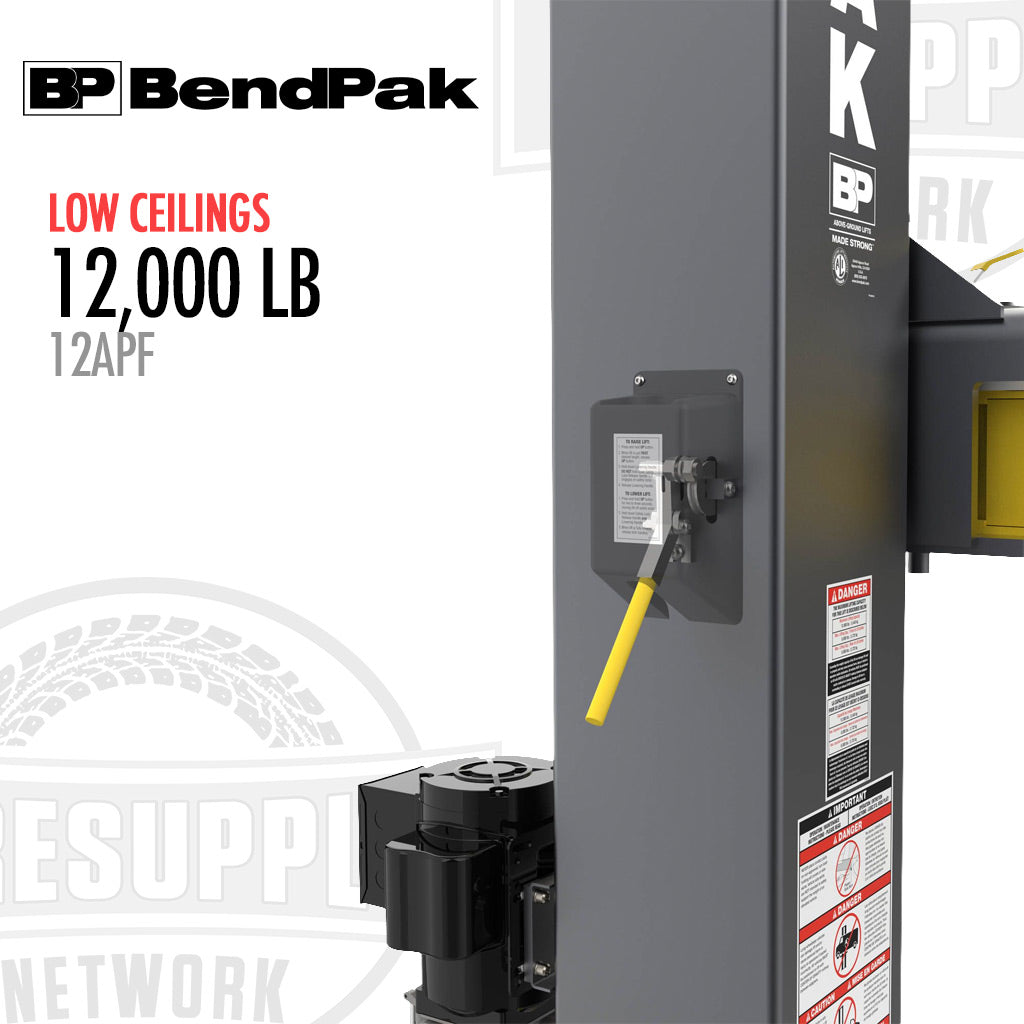

• Single-Point Safety Release — Simplifies lock release from one location.
• Steel Floorplate with Concealed Hydraulic Lines — Keeps the bay clean and eliminates exposed conduit.

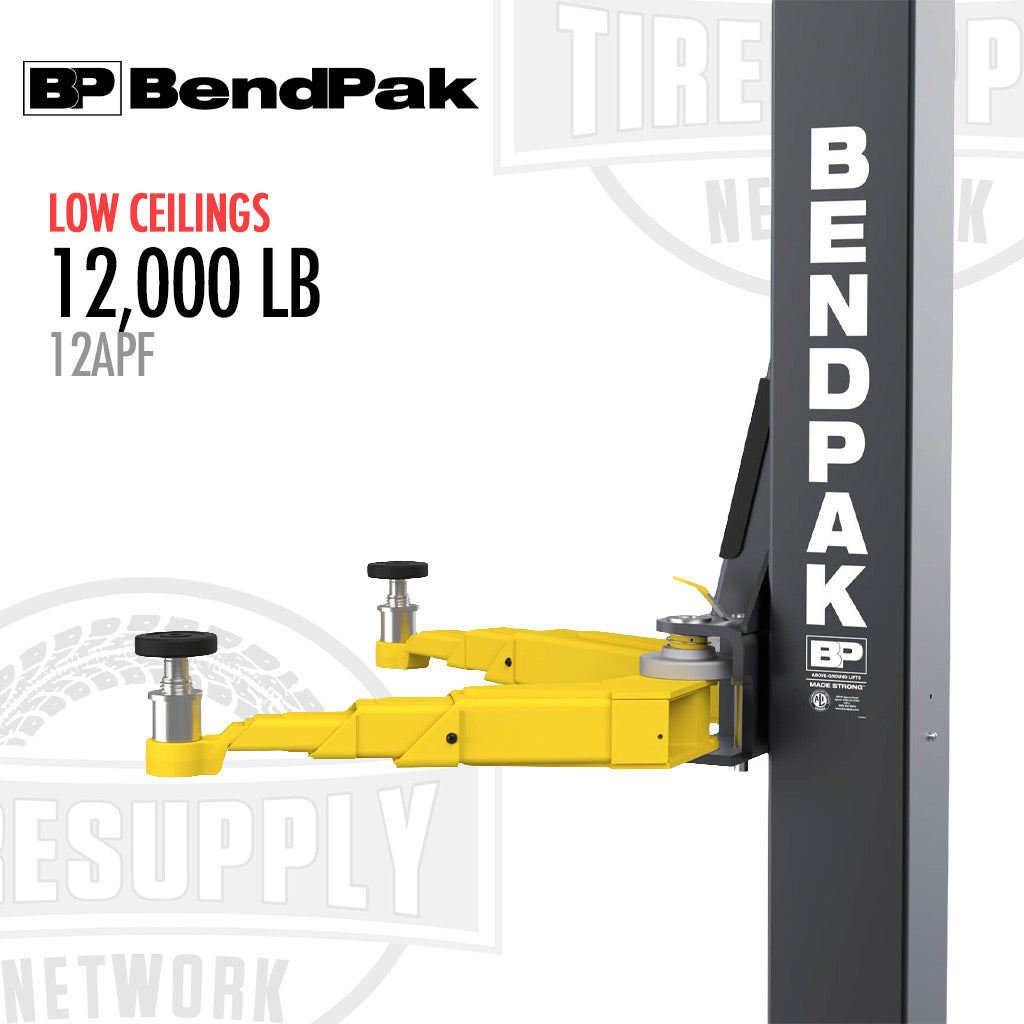

• Drop-End Arms — Gives lower pad height for better access under low-profile vehicles.
• Electric-Hydraulic Power System — Smooth and reliable lifting performance.
• Self-Lubricating Dura-Glide Bearings — Polyethylene carriage slides for low-maintenance operation.
• Dual Equalizer Cables — Heavy 3/8 inch cables with oversized sheaves for improved balance and longevity.
• 15 Safety Lock Positions — Locks spaced every 4 inches for safer height selection.
• Built for Strength, Safety, and Simplicity — The core engineering principle behind the entire APF platform.

Specifications:
