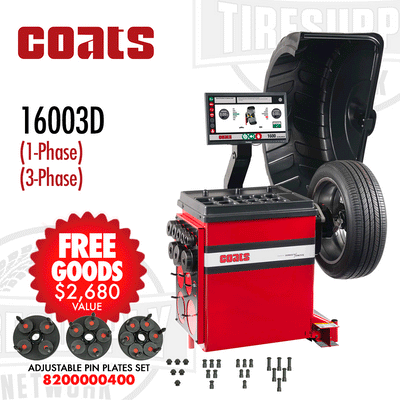

Coats 1600-3D Direct Drive Wheel Balancer

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Motor: 220V / 1-Phase

Coats 1600-3D Direct Drive Wheel Balancer

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Need replacement parts? Call or email us and we can special order them for you!

Packed with features for front line tire service! The Direct Drive Series combines the accuracy and durability of Coats Direct Drive system with an exclusive set of easy to use balancing features designed to get the job done right the first time, every time.

Legendary reliability with state of the art capability. Every feature of the 1600 was designed to deliver a performance balance for your customers.


  • Powered by Direct Drive
  • ProBalance Technology
  • Touchscreen
  • Automatic 3-D Data Entry
  • Basic Adapter Kit Included
  • NEW Collet Adapters

Powered by Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

Pro-Balance Technology: A unique balancing system (unbalance correction methodology) that minimizes both static and couple unbalance.

Speed Thread: Provides the ability to thread the hub nut at the push of a pedal to improve the ease-of-use and speed of mounting the wheel.

Stop, Lock & Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.

Laser Guided Operation System: Pinpoints the exact weight location, both radially and axially and eliminates trial and error.

LED Barrel Lighting: Illuminates the barrel of the wheel to aid wheel weight placement.

Included Accessories:

  • Coats 85608850 Stud - Weight Tray (3)
  • Coats 85609499 Double Sided Collets (2.04″-5.20″)
  • Coats 8309011 Calipers
  • Coats 85607780 Premium Wheel Weight Hammer
  • Coats 85610908 Premium Hub Nut
  • Coats 8112106 Small Pressure Cup & Rubber Lip
  • Coats 85608312 No Mar Ring
  • Coats 8112107 Spring
  • Coats 8113390 Scraper
  • Coats 85610715 Side Shadow Board


          Coats Part Number 80016003D (1-Phase), 80016003D01 (3-Phase)
          Balancing Modes
          Wheel Diameter Range
          8″ - 30″
          Wheel Width Range
          2″ - 20″
          Maximum Tire Weight
          160 lbs
          Maximum Tire Diameter
          Up to 44″
          Shaft Diameter 40mm (1.57″)
          Touchscreen Display
          Automatic Data Entry
          Distance / Diameter / Width
          Electrical Requirements
          220V, 1 ph or 220V, 3 ph
          Footprint (WxDxH)
          57″ x 55″ x 75″
          650 lbs
          3 Year Parts, 6 Months Labor

          Compliance and Restrictions

          WARNING: Cancer and Reproductive Harm -
