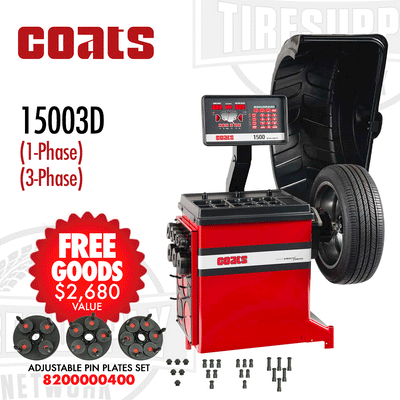

Coats | 1500 3D Direct Drive Wheel Balancer | 1-Phase or 3-Phase (80015003D*)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Motor: 220V / 1-Phase

Coats | 1500 3D Direct Drive Wheel Balancer | 1-Phase (80015003D) 3-Phase (80015003D01)

PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Packed with features for front line tire service! The Direct Drive Series combines the accuracy and durability of Coats Direct Drive system with an exclusive set of easy to use balancing features designed to get the job done right the first time, every time.


  • Powered by Direct Drive
  • Premium Quicknut
  • Stop, Lock & Index
  • 8 Balancing Modes
  • Automatic 3-D Data Entry
  • Basic Adapter Kit Included

Powered By Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

Laser Guided Operation System: Pinpoints the exact weight location, both radially and axially and eliminates trial and error.

Stop, Lock & Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application

3D Automatic Data Entry: Offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process.

Behind-The-Spoke: Behind-the-Spoke mode allows you to hide the Tape-A-Weight behind the spokes of a decorative wheel quickly and easily. This keeps the weights hidden from view. Now balancing more complex wheel designs, the Coats 1300 is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.

Side Shadow Board: The side shadow board with basic accessory kit comes standard on the 1500 balancer.

Included Accessories:

  • Coats 85608850 Stud - Weight Tray (3)
  • Coats 85609499 Double Sided Collets (2.04"-5.20")
  • Coats 8309011 Calipers
  • Coats 85607780 Premium Wheel Weight Hammer
  • Coats 85607503 Premium Quicknut
  • Coats 8112106 Small Pressure Cup & Rubber Lip
  • Coats 85608312 No Mar Ring
  • Coats 8112107 Spring
  • Coats 8113390 Scraper
  • Coats 85610715 Side Shadow Board


        Coats Part Number 80015003D (1-Phase), 80015003D01 (3-Phase)
        Balancing Modes
        Wheel Diameter Range
        8″ - 30″
        Wheel Width Range
        2″ - 20″
        Maximum Tire Weight
        160 lbs
        Maximum Tire Diameter
        Up to 44″
        Shaft Diameter 40mm (1.57″)
        LED Display
        Automatic Data Entry
        Distance / Diameter / Width
        Electrical Requirements
        220V, 1 ph or 220V, 3 ph
        Footprint (WxDxH)
        57″ x 55″ x 75″
        616 lbs
        3 Year Parts, 6 Months Labor


         Need replacement parts? Call or email us and we can special order them for you!
