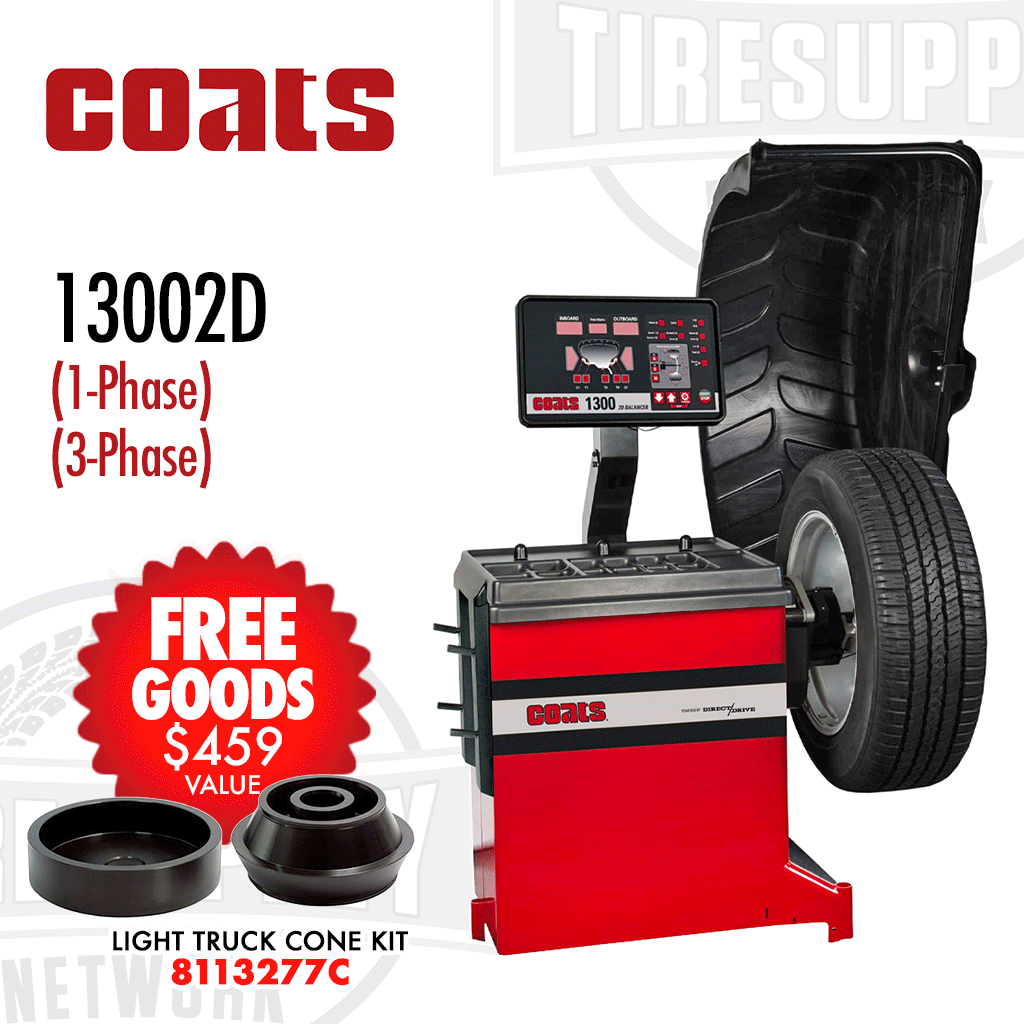

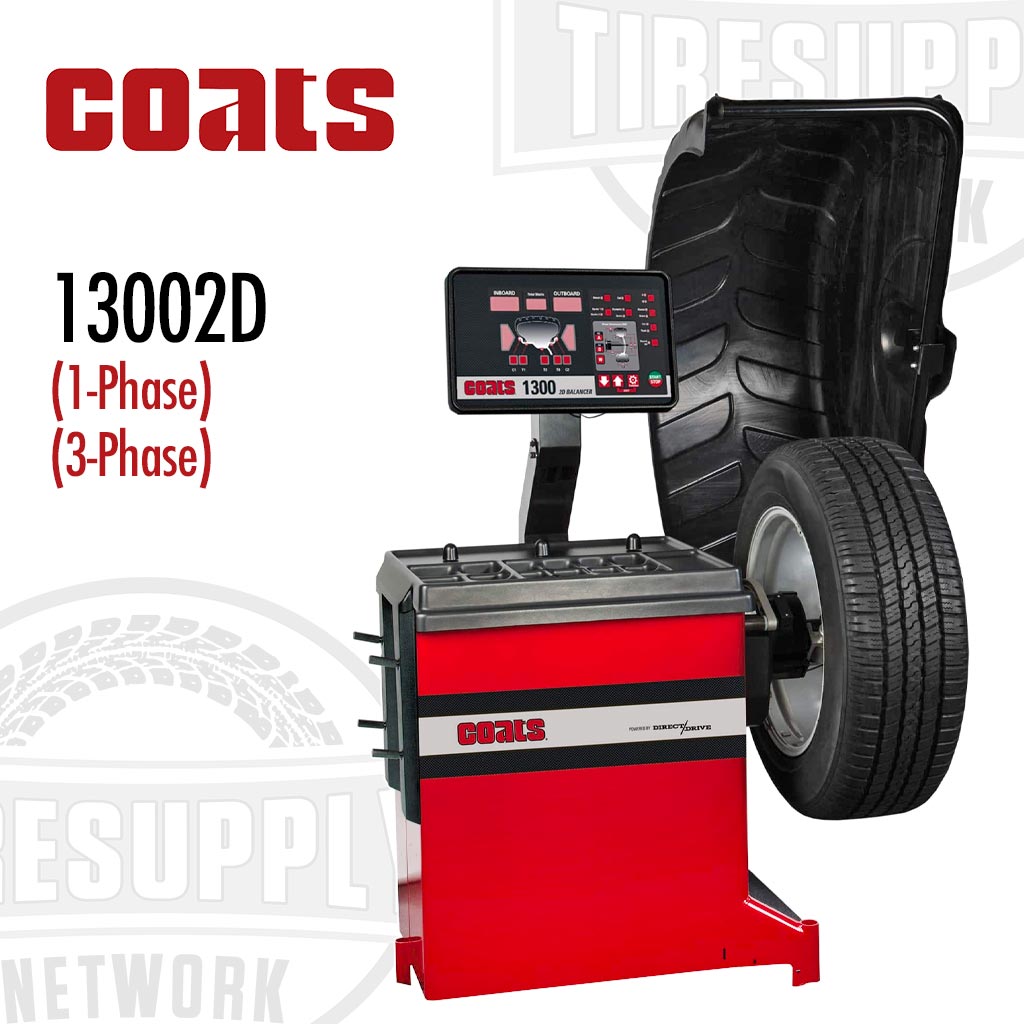

Coats | 1300 2D Direct Drive Wheel Balancer - 1-Phase (80013002D) or 3-Phase (80013002D01)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Packed with features for front line tire service! The Direct Drive Series combines the accuracy and durability of Coats Direct Drive system with an exclusive set of easy to use balancing features designed to get the job done right the first time, every time.

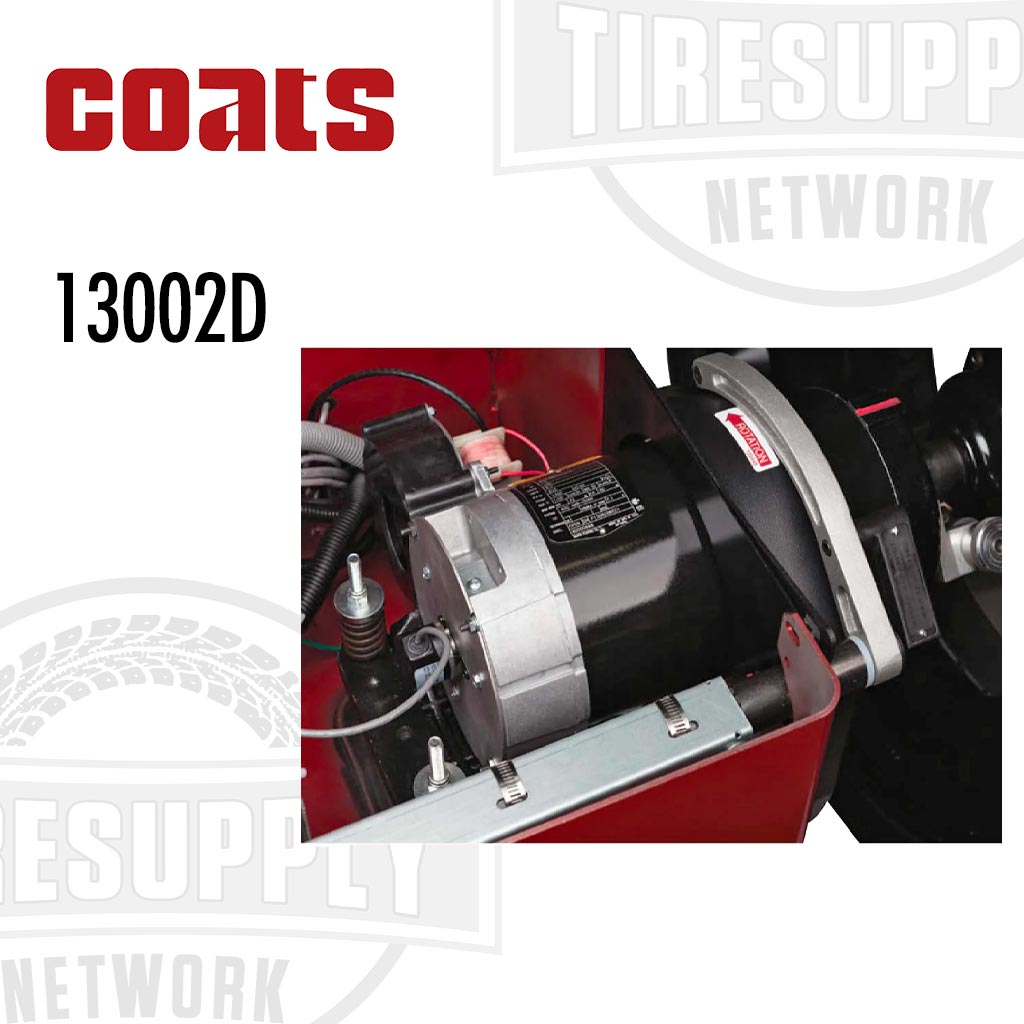

Powered By Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

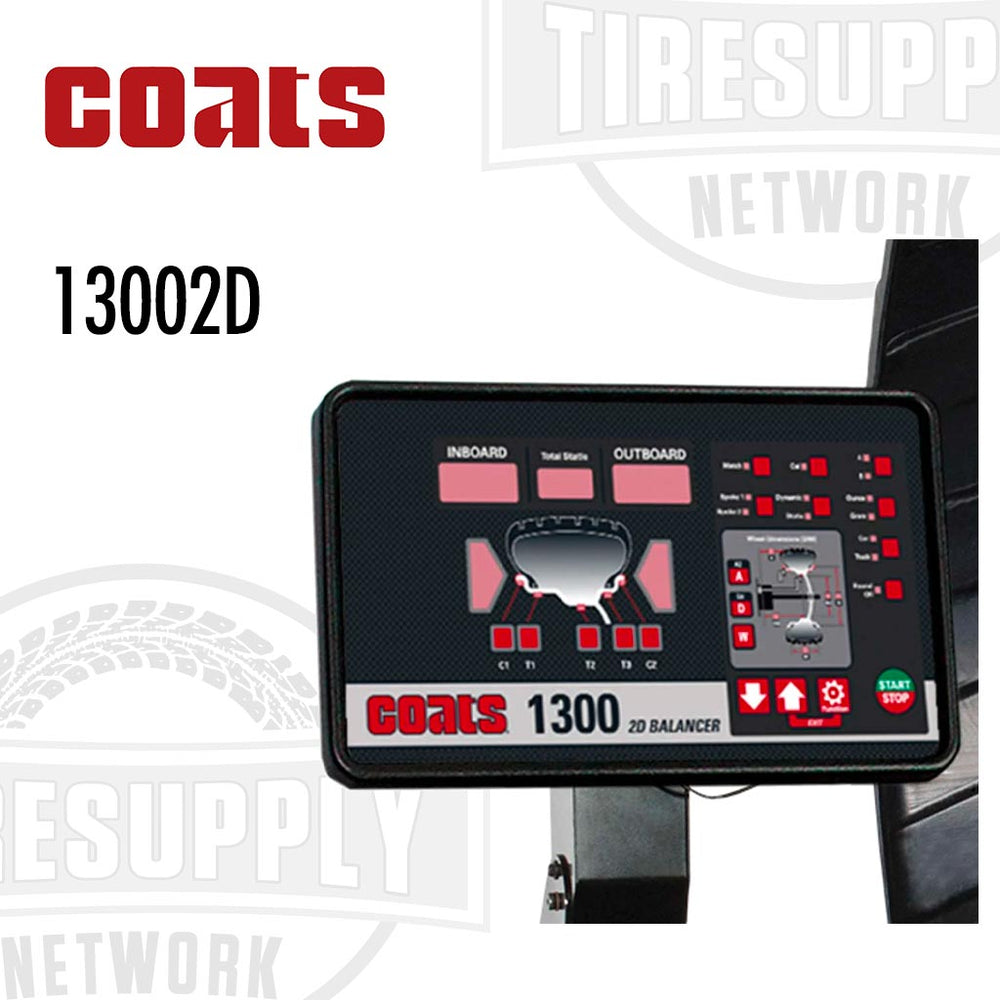

Static-On-Screen: Simultaneously displays both static and dynamic unbalance data.
2D Automatic Data Entry: Offers automatic data entry of distance and diameter. This eliminates the chance of technician error and speeds up the balancing.
Behind-The-Spoke: Behind-the-Spoke mode allows you to hide the Tape-A-Weight behind the spokes of a decorative wheel quickly and easily. This keeps the weights hidden from view. Now balancing more complex wheel designs, the Coats 1300 is faster and easier than ever before, plus you maintain a clean look on custom wheels for maximum customer satisfaction.
Weight Storage System: Weight bin is laid out logically so the weights you use most are right at your fingertips.
Side Peg Storage: The side Peg Storage comes standard on the 1300 Wheel Balancer for easy accessory storage.
Included Accessories:
- Coats 8112098 Small A Cone
- Coats 8112099 Medium B Cone
- Coats 8112100 Large C Cone
- Coats 8112101 Light Truck Back Cone - D Cone
- Coats 85607780 Premium Wheel Weight Hammer
- Coats 8110542 Small Pressure Cup & Rubber Lip
- Coats 8112107 Spring
- Coats 8309011 Calipers
- Coats 8112103 Hub Nut
- Coats 85608312 No Mar Ring
Specifications:
| Coats Part Number | 80013002D (1-Phase), 80013002D01 (3-Phase) |
| Balancing Modes |
8 |
| Wheel Diameter Range |
8″ - 30″ |
| Wheel Width Range |
2″ - 20″ |
| Maximum Tire Weight |
150 lbs |
| Maximum Tire Diameter |
Up to 44″ |
| Resolution (Round Off Mode) | 0.1 oz |
| Shaft Diameter | 40mm (1.57″) |
| Interface |
LED |
| Automatic Data Entry |
Distance / Diameter |
| Electrical Requirements |
220V, 1 ph or 220V, 3 ph |
| Footprint (WxDxH) |
60″ x 60″ x 78″ |
| Weight |
639 lbs |
| Warranty |
3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
