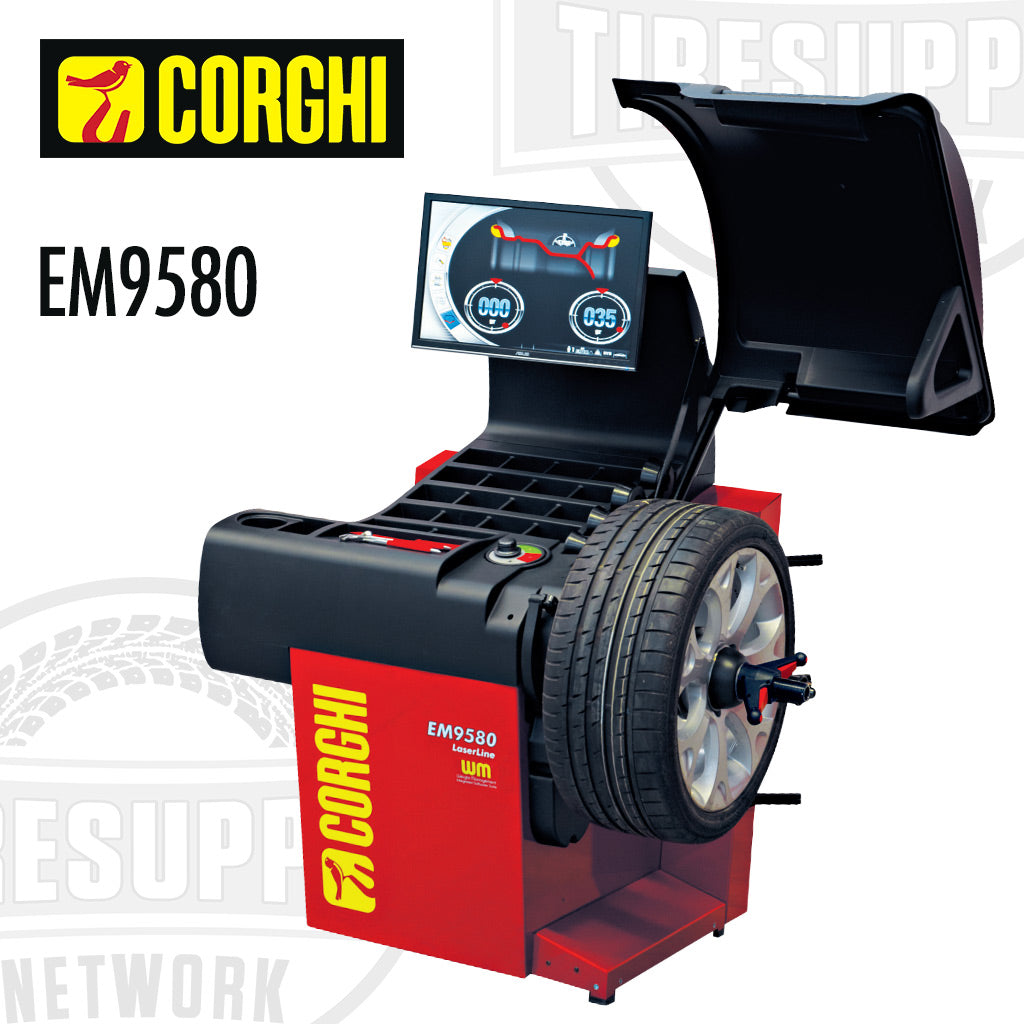

Corghi EM9580 | Plus LaserLine Wheel Balancer Graphics Display 3D Sonar (0-21109587/00)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Corghi EM9580 is a professional wheel balancer with automatic wheel dimension detection, automatic positioning, automatic width measuring, and weight management. NaviSystem controls and menu navigation are quick and easy. Just a click to directly access each program including Opt Flash, Hidden Weight, Split Weight, and Multi-Operator. Fast, accurate, reliable and easy-to-use. Manual wheel clamping with quick ring nut.
PRODUCT FEATURES:
- Wheel Dimension with Smart-Arm Plus
- Automatic Positioning and LED Light
- LaserLine Pointer for Application of Counterweights
- AWD Automatic Width Device
- Manual Clamping with Quick Ring
- Weight Management
- Sonar Run-Out & Best Fit Measurement
- Intelligent Positioning Lite
- USB Port for Software Upgrading
- Lan Port Port for Network Connection
- Inclined Front Part
- Ergonomic and Functional Weight Tray
Specifications:
| Power Supply Voltage: | 230V / 1ph / 50hz, 115V / 1ph/ 60hz |
| Total Power Absorption: | 400 W |
| Balancing Speed: | 75-85-98 rpm |
| Max. Unbalance Value Calculated: | 999 g |
| Unbalance Measurement Accuracy: | 1 g |
| Average Measurement Time: | 5.5 s |
| Shaft Diameter: | 40 mm / 1.57" |
| Rim Width Setting Range: | 1.5"-20" |
| Rim Diameter Setting Range: | 1"-35" |
| Rim Diameter Measurement Range: | 10"-28" |
| Max. Wheel Width: | 23.6" / 600 mm |
| Max. Wheel Diameter: | 44" / 1118 mm |
| Max. Wheel/Machine Distance: | 10.82" / 275 mm |
| Max. Wheel Weight: | 165.3 lbs. / 75 kg |
| Machine Weight: | 308 lbs. / 140 kg |
| Machine Dimensions: | 1453 x 894 x 1858mm |
| Warranty: | (3) Years Parts and (1) Year Labor |
