Chicago Pneumatic | SKU: CP7741-2

Chicago Pneumatic CP7741-2 | 1/2" Drive Impact Wrench with 2″ Extended Anvil

Name: Chicago Pneumatic CP7741-2 | 1/2" Drive Impact Wrench with 2″ Extended Anvil
Brand: Chicago Pneumatic
SKU: CP7741-2
Price: 229.99 USD
Availability: InStock

$229.99

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

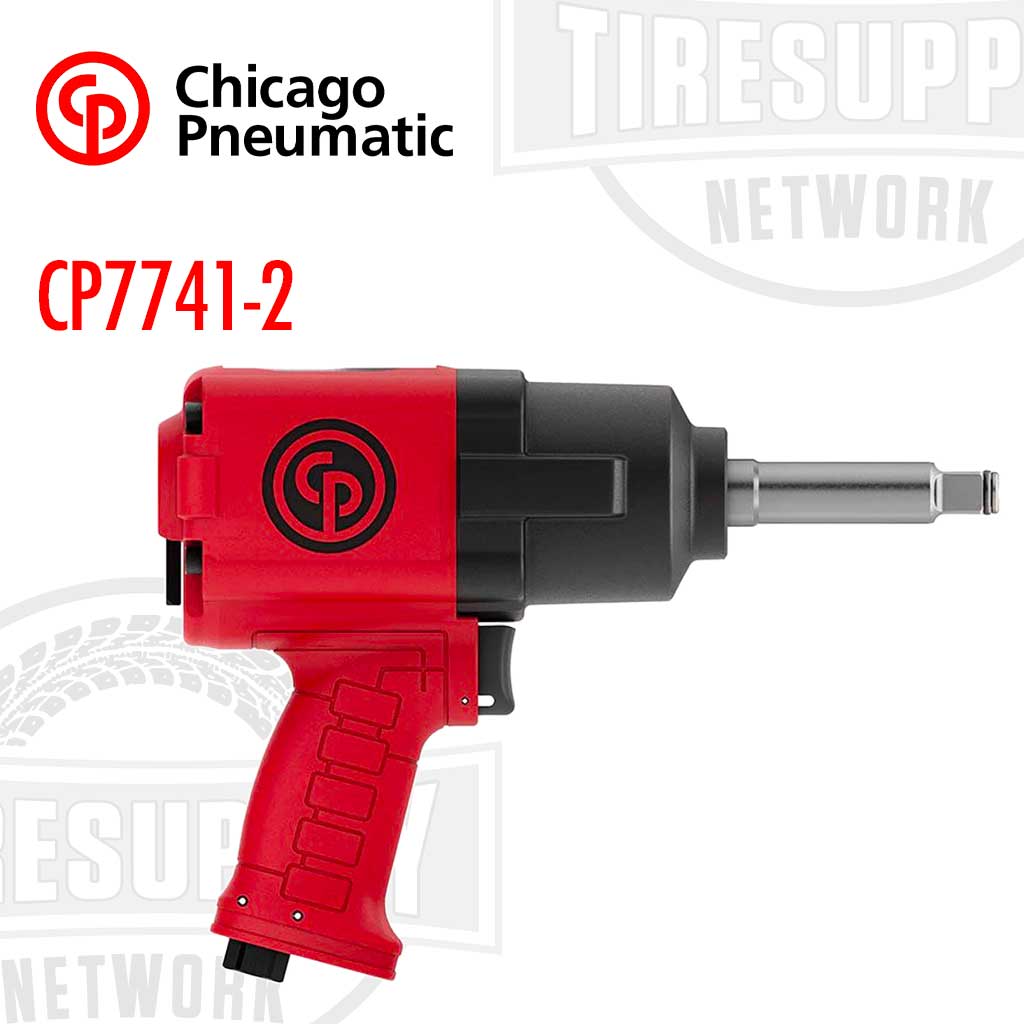

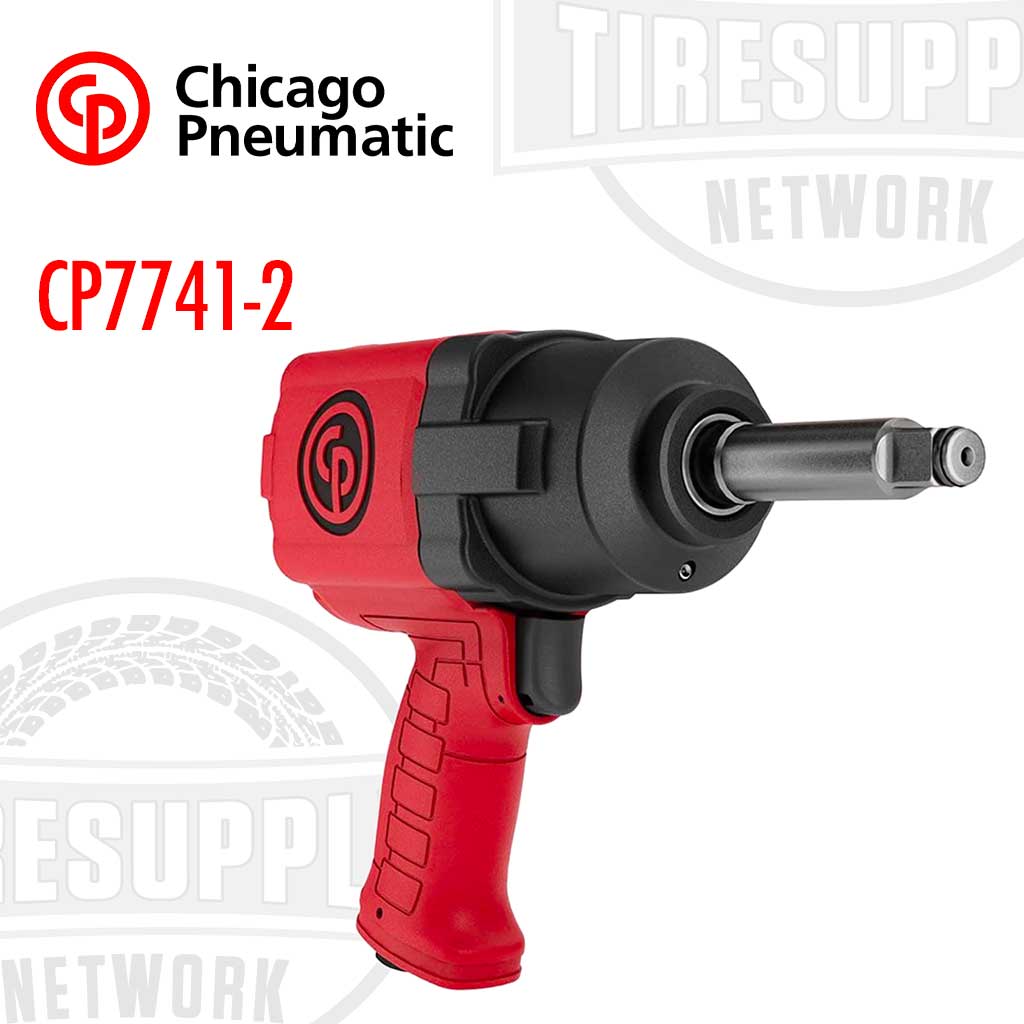

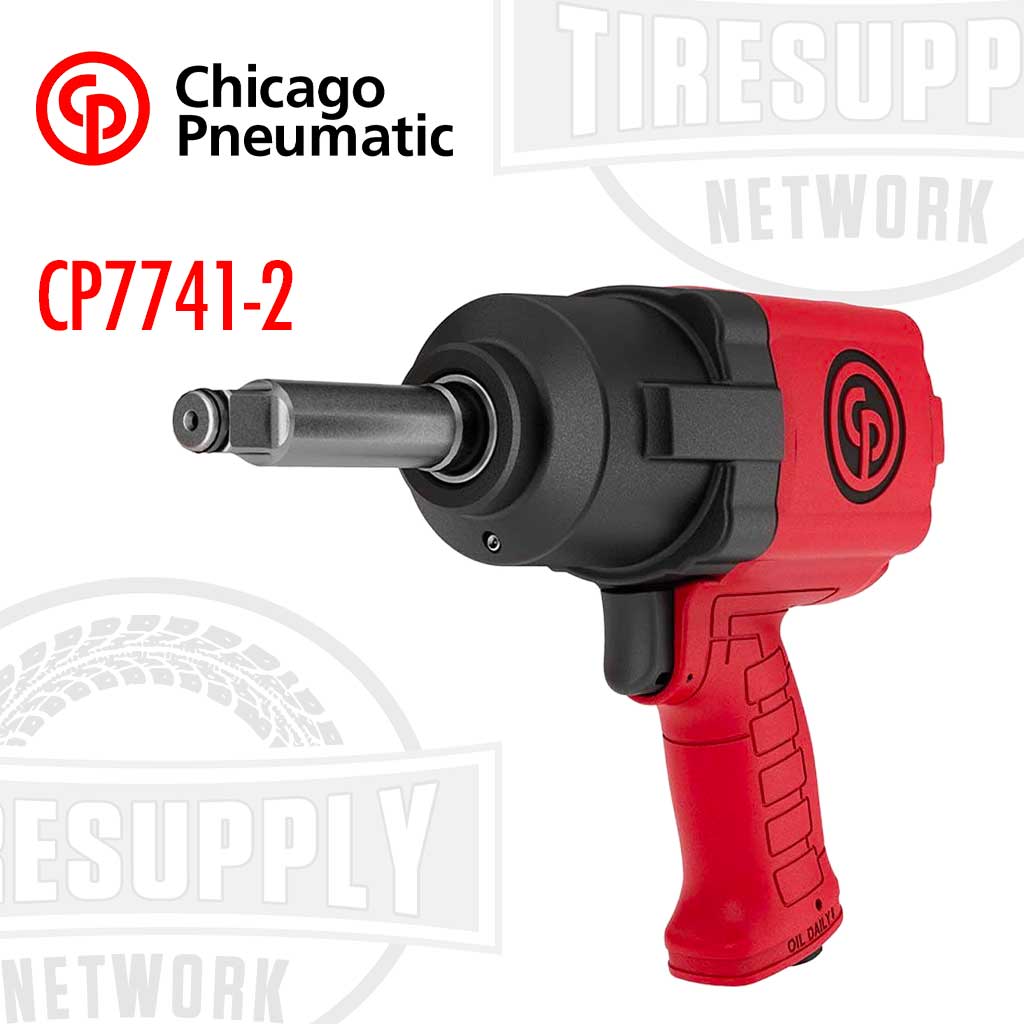

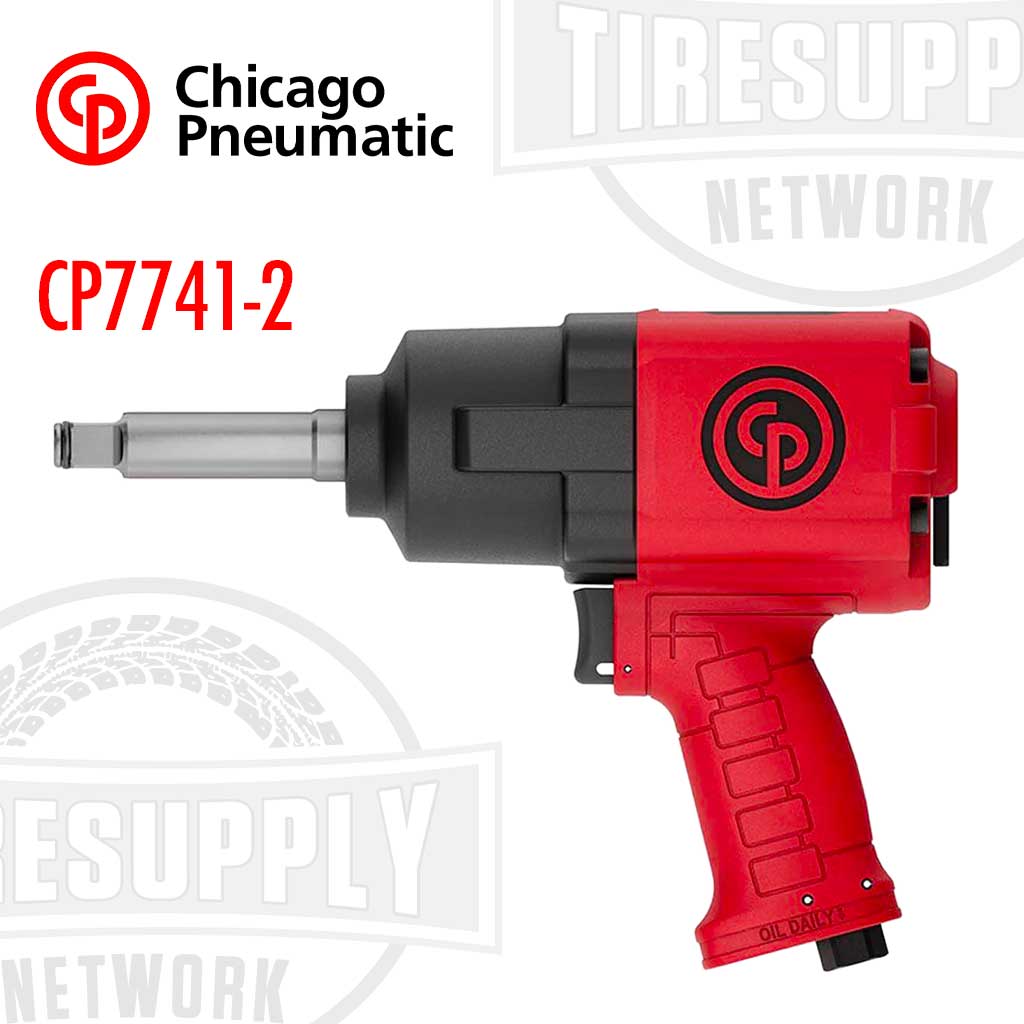

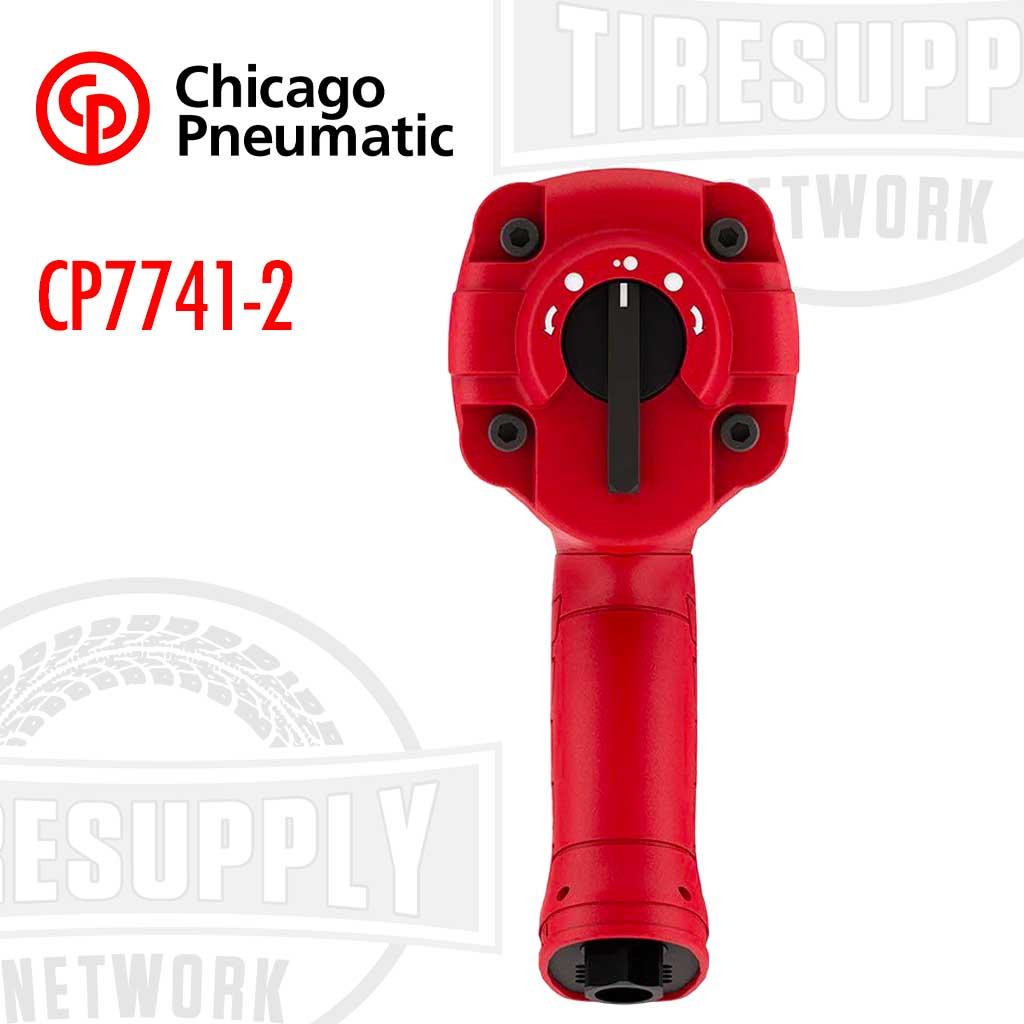

A red and black Chicago Pneumatic 1/2" drive impact wrench with a 2" extended anvil, model CP7741-2.

This item

Chicago Pneumatic CP7741-2 | 1/2" Drive Impact Wrench with 2″ Extended Anvil

$229.99

Qty

Chicago Pneumatic 1/2" Drive Impact Wrench with 2″ Extended Anvil (CP7741-2)

The Chicago Pneumatic CP7736-2 has been discontinued and replaced by the new CP7741-2.

For operators working in maintenance or tire changing applications who are looking for a powerful and durable tool with an affordable price, the CP7741 series 1/2″ pneumatic impact wrench is the best choice as it increases power by 8% compared to its former version (CP7736 series).

Features:

Qualitative parts (impact mechanism, motor, housing, etc.) as well as its attractive price make this series a great value
With only 5.18 lbs and being 15% lighter than its former version (CP7736 series), the CP7741-2 offers high comfort to its operators
Less heat transfer between the motor and the handle is provided thanks to its composite housing
3 Forward Settings: 147 ft.lbs, 273 ft.lbs, 450 ft.lbs
1 Reverse Setting: 715 ft.lbs

TECHNICAL DATA	CP7741-2
Manufacturer Part Number	8941077412
Air Inlet Thread Size	1/4″
Clutch Type	Double-Dog
European Standards	EN ISO 11148-6:2013
Free Speed	10000 rpm
Free Speed Air Consumption	4.45 cfm
Handle Type	Pistol
Height	7.20″
Length	9.65″
Maximum Torque (Reverse)	715 ft.lbs
Minimum Hose Size	3/8″
Net Weight	5.18 lbs
Side to Center	1.5″
Socket Retainer	Friction Ring
Sound Power	104 db(A)
Sound Pressure	93 db(A)
Square Drive	1/2″
Vibration	9.4 m/s²
Vibration ISO	ISO-28927-2
Vibration Uncertainty (K)	3.8 m/s²
Width	2.99″
Working Torque Range (FWD)	90 - 510 ft.lbs
