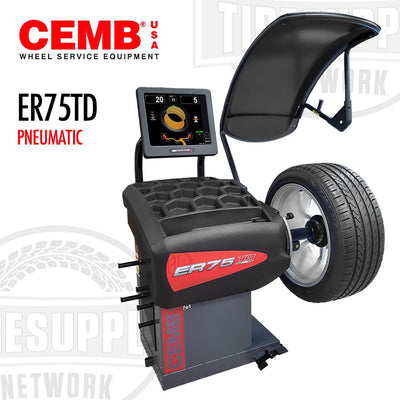

CEMB ER75TD | Diagnostic RFV Dynamic AutoAdaptive OPB Wheel Balancer - Pneumatic HubMatch®

CEMB ER75TD | Diagnostic RFV Dynamic AutoAdaptive OPB Wheel Balancer - Pneumatic HubMatch®

🏁TSN TIP :

The ER75TD is the ideal starting point in the CEMB ER family because it provides the speed and precision that CEMB balancing equipment is known for while maintaining an attractive price point. Compared with the ER90, ER100GT, and 2-HIT, the ER75TD emphasizes simplicity and value while still delivering the advanced balancing technology modern shops expect. For independent repair facilities and growing tire shops, the ER75TD is often the perfect balance between capability and affordability.

A high volume RFV diagnostic wheel balancer, which comes in two variations, uniquely uses advanced balancing features such as our Dynamic AutoAdaptive with One-Plane Balancing and RFV measurement combined with HubMatch. All the best features from CEMB balancers are combined with HubMatch to ensure the assembly is round when rolling on the vehicle. The ER75TD comes standard with pneumatic locking.

Key Features:

• One Plane Balancing (OPB)
• AutoAdaptive Mode
• HubMatch®
• Automatic Approach
• Touch Screen
• Laser Spotter
• EMS Sonar
• Ergonomic Design

Standard Features:

• Radial Force Vectoring
• Fast 5-second cycle time.
• AutoAdaptive, Dynamic OPB balancing software.
• CEMB balancing software on a touchscreen automatically resolves residual static unbalance commonly left behind when dynamically balancing with traditional balancers causing hidden vibration complaints.
• An automatic laser spotter highlights the exact tape-on weight locations.
• Automatic LED lighting at the inside of the wheel greatly increases visibility.
• Automatic 3D direct weight placement (distance, diameter and width measurements) are included standard.  No manual key pad entry required to balance wheels.
• Electro-magnetic brake holds the wheel for more accurate weight placement.
• Automatic Approach system allows for faster floor to floor time.
• Made in Italy. Final assembly in USA.
• Power Supply: 220V, 1ph.

Technical Specs:
