BendPak | 2-Post Lift 9,000 lb Capacity Floorplate GP-9LC (5175825)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.

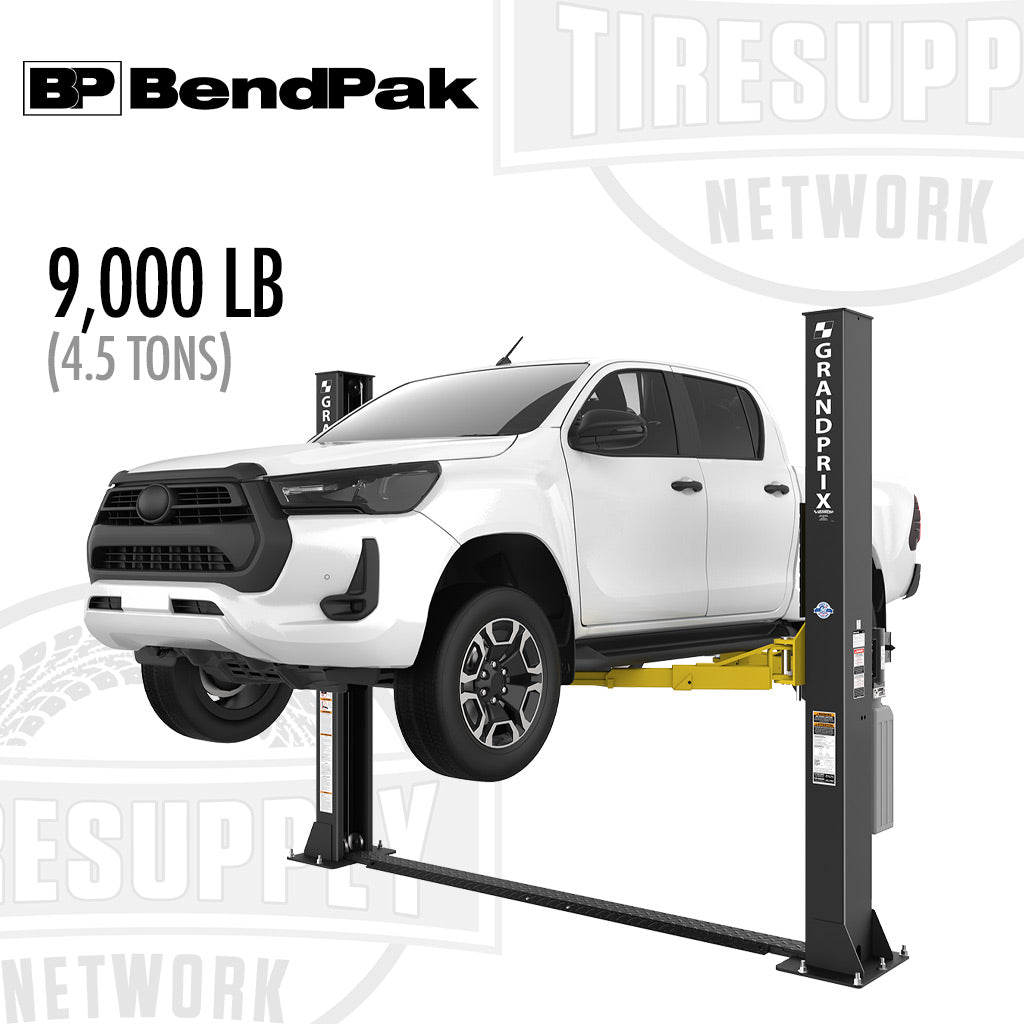

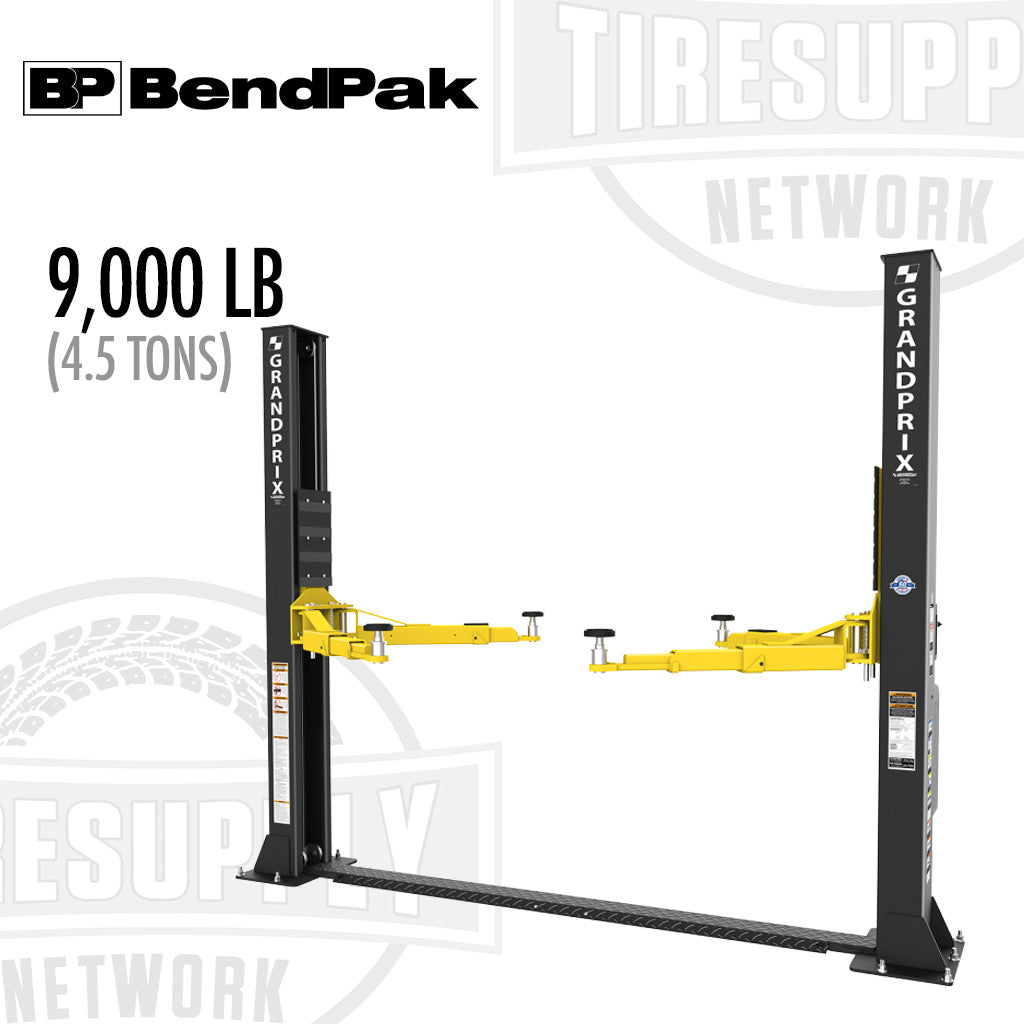

The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.
GrandPrix GP-9LC
- 9,000-lb lifting capacity
- Symmetric and asymmetric arm design for enhanced versatility
- Tripple-telescoping front arms & dual-stage extended rear arms
- Heavy duty 6x6 tubular steel carriage for maximum strength
- Electric hydraulic power system
- Oversized 20.5" x 15.5" base plate for increased stability
- Safety Locks in each column spaced every 3 inches
- Self-lubricating UHMW polyethylene guid books for long lasting durability
- Automatic arm restraints for enhanced safety
- Heavy duty 1/2 aircraft quality equalizer cables
- Oversized cable sheaves to reduce cable fatigue

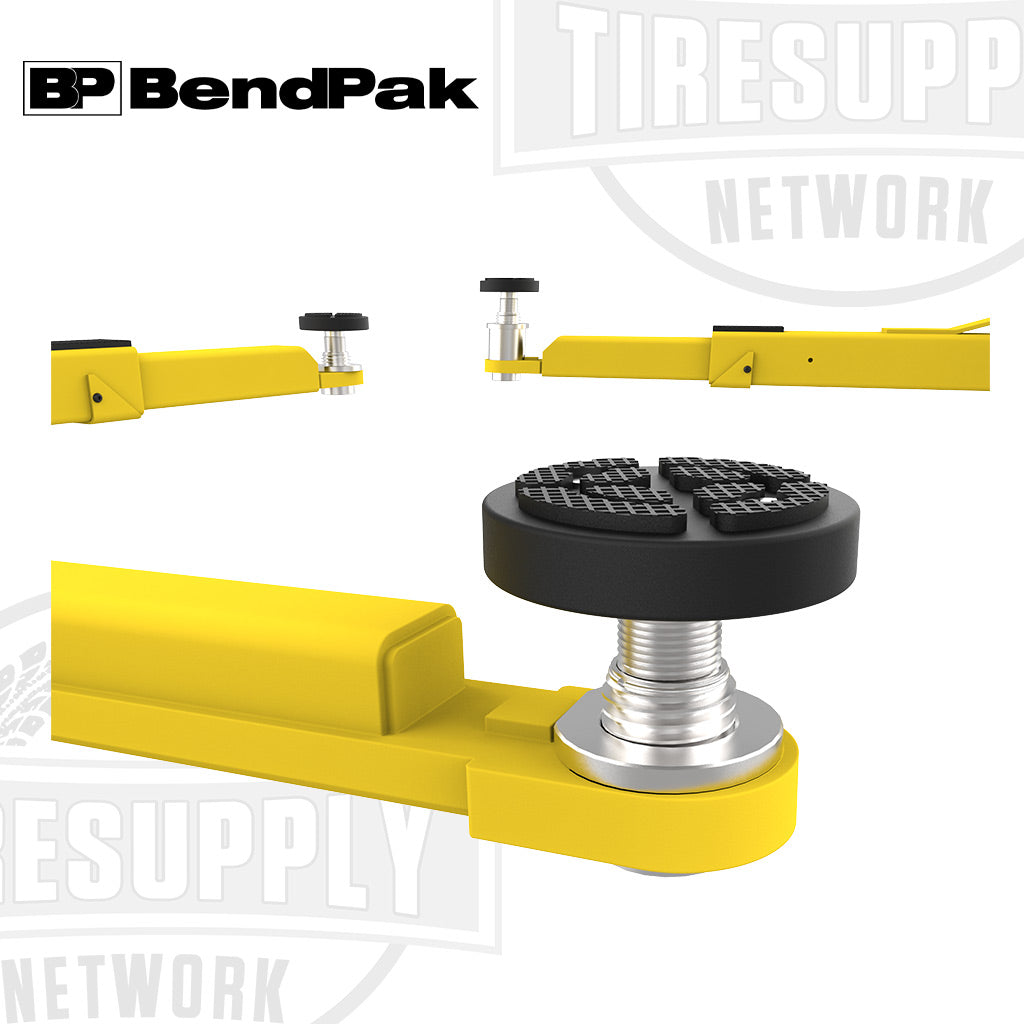

- Double telescoping screw pads feature tear resistant polyurethane for long lasting durability

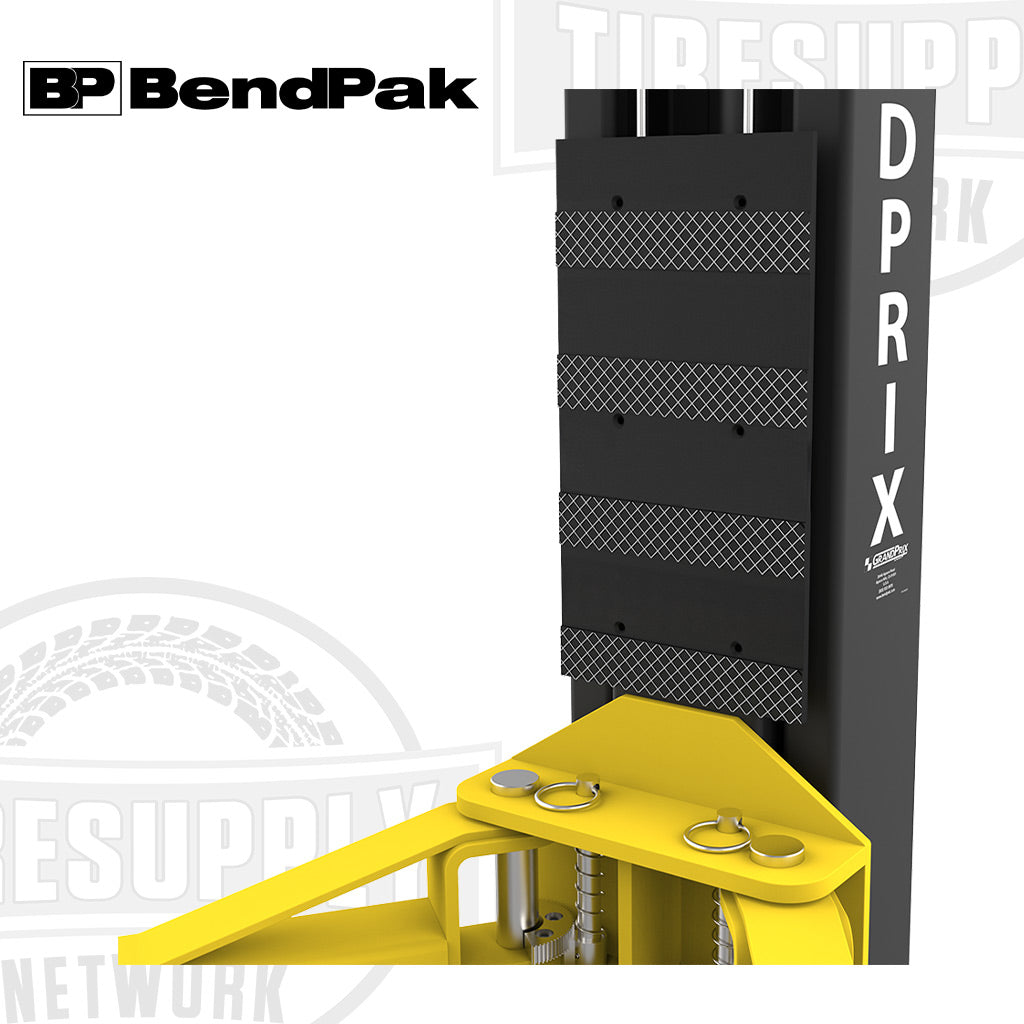

- Full size rubber carriage guard reduces door dings

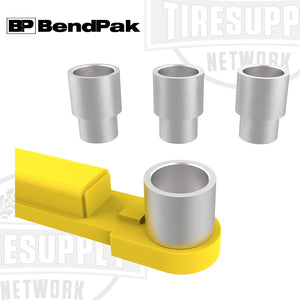

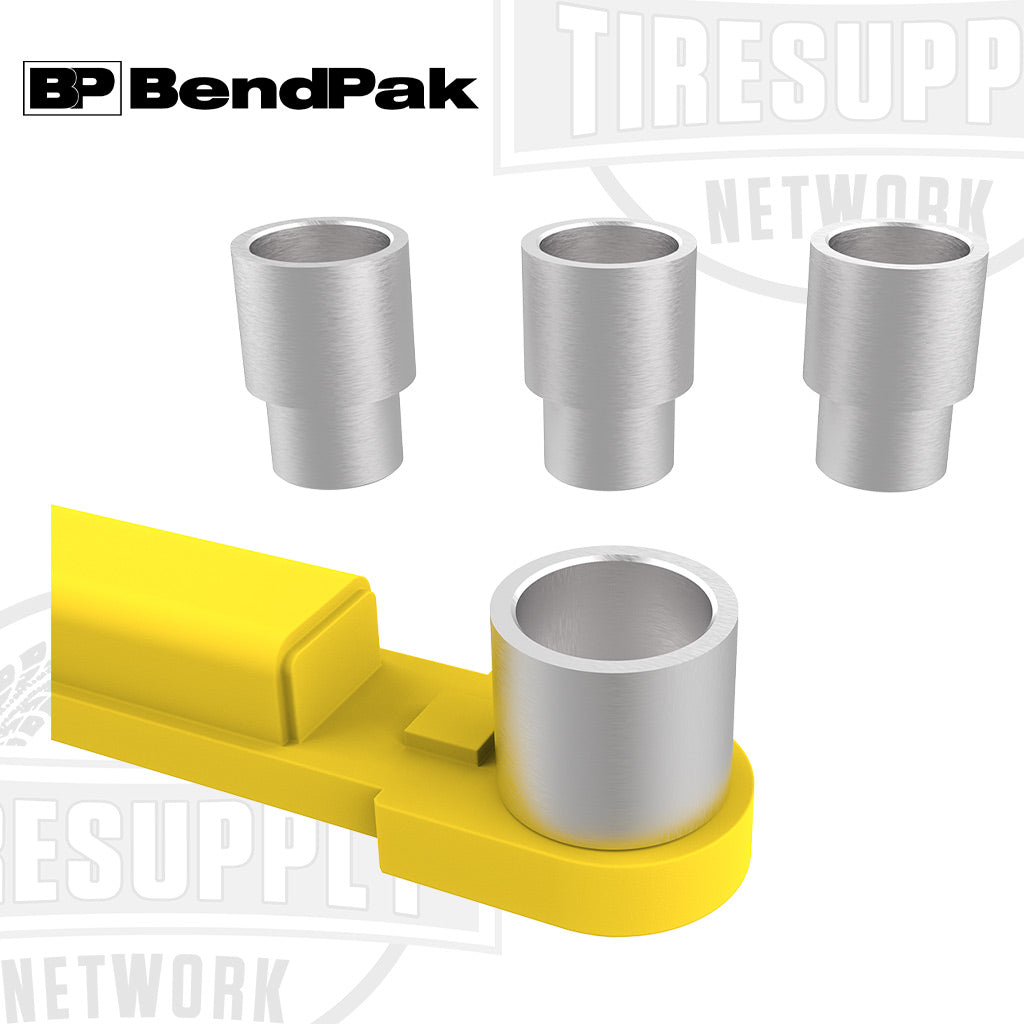

- 4 piece 63mm stackable adapter set included
- 10 piece concrete wedge anchors
- 36 month limited waranty
| CAPACITY | |
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Max Capacity / Front Axle | 4,500 lbs. (2,045 kg) |
| Max Capacity / Rear Axle | 4,500 lbs. (2,045 kg) |
| A.Height Overall | 109.5" (2,781 mm) |
| B.Width Overall (at Baseplate) | 137.25" (3,486 mm) |
| C.WidthOutside Columns | 127.5" (3,226 mm) |
| D. Floor To Drive Over Height | 1.25" (30 mm) |
| E. Width Inside Columns | 113.5" (2,880 mm) |
| F. Front Arm Reach (Min.) | 22.5" (571 mm) |
| F. Front Arm Reach (Max.) | 43.25" (1,099 mm) |
| G. Rear Arm Reach (Min.) | 33.5" (845 mm) |
| G. Rear Arm Reach (Max.) | 53.25" (1,353 mm) |
| H. Min. Pad Height | 3.9" (100 mm) |
| I. Rise | 70" (1,778 mm) |
| J. Max. Lift Height (Pad + 63mm Adapt.) | 76.5" - 78.5" (1,943 - 1,994 mm) |
| K. Drive-Thru Clearance | 103" (2,618 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Motor | 220 VAC / 60Hz / 1 Ph |
| Time of Full Rise | 65 seconds |
| Max. Load Per Arm | 2,250 lbs. (1,023 kg) |
| Shipping Weight | 1,385 lbs. (630 kg) |
INFORMATIONAL LINKS:
- Study in Lift Designs > CLICK HERE
- Electrical & Utility > CLICK HERE
- Concrete Specs > CLICK HERE
- Specifications> CLICK HERE
- Warranty > CLICK HERE
- Balancing Safety > CLICK HERE
- How to Level > CLICK HERE
- Best Car Lift Guide > CLICK HERE
- Things to Know > CLICK HERE
DETAILS
THE ULTIMATE BLEND OF PERFORMANCE, SAFETY, AND VERSATILITY
Designed for both professional shops and serious home mechanics, the GrandPrix GP-9LC strikes the perfect balance of power, reliability, and efficiency. With a 9,000-lb. lifting capacity, this versatile two-post lift is built to handle anything from nimble compact cars to full-size pickups. Its dual symmetric and asymmetric lifting options let you position the arms exactly where you need them, making it easy to tackle a wide range of vehicles with confidence. Whether you're wrenching on a daily driver or a weekend project, the GP-9LC delivers pro-level performance without compromise.
The low ceiling floorplate design is designed to maximize overhead clearance by eliminating the restrictive top crossbar. This means you get full lifting capability for taller vehicles without worrying about height interference. Perfect for garages with low ceilings, this design keeps your workspace open while delivering the 9,000-lb. lifting power you need. Upgrade to the GP-9LC floorplate lift and get the flexibility your shop demands.
TIRED OF WASTING TIME POSITIONING VEHICLES?

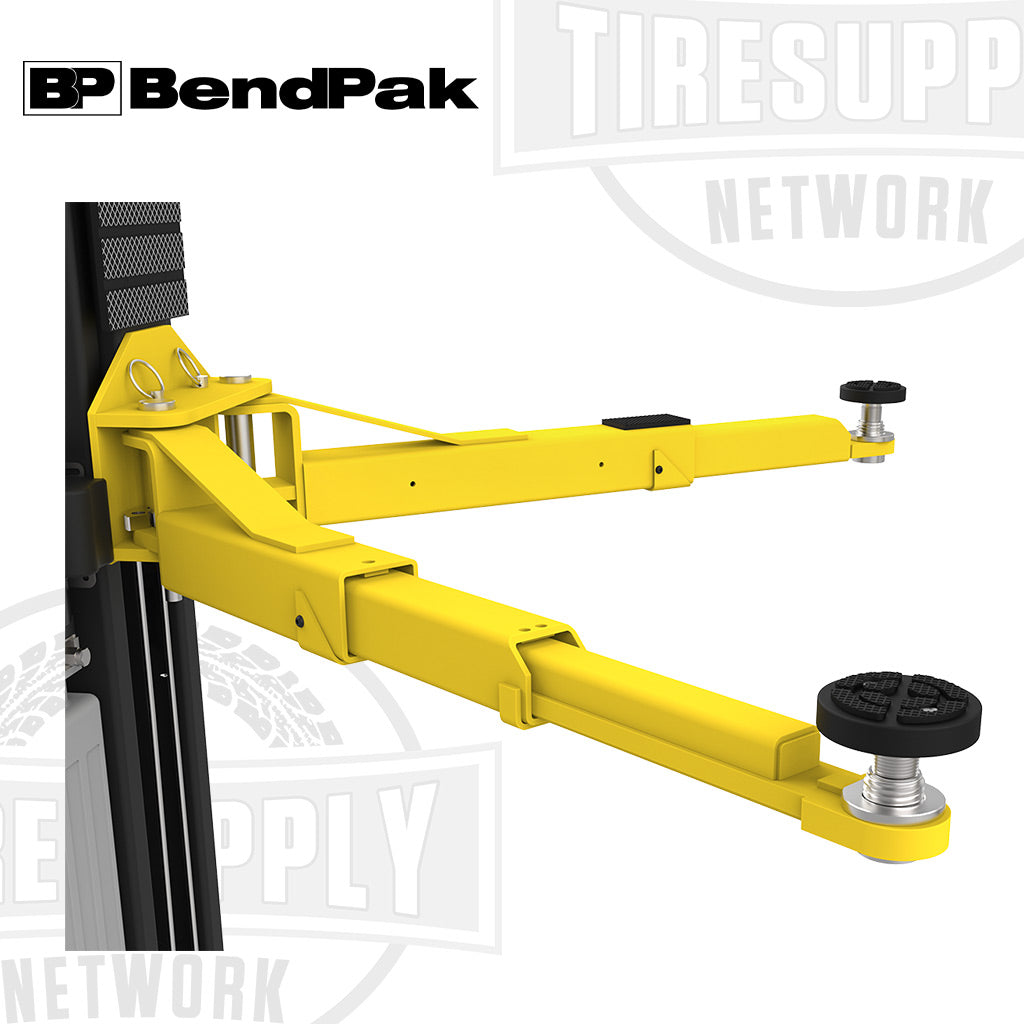

Getting a vehicle properly positioned on a two-post lift can be a hassle—but the GrandPrix GP-9LC takes the guesswork out of the equation. Triple-telescoping front arms and dual-stage extended rear arms provide exceptional reach, making it easy to lift everything from low-slung sports cars to full-size trucks. Double-telescoping screw pads and a 4-piece stackable adapter set ensure rock-solid contact with virtually any frame design, giving you the stability and confidence to work on any vehicle like a pro.
BUILT FOR SAFETY AND STABILITY
A reliable lift is one that keeps both you and your vehicle protected. The GP-9LC is equipped with automatic safety locks that engage every three inches, ensuring rock-solid security throughout the lift range. Designed for trouble-free operation, these locks release effortlessly via single-pull lanyards on each carriage, providing maximum safety without unnecessary complexity.

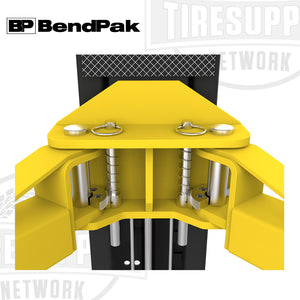

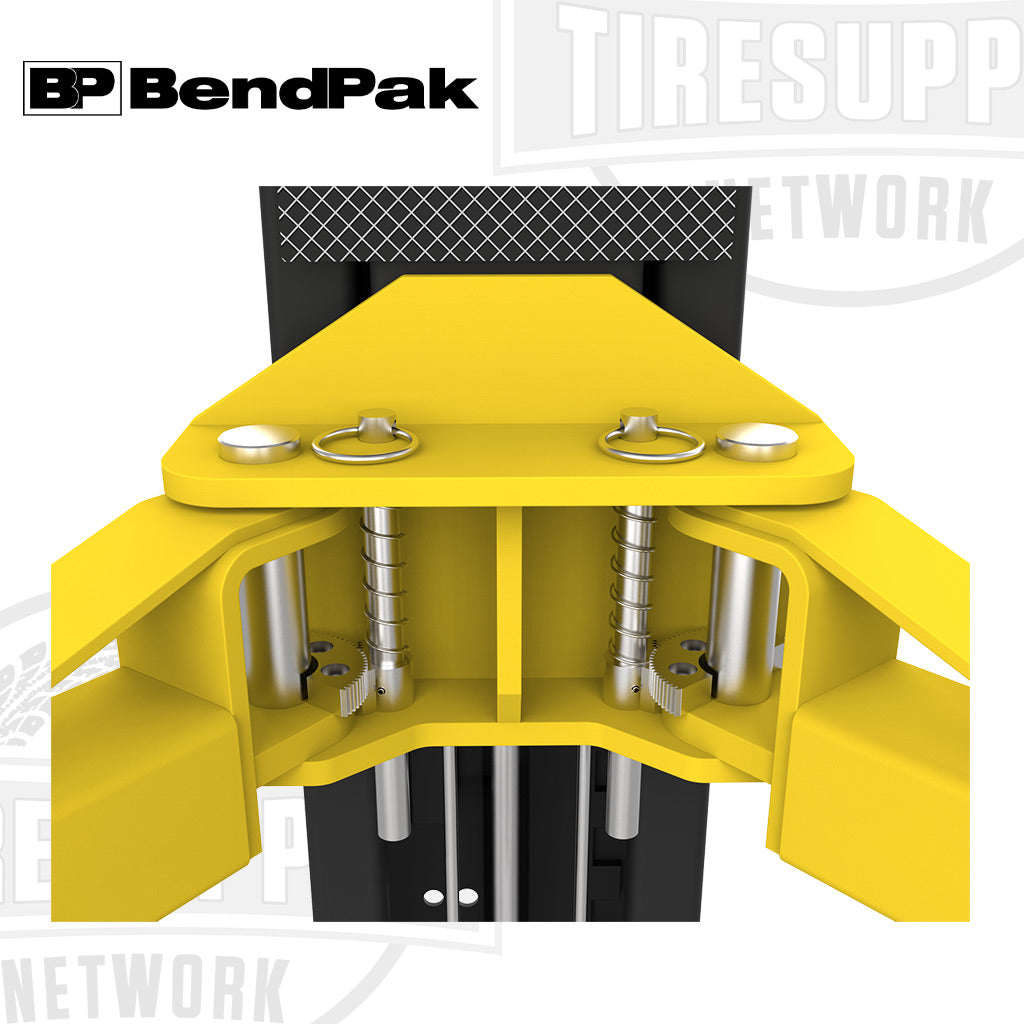

For added security, automatic arm restraints secure the arms in place when the lift is raised, preventing unintended movement during service.
POWER AND DURABILITY YOU CAN TRUST

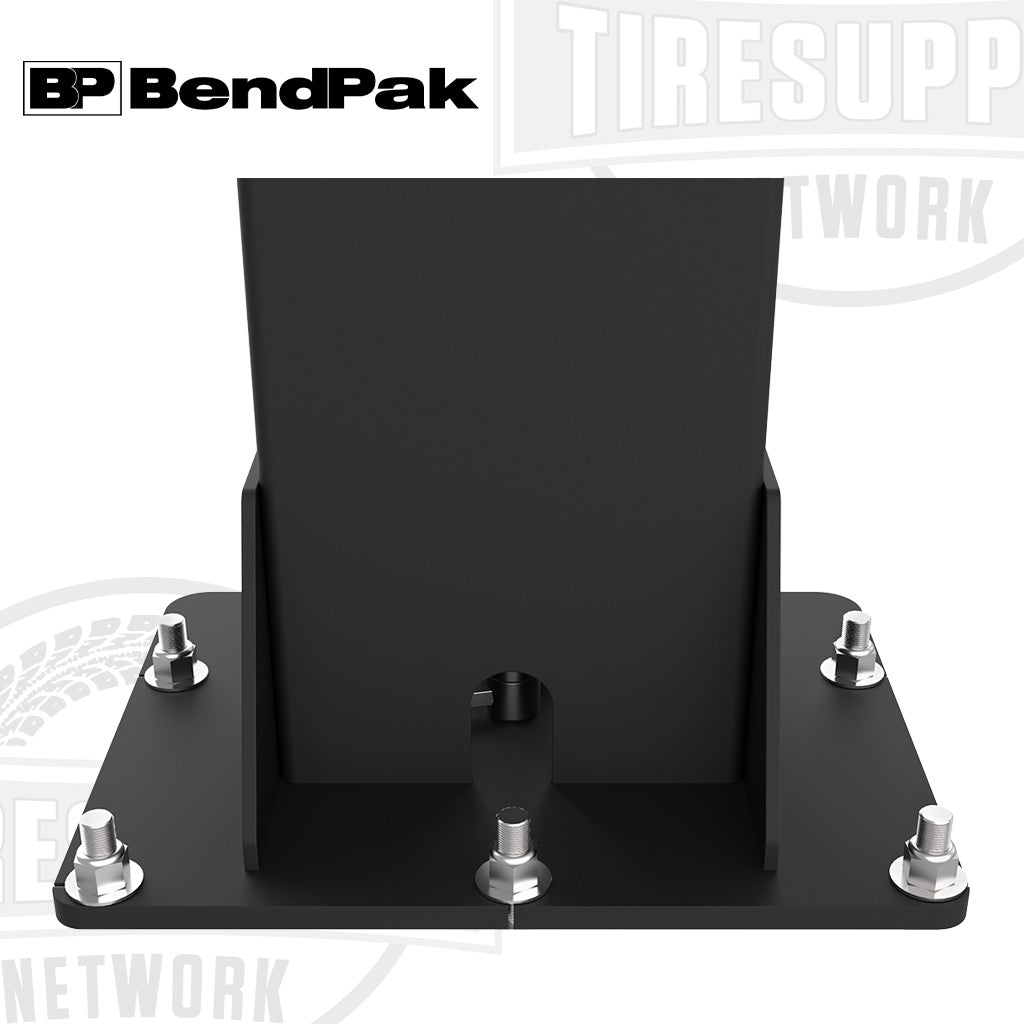

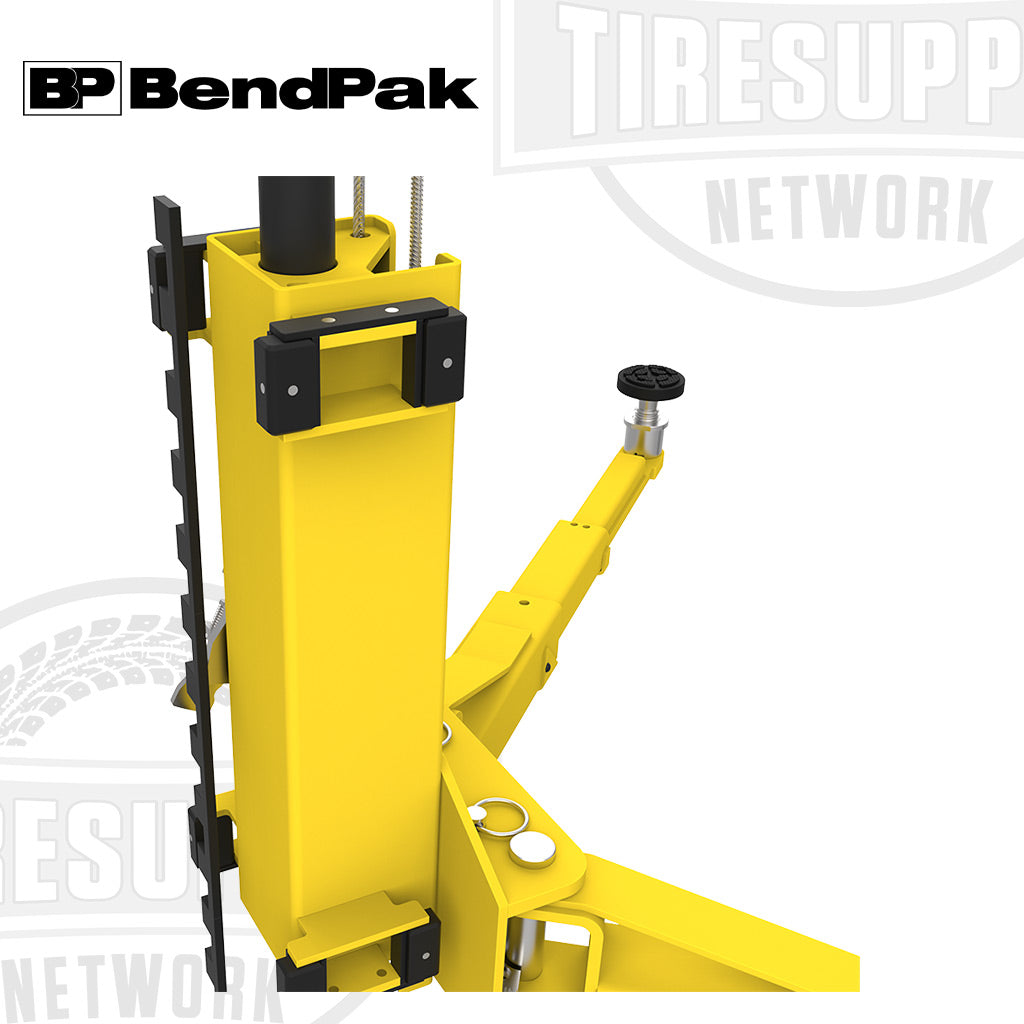

Designed to handle the rigors of daily shop use, the GrandPrix GP-9LC is built tough with high-strength steel and reinforced components for unmatched durability. Its 6” x 6” tubular steel carriage delivers superior load-bearing strength, while the electric-hydraulic power system keeps operation smooth, quiet, and efficient. Stability is key, and the oversized 20.5” x 15.5” base plates ensure even weight distribution, so you get rock-solid lifting performance you can trust—day in, day out.
LOW MAINTENANCE, HIGH PERFORMANCE

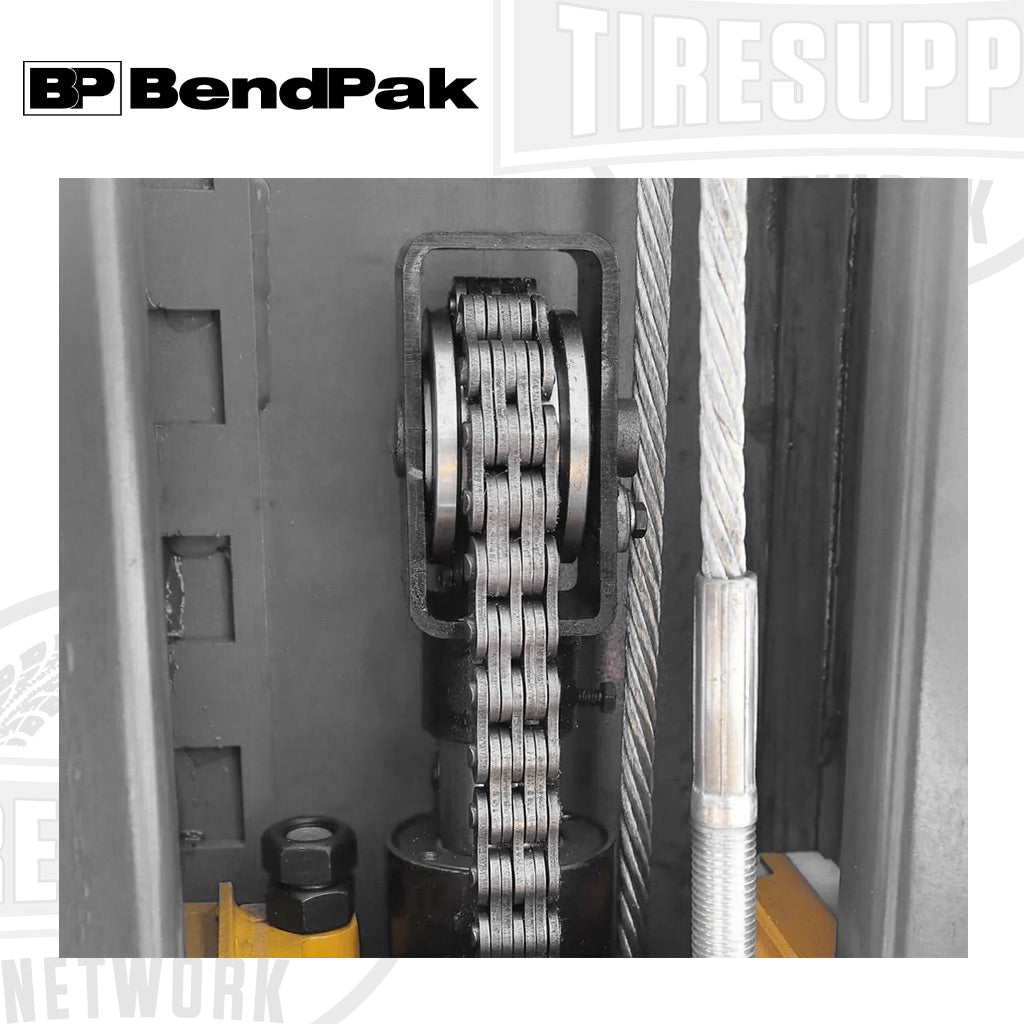

The GP-9LC is built on a proven chain-over design, utilizing an industrial-grade leaf chain engineered for extreme durability and strength. Manufactured to ANSI standards and engineered for demanding lifting applications, this heavy-duty chain is extremely durable and resistant to wear, ensuring it can withstand serious loads and frequent use. Unlike other systems that stretch or degrade over time, the GP-9LC is built for longevity, maintaining its integrity even under high stress and repeated lifting cycles.
Adding to its durability, the GP-9LC features oversized heavy-duty rollers with Zerk grease fittings—a premium upgrade that sets it apart. These rollers are long-lasting, self-lubricating, and incredibly easy to maintain, virtually eliminating premature wear with minimal care. The combination of high-strength chain and precision-engineered rollers significantly increases the working load capacity and shock resistance of the lift, ensuring smooth, consistent performance in even the most demanding environments.
36-MONTH WARRANTY FOR PEACE OF MIND
When you invest in the GrandPrix GP-9LC, you’re backed by BendPak’s industry-leading 36-month warranty, covering structural components and craftsmanship. With BendPak’s renowned customer support and a nationwide network of service providers, expert assistance is always within reach.
This isn’t just a lift—it’s a long-term investment in your shop’s efficiency, safety, and productivity. You work hard, and you need equipment that works just as hard as you do.
Need replacement parts? Call or email us and we can special order them for you!
