Rotary | Commercial HD Heavy Duty Truck Tire Changer (R541)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

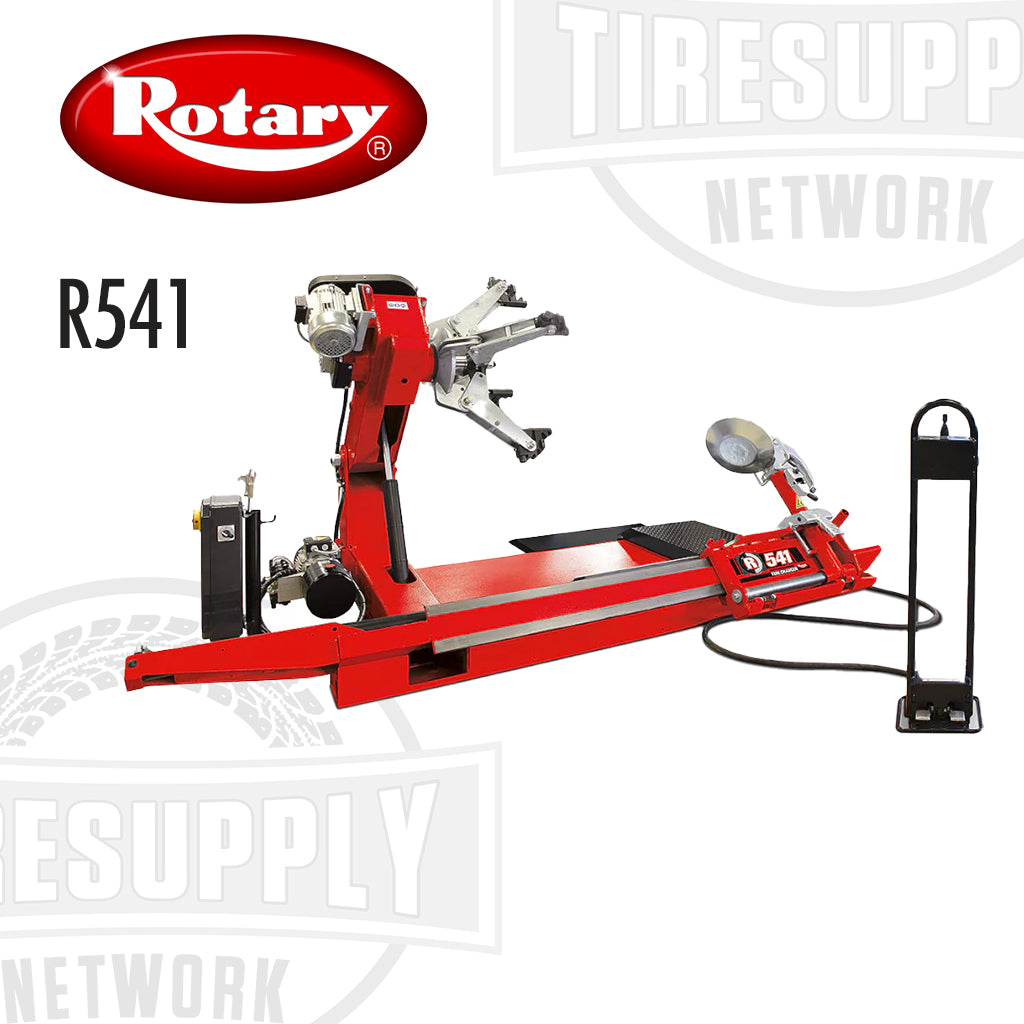

Rotary | Commercial HD Heavy Duty Truck Tire Changer (R541)

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The dimensions and work strokes ensure maximum efficiency for an entire range of tires. The two-speed rotation chucking table can accommodate rims up to 44” and 56” (with the VSG108A12 extensions set). With leverless action, the tool operates between bead and rim, pulls up the bead, and demounts the tire.

  • Leverless
  • Single Carriage Movement
  • Electro-hydraulic Changer For Trucks, Agricultural, And Earthmoving Vehicles
  • Service Tire Diameters Up to 90″
  • Made in Italy

Features:

  • Leverless operation for tube and tubeless tires.

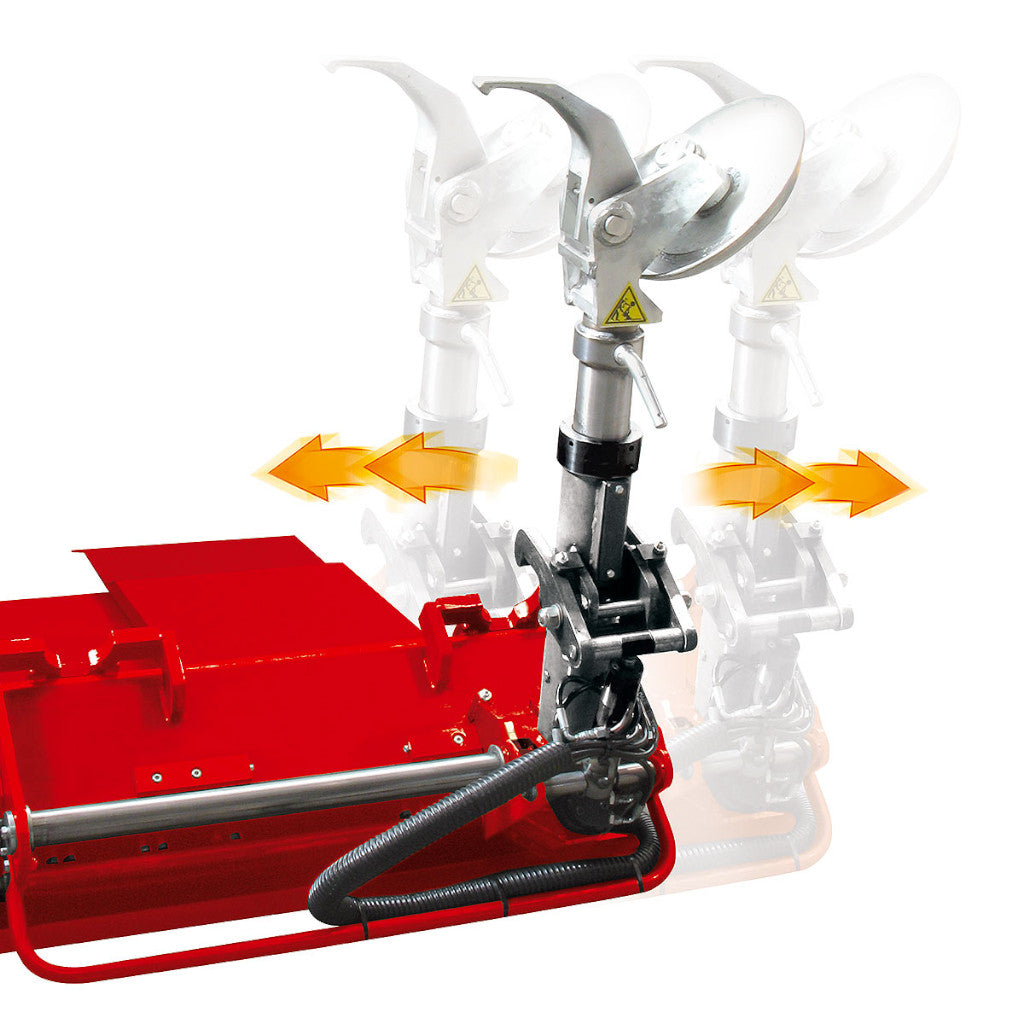

  • Hydraulic arm movement.

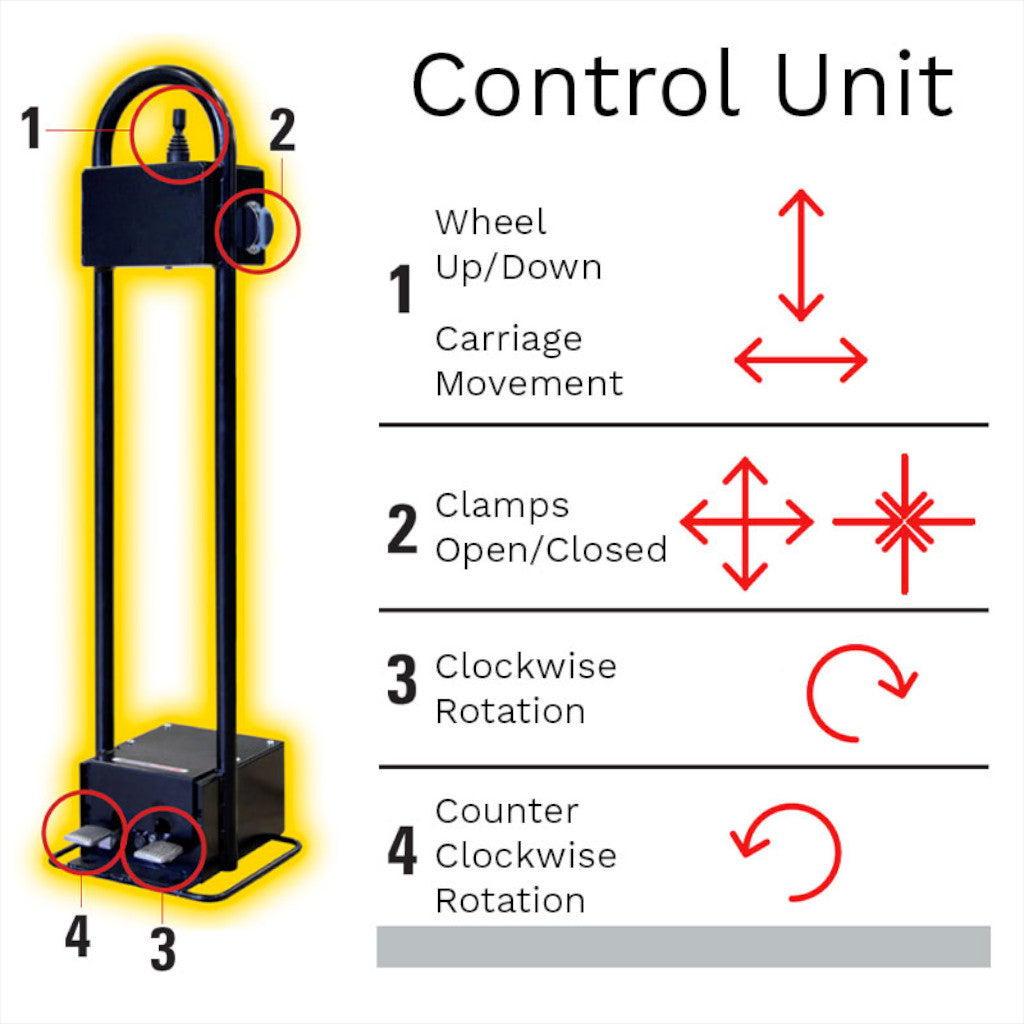

  • Wired cable control unit.
  • Rotational control on portable wired stand.
  • Double ratcheting locking arm.
  • Double speed for chucking table rotation.
  • Aluminum adapters standard.

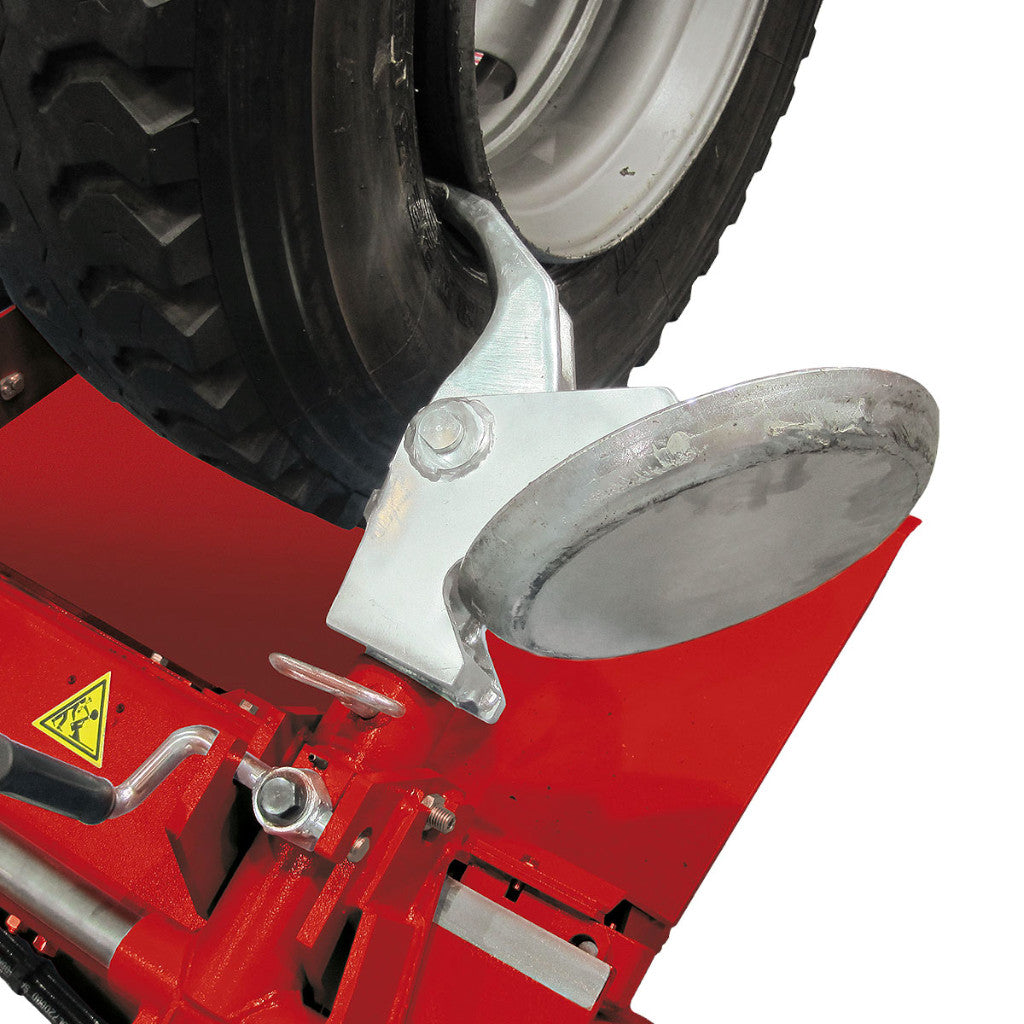

  • Patented VSG108A3 bead lever.
  • Tire paste lubricant and brush.

Warranty: 3 years on parts, 1 year on labor

Specifications:

TECHNICAL DATA  R541
Chucking unit rotation motor 1.75 Hp / 1 - 1.3 kW
Hydraulic drive unit motor 2.95 Hp / 2.2 kW
Rim diameter 11” - 43”
Rim diameter with VSGA108A12 adapters 44” - 56”
Maximum tire diameter 90.5” (2,300 mm)
Maximum tire width 51” (1,300 mm)
Chuck rotation speed (rev/min) 4 - 8
Power supply 220v / 3Ø / 60 Hz
