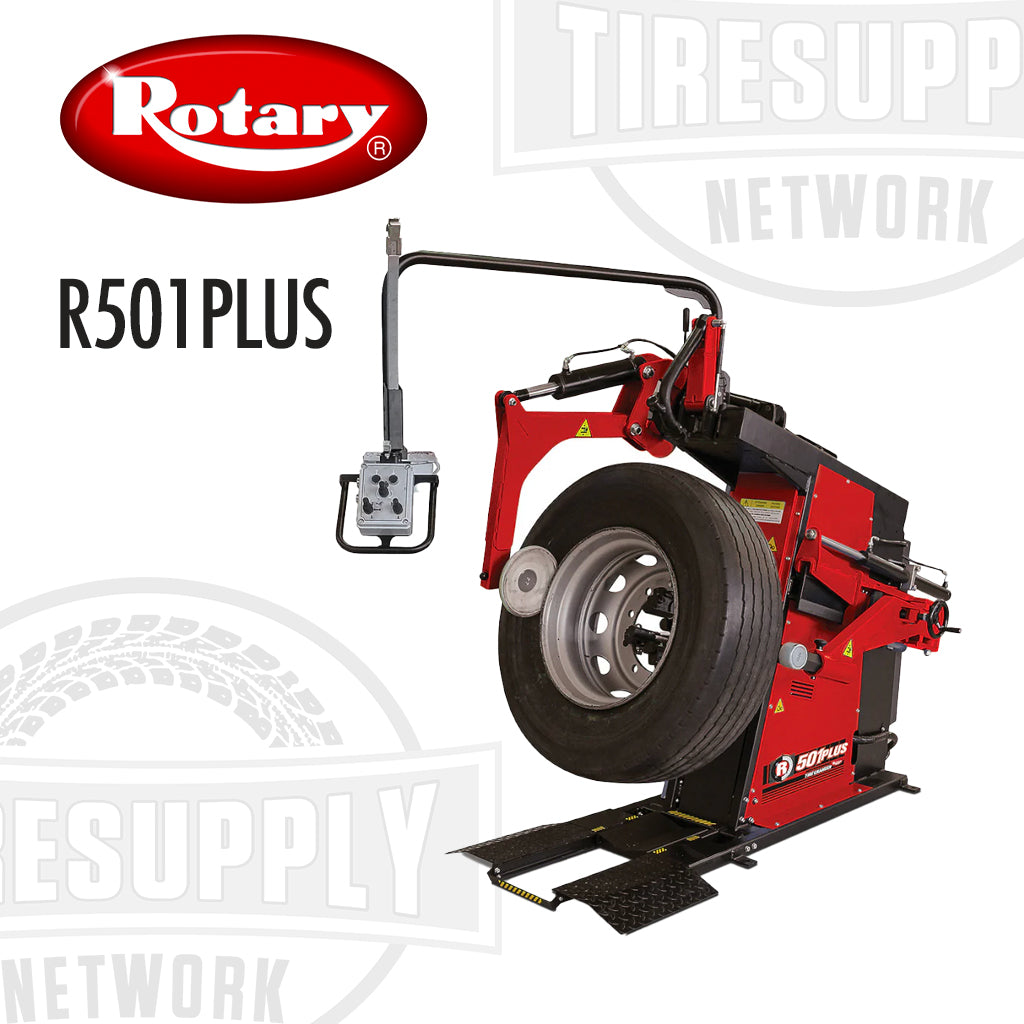

Rotary R501PLUS Super Fast Heavy Duty Truck Tire Changer

Rotary R501PLUS Super Fast Heavy Duty Truck Tire Changer

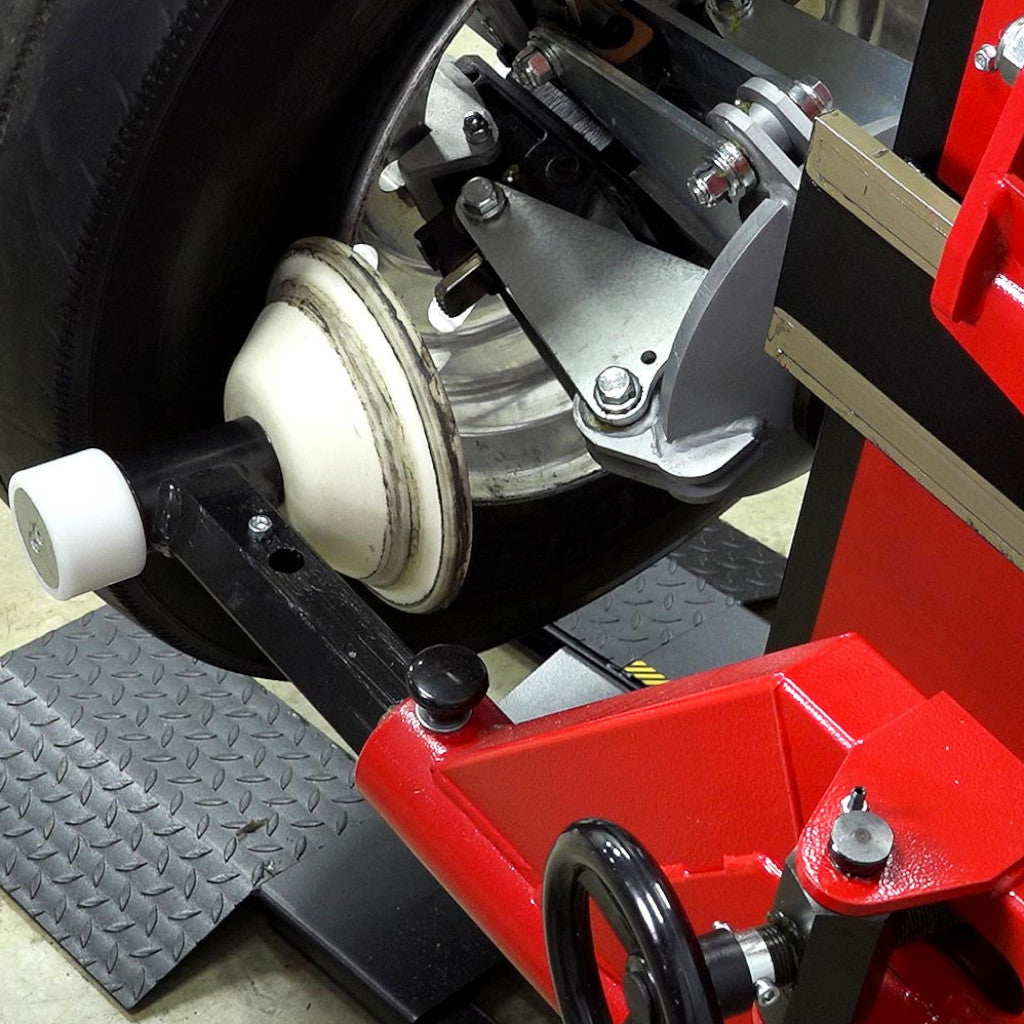

The patented operating system of the R501Plus tire changer is one of a kind. With this distinctive design, the changer is equipped with four rollers positioned on both sides of the wheel in diametrically opposite positions. With this system, the dismounting of the tire is a simple operation: while the front bead breakers keep the bead in the drop center, the rear breakers continue their course until the dismounting is complete. The bead-breakers are supported by two separately controlled arms and each has two rollers: one conical which pushes on the bead and one cylindrical which pushes the side of the tire.

  • Super Fast Truck Tire Changer
  • Service Tire Diameters up to 52″
  • Dismount and mount a Truck Tire in 30 Seconds
  • Adjustable Arm Position
  • Speed Mounting
  • Speed Demounting
  • Quick Loading

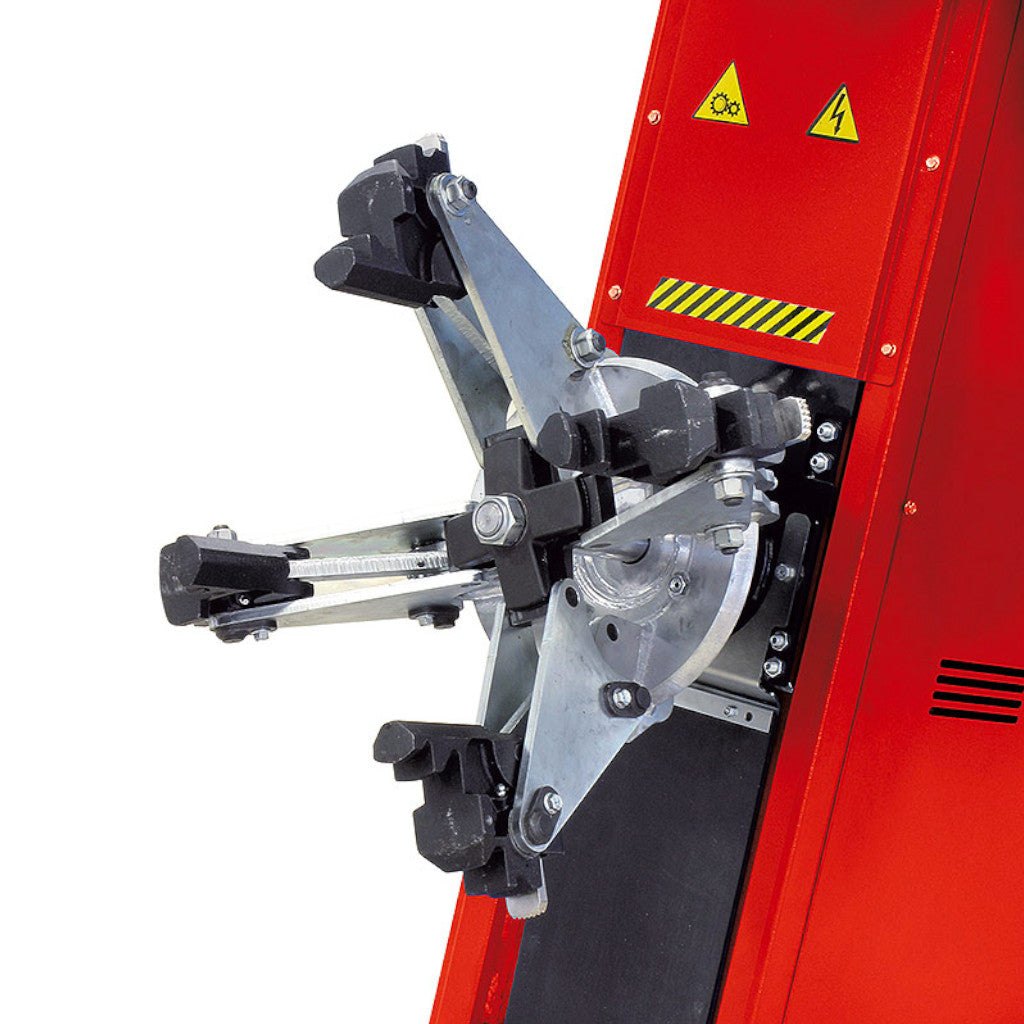

  • Hydraulic clamping / chucking table
  • Stand-by function - no noise when not in operation
  • Hydraulic controls
  • Plastic bead breakers protect rim

Other Features:

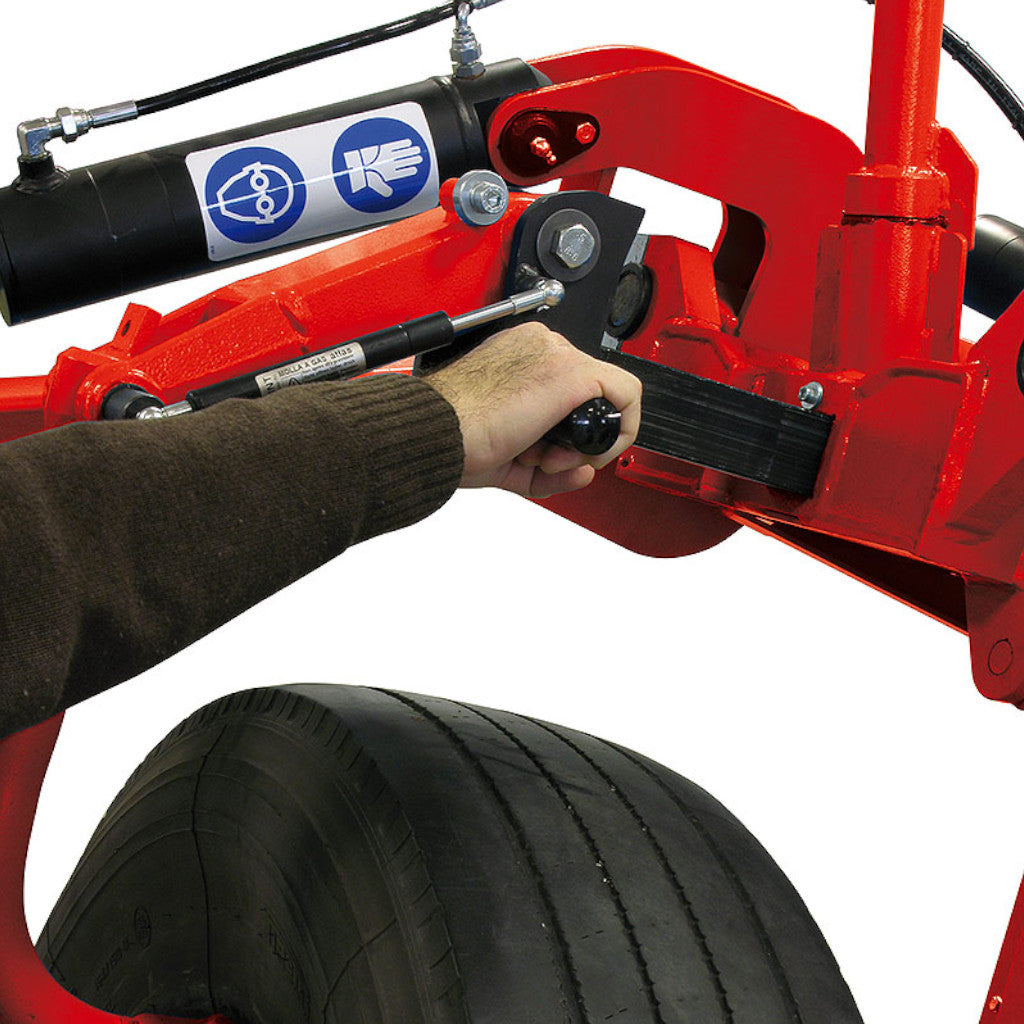

  • Adjustable arm positioning allows easy movement of bead breaker to lower drop center in front of the tire
  • Hydraulic clamping firmly secures the wheel to the tire changer
  • Speedy removal of tire with front and back bead breakers

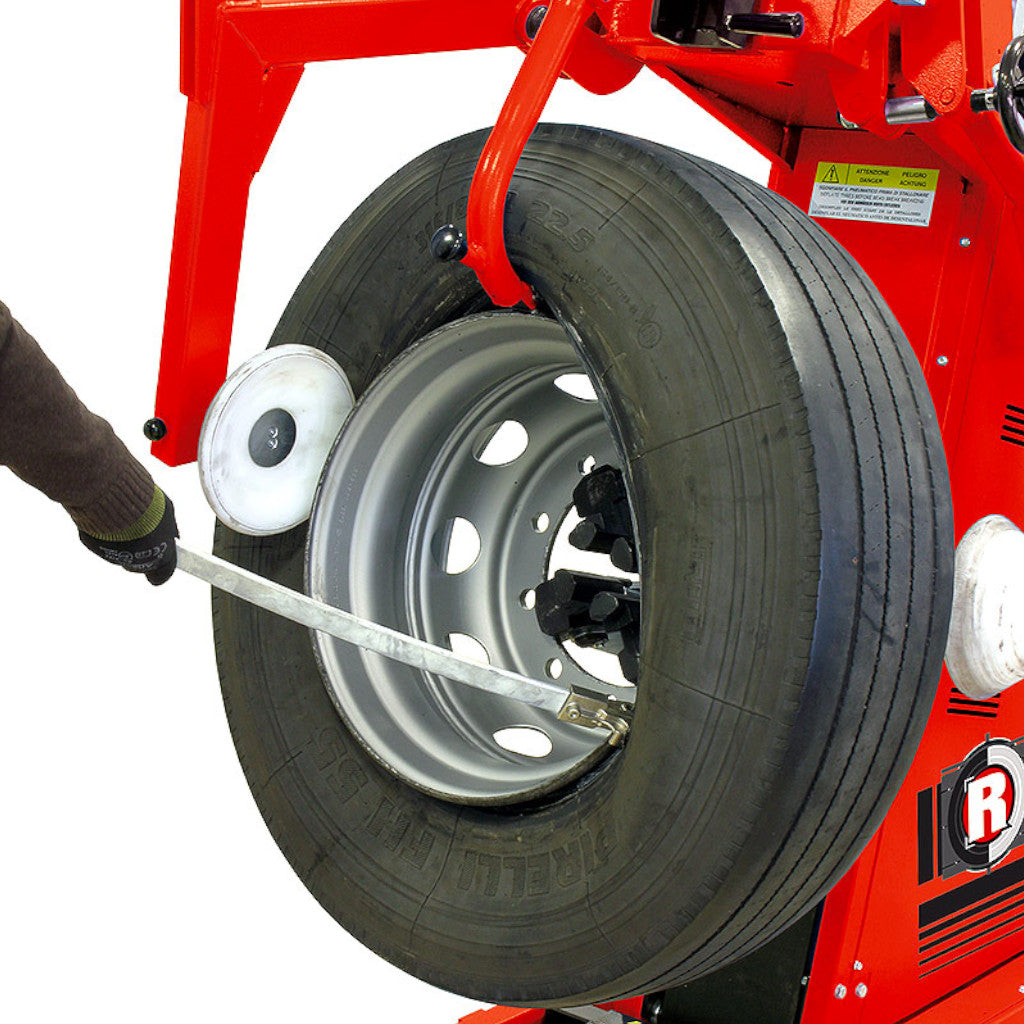

  • Quick mounting of a tire to the wheel with the patented bead lever

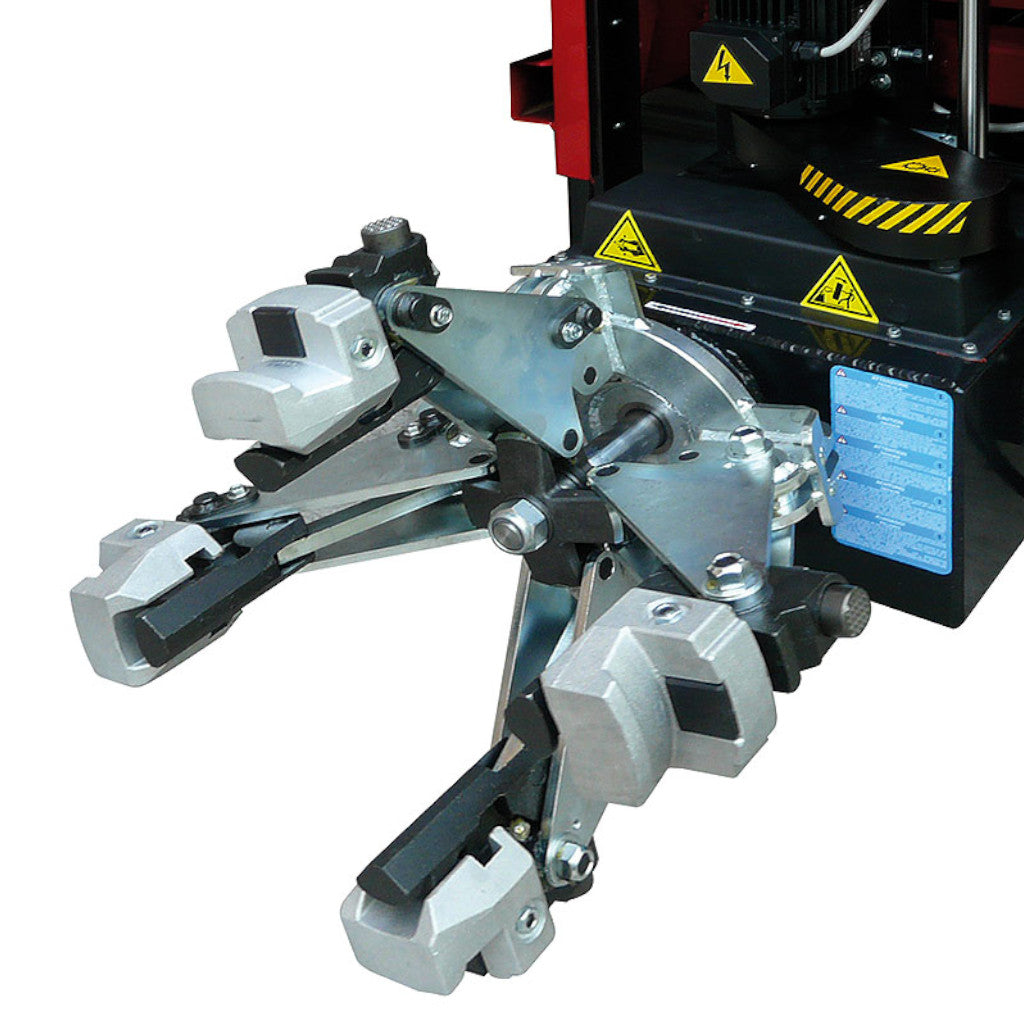

  • Aluminum rim protection using attachable braces on hydraulic clamps

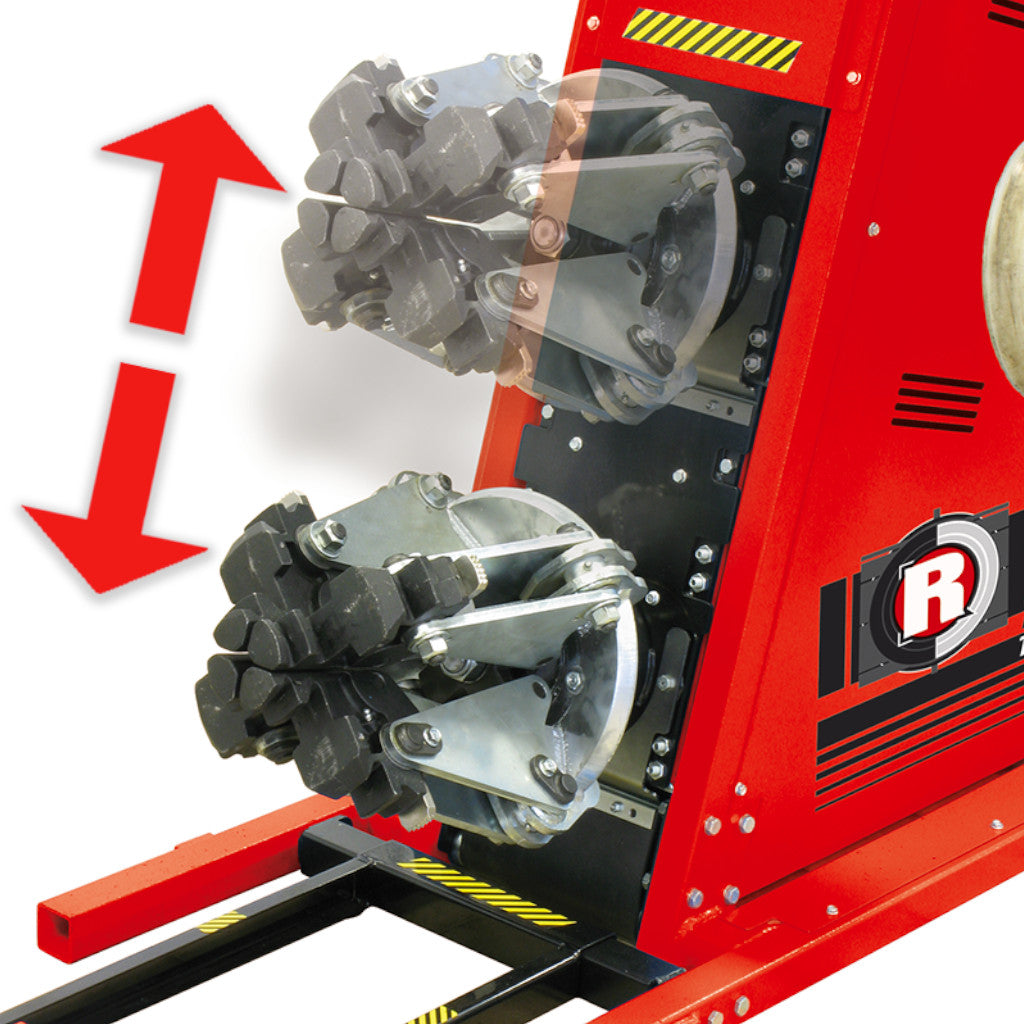

  • Raise or lower the wheel clamps depending on the wheel diameter with hydraulic height positioning

Standard Equipment:

  • Rotary VSG108A2 Aluminum Wheel Clamp Protector 4-Piece Kit
  • Rotary VSG108A3 Lever
  • Tire paste lubricant and brush
TECHNICAL DATA R501PLUS
Rotary Part Number RWC101B
Chucking Unit Rotation Motor 2.7 hp / 2 kW
Hydraulic Drive Unit Motor 2 Hp / 1.5 kW
Maximum Tire Diameter 52” (1,320 mm)
Maximum Allowed Wheel Width 21.2” (540 mm)
Weight 1,240 lbs (562 kg)
Bead Breaker Power 13,300 ft/lbs (18,000 N)
Maximum Wheel Weight 2,645 lbs (1200 kg)
Chuck Rotation Speed 8 rev/min
Maximum Torque to Chuck 585 ft/lbs (2,600 Nm)
Power Supply 220 V / 60 Hz / 3 Ph
