R573

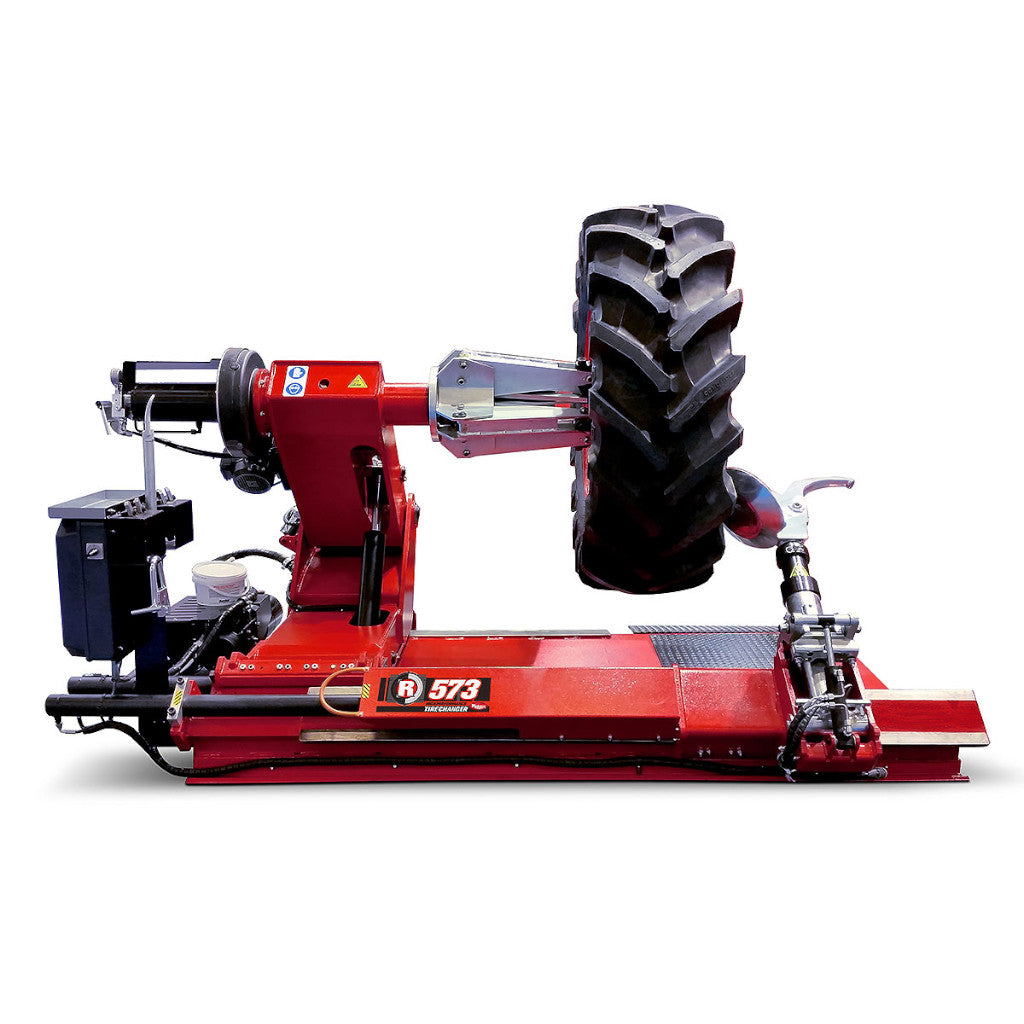

Rotary R573 Extreme Commercial HD Heavy Duty Truck Tire Changer

Rotary R573 Extreme Commercial HD Heavy Duty Truck Tire Changer

UNIVERSAL TIRE CHANGER FOR EXTREME WHEEL DIMENSIONS

SPECIAL ORDER: 14 to 16 week lead time.

HIGH BEAD BREAKING FORCE: The considerable bead breaking force makes mounting and demounting tires effortless.

MULTIPLE ADJUSTABLE GUIDES: The electro-brake allows immediate stopping of the rotation to avoid any damage to tires.

STAND-BY FUNCTION: If the machine has not been used for 5 seconds, the motor will turn off.

  • Electro-hydraulic Changer For Trucks, Agricultural, And Earthmoving Vehicles
  • Service tire diameters up to 106″.
  • The oversized chucking dimension allows work on larger tires without interference.
  • Reach 50” wheels without extensions or wheels from 51” to 60” with an optional VSG108A39 adapter set.

Features:

  • Console cable control unit with a metal sheath.
  • Rotational control on portable wired stand.
  • Double speed table rotation.
  • Quick locking manual rotation tool.
  • B530800 long bead lifting lever.
  • VSG108A25 clamp for earthmoving wheels.
  • Tire paste lubricant and brush.

Specifications:

TECHNICAL DATA R573
Chucking unit rotation motor 3 Hp / 2.2 kW
Hydraulic drive unit motor 3.35 Hp / 2.5 kW
Rim diameter 11” - 50”
Rim diameter with optional VSG108A39 adapters 51” - 60”
Maximum tire diameter 106” (2,700 mm)
Maximum tire width 69” (1,750 mm)
Chuck rotation speed (rev/min) 1 - 5 - 10
Power supply 220v / 3Ø / 60 Hz
