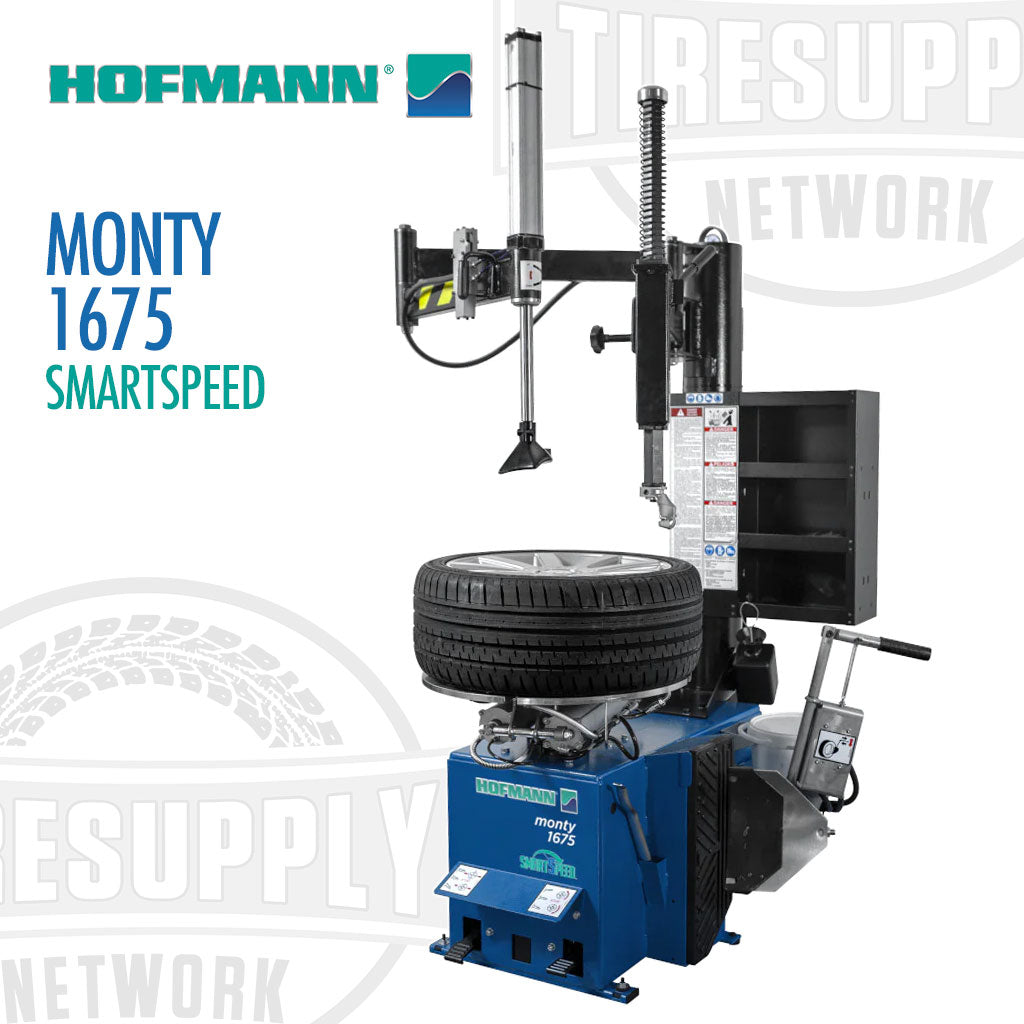

Hofmann | Monty 1675 SmartSpeed Swing-Arm Tire Changer (EEWH779CU1)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

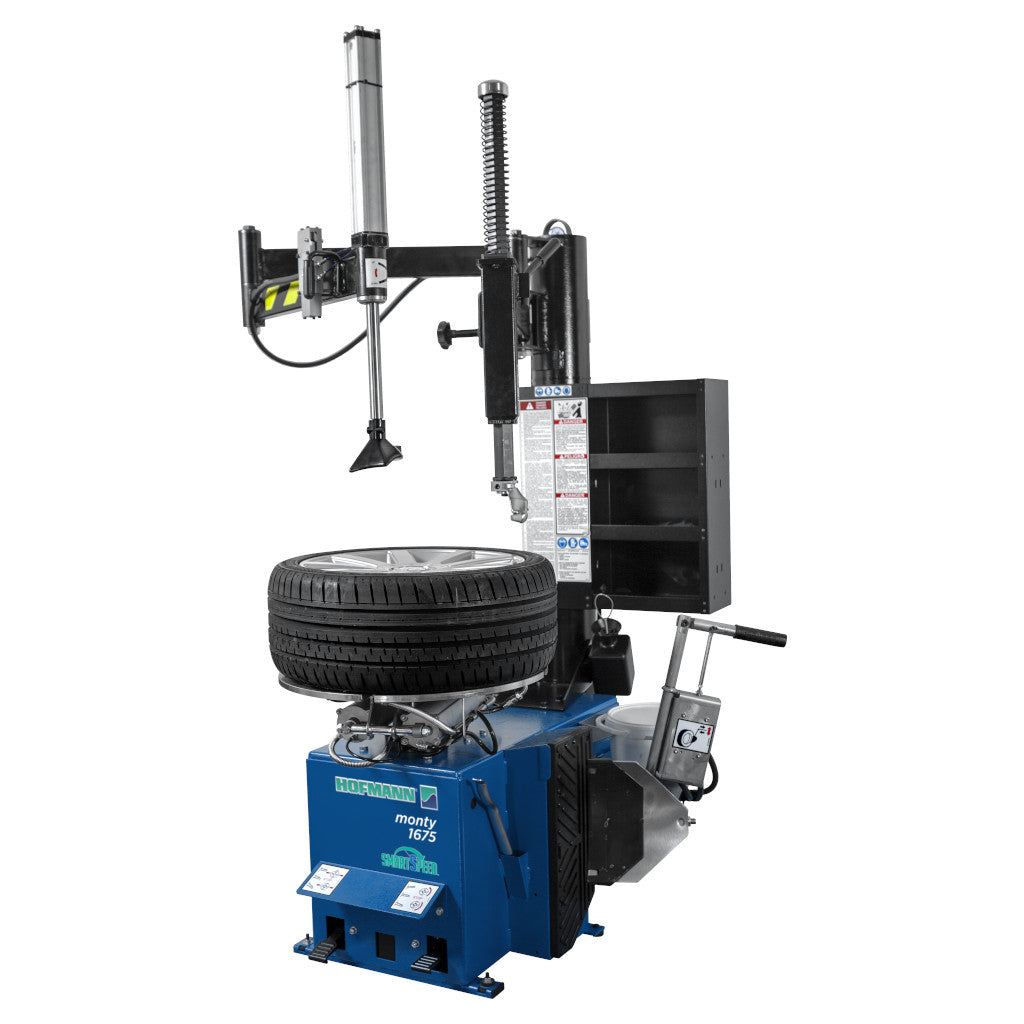

The Monty 1675 tire changing system is ideal for handling passenger cars, light trucks, and high-performance wheel/tire assemblies. Ergonomic design and safety-enhancing features provide the technician with a safe workspace when changing a variety of tires. Locking mount/demount head offset provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.
Robust, Professional Design:
- Precision cast and machined shoes with robust cast jaws make for precise, slop free clamping
- Heavy-duty pneumatic valves are simple to operate and offer intuitive functionality
- Powerful electric motor generates 1200Nm of torque to the table top to mount stiff, difficult tires

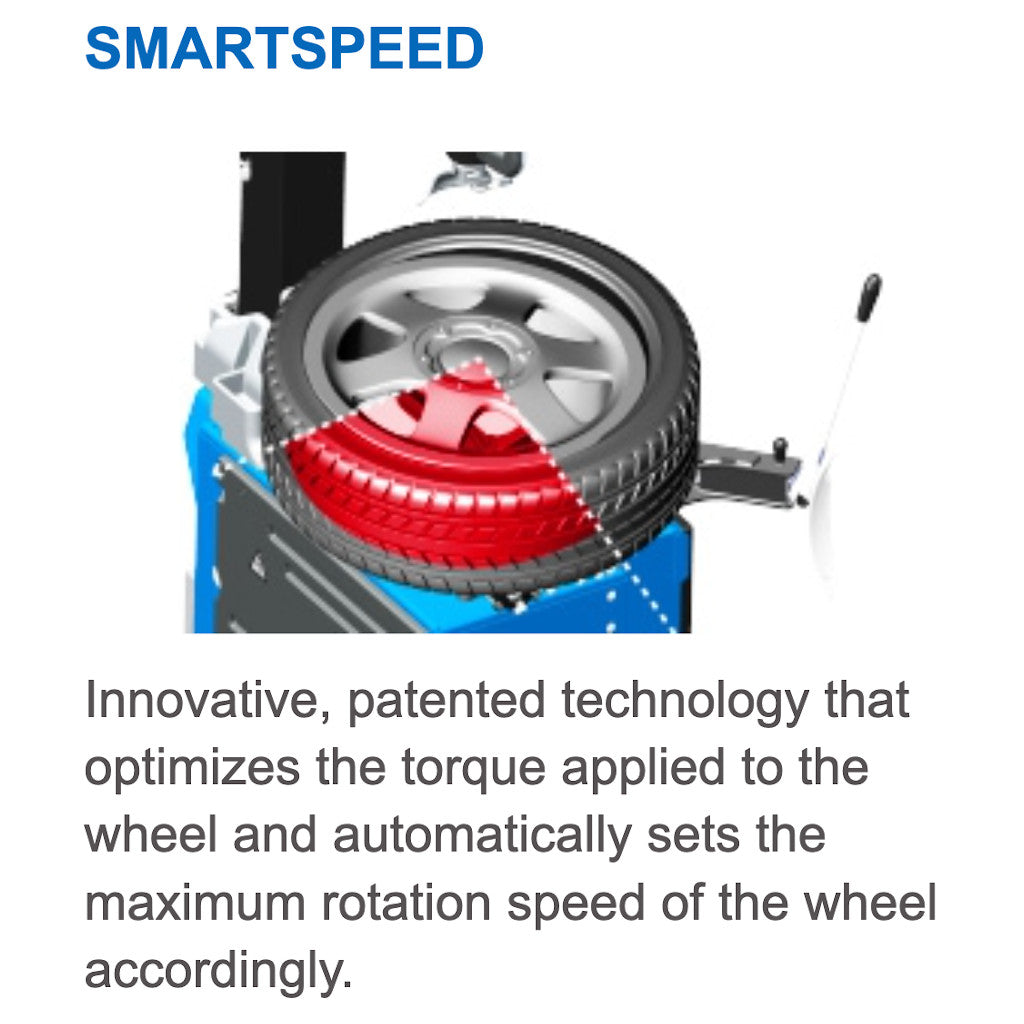

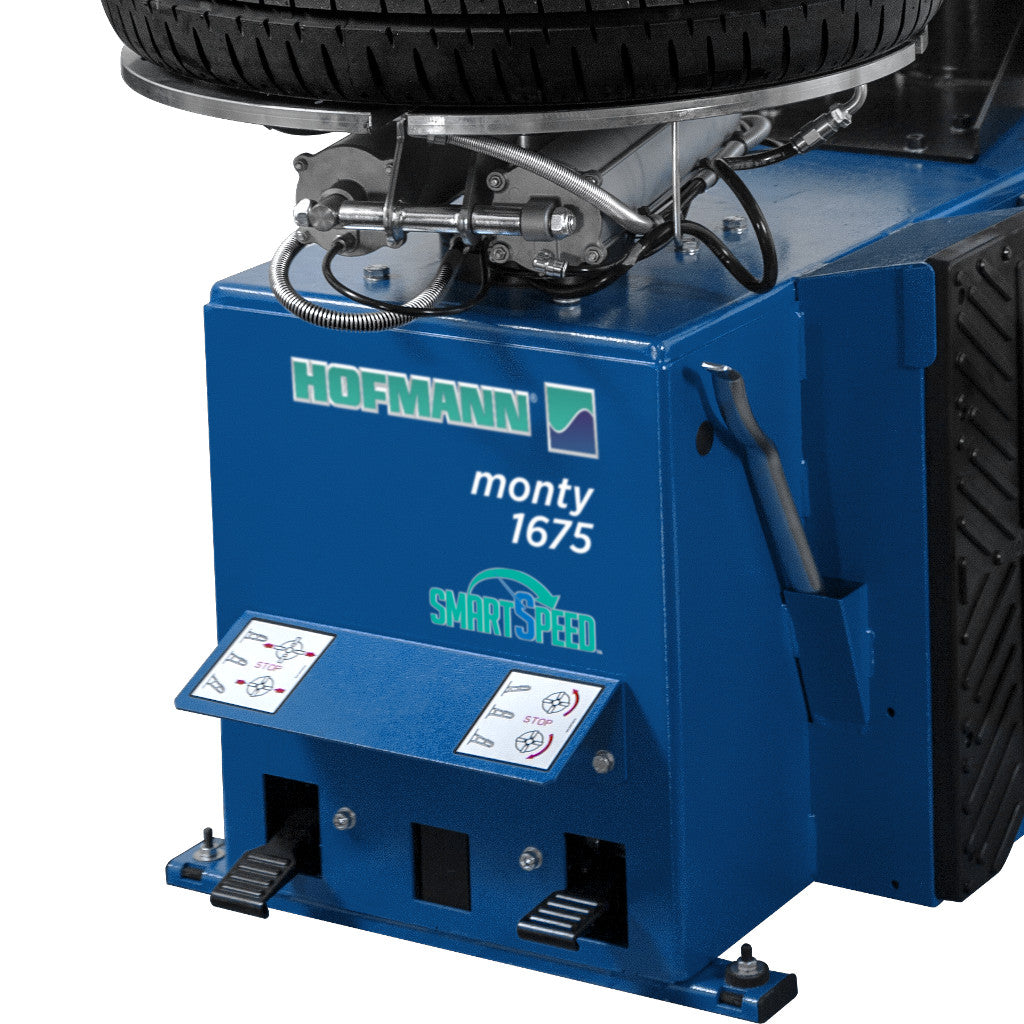

smartSpeed Model:
- Automatically minimizes damage to tires
- Innovative, patented technology that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel
- Variable from 7 to 18 RPM offering the highest possible speed for maximum productivity

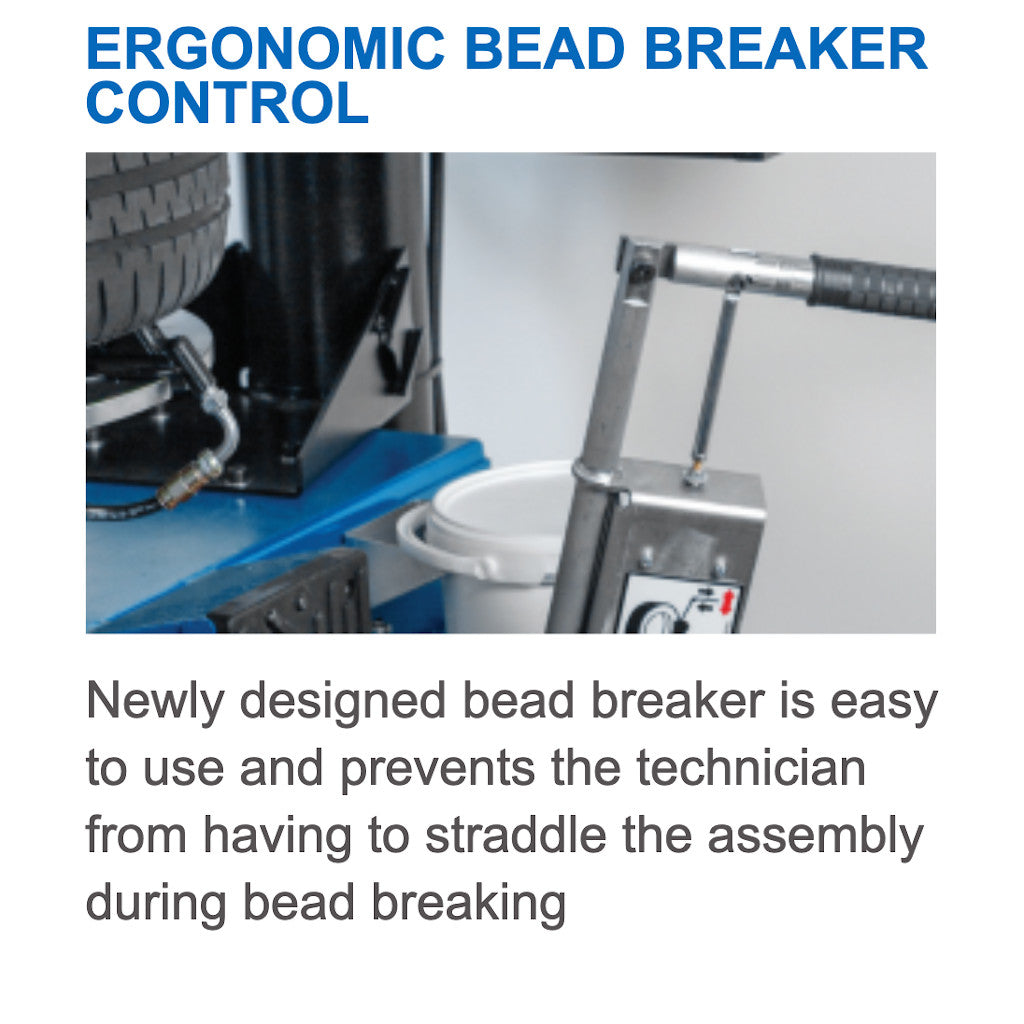

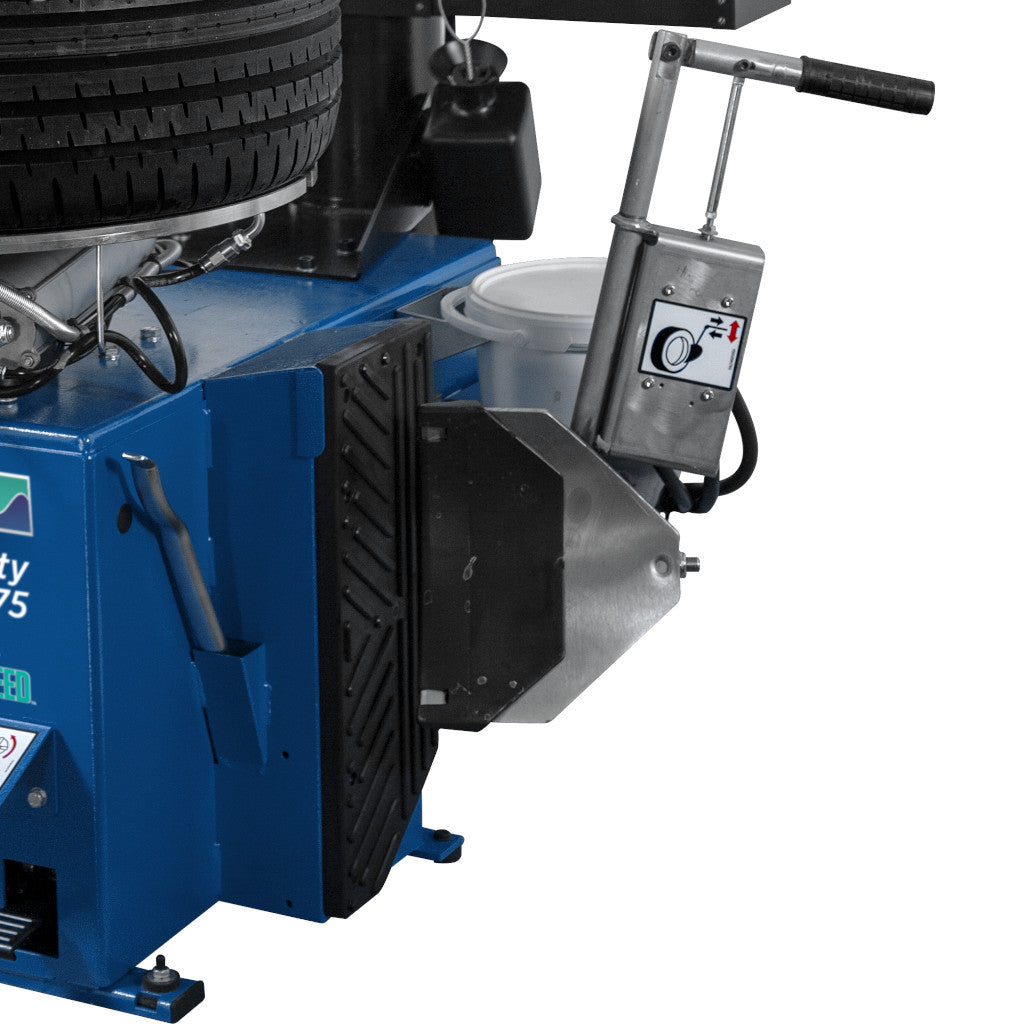

Ergonomic, Hand Operated Bead Breaker Control: Newly designed bead breaker is easy to use and prevents the technician from having to straddle the assembly during bead breaking.

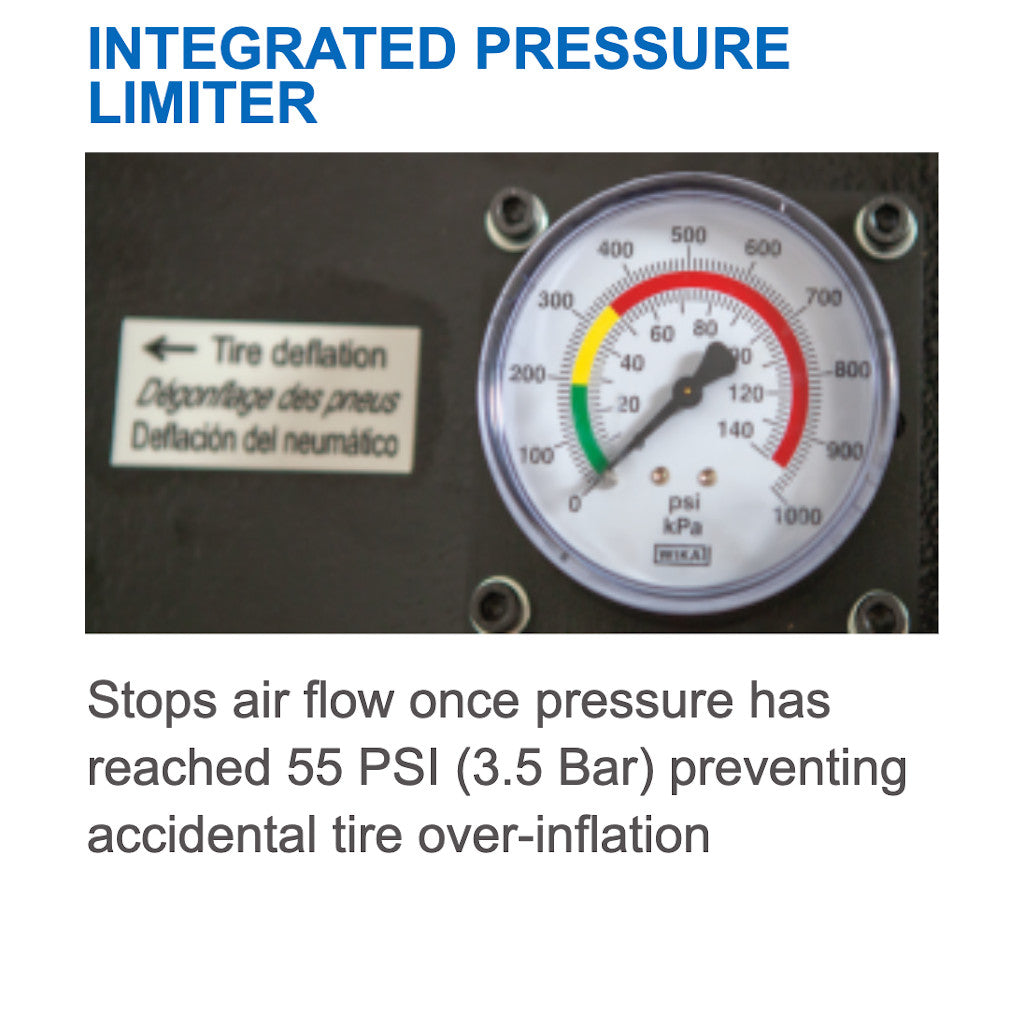

Integrated Pressure Limiter: Stops air flow once pressure has reached 55 psi (3.5 bar) preventing accidental tire over-inflation.

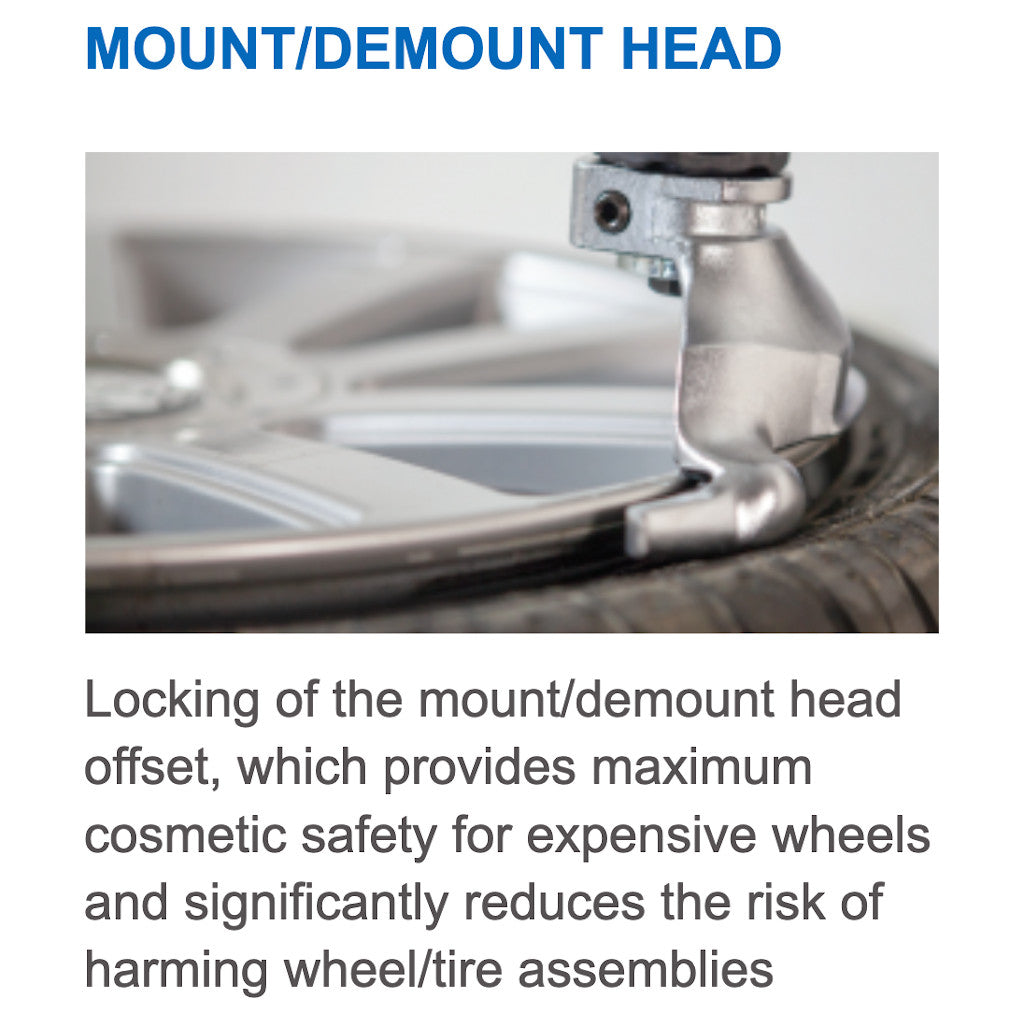

Mount/Demount Head: Locking of the mount/demount head offset, which provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.

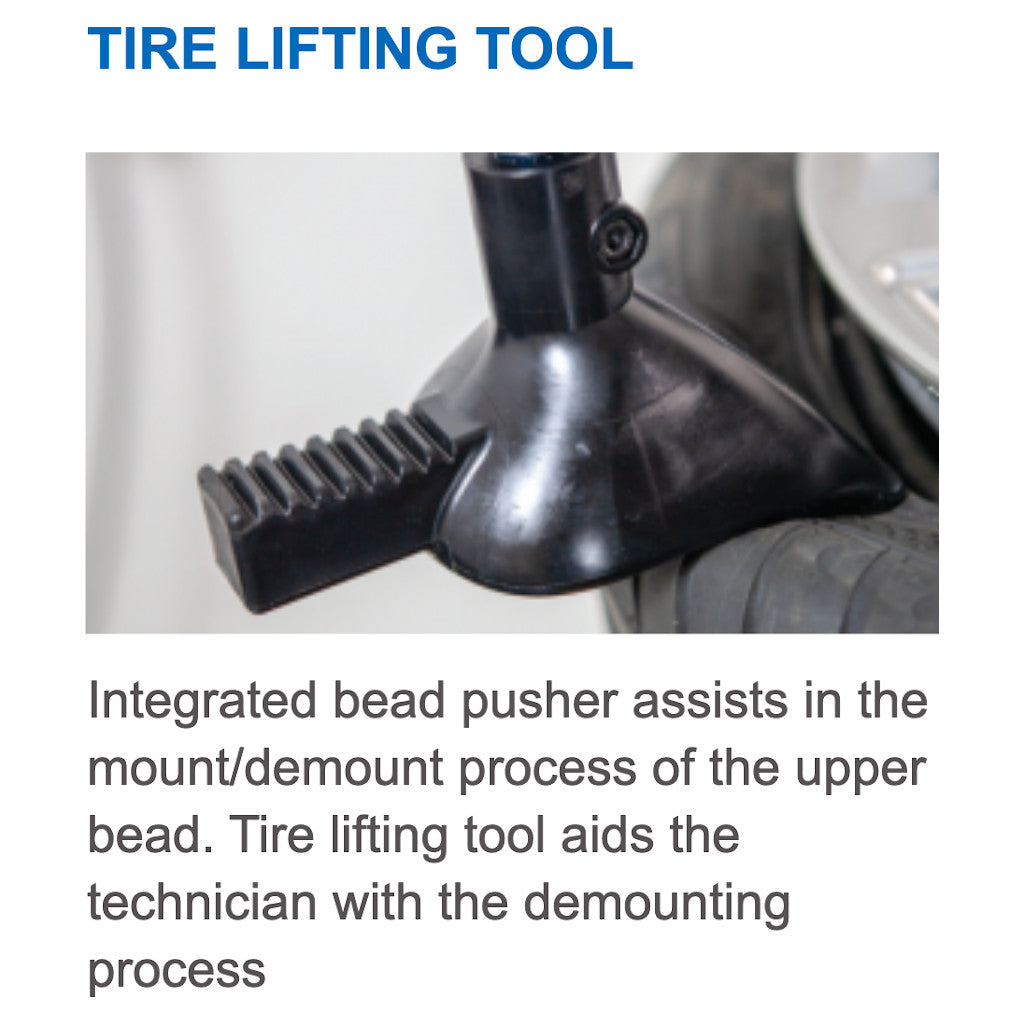

Tire Lifting Tool: Integrated bead pusher assists in the mount/demount process of the upper bead. Tire lifting tool aids the technician with the demounting process.

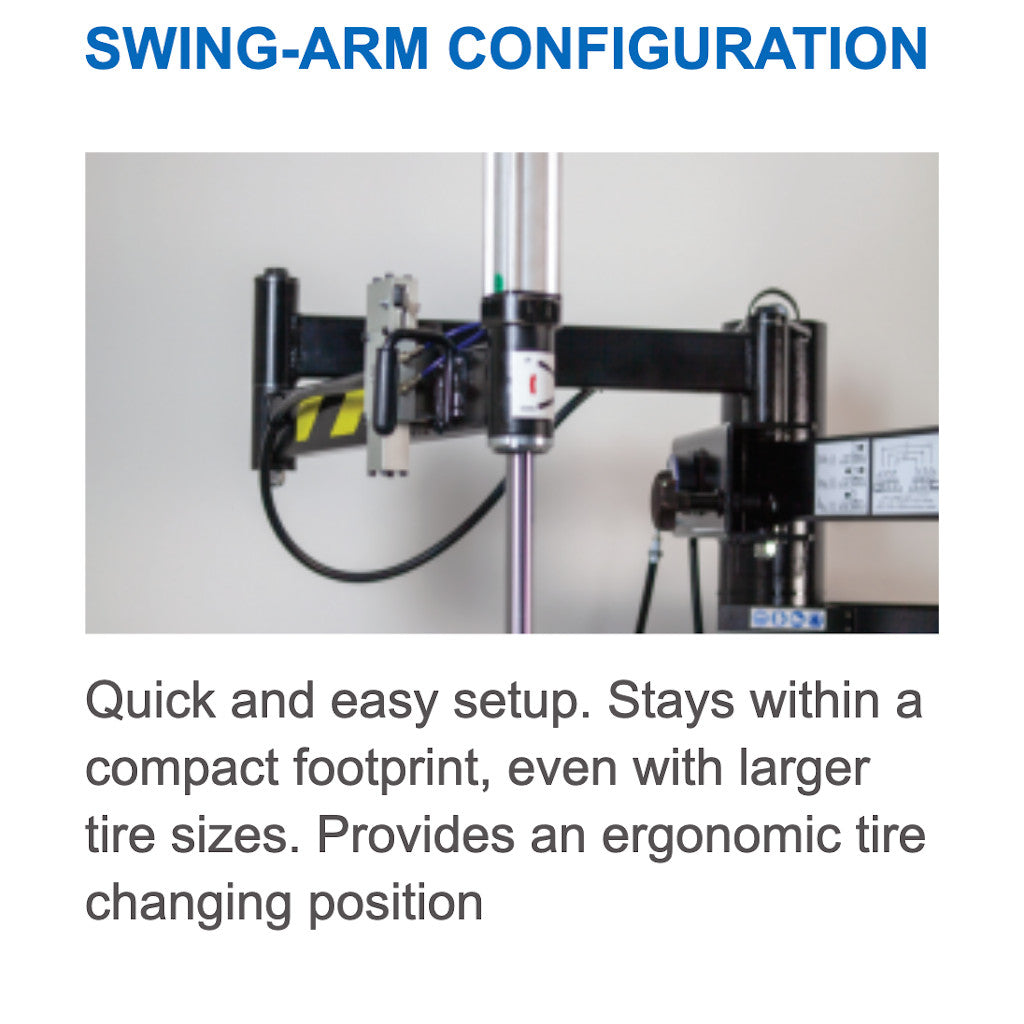

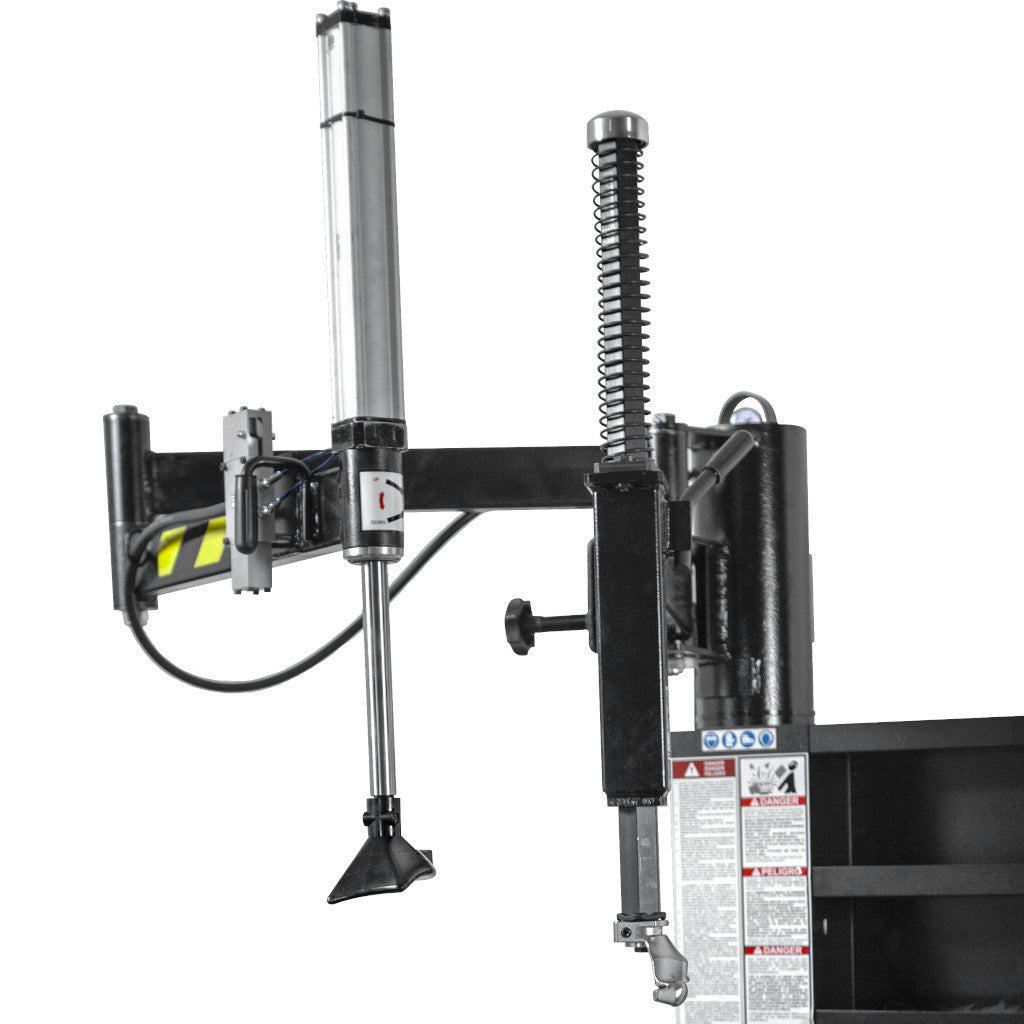

Swing-Arm Configuration: Quick and easy setup. Stays within a compact footprint, even with larger tire sizes. Provides an ergonomic tire changing position.
Toolbox: Attached storage compartment allows easy access for tools and accessories.
Accessories Included:
- Lube Brush
- 5kg Lube Bucket Holder
- 5kg Lube Bucket
- Plastic Rim Protector
- Bead Breaker Sleeve
- Wave Bead Lever
- Wave Bead Lever Protector
Technical Data | Monty 1675 with smartSpeed |
Hofmann Part Number | EEWH779CU1 |
Outer-Clamping Diameter |
10″ - 24″ (25 - 610 mm) |
Inner-Clamping Diameter |
12″ - 24″ (305 - 610 mm) |
Maximum Tire Diameter |
53″ (1346 mm) |
Maximum Wheel Width |
15″ (380 mm) |
Compressed Air Supply |
110 - 170 psi (7.6 - 11.7 bar) |
Adjustable Four-Claw Clamp |
Included |
Integrated Bead-Seating Jets |
Included |
Pressure Timer |
Included |
Twin Cylinder Turntable Clamping |
Included |
Rotation Speed |
CW 7-18, CCW 7 rpm |
Bead Breaker Power |
2700 lbs (12 kN) |
Bead Breaker Range |
1.7″ - 16.3″ (43 - 414 mm) |
Recommended Floor Space (WxDxH) | 53″ x 46″ x 81″ |
Shipping Weight | 750 lbs (340 kg) |
Power Requirements | 230 V, 1 Ph, 50/60 Hz, 16 Amp |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
