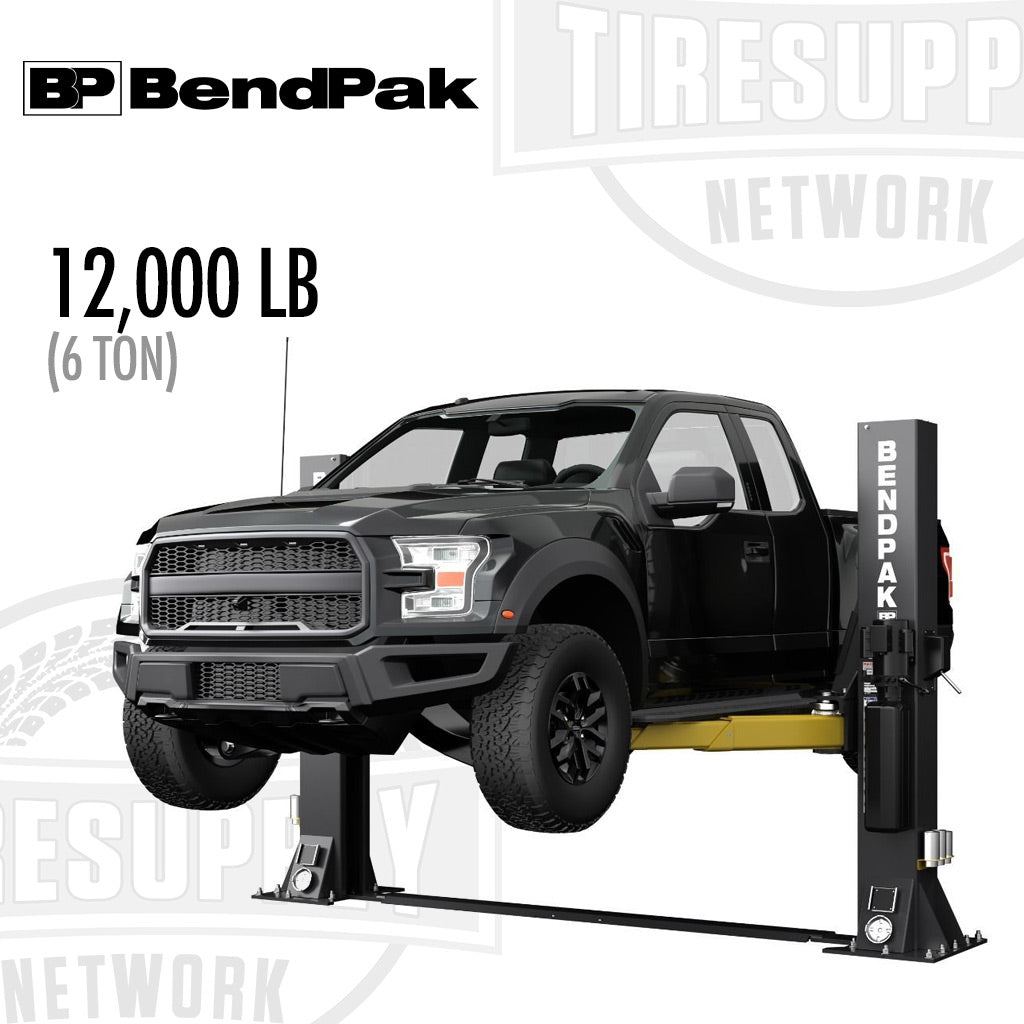

BendPak | 2-Post Lift 12,000 lb Capacity / Short-Rise 12AP-SRT (5175605)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.
Experience seamless adaptability like never before with the 12AP-SRT’s intuitive design, capable of effortlessly transitioning between symmetric and asymmetric lifting configurations. Whether you’re tackling routine tire changes or complex wheel alignments, this lift is equipped to handle it all with precision and ease.
12AP-SRT
- Durable powder coat finish

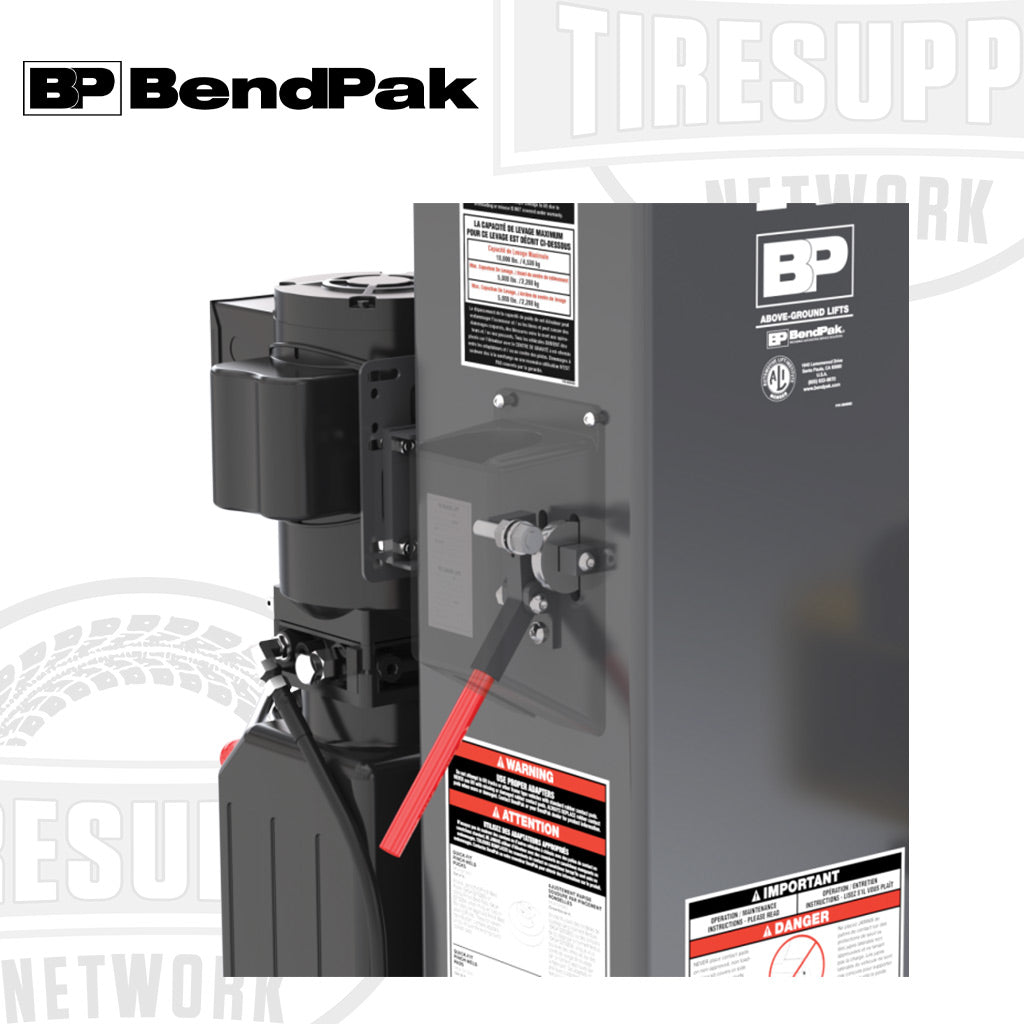

- Power Side Post Supports the Power Unit, the Safety Lock Release Handle and the Lowering Handle
- Exclusive Bi-Metric™ Arm Design for More Versatile Arm Positioning
-
Four cradle adapters are included with your lift for raising trucks and SUVs (body-on-frame style)
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Automatic arm restraints withstand over 2000-pounds of side force
-
Heavy-Duty ½” Aircraft-Quality Equalizer Cables
| SPECS | |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Front Axle Capacity (max) | 6,000 lbs (2,721.5 kg) |
| Rear Axle Capacity (max) |
6,000 lbs (2,721.5 kg) |
| Capacity per Lift Arm (max) | 3,000 lbs (1,360 kg) |
| Rise (max) | 42.75" (1,089 mm) |
| Width Overall | 155" (3,937 mm) |
| Base Plate Width | 26.5" (674 mm) |
| Post Height | 93.5" (2,377 mm) |
| Drive Thru | 102.25" (2,598 mm) |
| Inside Posts | 119" (3,026 mm) |
| Outside Post | 142" (3,606 mm) |
| Height with Pad (min) | 4.25" (105 mm) |
| Lifting Weight (max) | 46" (1,168 mm) |
| Floor Plate Height | 1.5" (36 mm) |
| Floor Plate Width | 9.5" (240 mm) |
| ARMS & PADS | |
| M – Front Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin) | 26 in. min – 55.25 in. max. (659 mm min. – 1,403 mm max.) |
| N – Rear Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin) | 29.25 in. min. – 60 in. max. (745 mm – 1,525 mm max.) |
| SAFETY | 8 |
| POWER UNIT | |
| Standard Motor | 208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps |
| Time to Full Rise | ≈45 seconds |
| Sound Pressure | Lift produces less than 85dB when in operation |
| Operating Hydraulic Pressure under Max. Load | 2,170 psi |
INFORMATIONAL LINKS:
- Study in Lift Designs > CLICK HERE
- Electrical & Utility > CLICK HERE
- Concrete Specs > CLICK HERE
- Specifications> CLICK HERE
- Warranty > CLICK HERE
- Balancing Safety > CLICK HERE
- How to Level > CLICK HERE
- Best Car Lift Guide > CLICK HERE
- Things to Know > CLICK HERE
DETAILS
The Perfect Lift for Tire and Wheel Service
The 12AP-SRT from BendPak is a fantastic choice when you don’t need to work underneath vehicles. Whether you’re focusing on detailing or other non-undercarriage tasks, this innovative lift is your go-to choice for efficiency and safety. With its compact design, the 12AP-SRT easily fits into both professional shops and personal garages, maximizing space without compromising performance. Say goodbye to bulky equipment and hello to streamlined operations with the 12AP-SRT.
A New Paradigm in Lifting
In an ever-evolving industry, innovation is key to staying ahead. Introducing BendPak’s groundbreaking AP Series, a testament to cutting-edge automotive lift engineering. Combining the finest features from modern two-post lifts, this series sets a new standard in the market.
Built to withstand extreme loads, safety, and efficiency are at the forefront of the AP Series design. The 12AP-SRT offers both wide and narrow installation options in a single, customizable package. Engineered for durability, safety, and reliability, these lifts feature BendPak’s state-of-the-art Bi-Metric™ arms which is able to safely accommodate both symmetric and asymmetric lifting needs.
Innovative Safety Lock System
Experience a revolutionary approach to operator safety and efficiency with BendPak’s patented automatic safety lock system. Designed to engage seamlessly during all lift rising operations, it offers a dependable layer of protection like no other.
What really sets it apart is its user-friendly design. Featuring an ergonomic single-point release mechanism, operators can effortlessly disengage the safety locks during lift descent with just the push of a finger. It’s that simple, ensuring smooth and safe operation every time.
Unparalleled Safety with Automatic Arm Restraint
Say goodbye to traditional swing arm restraints and hello to the next level of safety with BendPak’s revolutionary Automatic Swing Arm Restraint System from the AP Series. Designed to withstand the forces exerted during vehicle loading or service, this adaptive system sets a new benchmark in safety.
Featuring a robust forged-steel design, the ASARS provides over 2000-lbs. of load holding force, ensuring stability and security at all times. With its 360-degree grip, this patented system keeps arms firmly in place, minimizing unexpected swing arm movement.

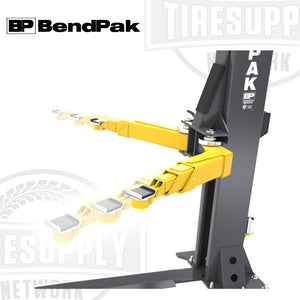

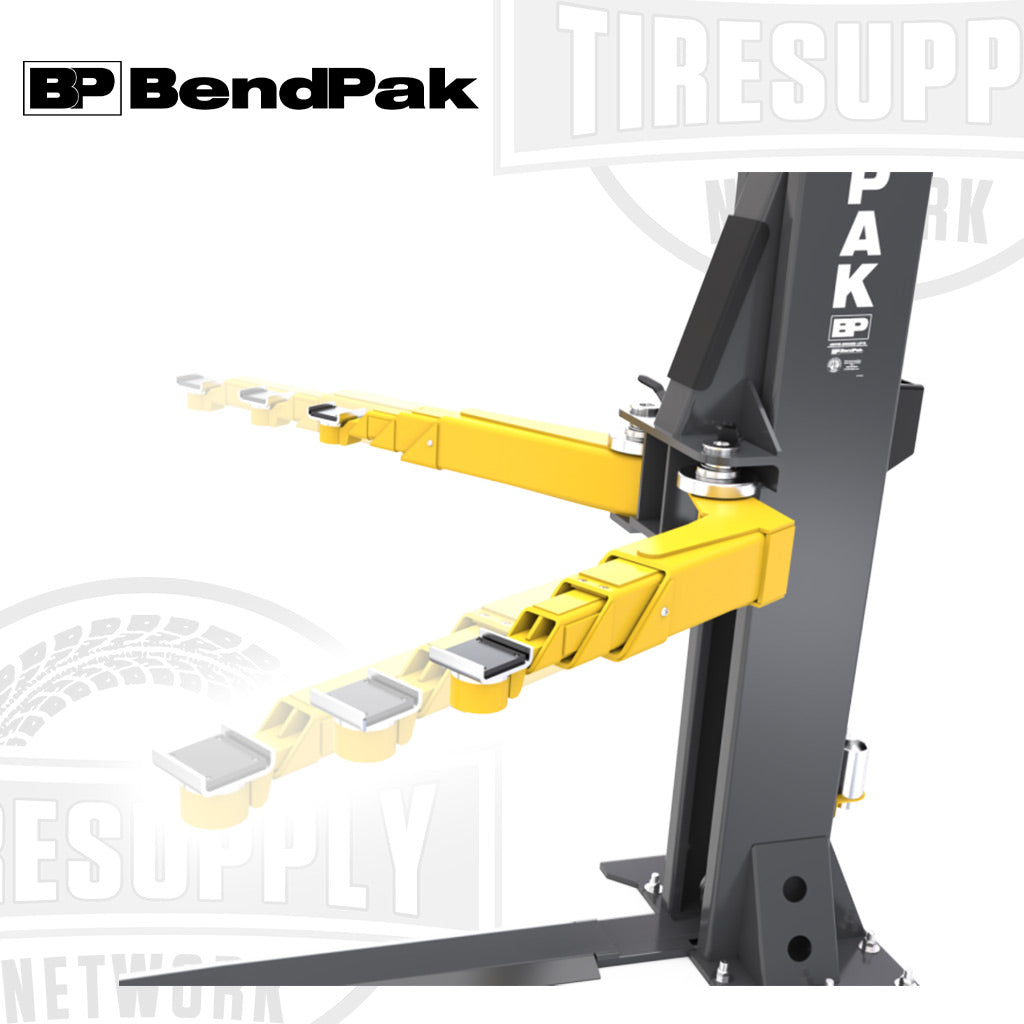

The Future is Triple-Telescoping
The innovative and patented triple-telescoping swing arms redefine lifting precision. Unlike standard lifting arms, the AP arms retract shorter and extend farther, offering versatile arm positioning options for lift operators. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension. Inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency.
Bi-Metric Swing Arms
Exclusive Bi-Metric adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you’ll be able to service vehicles faster than ever before.
Need replacement parts? Call or email us and we can special order them for you!
