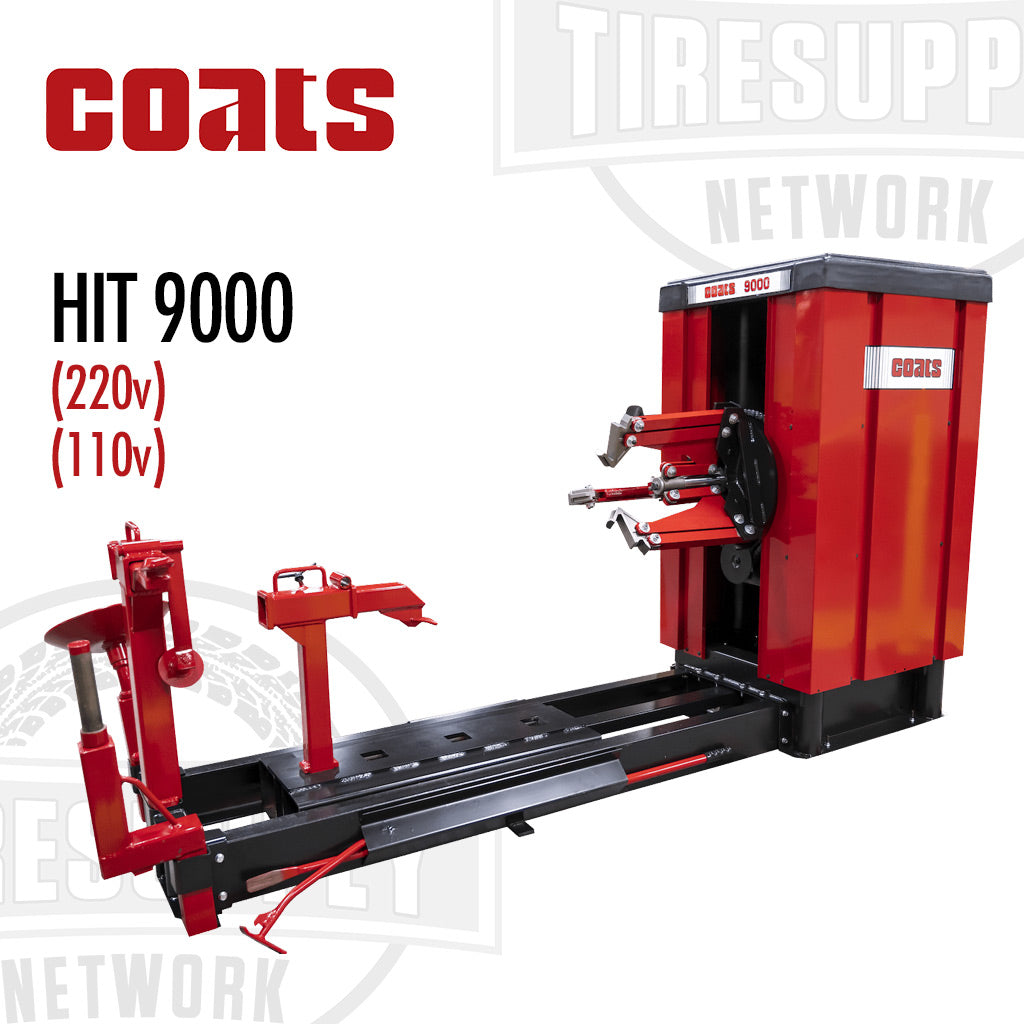

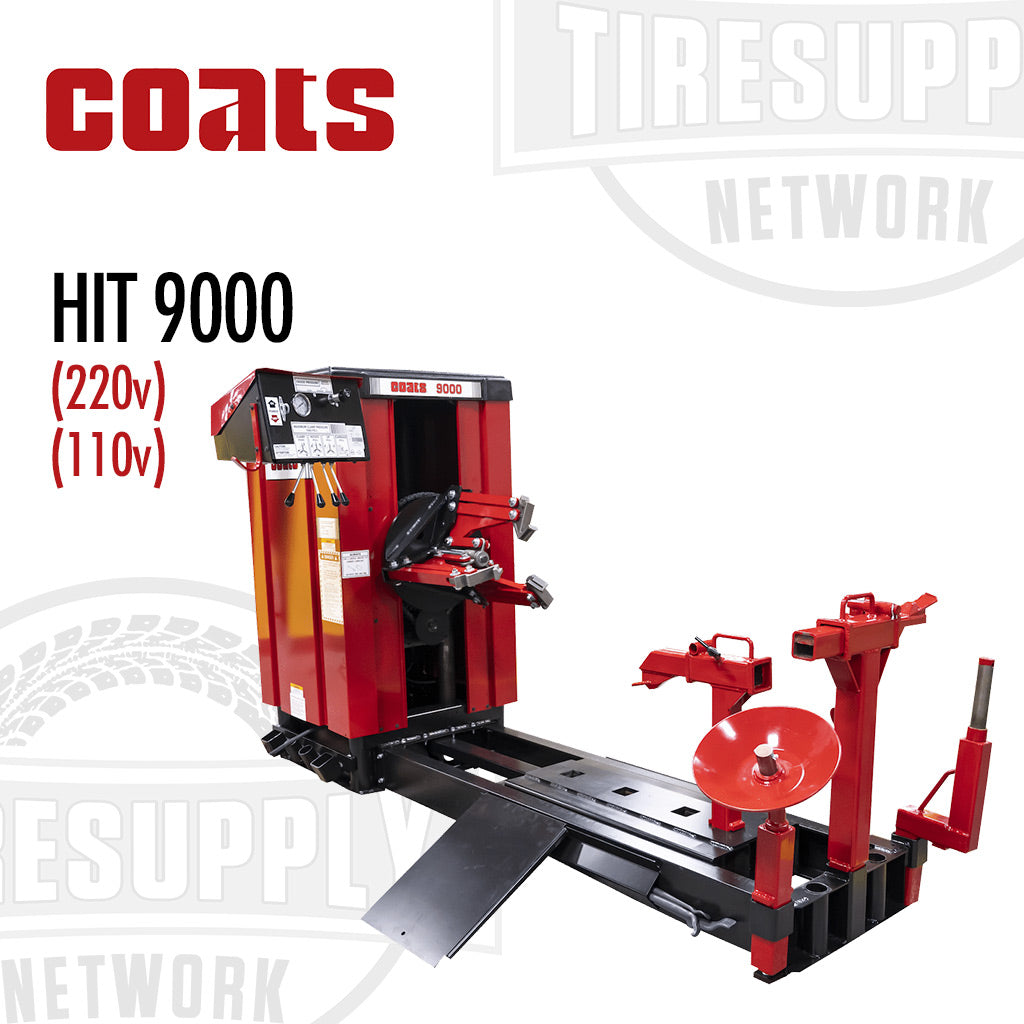

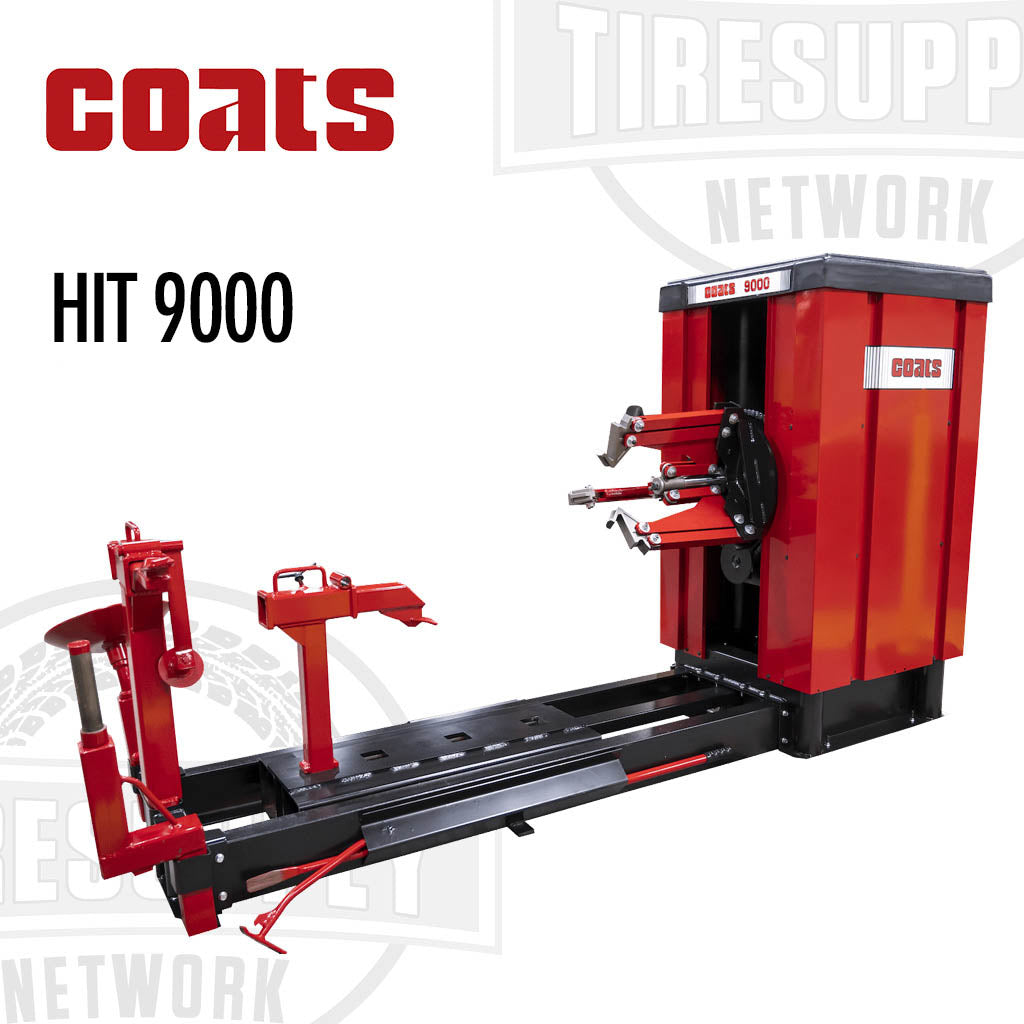

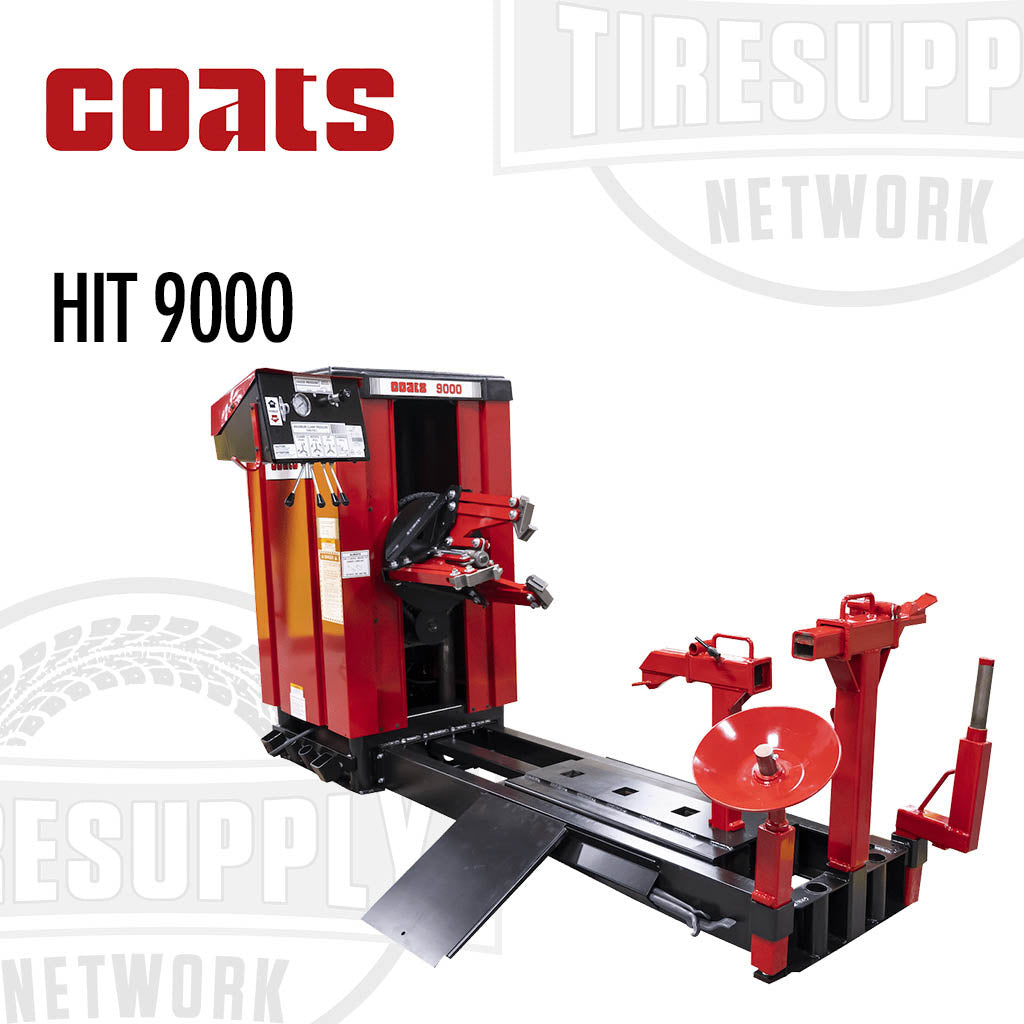

Coats HIT 9000 Heavy Duty Tire Changer with Independent Hook & Roller - Electric 220v 3ph, 220v, 110v (HIT9000*)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
These heavy duty changers can accommodate tube or tubeless tires with rim diameters from 15” to 44” (9000).

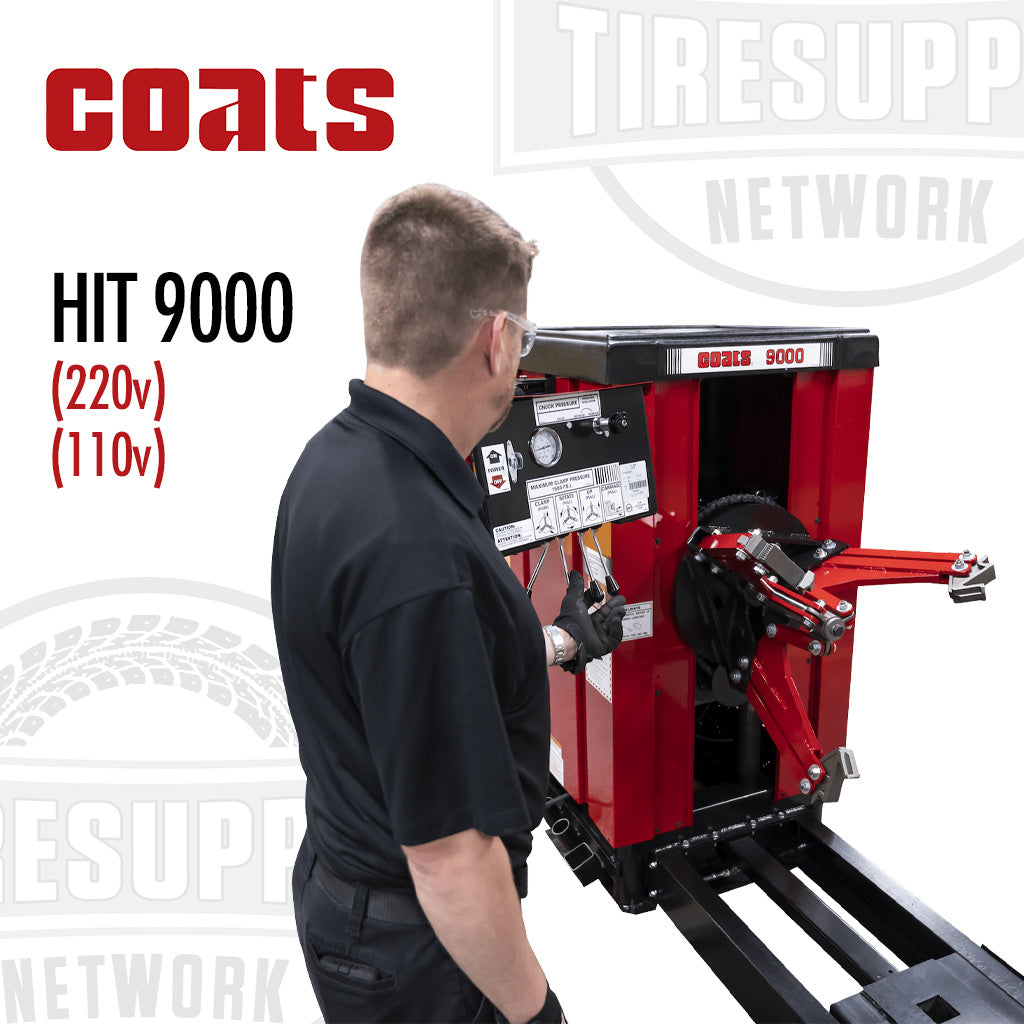

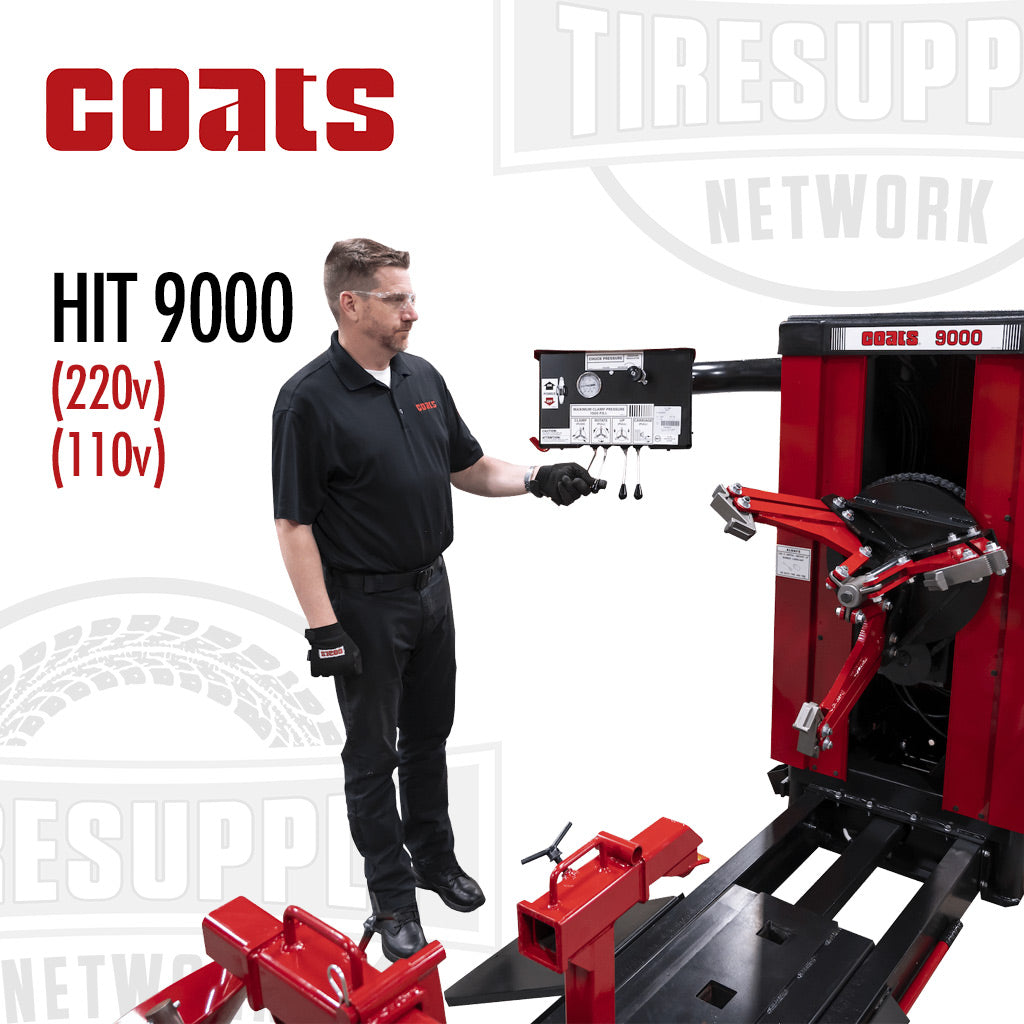

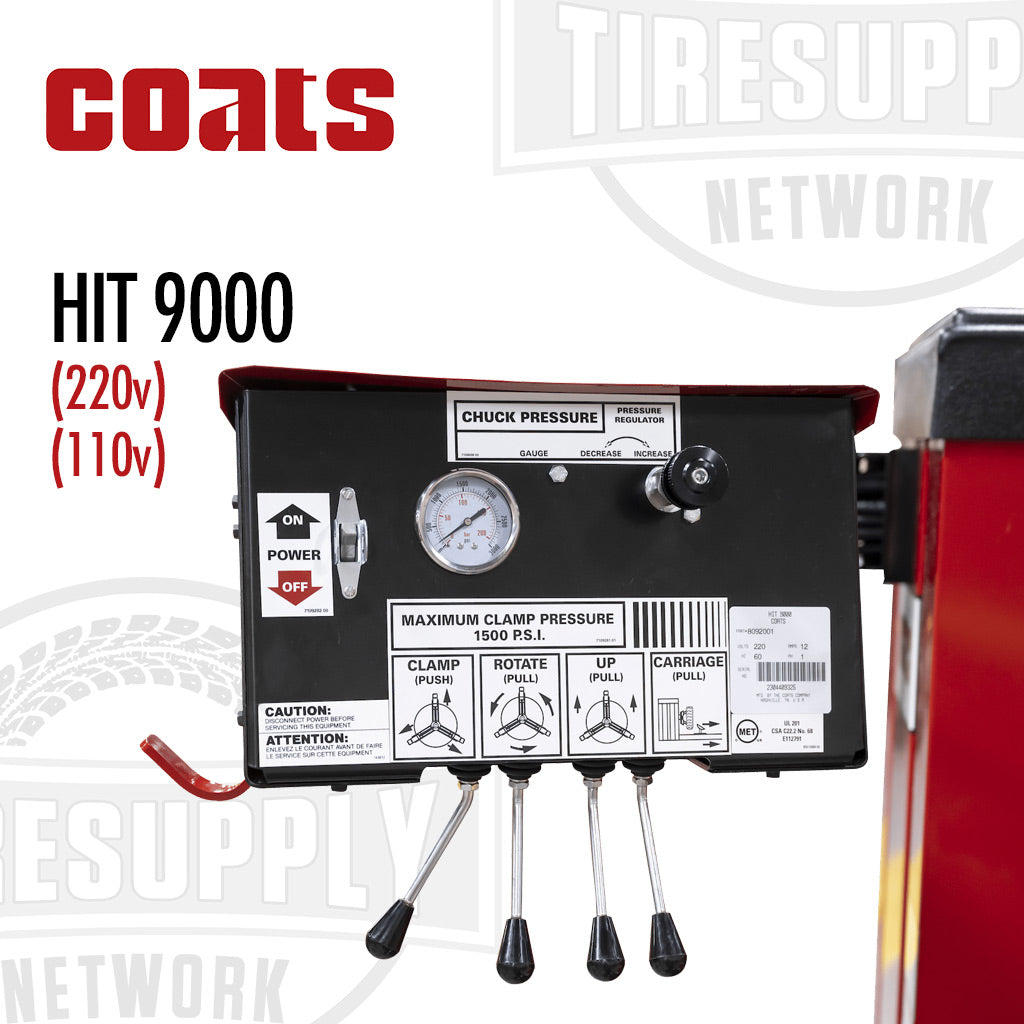

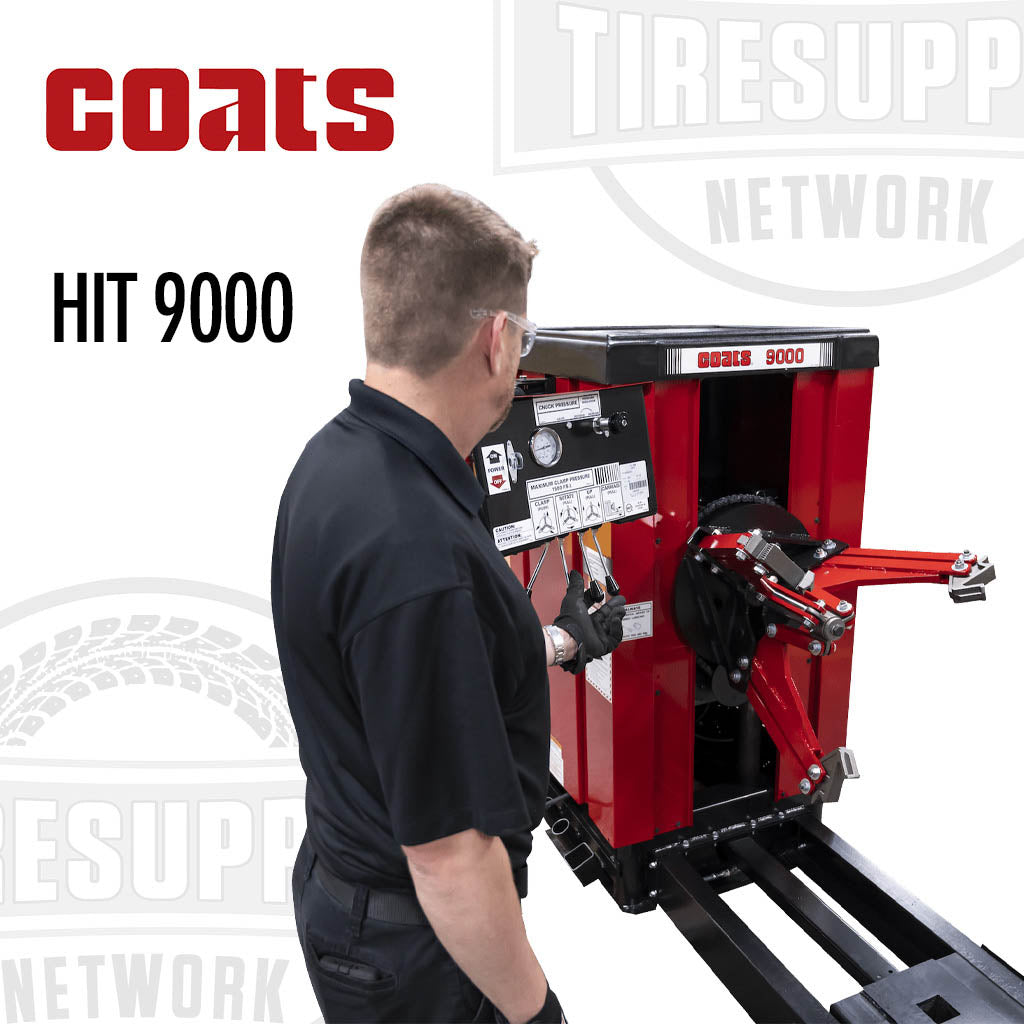

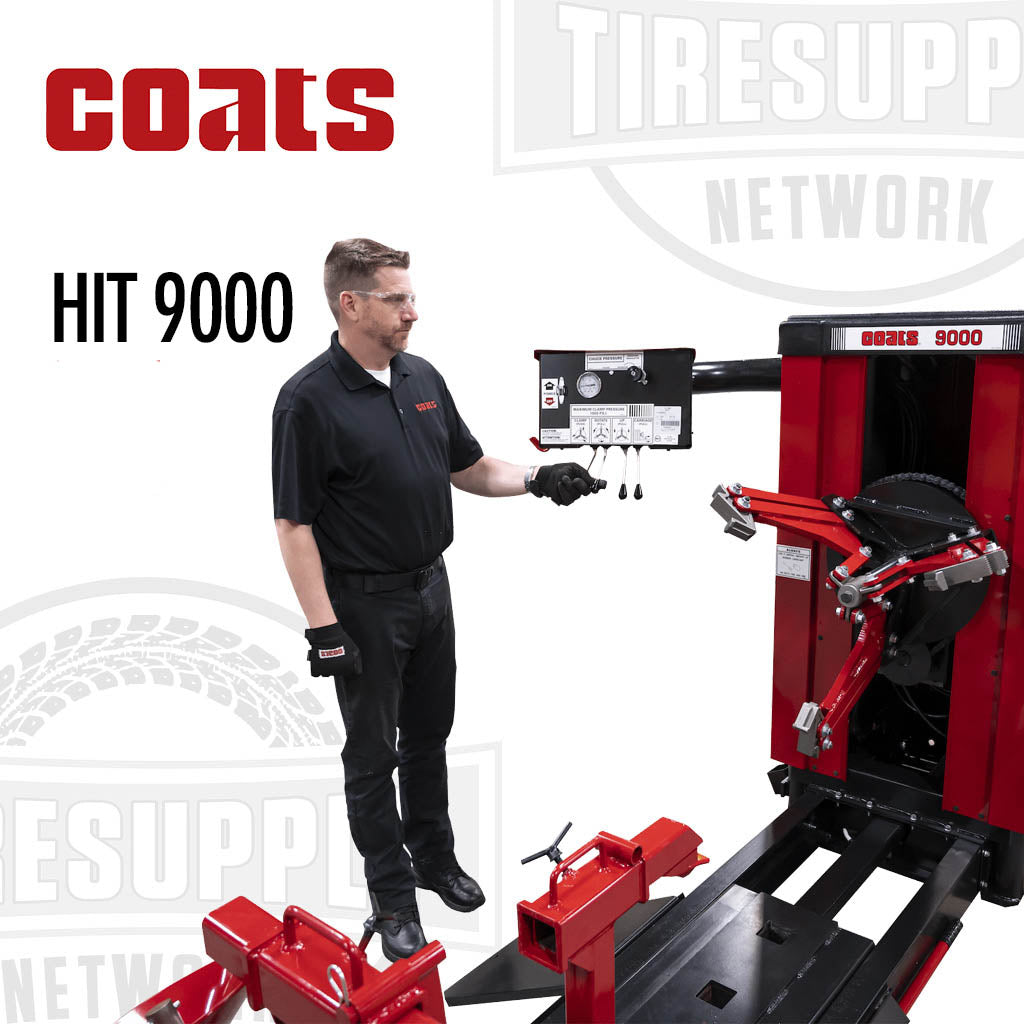

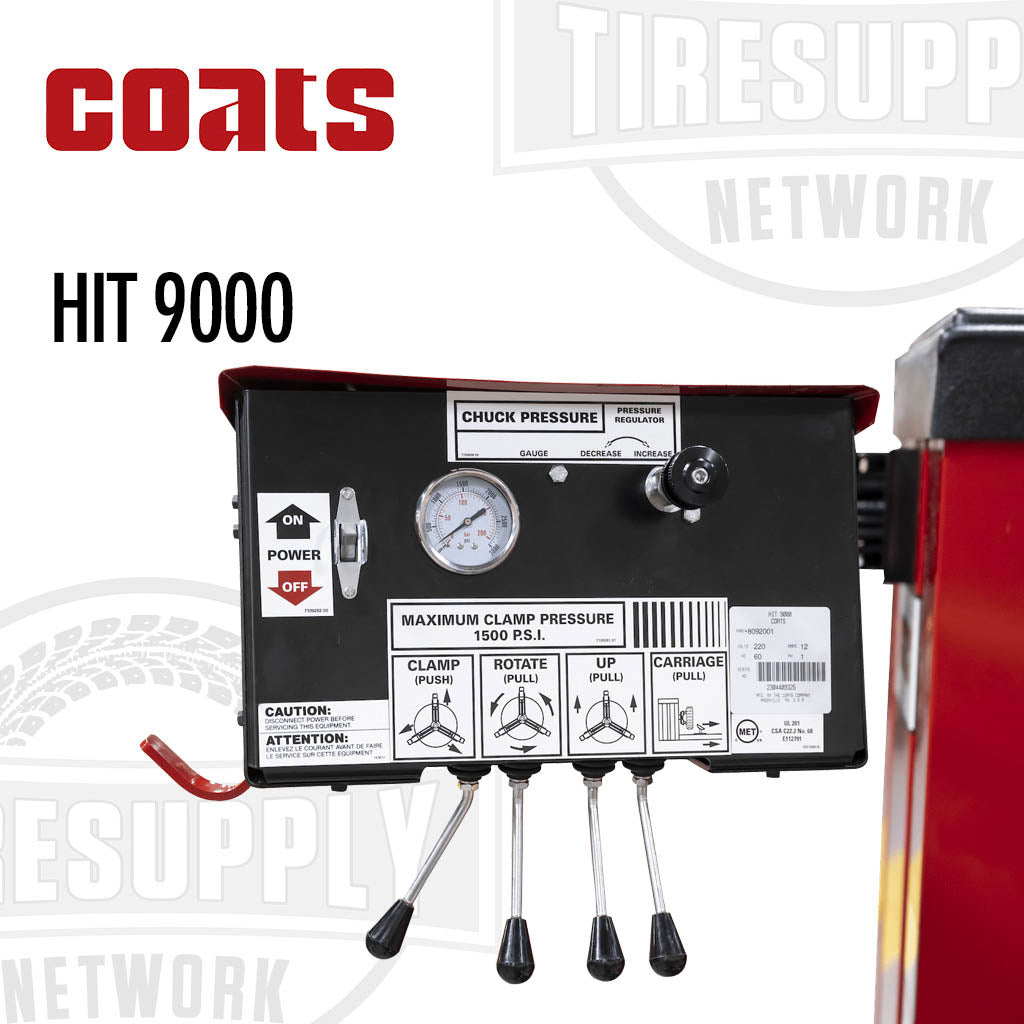

- Easy to use swing arm houses all hydraulic controls, with a dedicated lever for each powered function

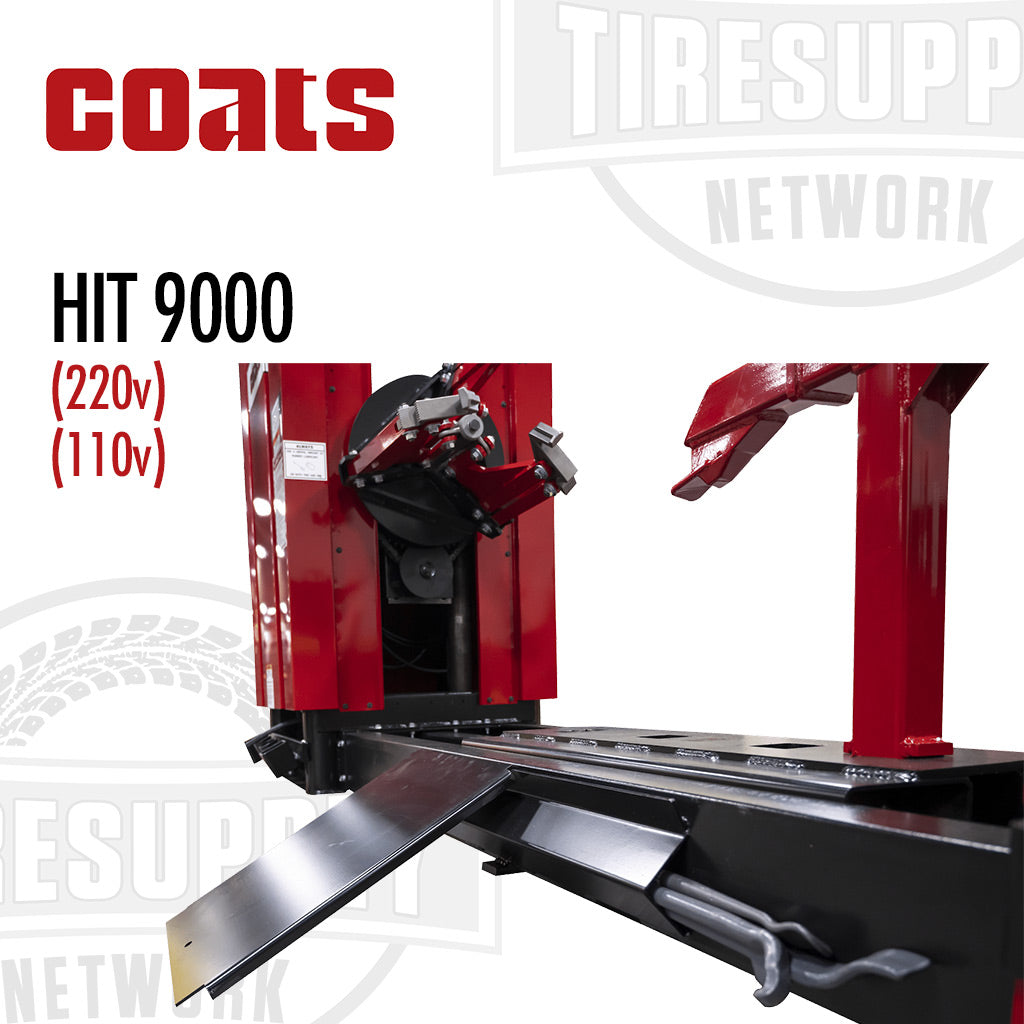

- Self centering hydraulic clamping chuck
- Adjustable pressure regulator ensures proper matching of chuck pressure to rim strength
- Heavy tapered roller bearings and dual direction hydraulic motor provide smooth torque

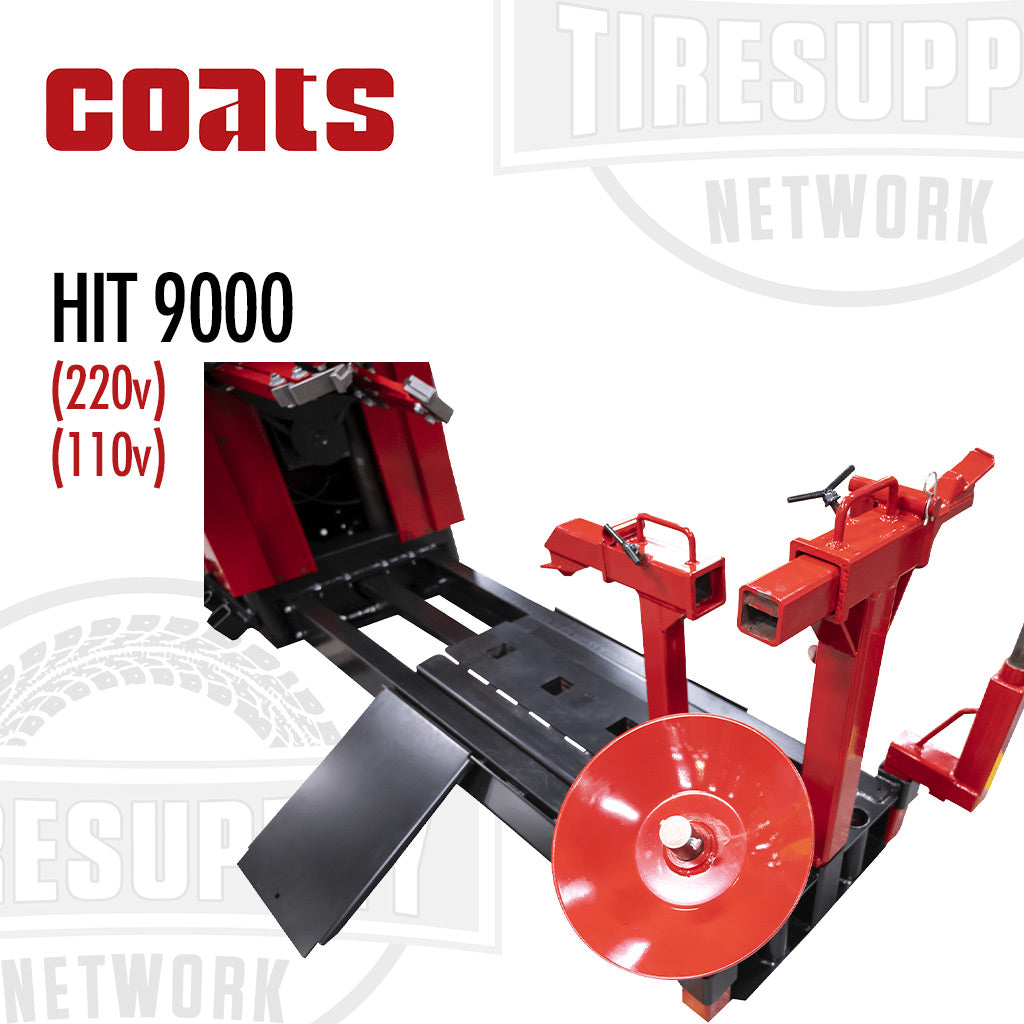

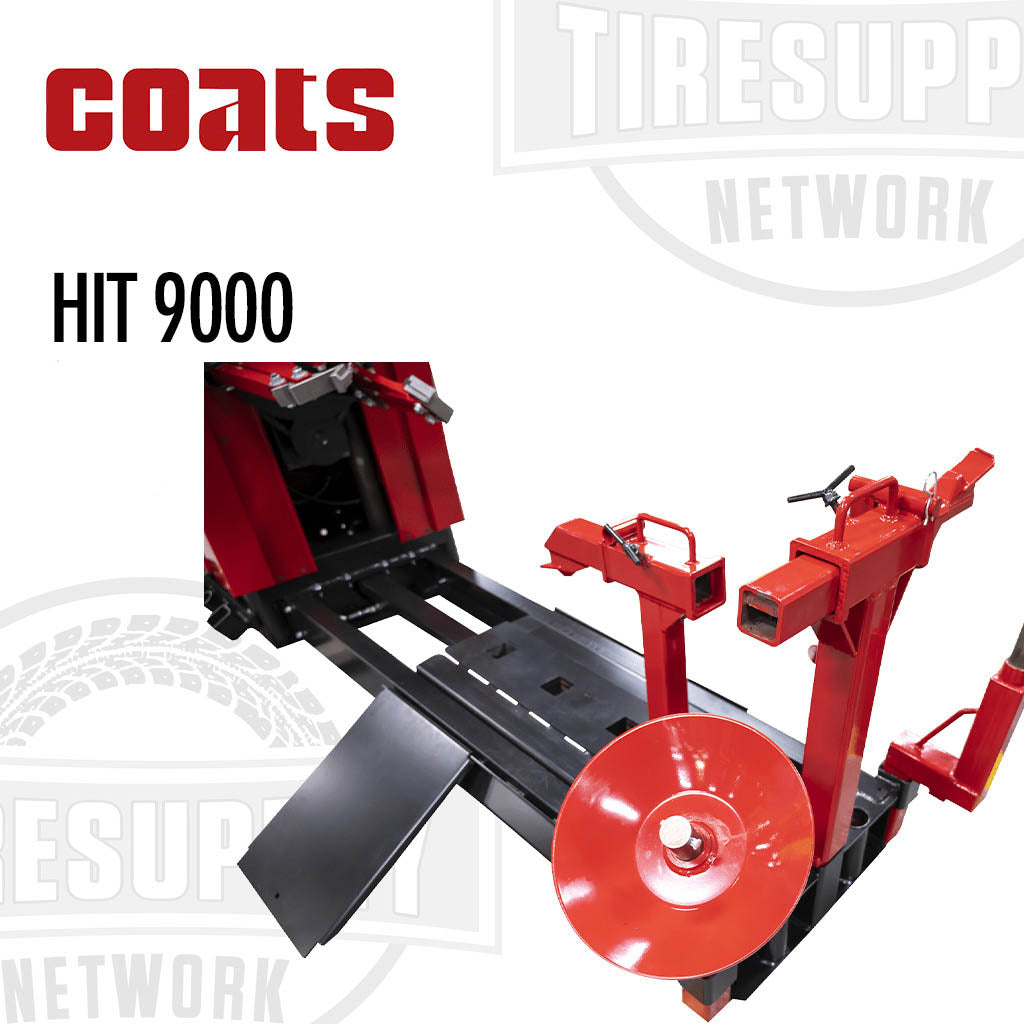

- Roller type tire spreader standard
Specifications:
| Coats Model Number | HIT 9000 |
| Coats Part Number |
8092002 : 220V 3PH | 8092001 : 220V | 8092000 : 110V |
| Operation |
3 Jaw Chuck |
| Wheel Handled | Budd & Dayton, Tube & Tubeless |
| Mount Demount |
Independent Hook & Roller |
| Tool Head Offset |
Independent removable, mount in table |
| Table |
Moving table centered in frame |
| Wheel Clamping System |
3 Jaw Chuck |
| Wheel Lift | Clamp Arm Lifting |
| Frame Structure |
Center Carriage |
| Max Tire Diameter | 76" |
| Max Tire Width | 25"+ |
| Riam Diameter Range | 15" - 44" |
| Electric Specifications | 220v / 1ph or 220v / 3ph, 60Hz |
| Air Required | No |
| Max Chuck Torque | 4400 ft/lbs |
| Max Overall Dimension | 96"w x 66"h x 108"d |
| Weight with Standard Accessories Shipping | 1600 lbs |
Accessories:
| Description | Part # | 5000 | 9000 | 6000 |
| Five Foot Pry Bar | 8120334 | S | S | S |
| Lube Bucket | 8120347 | S | S | S |
| Lube Applicator | 8120366 | S | S | S |
| Earth Mover Bead Loosener Roller Shaft | 7110652 | S | S | N/A |
| Tubeless Tire Iron | 7109342 | S | S | O |
| Lock Ring Iron | 7109343 | S | S | O |
| Drop Center Iron | 7109344 | S | S | O |
| Bead Starting Tool | 7109345 | S | S | N/A |
| Vise Grip | 7109346 | S | S | N/A |
| Stud Piloted Budd Wheel Plate | 7110853 | S | S | N/A |
| Extension Clamps, Add 6" dia. | 7110843 | O | S | N/A |

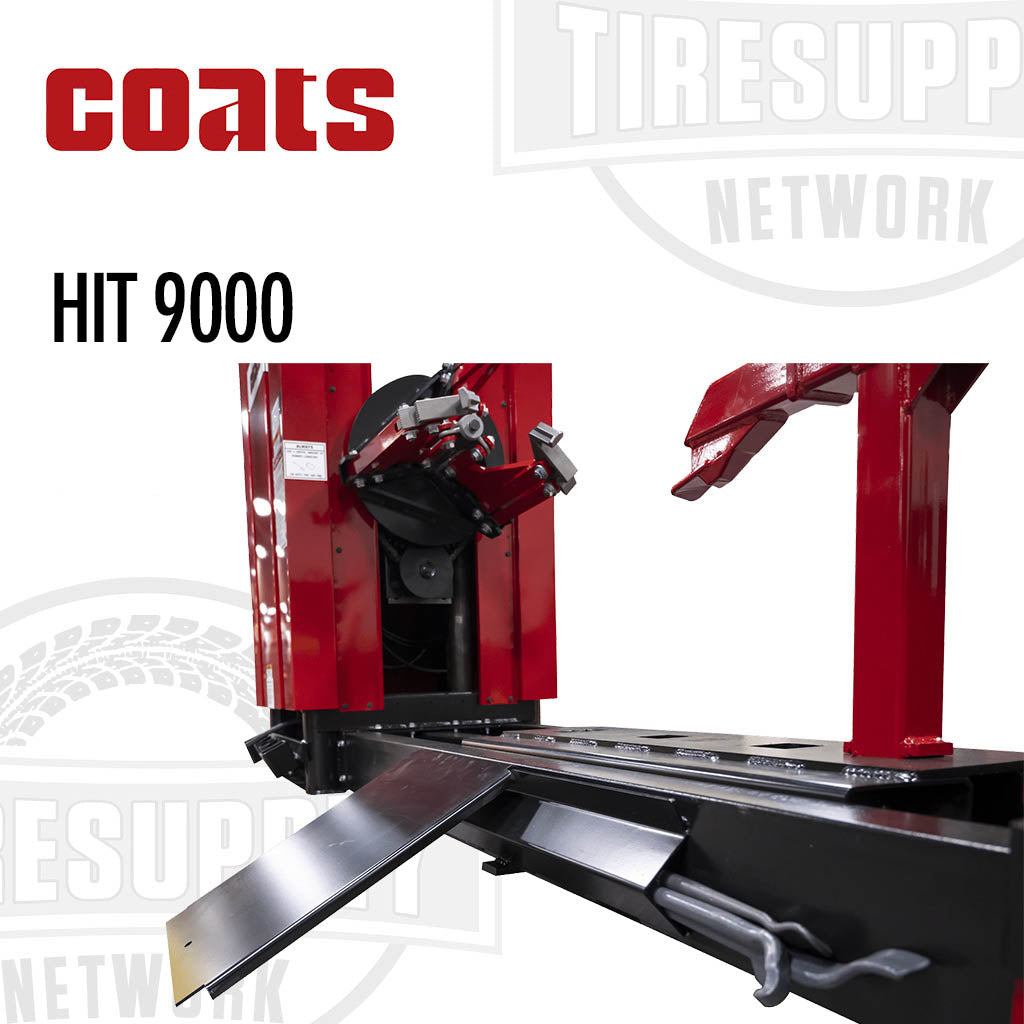

| Portable Ramps | 7110842 | O | S | N/A |
| Tractor Tire Combo Tee | 7110851 | O | S | N/A |

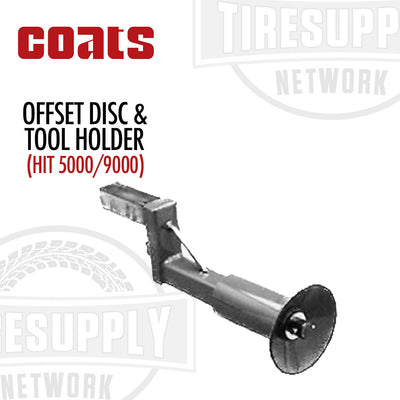

| Offset Roller Assembly for Wider Application | 7110852 | O | O | N/A |
| Hub Piloted Budd Wheel Plate | 8183803 | O | O | N/A |
| Nylon Head Combo Tool | 8183945 | N/A | N/A | O |
| Nylon Replacements | 8183950 | N/A | N/A | O |
| Duplex Combo Tool Head | 8120564 | N/A | N/A | O |
| S = Standard | O = Optional | NA = Not Applicable |
Need replacement parts? Call or email us and we can special order them for you!
