Coats | SKU: HIT9000-220V

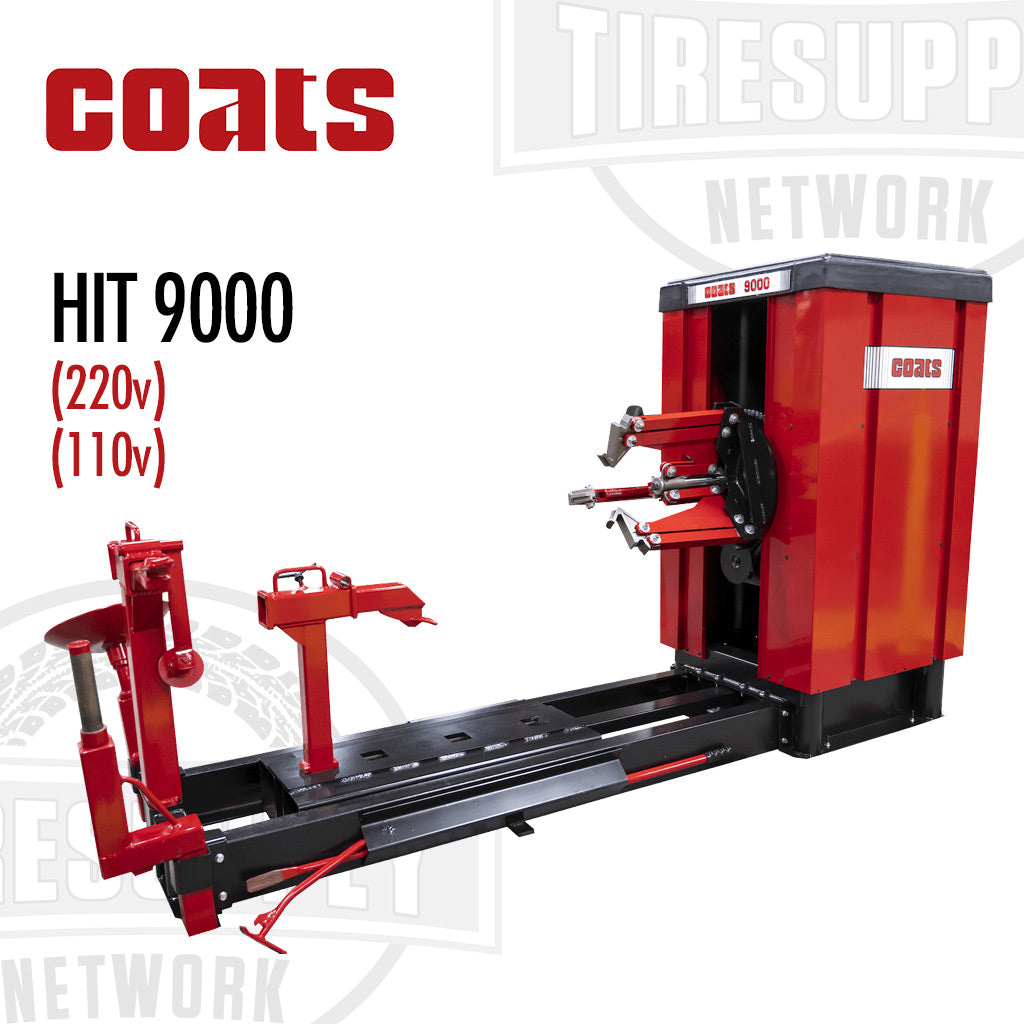

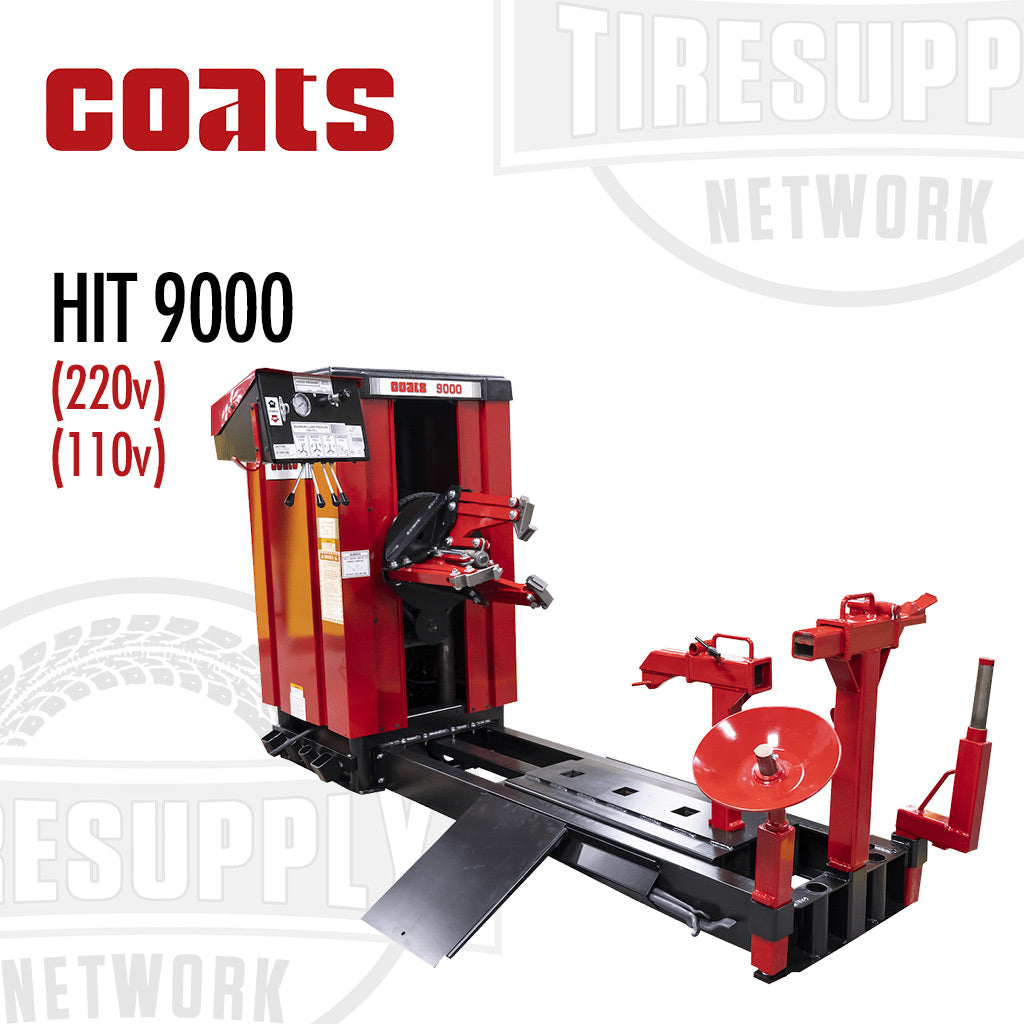

Coats HIT 9000 | Heavy Duty Tire Changer with Independent Hook & Roller - Electric

$29,895.00 $33,217.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $415.20 for 72 months Finance Now!

Choose Motor

220v 1ph 220v 3ph

Product variants

This item

Coats HIT 9000 | Heavy Duty Tire Changer with Independent Hook & Roller - Electric

$29,895.00

Qty

Coats HIT 9000 Heavy Duty Tire Changer with Independent Hook & Roller - Electric 220v 3ph, 220v (HIT9000*)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

🏁TSN TIP :

The HIT 9000 was designed for shops that routinely encounter the largest and most demanding wheel assemblies. Compared with the HIT 5000, the HIT 9000 offers greater clamping force, increased torque capacity, and support for larger rim diameters. If your technicians regularly service agricultural, construction, mining, or off-road equipment, the HIT 9000 is the clear choice within the HIT family.

These heavy duty changers can accommodate tube or tubeless tires with rim diameters from 15” to 44” (9000).

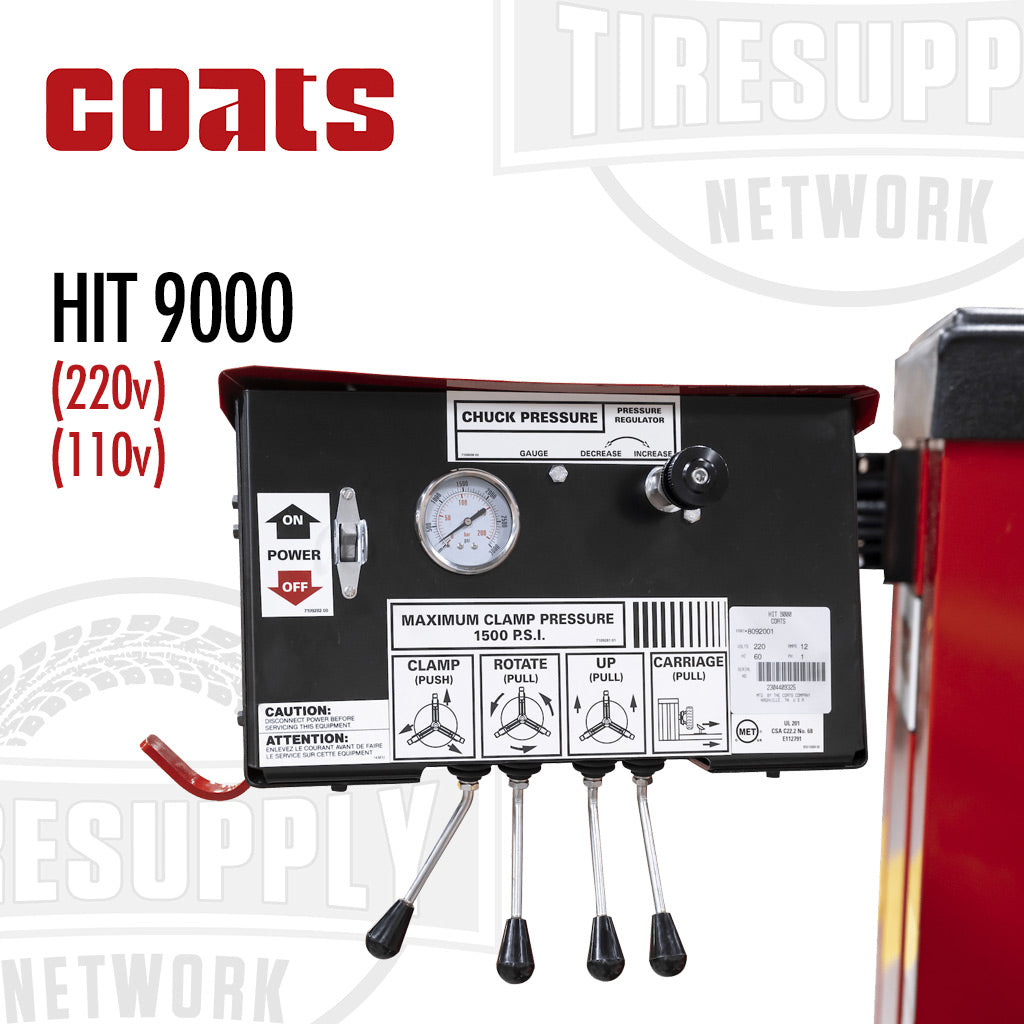

Easy to use swing arm houses all hydraulic controls, with a dedicated lever for each powered function
Self centering hydraulic clamping chuck
Adjustable pressure regulator ensures proper matching of chuck pressure to rim strength
Heavy tapered roller bearings and dual direction hydraulic motor provide smooth torque
Roller type tire spreader standard

Specifications:

Coats Model Number	HIT 9000
Coats Part Number	8092002 : 220V 3PH \| 8092001 : 220V
Operation	3 Jaw Chuck
Wheel Handled	Budd & Dayton, Tube & Tubeless
Mount Demount	Independent Hook & Roller
Tool Head Offset	Independent removable, mount in table
Table	Moving table centered in frame
Wheel Clamping System	3 Jaw Chuck
Wheel Lift	Clamp Arm Lifting
Frame Structure	Center Carriage
Max Tire Diameter	76"
Max Tire Width	25"+
Riam Diameter Range	15" - 44"
Electric Specifications	220v / 1ph or 220v / 3ph, 60Hz
Air Required	No
Max Chuck Torque	4400 ft/lbs
Max Overall Dimension	96"w x 66"h x 108"d
Weight with Standard Accessories Shipping	1600 lbs

Accessories:

Description	Part #	5000	9000	6000
Five Foot Pry Bar	8120334	S	S	S
Lube Bucket	8120347	S	S	S
Lube Applicator	8120366	S	S	S
Earth Mover Bead Loosener Roller Shaft	7110652	S	S	N/A
Tubeless Tire Iron	7109342	S	S	O
Lock Ring Iron	7109343	S	S	O
Drop Center Iron	7109344	S	S	O
Bead Starting Tool	7109345	S	S	N/A
Vise Grip	7109346	S	S	N/A
Stud Piloted Budd Wheel Plate	7110853	S	S	N/A
Extension Clamps, Add 6" dia.	7110843	O	S	N/A
Portable Ramps	7110842	O	S	N/A
Tractor Tire Combo Tee	7110851	O	S	N/A
Offset Roller Assembly for Wider Application	7110852	O	O	N/A
Hub Piloted Budd Wheel Plate	8183803	O	O	N/A
Nylon Head Combo Tool	8183945	N/A	N/A	O
Nylon Replacements	8183950	N/A	N/A	O
Duplex Combo Tool Head	8120564	N/A	N/A	O
S = Standard \| O = Optional \| NA = Not Applicable
