TSI | Wheel Crusher TC-350 - Choose Electric, Gas, Diesel Motor (TC-350*)

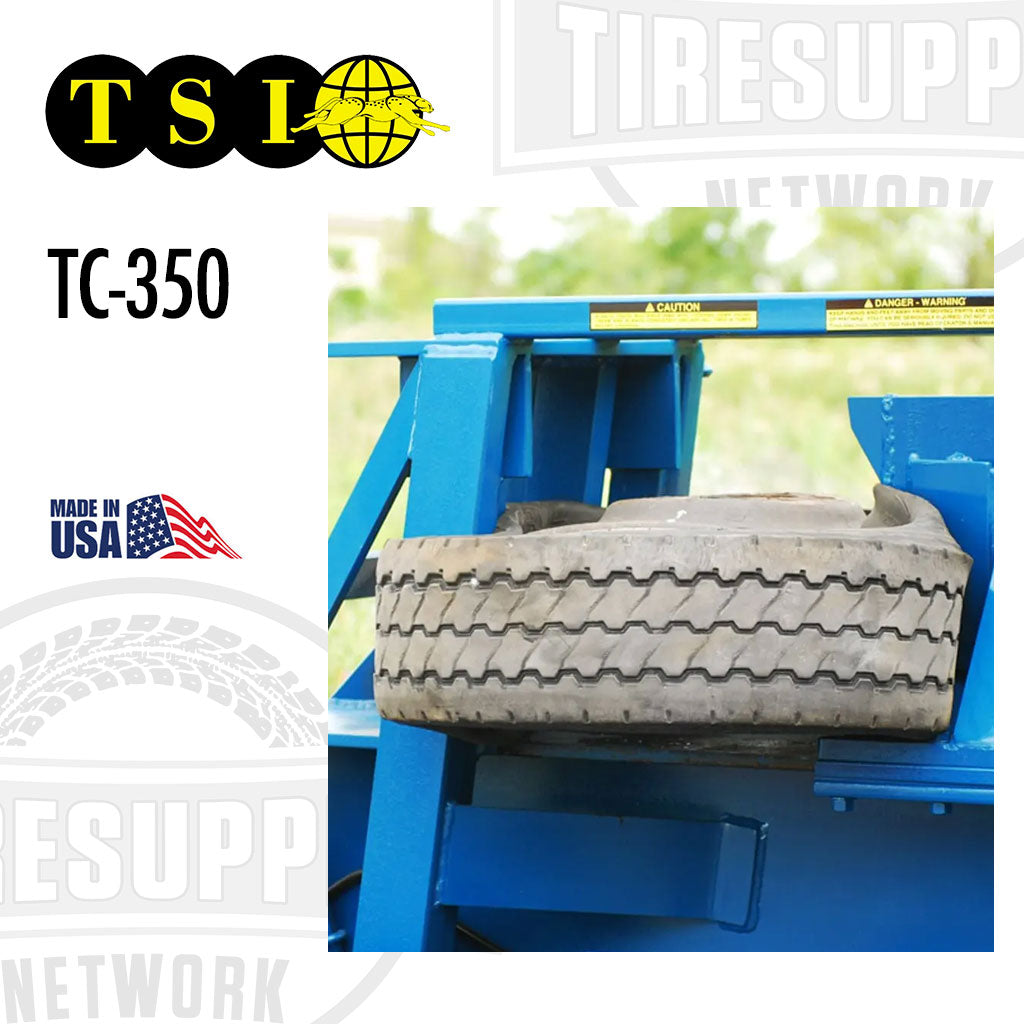

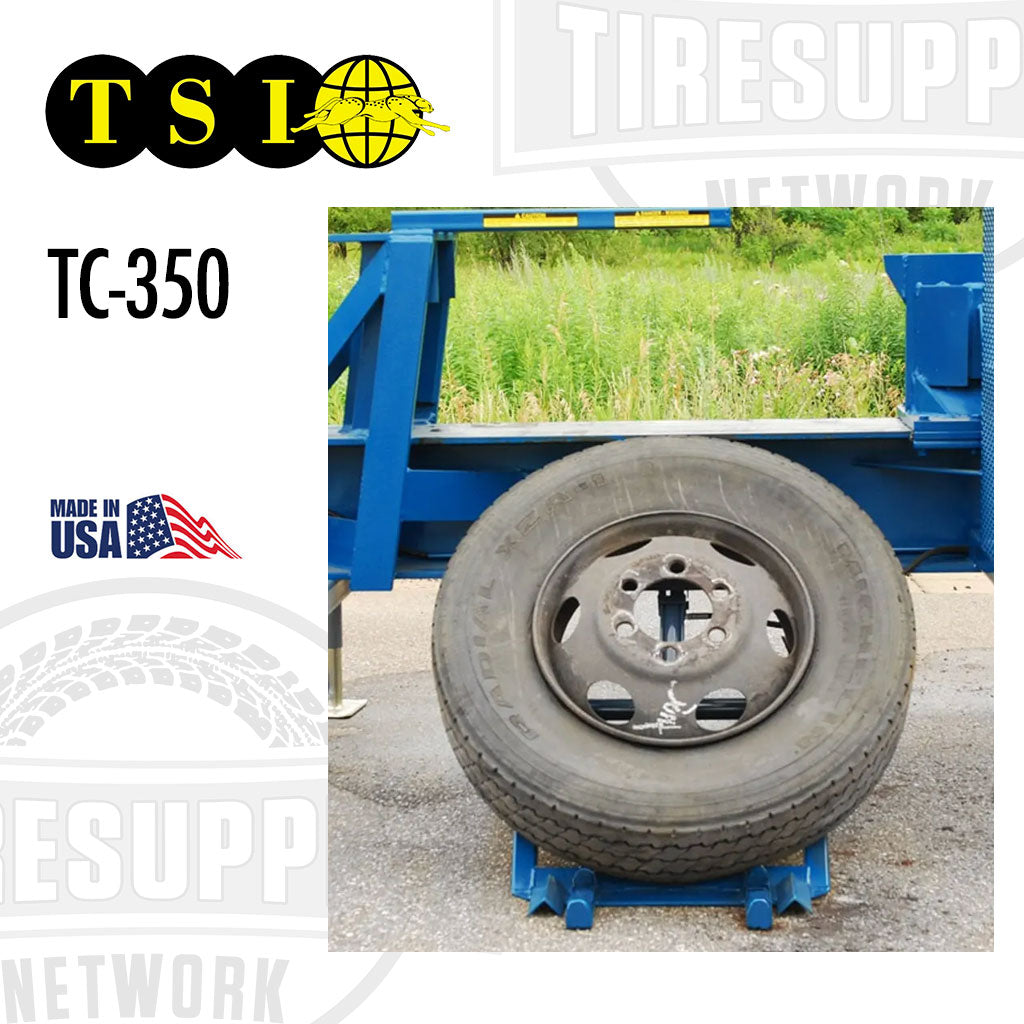

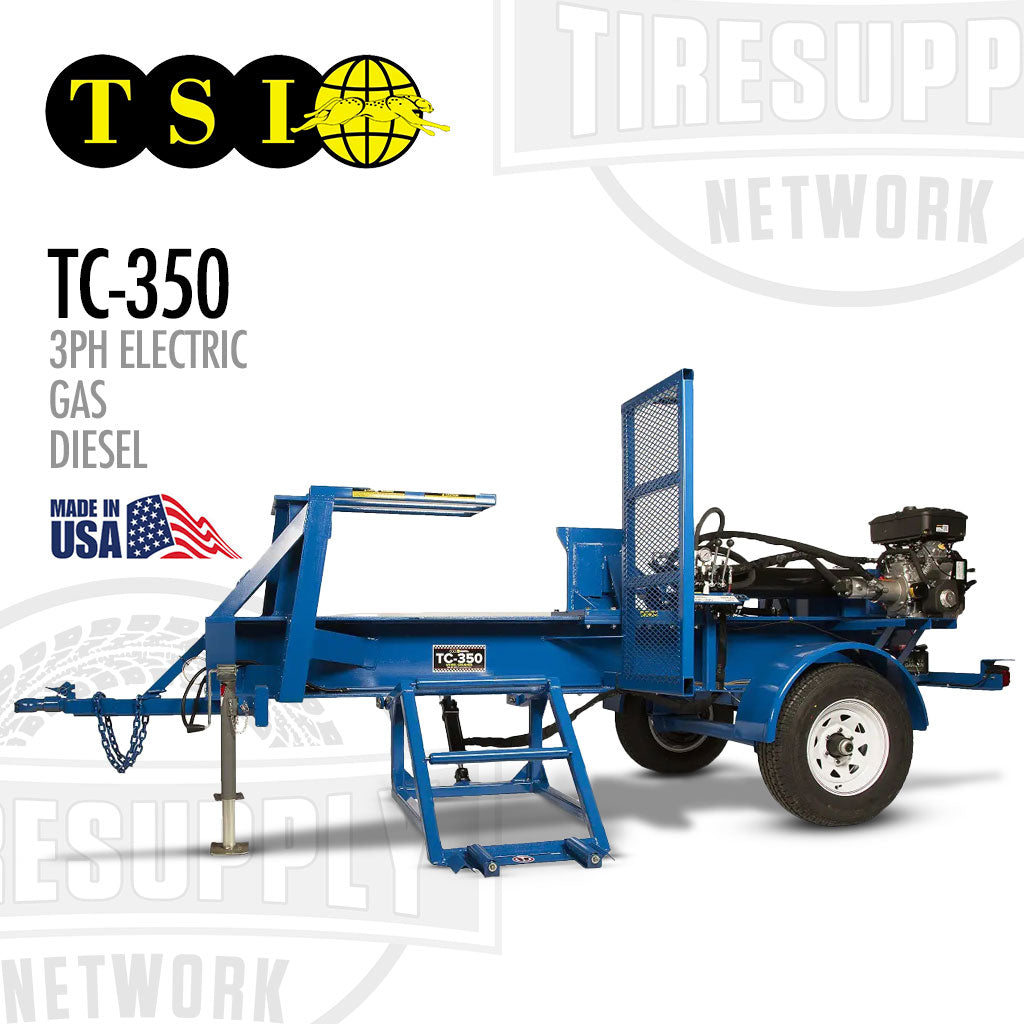

The TC-350 Wheel Crusher is designed to crush over-the-road truck wheels including Dayton and Budd type wheels. A hydraulic lift raises the tire and wheel to the crushing platform eliminating manual lifting. The TC-350 EP Wheel Crusher is fully towable for mobility with electric brakes and includes a light package for nighttime towing. All operating controls are located behind a safety wire-mesh panel. The TC-350 EP is easy to operate, low maintenance, dependable and designed for years of service. The TC-350 is available in 3 motor options: 1) 10 HP 3 Phase, 220/440 V electric motor 2) 18 HP B&S, V-Twin gas engine with electric start 3) Kubota diesel engine.
Features:
- Eliminates the difficult task of manually separating tires from old, rusted wheels

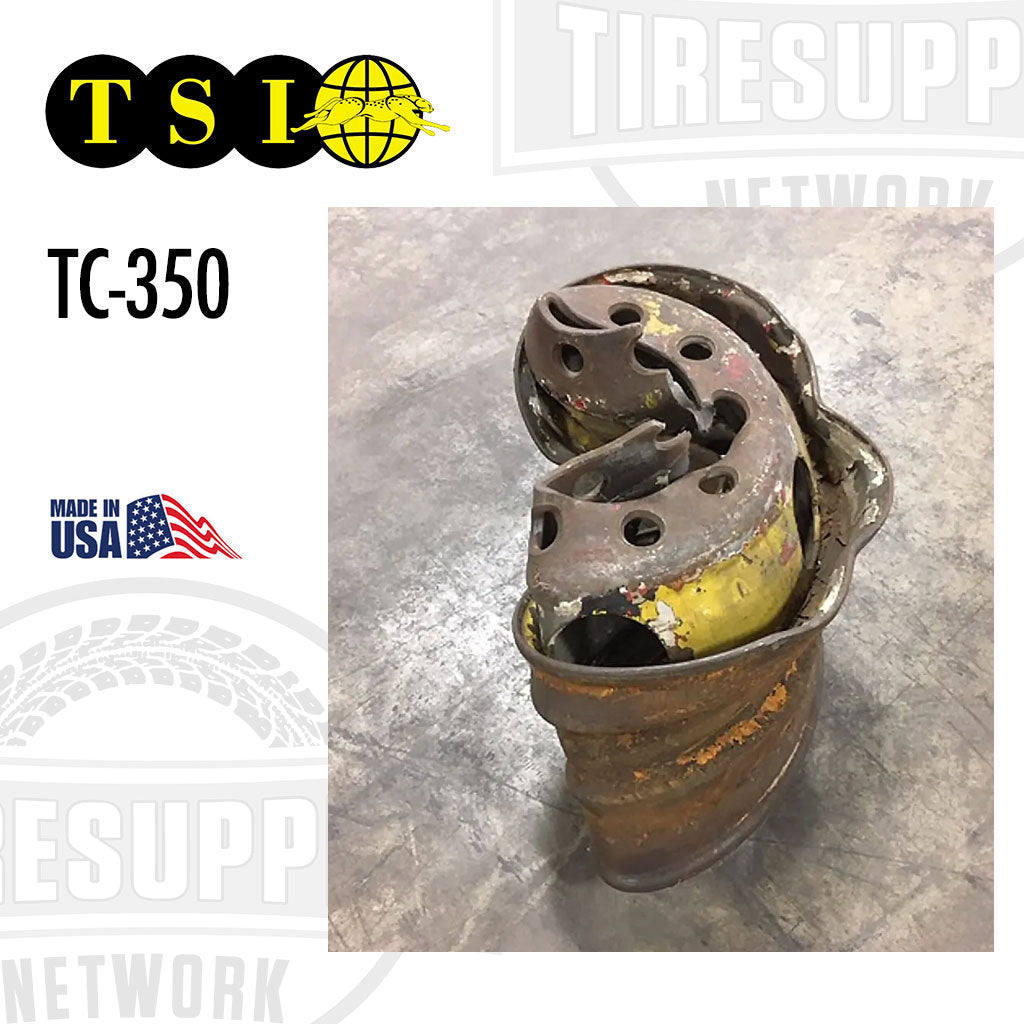

- Reclaim valuable scrap steel for recycling or resale
- Delivers 79,000 lbs of crushing force
- Single crush stroke completes process quickly and easily
Specifications: (Electric)

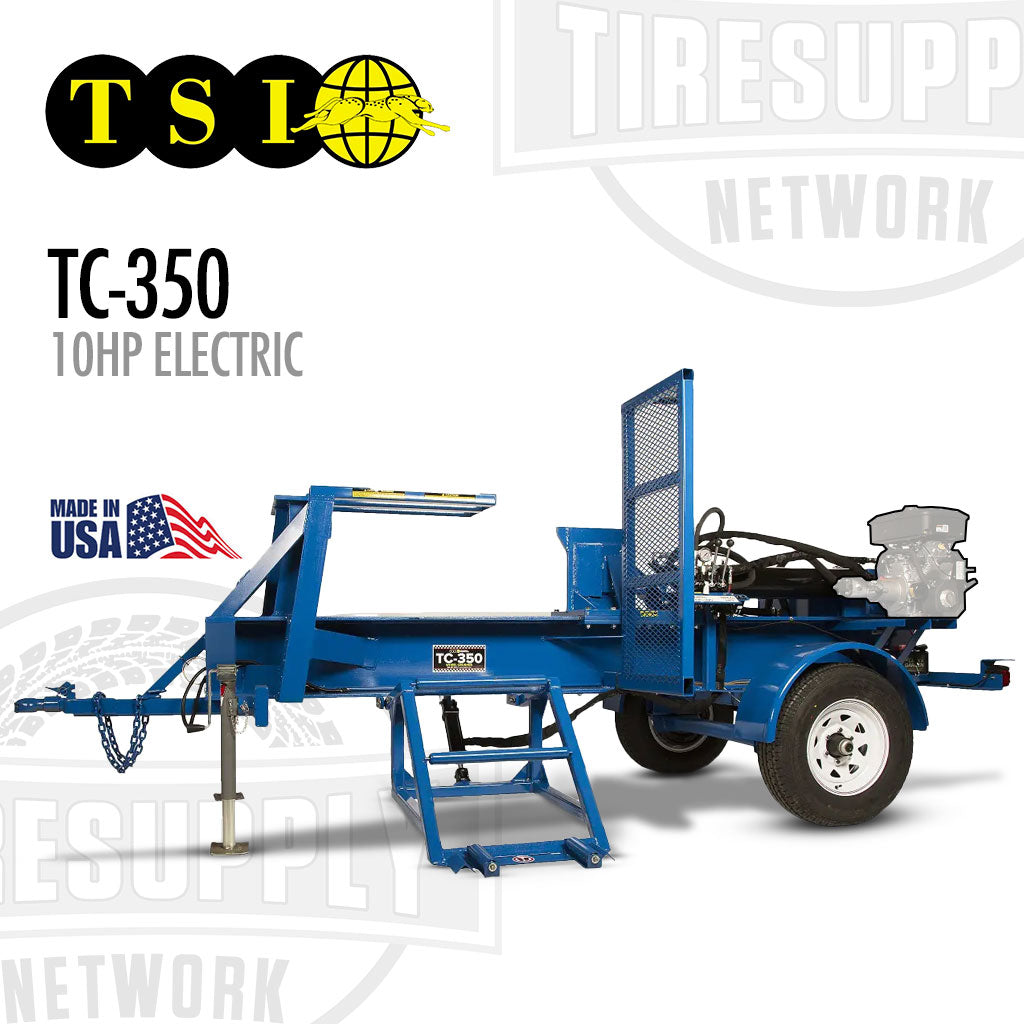

- Motor: 10 HP, 220/440 3 Phase
- Weight: 6200 lbs
- Dimensions: 186 × 82 × 76 in
Specifications: (Gas)
- Motor: 18 HP, V-Twin B&S commercial gas engine with electric start
- Weight: 6200 lbs
- Dimensions: 121 × 82 × 76 in
Specifications: (Diesel)
- Motor: Kubota Deisel
- Weight: 6200 lbs
- Dimensions: 121 × 82 × 76 in
Files:
| Product Brochure | Operation Manual | Parts List & Assembly |
