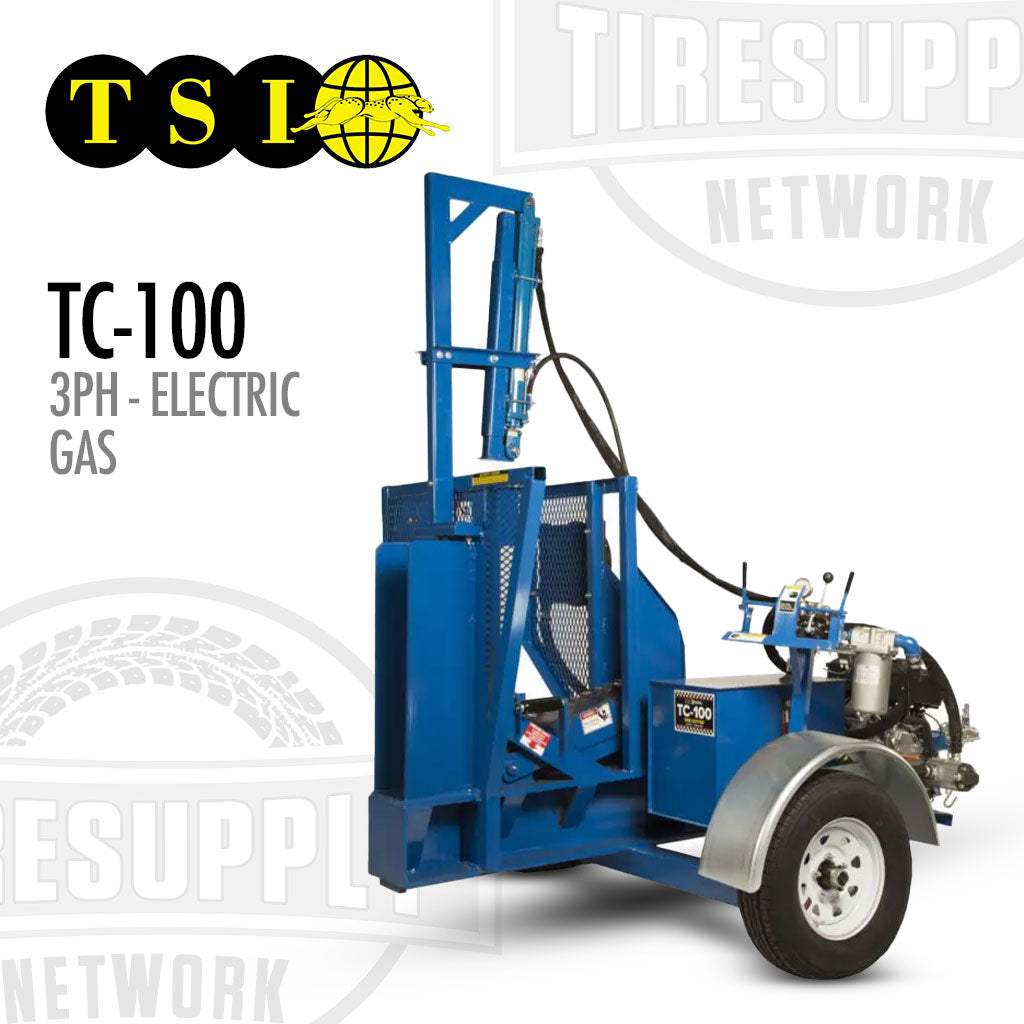

TSI | Tire Cutter TC-100 - Choose Electric or Gas Powered (TC-100*)
The TC-100 EP Tire Cutter is a versatile tire cutter that is used by tire shops, services stations, landfills, auto salvage yards and retread plants. The TC-100 EP is designed to cut passenger, light truck and heavy truck tires; including super singles. The TC-100 EP is equipped with a 10 HP, 3 PH, 220/440 V electric motor.

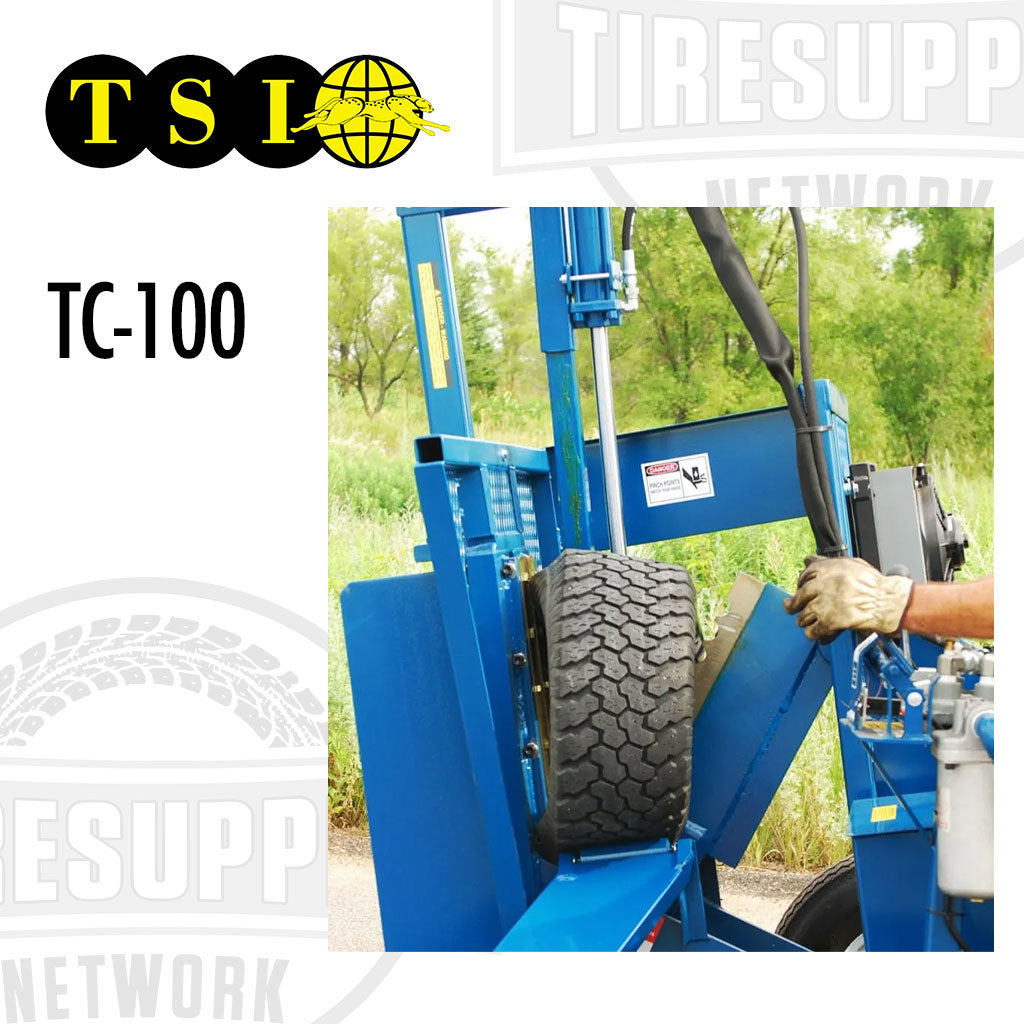

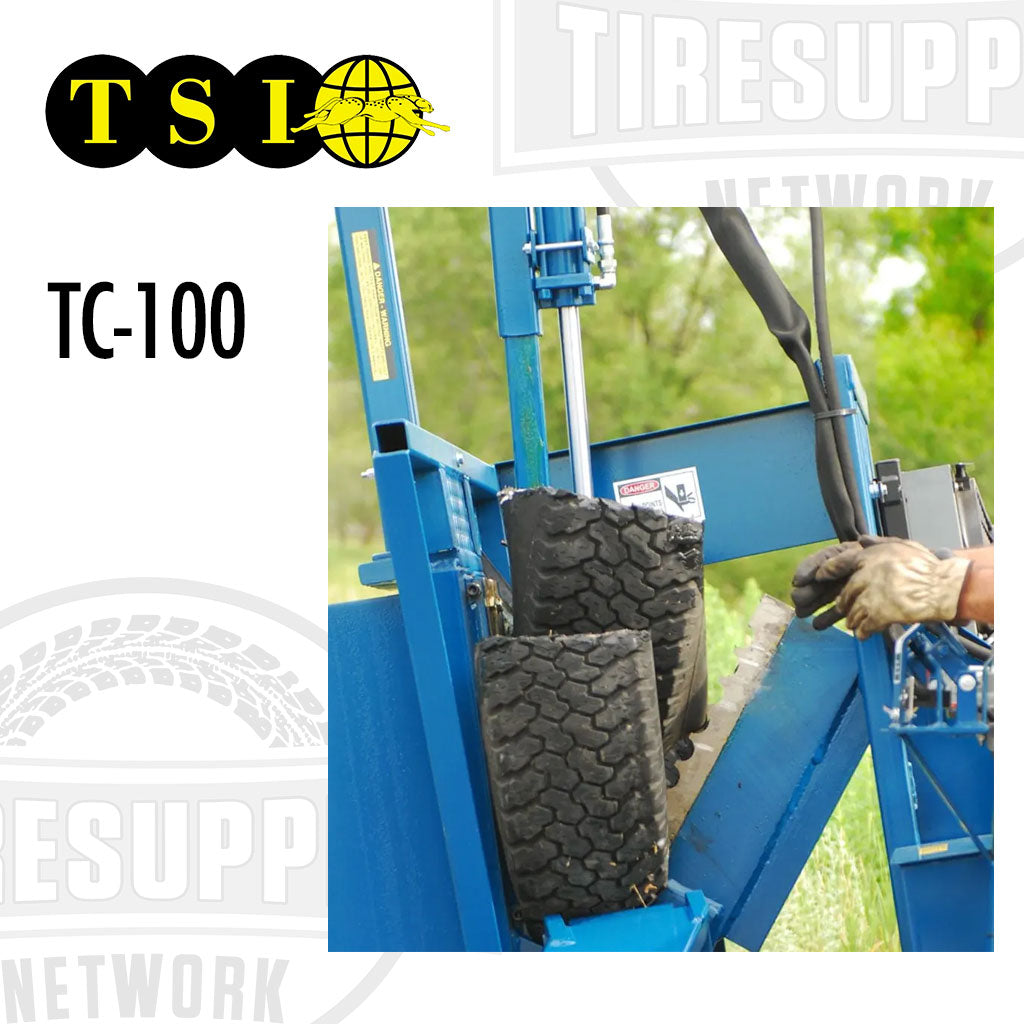

Heavy truck tires can quartered at a rate of up to 40 per hour. Passenger and light truck tires can be cut into 4 pieces at a rate of up to 120 per hour using the optional TC-100-14 passenger tire compressor. The patented double shear blade system is easily adjustable to maintain a zero clearance between the blades for a clean cut. This eliminates blade separation and greatly extends blade life. The TC-100 EP is a portable unit that can be easily transported to tire salvage piles, Contains a 2″ ball hitch and safety chains.
Motor Options:

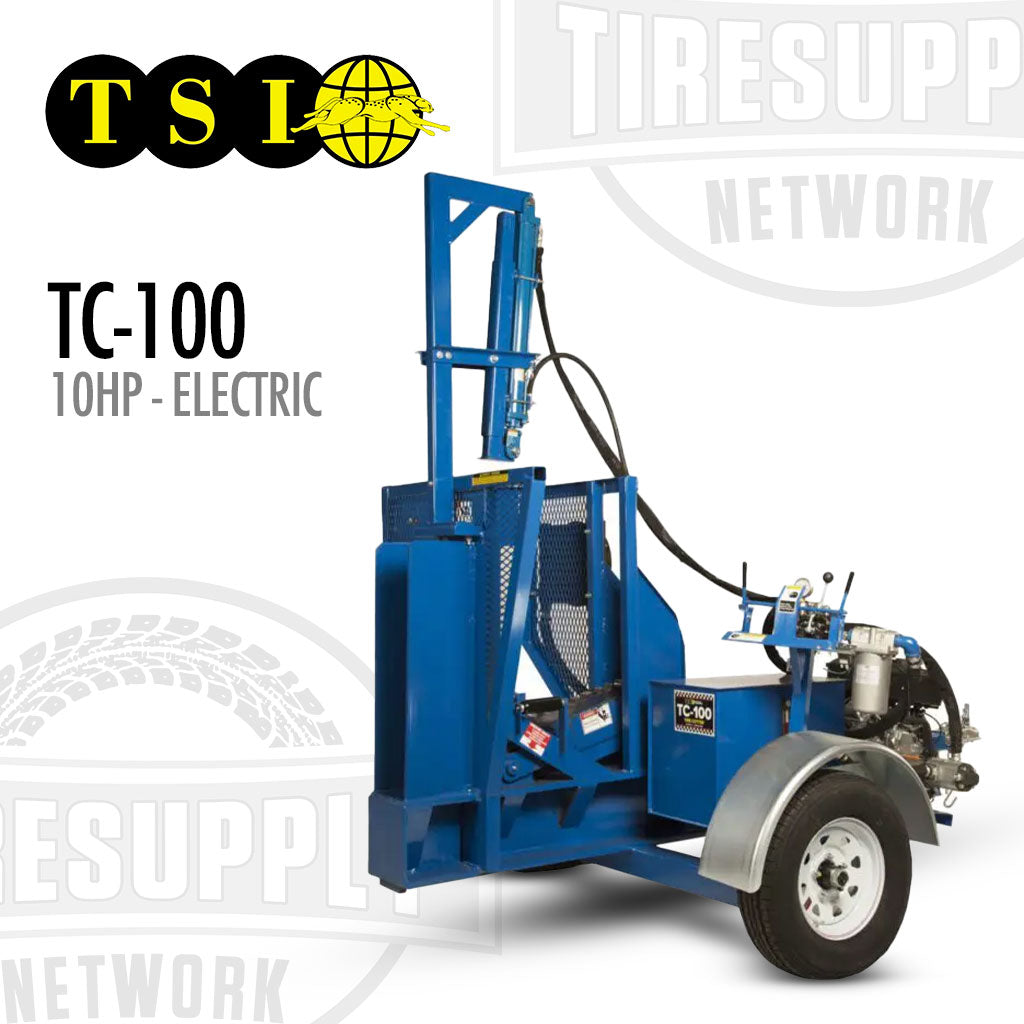

- Electric: 10 HP, 220/440 V 3 Phase

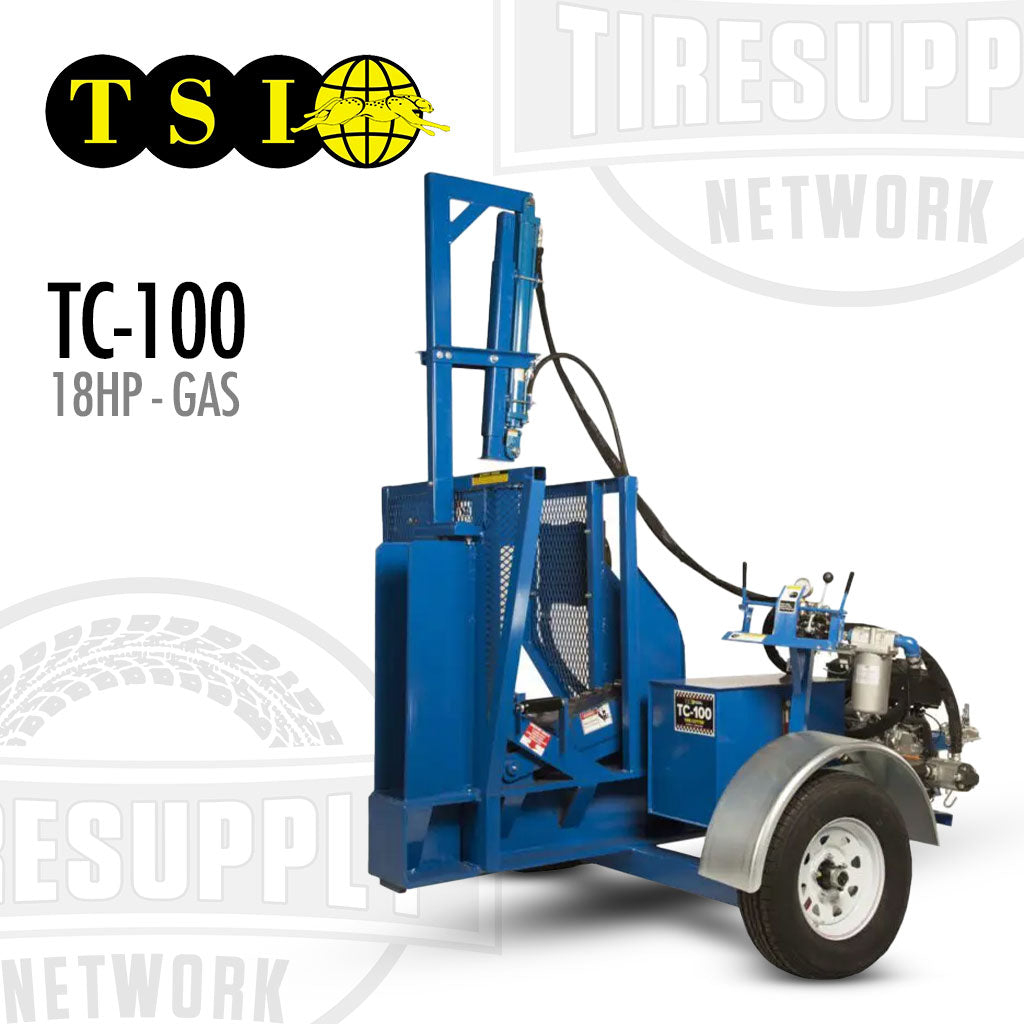

- Gas: 18 HP Briggs and Stratton gas motor with electric start
TC-100 E 1PH Specifications: (Electric)
- Weight: 2850 lbs
- Dimensions: 121 × 68 × 73 in
TC-100 G Specifications: (Gas)
- Weight: 2782 lbs
- Dimensions: 121 × 72 × 77 in
Files:
| Product Brochure | Operation Manual | Parts List & Assembly |
