Rotary  |  SKU: SPOA10N20M0BL

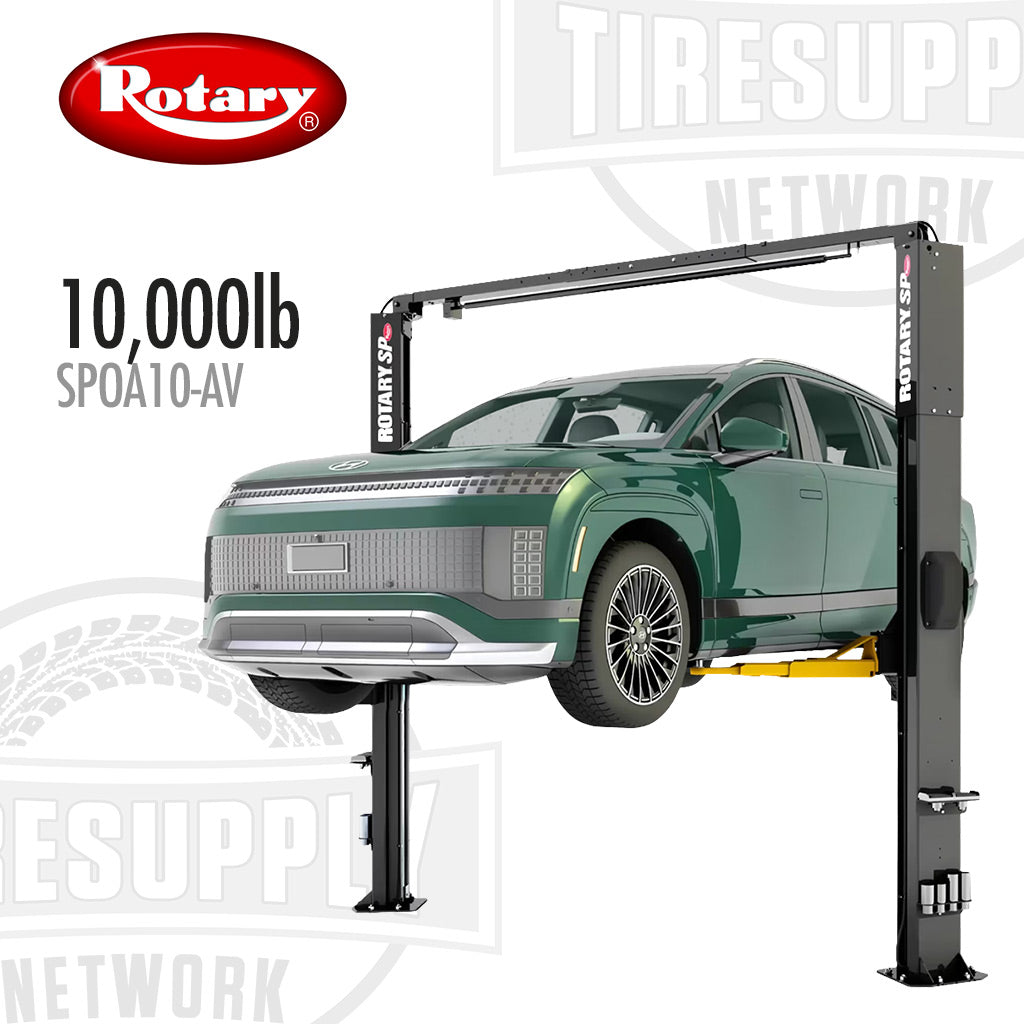

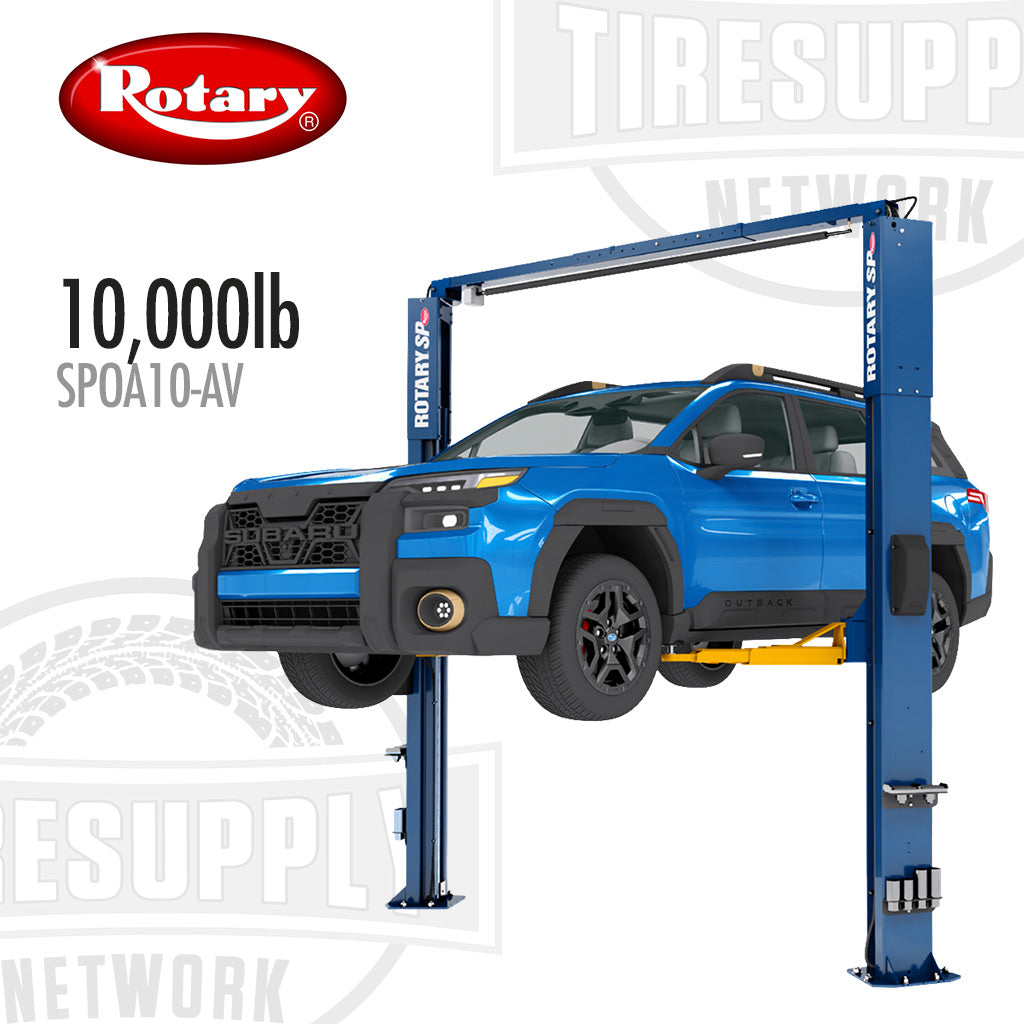

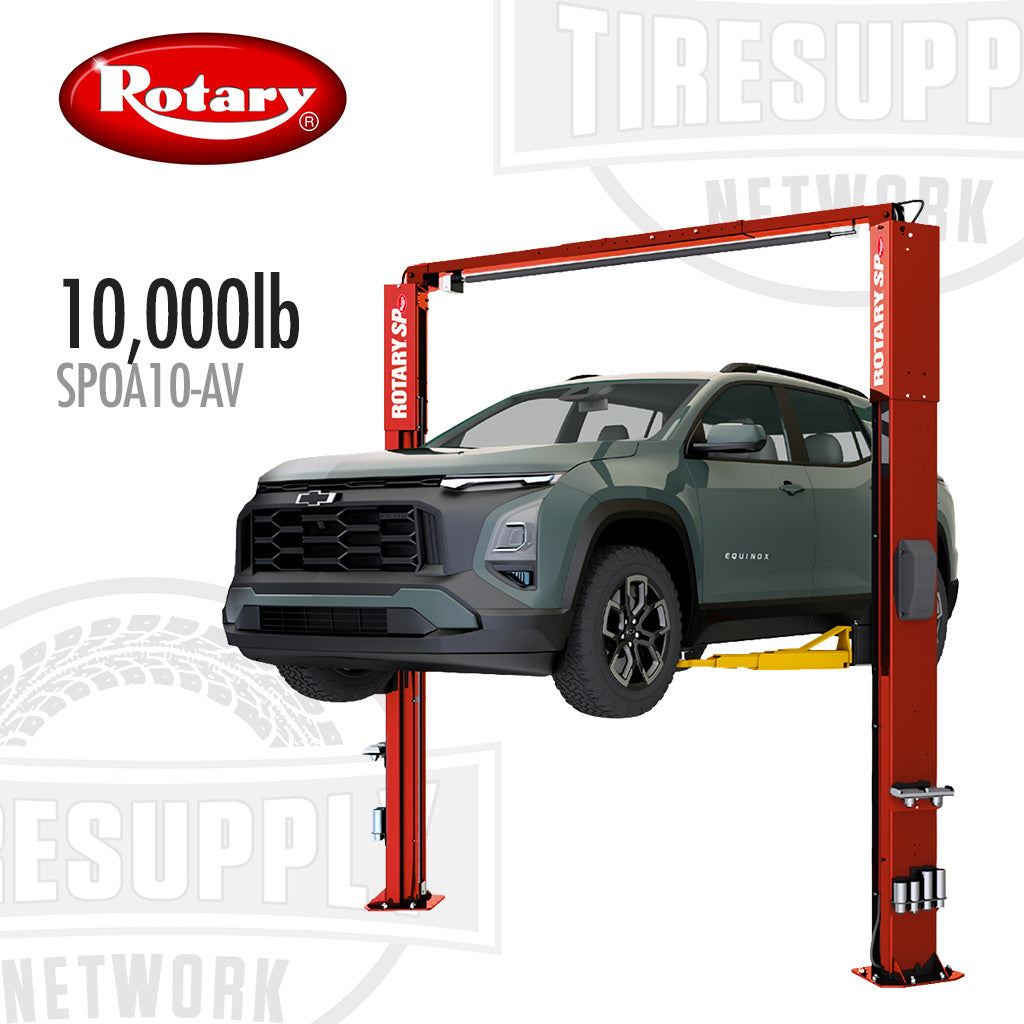

Rotary SPOA10-AV | 2-Post Lift 10,000 lbs Capacity - Shockwave Power

Sale price $8,291.00 Regular price $9,212.22

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $115.15 for 72 months Finance Now!


Color & Motor


Rotary SPOA10-AV | 2-Post Lift 10,000 lbs Capacity - Shockwave Power

 PLEASE NOTE:  All Rotary items are considered SPECIAL ORDER ITEMS and thus FINAL SALE. Requests for CANCELLATIONS, RETURNS, or REFUNDS cannot be honored. Thank you for your understanding.

 PLEASE NOTE:  Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

 PLEASE NOTE:  Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.

WARRANTY: 5 Year Structural. 1 Year Functional. 1 Year Labor.

Introducing the ONE LIFT to service them all! The next evolution in automotive lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s best-selling asymmetric two-post lift, now featuring Rotary’s All-Vehicle (AV) Lift Arms. Lift and service practically all road going vehicles on ONE LIFT (within rated capacity).

10,000 lbs. capacity AV ARMS™ lift and service practically all roadgoing vehicles on ONE LIFT, including:*

  • Battery Electric
  • Exotic Low Profile
  • Truck Frame
  • Unibody Cars & SUVs

*Please reference the product manual or contact a factory representative for specific lifting requirements.

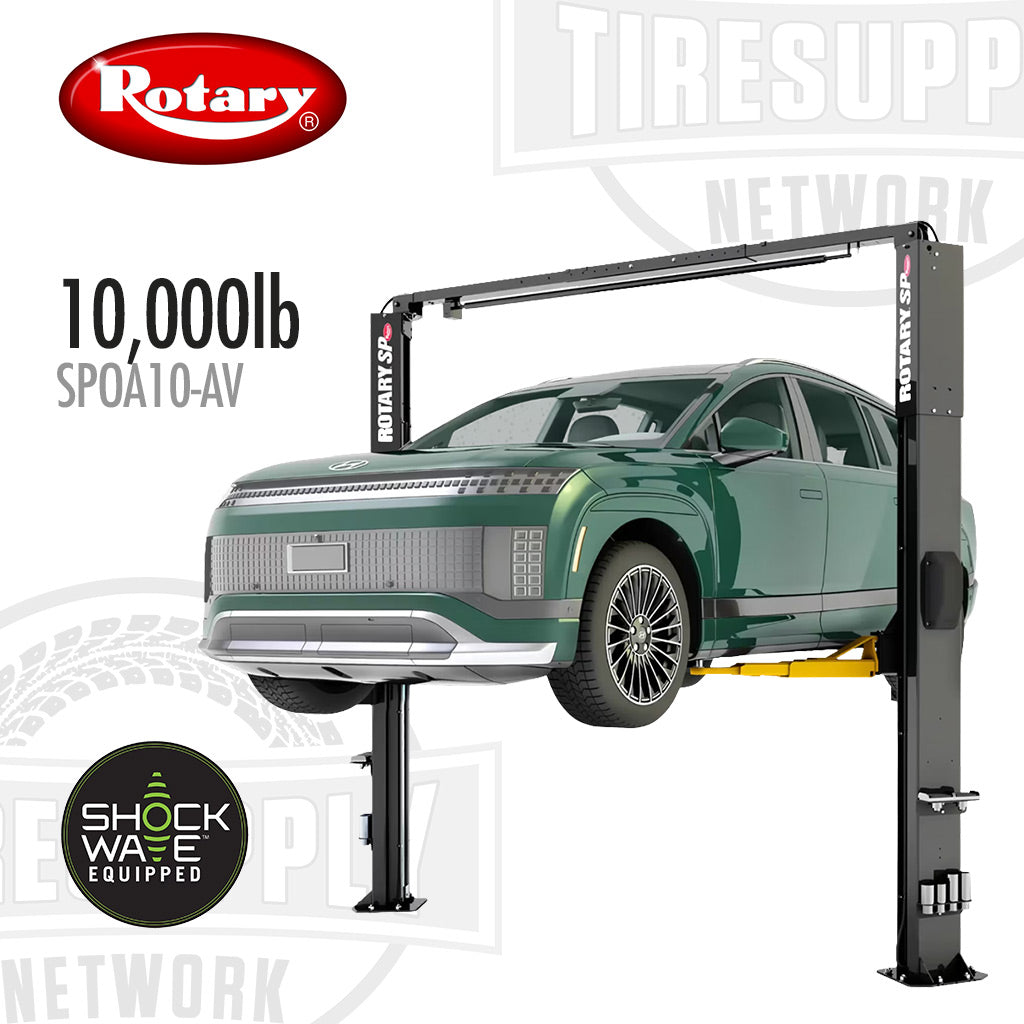

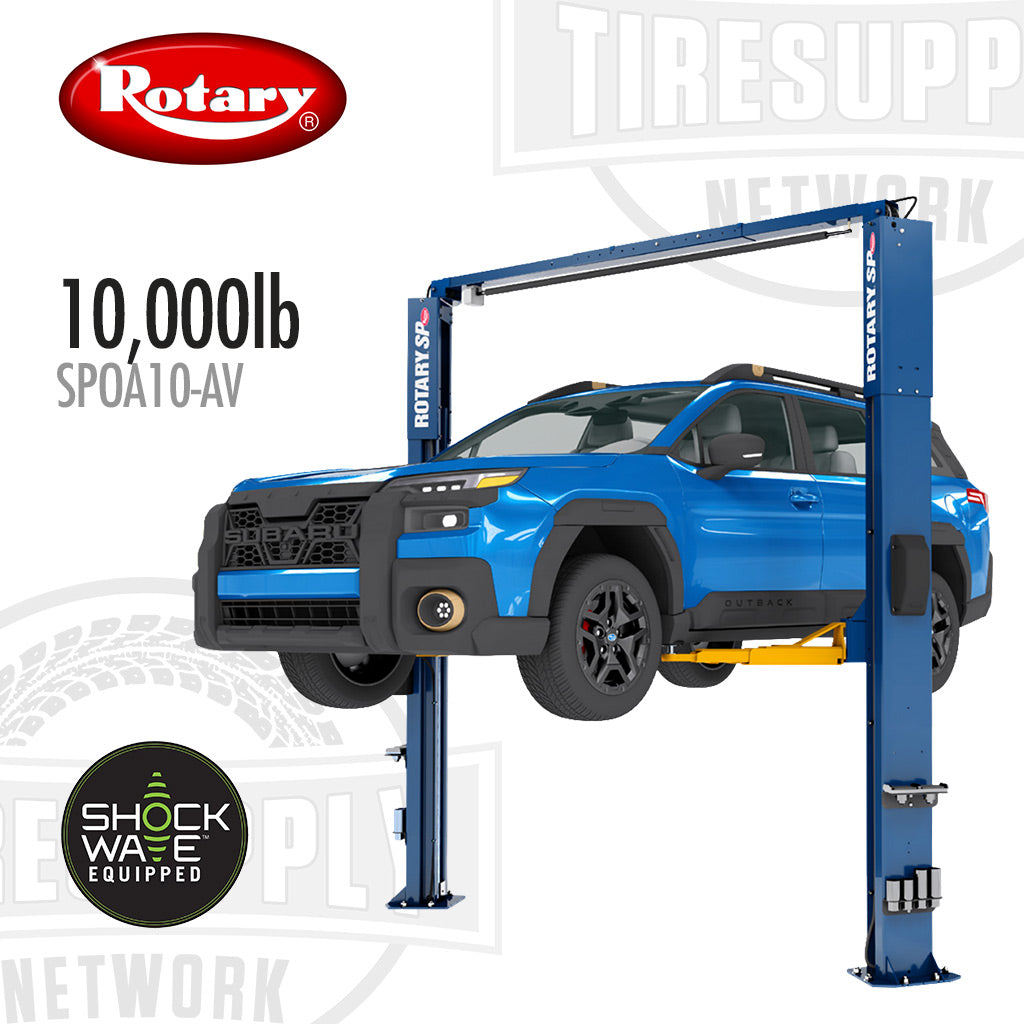

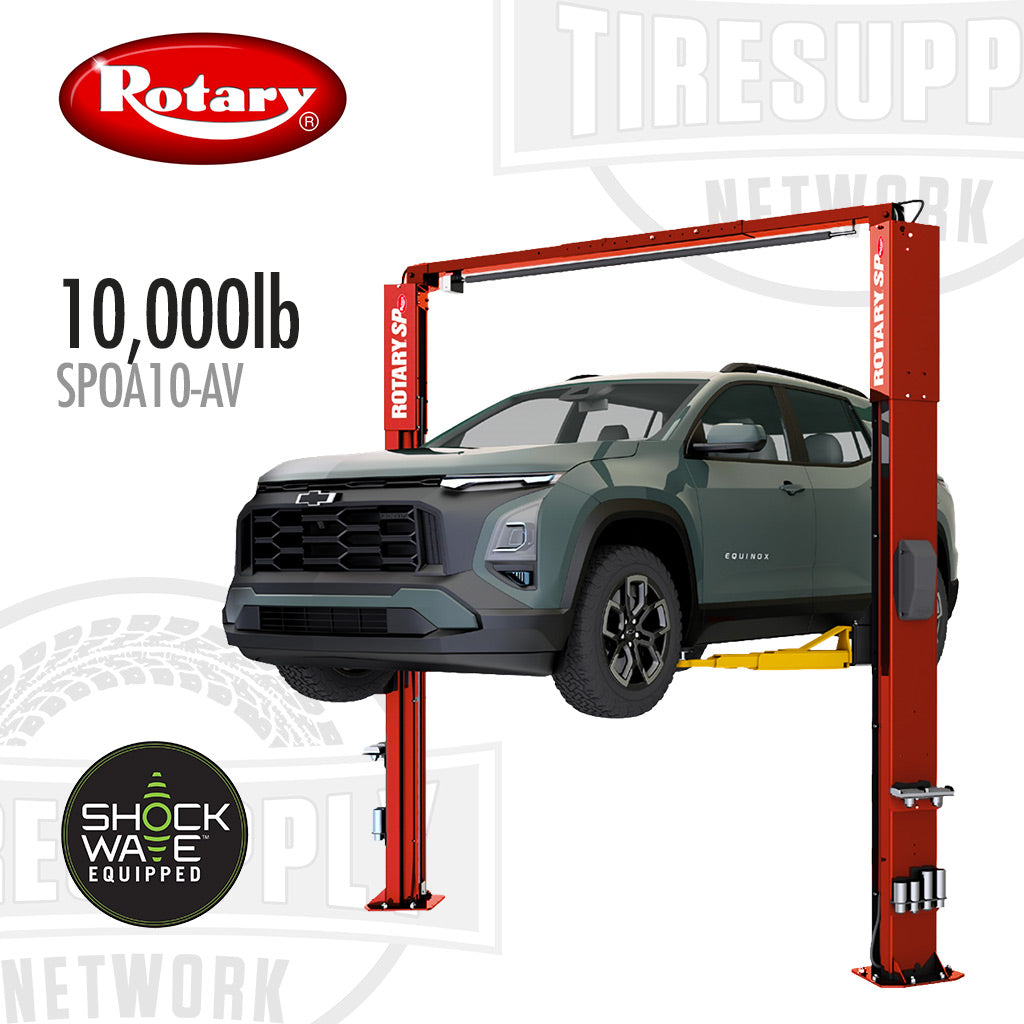

ShockWave™
Lifts equipped with Shockwave dramatically increase productivity in your shop. A combination of features lets you get the vehicle up and back down in half the time as a traditionally powered lift. DC battery power, Spotline™, and your choice of arm configurations help you service more jobs per bay, earning greater profit.

Legendary "Double S" Column Design
The exclusive Double-S column provides strength through design for every Rotary two-post lift. Its unique shape provides a secure channel for the carriage to operate smoothly both up and down.

True Asymmetric Lifting
Rotary’s SPOA series lifts are designed for passenger and lighter vehicles. Rotating the columns 30°, combined with shorter front and longer rear arms, shifts the vehicle’s center of gravity behind the structure, allowing doors to open fully without column obstructions.

Choose Your:
  • Adapter type
  • Light height
  • Power option
  • Lift accessories
Specifications:
STANDARD POWER SPOA10N20M0RD
SPOA10N20M0BL
SPOA10N20M0BK
SHOCKWAVE-EQUIPPED POWER SPOA10U20M5RD
SPOA10U20M5BL
SPOA10U20M5BK

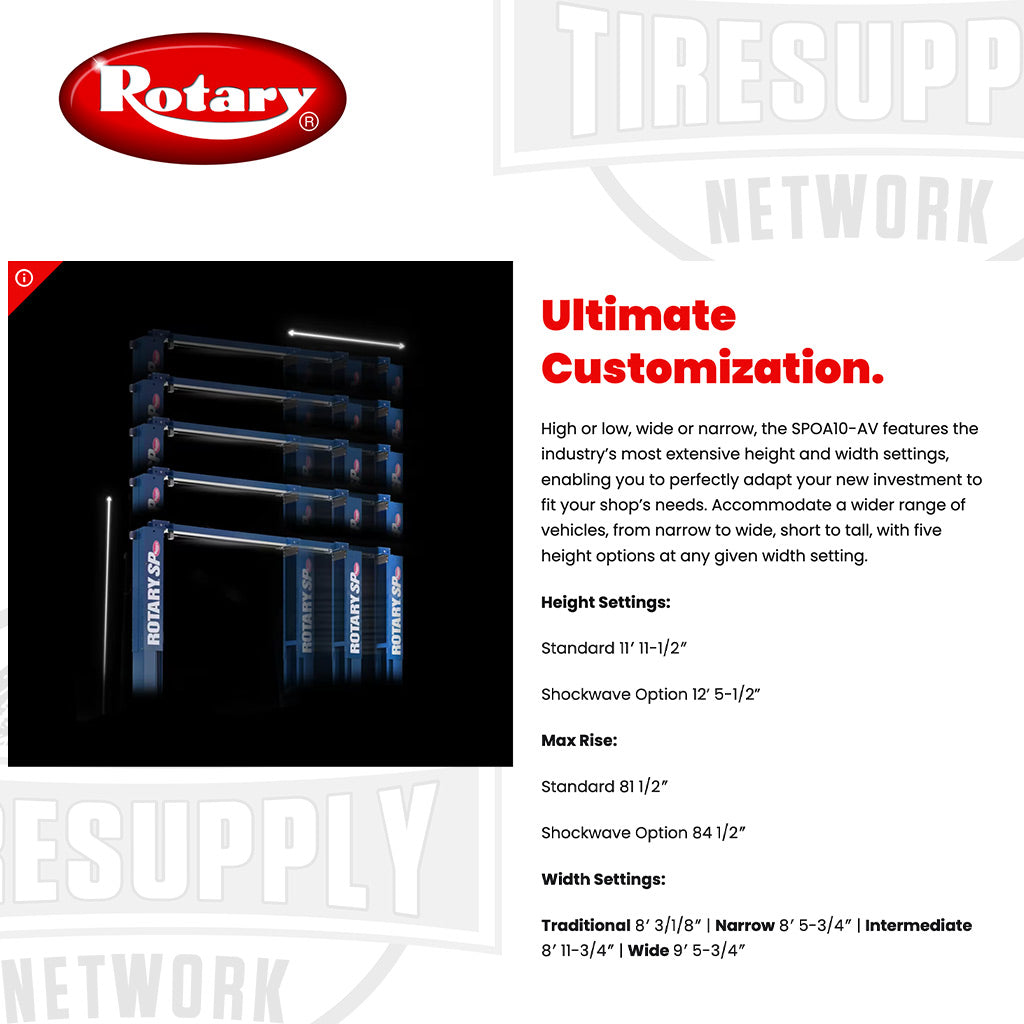

MAX RISE* STANDARD
 SHOCKWAVE
81 1/2”
84 1/2”
Overall Height 11’ 11 1/2”
With SHOCKWAVE Power: 12’ 5 1/2”
Overall Width 11’ 5 1/2”
Drive-Thru Clearance 95 1/4”
Inside Columns 107 1/4”
Front Arm Reach: Min/Max 18 1/2” / 41”
Rear Arm Reach: Min/Max 27 5/8” / 58 1/4”
Min Adapter Height 3 3/8”
Speed of Rise Standard Power: 45 seconds
With SHOCKWAVE Power:
25 seconds**
Speed of Descent Standard Power: 40 seconds
With SHOCKWAVE Power:
19 seconds**
Ceiling Height Minimum 12’ / 12’ 6” with SHOCKWAVE Power
Min. Bay Size 12’ x 24’

*Rise measures the highest position of the adjustable adapters with use of supplied adapter extensions from floor to full cylinder stroke.
**Actual rise and descent times vary depending on vehicle weight.
Heights and widths reflect standard settings.
Lifts colors are red (RD), blue (BL), or black (BK)
