R573BT

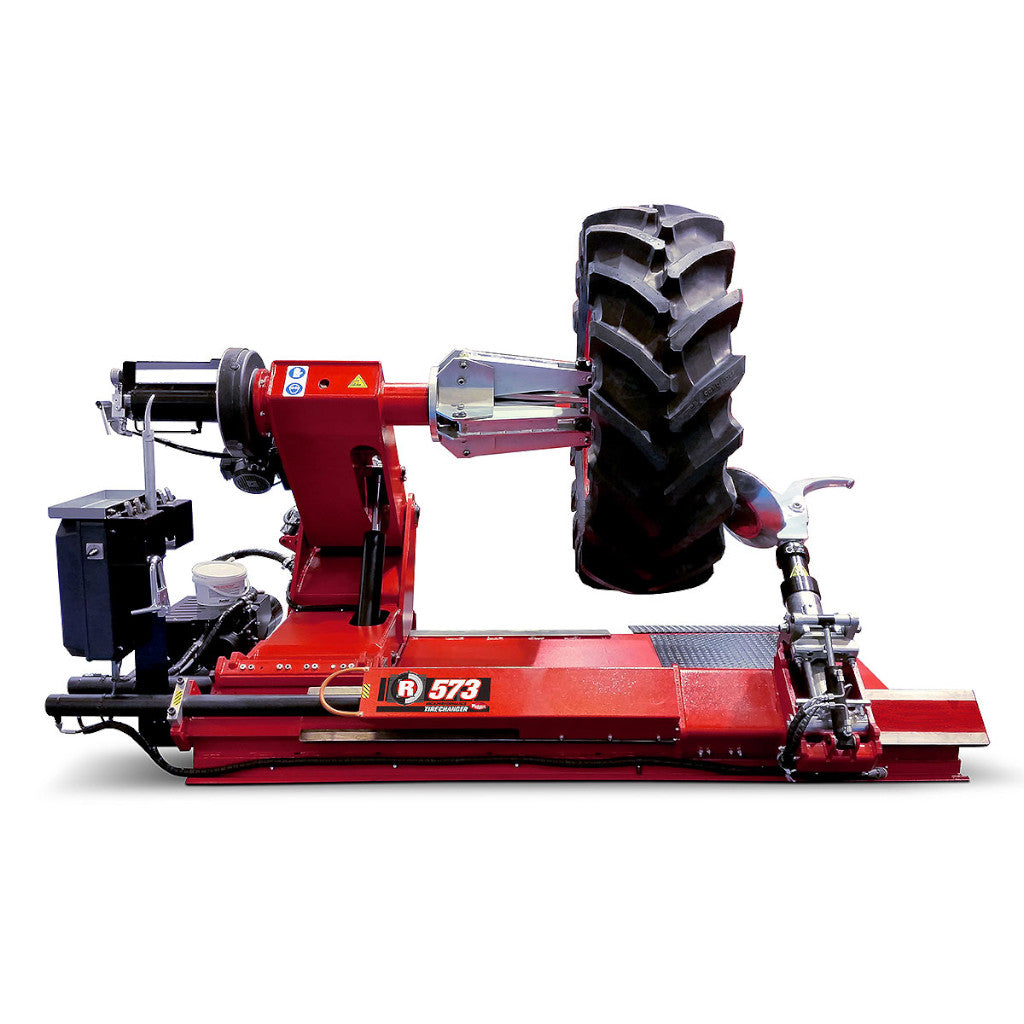

Rotary R573BT Extreme Commercial HD Heavy Duty Truck Tire Changer with Bluetooth Control Unit

Rotary R573BT Extreme Commercial HD Heavy Duty Truck Tire Changer with Bluetooth Control Unit

SPECIAL ORDER: 14 to 16 week lead time.

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

UNIVERSAL TIRE CHANGER FOR EXTREME WHEEL DIMENSIONS

HIGH BEAD BREAKING FORCE: The considerable bead breaking force makes mounting and demounting tires effortless.

MULTIPLE ADJUSTABLE GUIDES: The electro-brake allows immediate stopping of the rotation to avoid any damage to tires.

STAND-BY FUNCTION: If the machine has not been used for 5 seconds, the motor will turn off.

  • Electro-hydraulic Changer For Trucks, Agricultural, And Earthmoving Vehicles
  • Service tire diameters up to 106″.
  • The oversized chucking dimension allows work on larger tires without interference.
  • Reach 50” wheels without extensions or wheels from 51” to 60” with an optional VSG108A39 adapter set.

Features:

  • BLUETOOTH control unit.
  • Rotational control via cordless BLUETOOTH.
  • Double speed table rotation.
  • Quick locking manual rotation tool.
  • B530800 long bead lifting lever.
  • VSG108A25 clamp for earthmoving wheels.
  • Tire paste lubricant and brush.
  • Made in Italy

Warranty: 3 years on parts, 1 year on labor

Specifications:

TECHNICAL DATA R573BT
Chucking unit rotation motor 3 Hp / 2.2 kW
Hydraulic drive unit motor 3.35 Hp / 2.5 kW
Rim diameter 11” - 50”
Rim diameter with optional VSG108A39 adapters 51” - 60”
Maximum tire diameter 106” (2,700 mm)
Maximum tire width 69” (1,750 mm)
Chuck rotation speed (rev/min) 1 - 5 - 10
Power supply 220v / 3Ø / 60 Hz
