Rotary | Mobile HD Heavy Duty Truck Tire Changer (R560)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

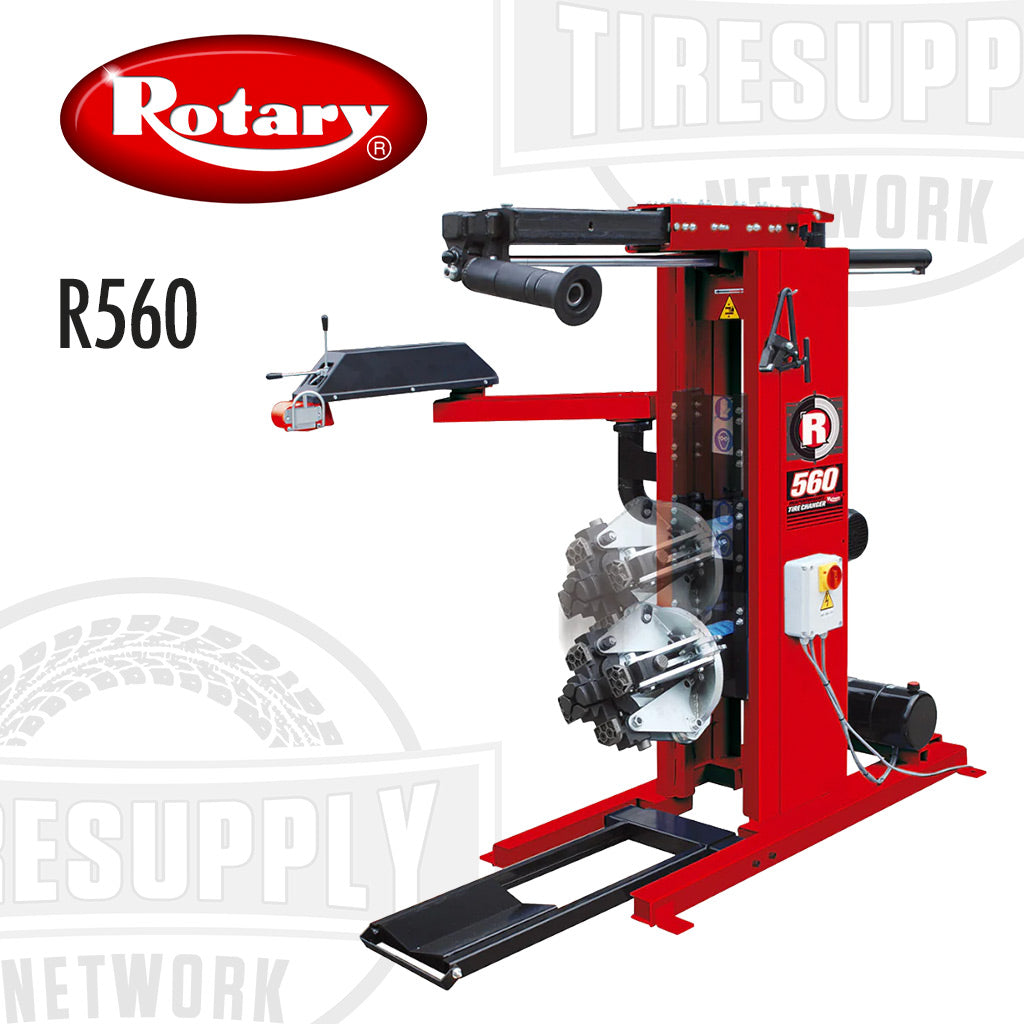

The R560 Mobile HD tire changer is designed for roadside and workshop service. It is easy to use and suitable for closed vans or small workshops. Controls are protected on changer console and the hydraulic clamping and chucking table are suitable for agricultural tires. Center locking feature – single central docking with ring nut.

  • Designed for Roadside Service
  • Great for Workshop Service
  • Hydraulic Clamping
  • Hydraulic Up / Down Movement

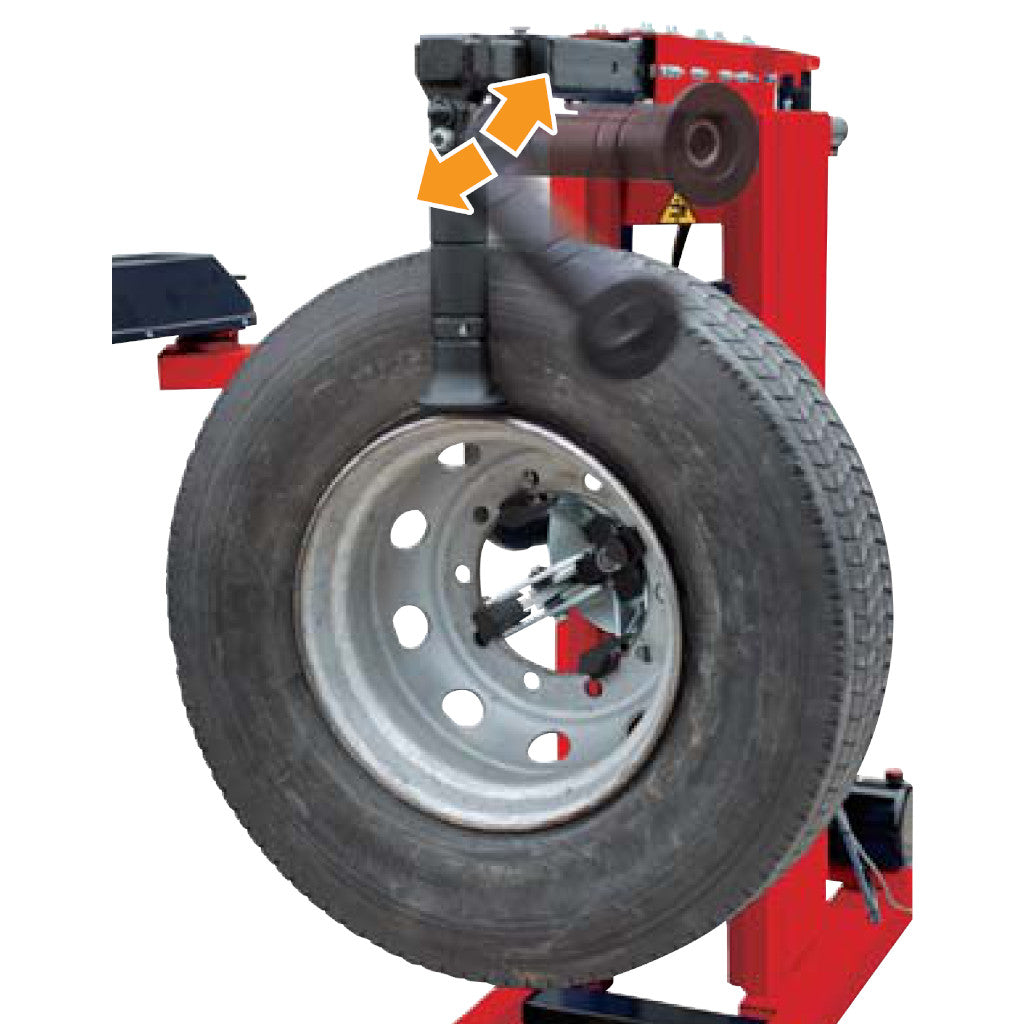

  • Standard Roller for Tube Tires
  • Made in Italy

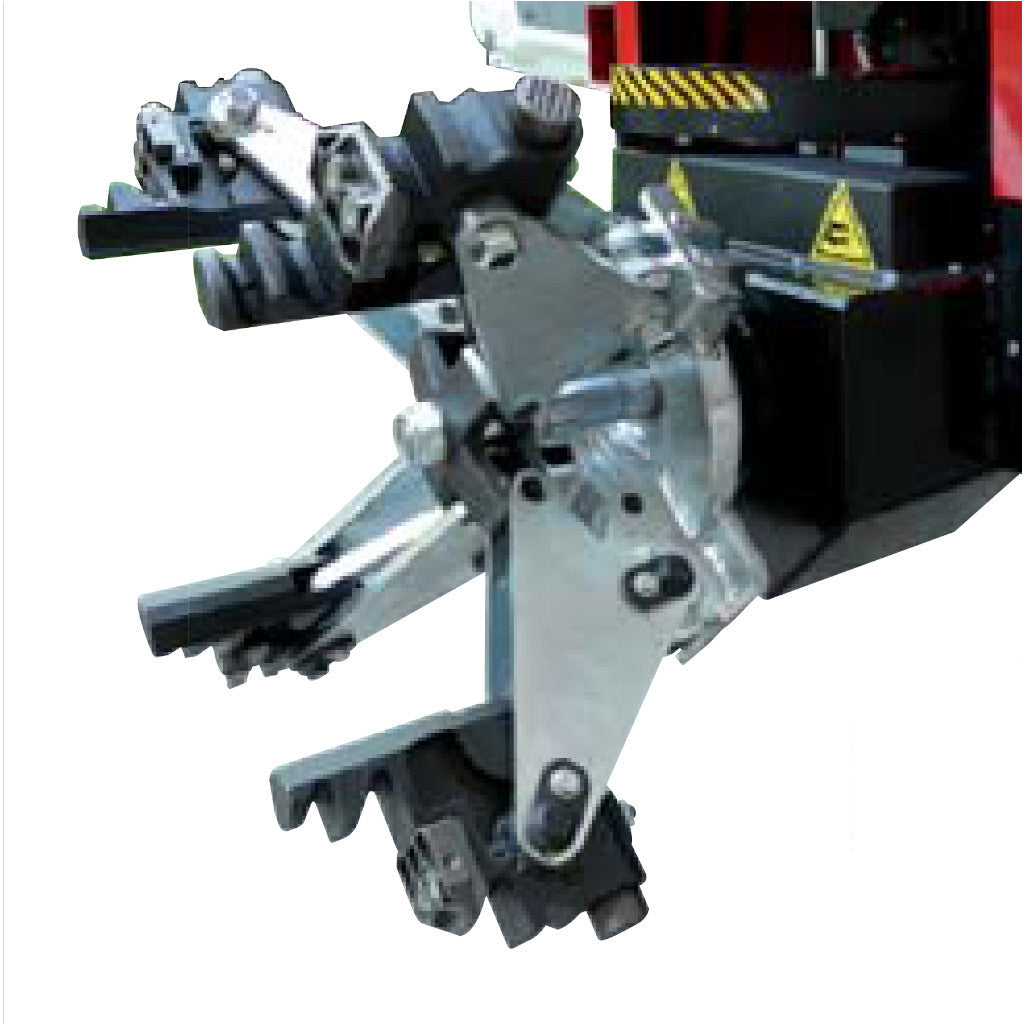

  • Hydraulic clamping / chucking table suitable for agricultural tires

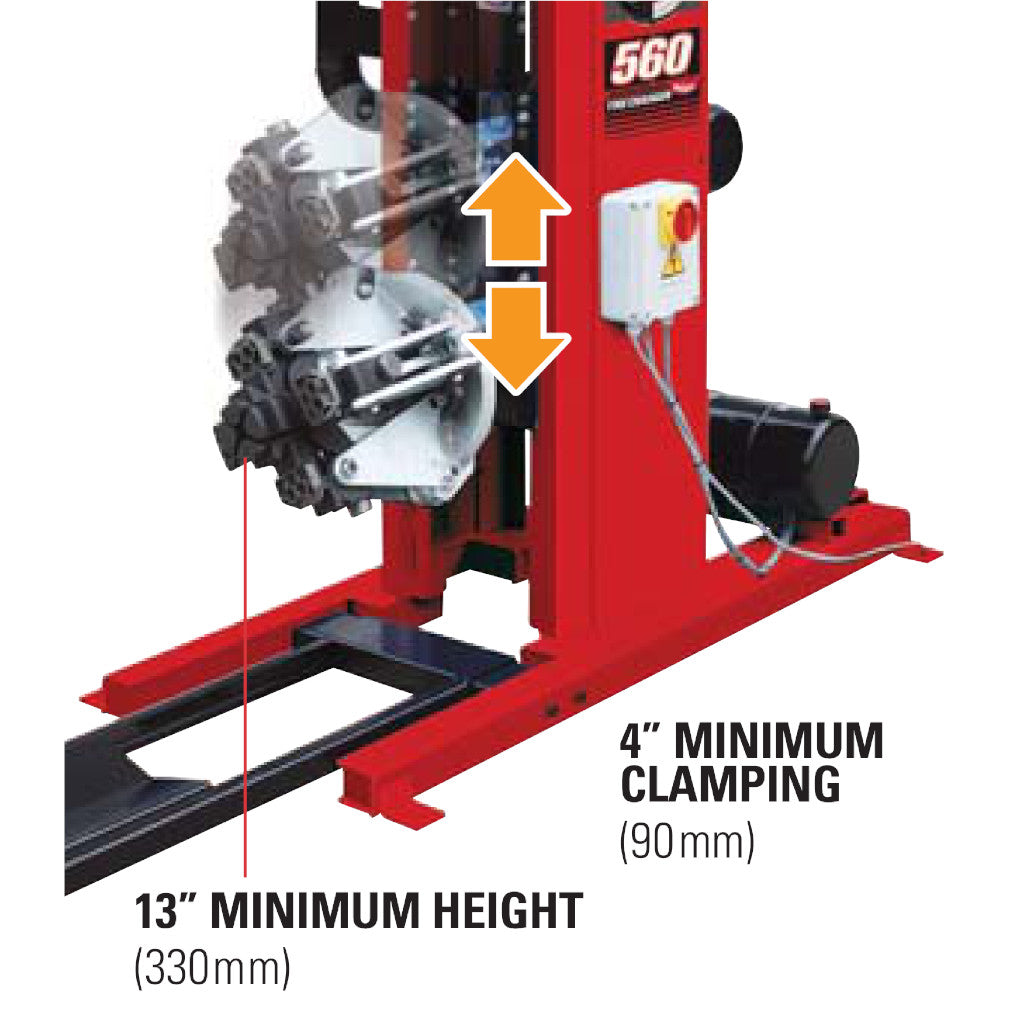

  • Hydraulic up / down movement: 4” minimum clamping, 13” minimum height

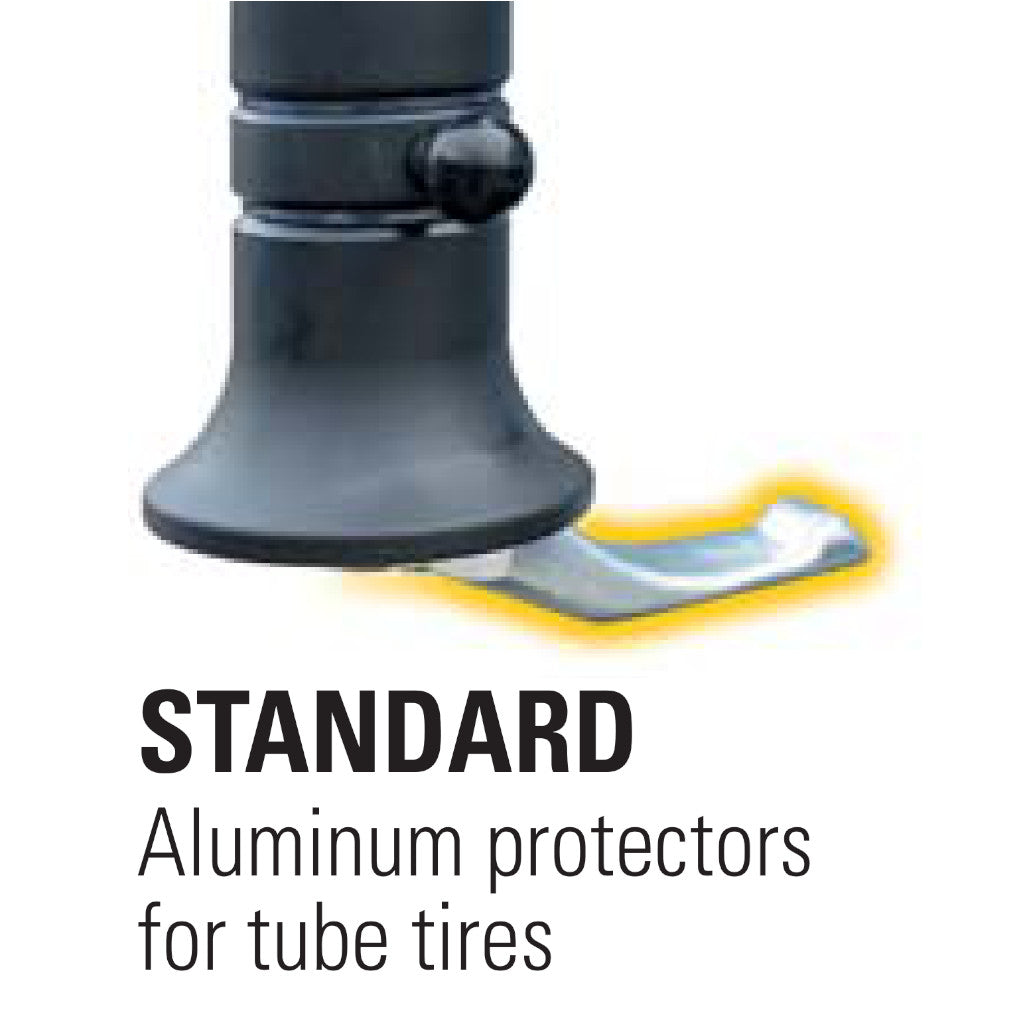

  • Standard aluminum tool for tube tires
  • VSG108A3 bead lever
  • Tire paste lubricant and brush

Warranty: 3 years on parts, 1 year on labor


Chucking unit rotation motor 1.5 Hp / 1.1 kW
Hydraulic drive unit motor 2.7 Hp / 2 kW
Rim diameter 11” - 27”
Maximum tire diameter 51” (1300 mm)
Maximum tire width 37.4” (950 mm)
Weight 833 lbs (378 kg)
Bead breaker power 3,597 ft/lbs (16,000 N)
Maximum assembly weight 2,645 lbs (1200 kg)
Chuck rotation speed (rev/min) 8
Maximum torque to chuck 1,253 ft/lbs (1,700 N)
Power supply 220v / 3Ø / 60 Hz
