Rotary  |  SKU: MW-500

Rotary MW500 | 500 lb Capacity Mobile Tire & Wheel Lift

Regular price $4,233.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $58.79 for 72 months Finance Now!

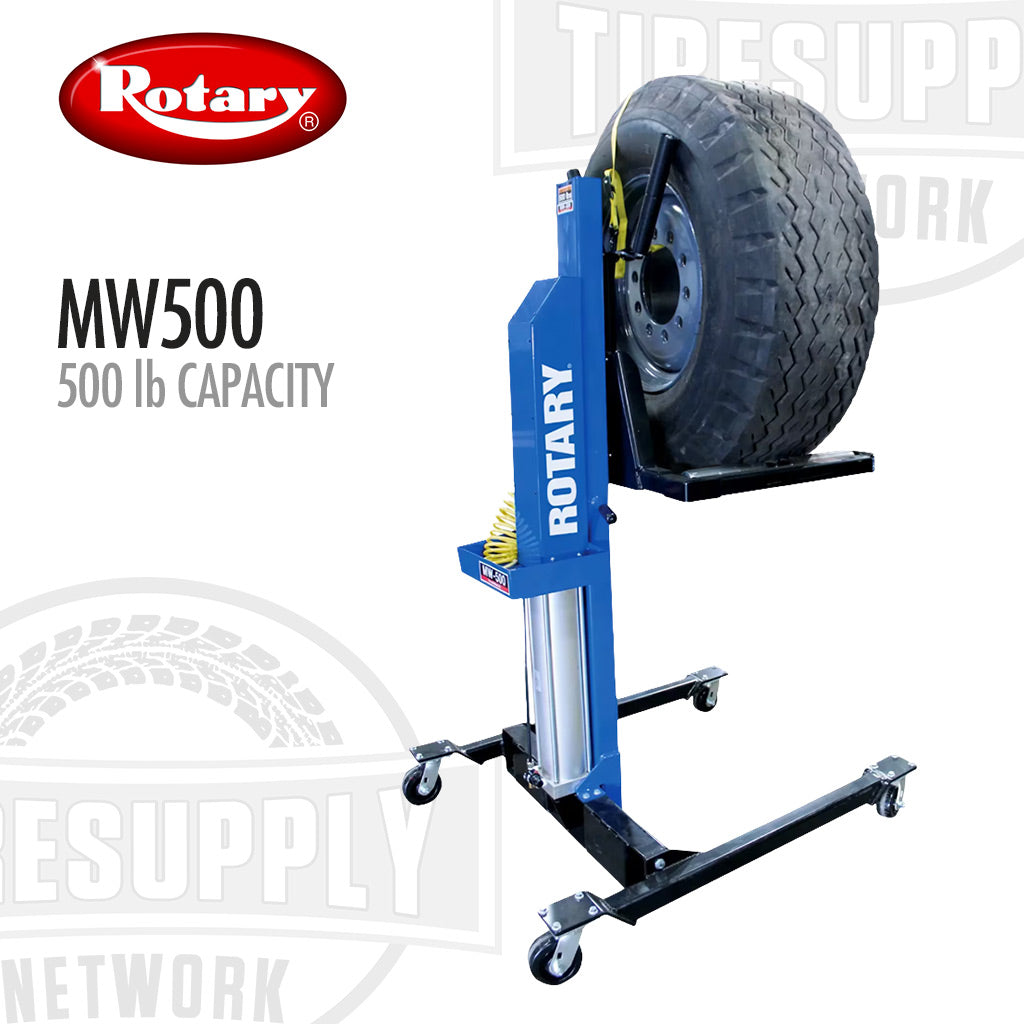

Rotary 500 lb Capacity Mobile Tire & Wheel Lift (MW500)

 PLEASE NOTE:  All Rotary items are considered SPECIAL ORDER ITEMS and thus FINAL SALE. Requests for CANCELLATIONS, RETURNS, or REFUNDS cannot be honored. Thank you for your understanding.

 PLEASE NOTE:  Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

 PLEASE NOTE:  Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

This mobile wheel lift can remove and position any size wheel or tire weighing up to 500 pounds, making it much easier and ergonomic for technicians to work on heavy-duty trucks, buses, and construction equipment.

Features:

Air-Operated:
Air-operated wheel lifts can remove and position any size wheel or tire weighing up to 200 pounds.

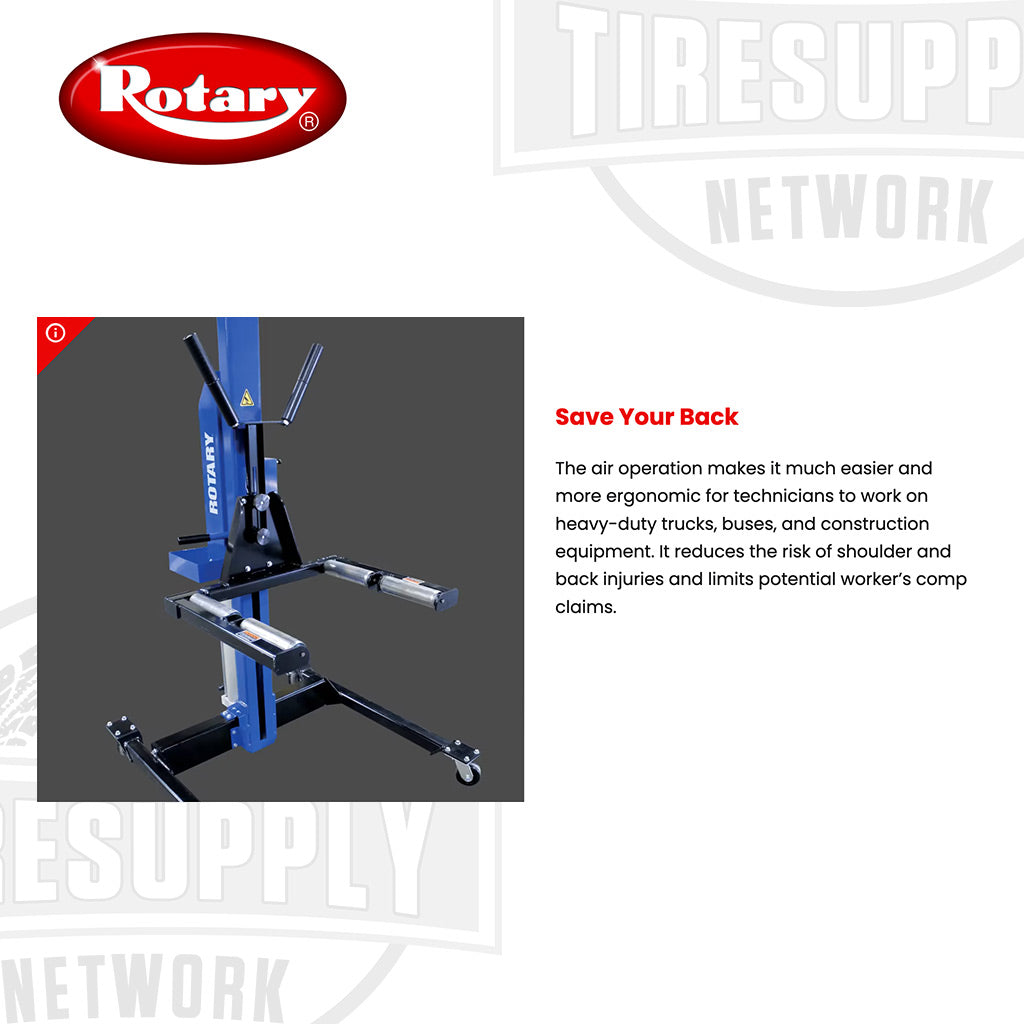

Save your Back:
The air operation makes it much easier and more ergonomic for technicians to work on heavy-duty trucks, buses, and construction equipment. It reduces the risk of shoulder and back injuries and limits potential worker's comp claims.

Added Safety:
Redundant lifting cables are located inside the column for added safety.

Great Features Included:
Back stop allows 5” of adjustable height, split tire rollers on bottom arms for dually tires, air tool connection to reduce hoses in the shop, includes a pressure regulator to prevent overloading, a tray for parts and lug nuts, a tie-down strap, and extra strong US steel construction.

  • Redundant lifting cables inside column for added safety
  • Back stop allows 5” of adjustable height
  • Split tire rollers on bottom arms for dually tires
  • Air tool connection reduces hoses in shop
  • Includes pressure regulator to prevent overloading
  • Tray for parts and lug nuts
  • Includes tie-down strap
  • Extra strong US steel construction
Lift Capacity 500 lbs.
Weight 336 lbs.
Height 72”
Width 42”
Length 47 1/2”
Tires Size 30” to 45” APPROXIMATE
Stroke 40”
Operating Pressure 100 psi
Time of Full Rise 6 seconds

Units come in blue only - some assembly required.
