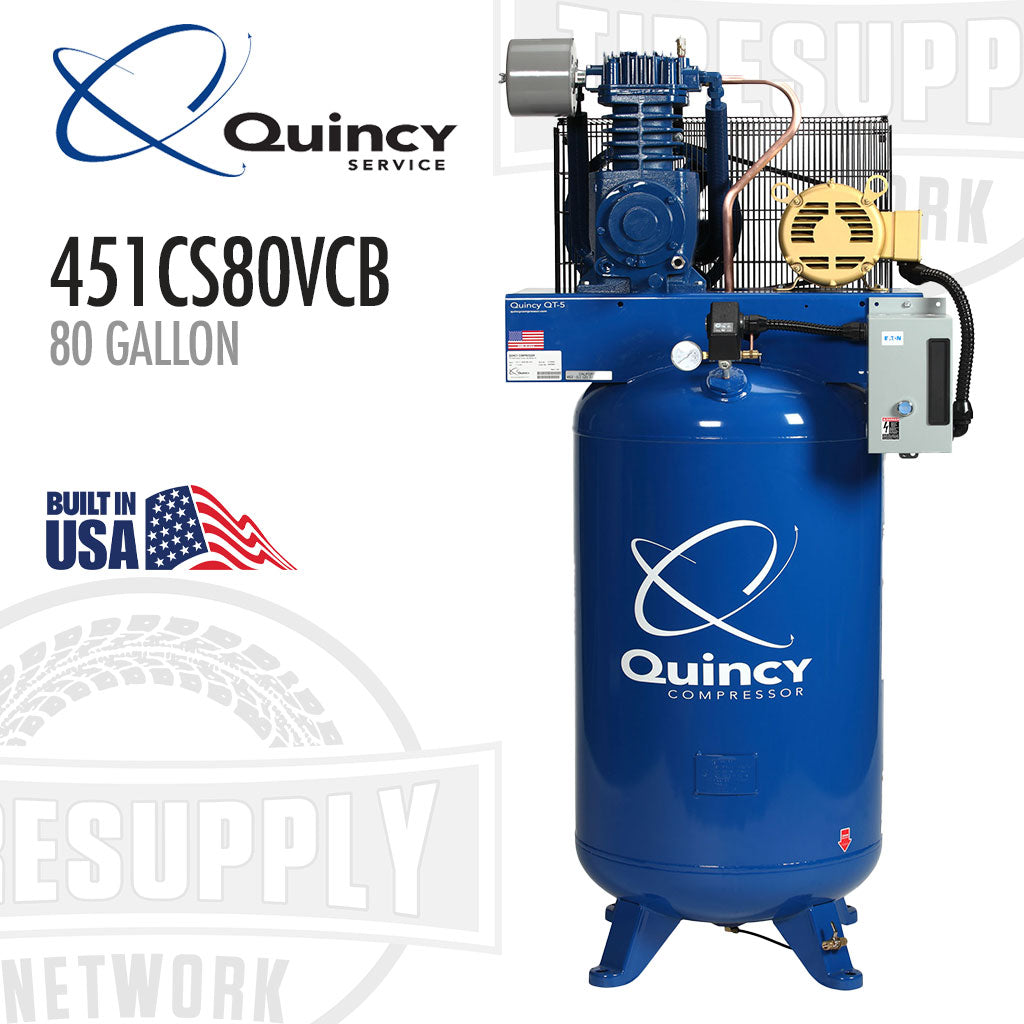

Quincy 451CS80VCB Two-Stage 80 Gallon QT 5HP Air Compressor 230V, 1PH - Vertical PRO
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

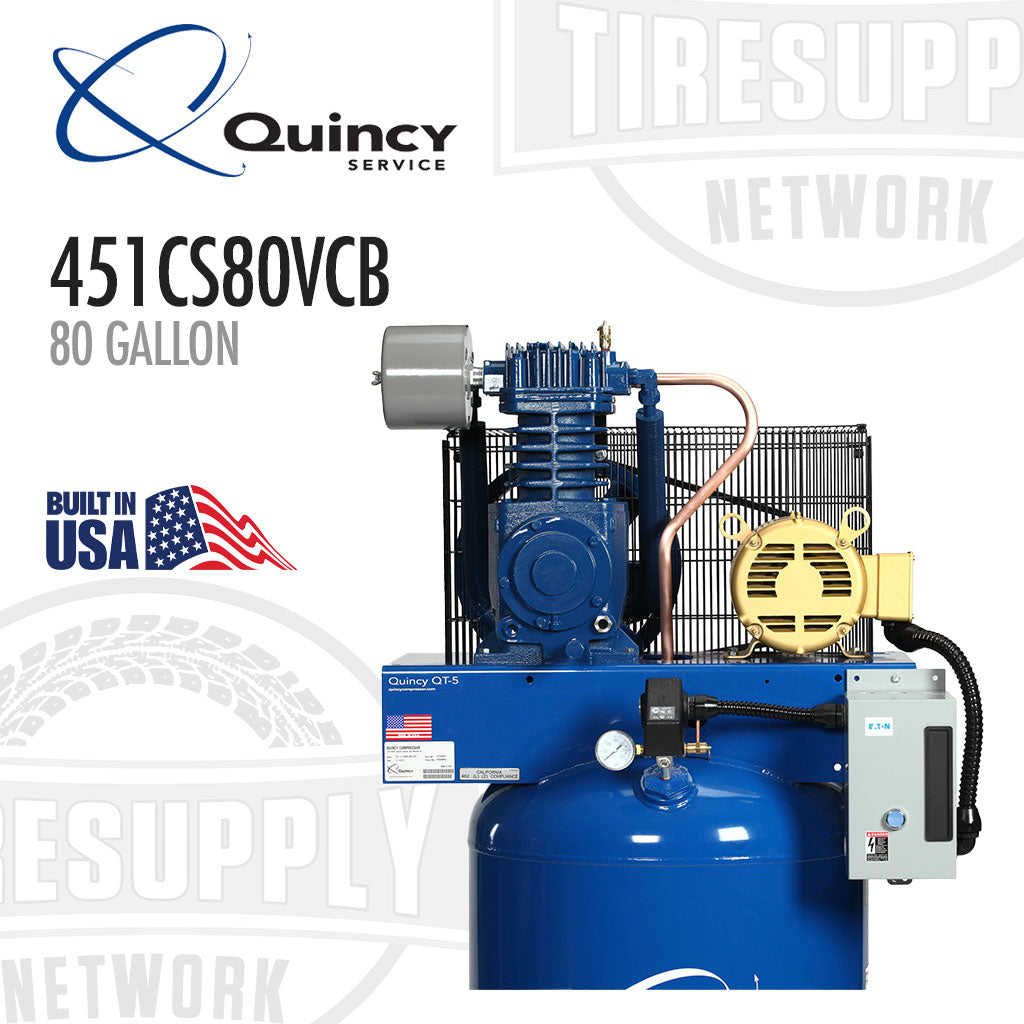

This two-stage air compressor is built for continuous duty and efficiency, delivering more compressed air while using less horsepower. Proudly made in the USA, it features a high-performance cast iron QT-5 belt drive pump designed for over 50,000 hours of reliable service. The aluminum head enhances heat dissipation, while stainless steel reed valves ensure corrosion resistance and optimal airflow.
The durable 2-cylinder cast-iron construction maintains precise tolerances for superior efficiency, supported by industrial-grade bearings for long piston life. Its large, balanced cast iron flywheel promotes smoother operation and better cooling, contributing to overall energy savings and increased durability. The compressor also includes a high-efficiency finned tube intercooler to maximize cooling and extend valve life.
Equipped with a heavy-duty industrial capacitor start motor, this compressor runs cooler and quieter at slower RPMs, reducing operating costs. All electrical components meet UL and CSA safety standards, ensuring reliable performance in demanding shop environments
Features:
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- High Performance Cast Iron Belt Drive Pump
- 2-Cylinder Cast-Iron Design
- Large Balanced Cast Iron Fly Wheel
- High-Efficiency Finned Tube Intercooler
-
Heavy-Duty Industrial Motor
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Single Phase |

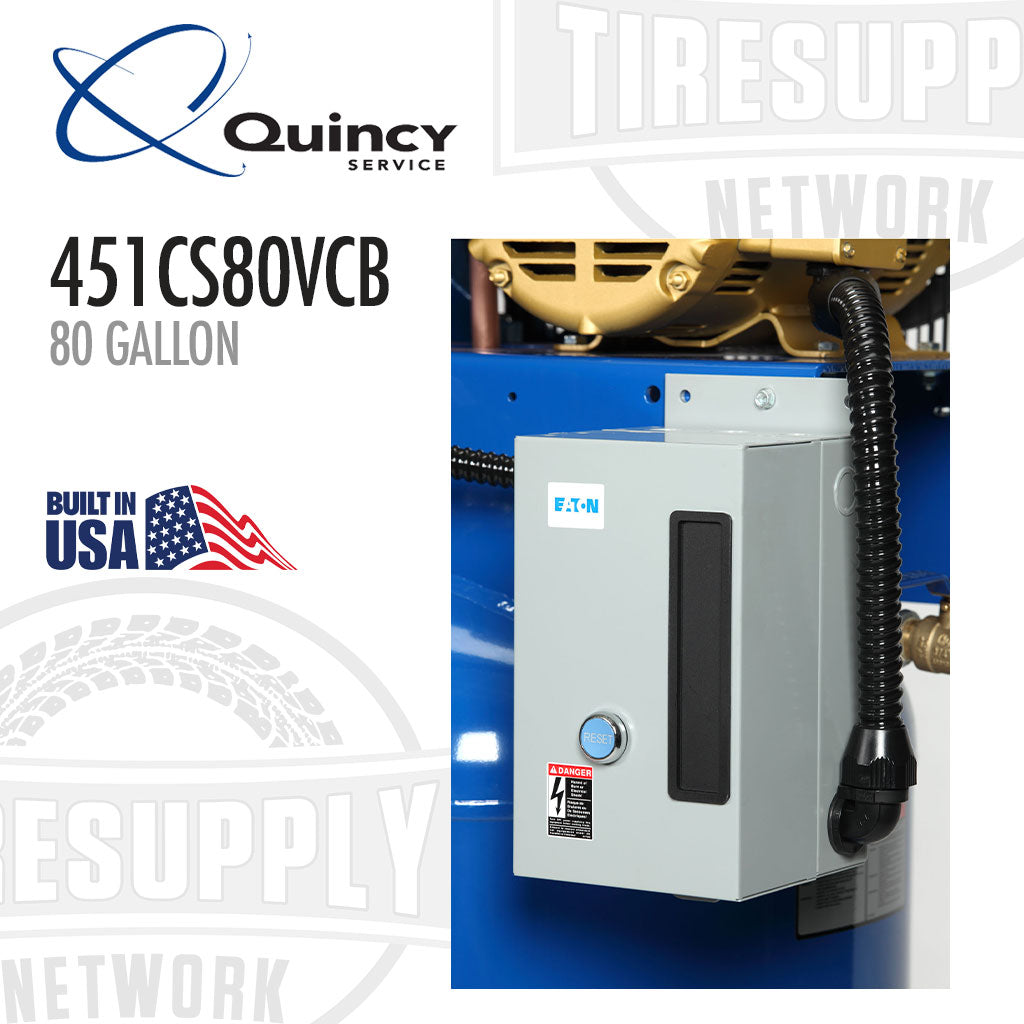

| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 5 |
Pump
| CFM | 17.2 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 680 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 74 Inches |
| Power Type | Electric |
Compliance and Restrictions:
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
