Quincy | Two-Stage 60 Gallon QT 5HP Air Compressor 230V, 1PH - Vertical PRO (2V41C60VC)

Quincy | Two-Stage 60 Gallon QT 5HP Air Compressor 230V, 1PH - Vertical PRO (2V41C60VC)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

This two-stage air compressor features a 100% duty cycle with splash-lubricated cast-iron components designed for long-lasting performance. The high-performance QT-5 belt drive pump delivers more compressed air at a lower horsepower, helping reduce operating costs. Proudly built in the U.S.A., its aluminum head ensures optimal heat dissipation, while corrosion-resistant stainless-steel reed valves maximize efficiency.

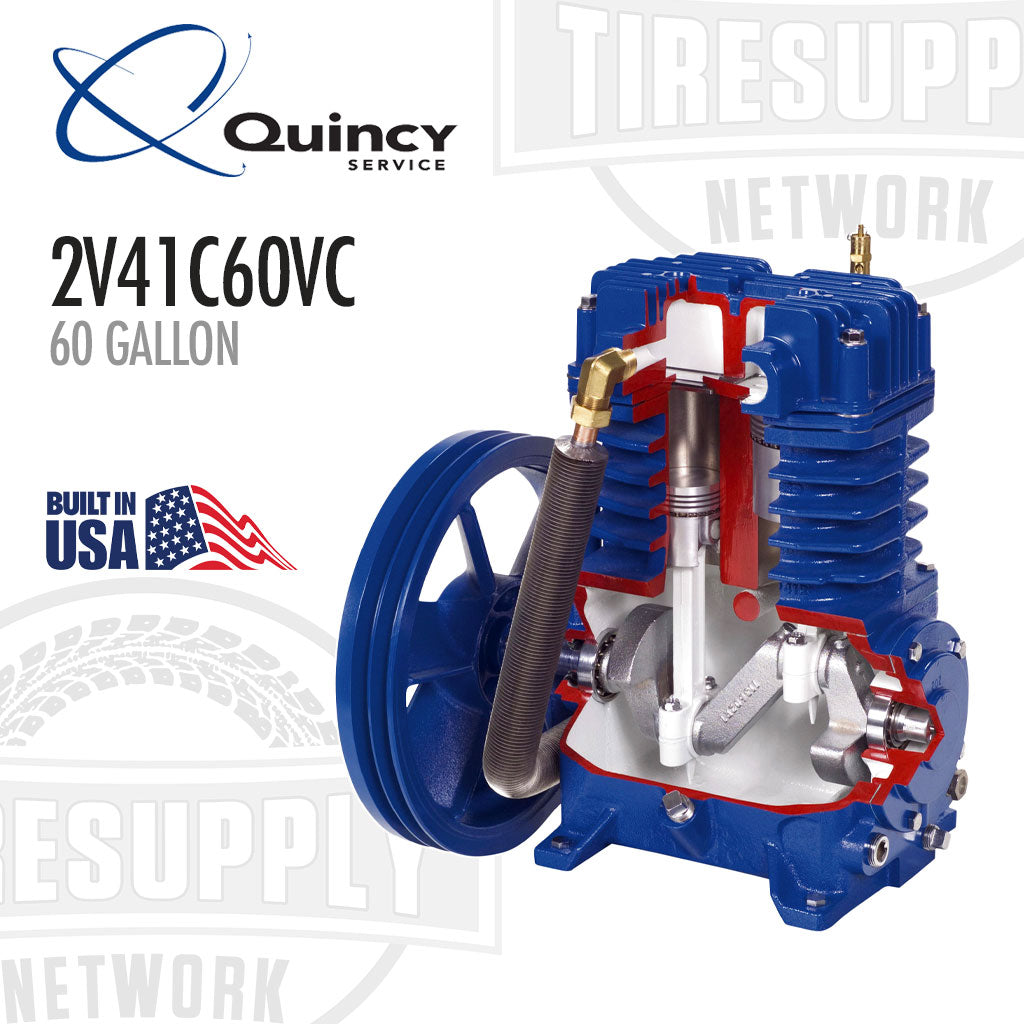

The 4-cylinder cast-iron design maintains precise tolerances for reliable output, supported by industrial-grade bearings that extend piston life. A large balanced cast iron flywheel provides smooth, cool operation, enhancing durability and energy efficiency. The balanced crankshaft reduces vibration for trouble-free use, complemented by a high-efficiency finned tube intercooler that prevents carbon buildup and extends valve life.

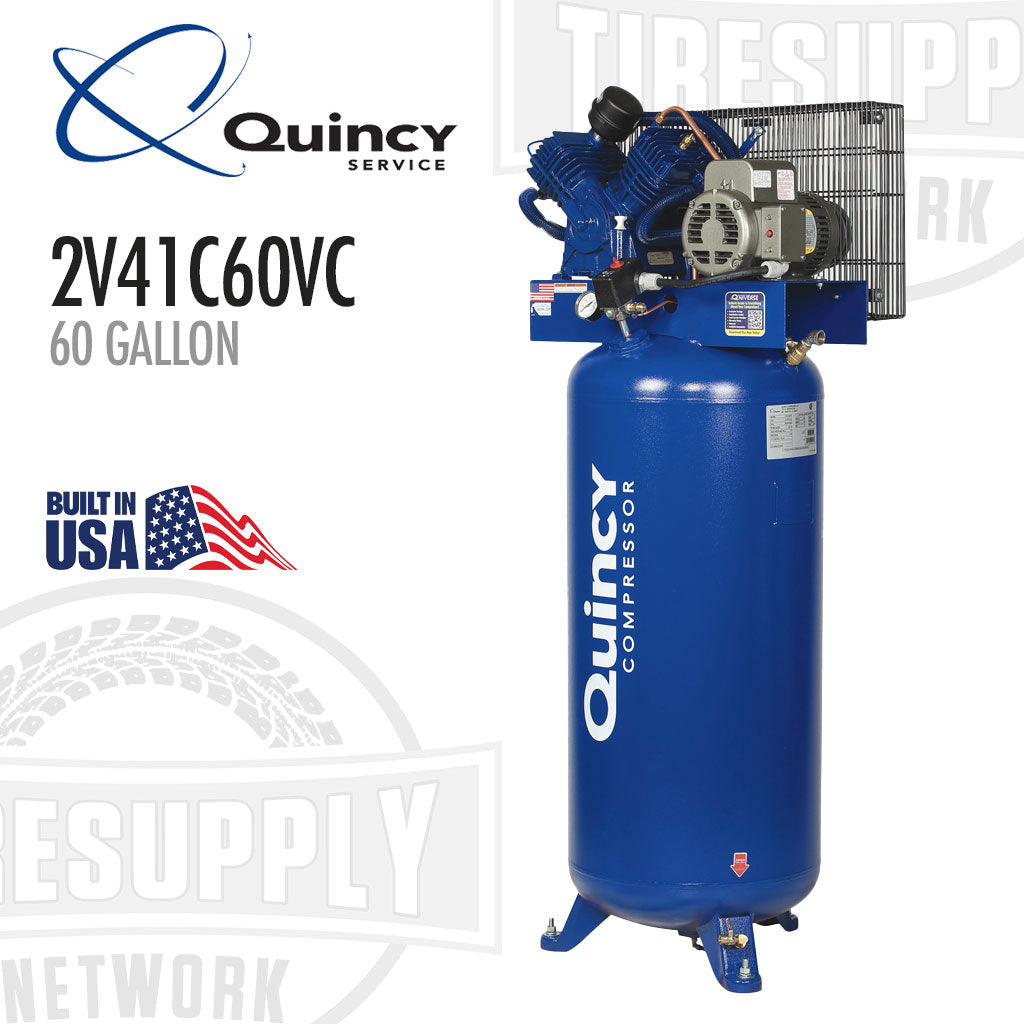

Additional features include low oil pump temperature protection with an extra-capacity oil reservoir and a vertical 60-gallon ASME-certified air tank with manual drain to prevent rust. The heavy-duty motor with capacitor start includes built-in thermal overload and meets UL and CSA electrical standards. Please note, installation must be performed by a qualified technician; power cord not included.

Feature:

• 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
• High Performance Cast Iron Belt Drive Pump
• 2-Cylinder Cast-Iron Design
• Large Balanced Cast Iron Fly Wheel
• High-Efficiency Finned Tube Intercooler
• Heavy-Duty Industrial Motor
• Low Oil Pump Temperature Protection
• 60-Gallon ASME Certified Air Tank & Pressure Relief Valves


General Information

Motor

Engine

Pump

Tank

Accessories

Overview

Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
