Quincy G413H30HCB | Two-Stage 30-Gallon QT 13HP Air Compressor - 13HP Honda - Horizontal

Quincy G413H30HCB Two-Stage 30-Gallon QT 13HP Air Compressor - 13HP Honda - Horizontal

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

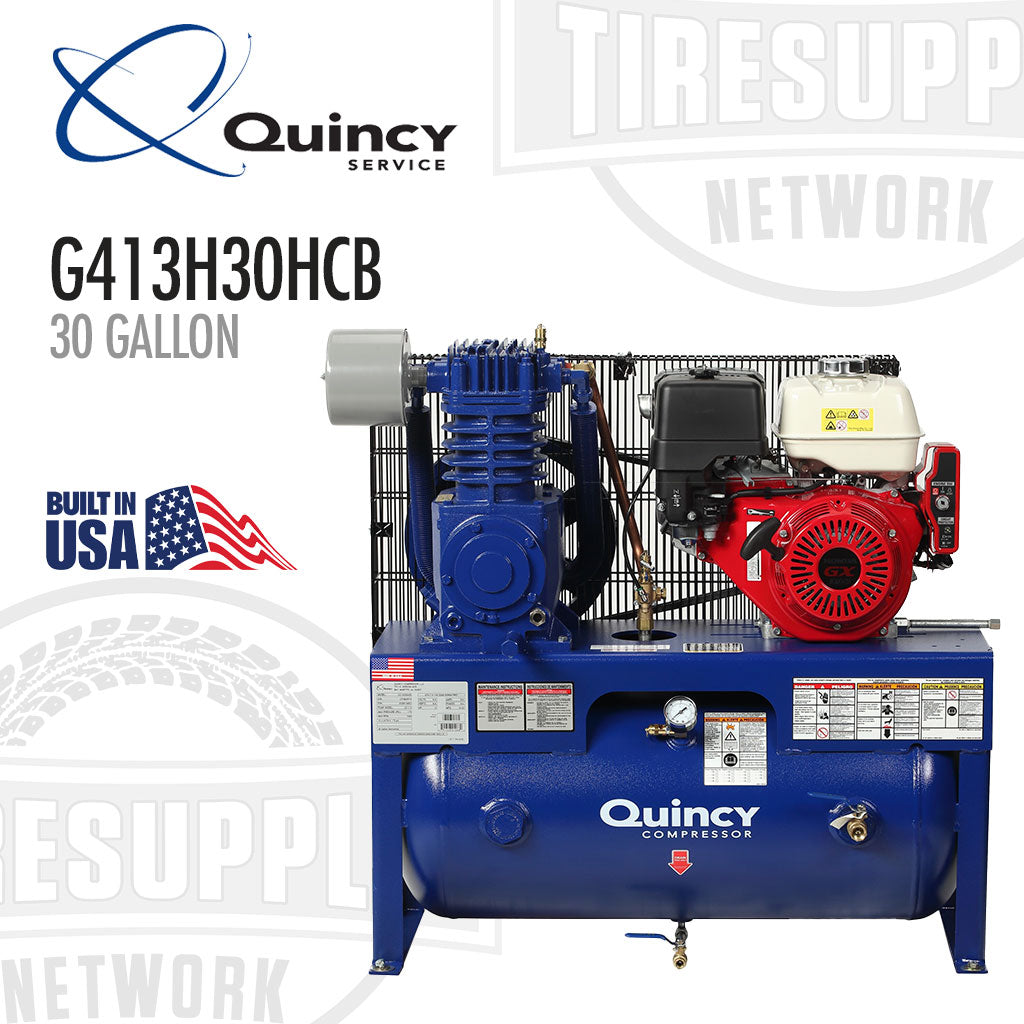

The Quincy QT 13-HP Truck Mount Air Compressor is built for durability and high performance, making it an ideal choice for service truck applications. Featuring a rugged 13 HP Honda engine with an electric start, this unit eliminates the need for manual pulling—simply push a button to get started. With a 30-gallon horizontal tank and a high-efficiency two-stage pump, it delivers consistent air supply while maximizing energy efficiency.

Features:

• Splash-Lubricated 2-Stage Compressor: Cast-iron construction for strength and durability, delivering more CFM per brake horsepower while consuming less energy.
• 13 HP Honda Engine with Electric Start: Provides reliable power with a push-button start for easy operation (battery and cable not included).
• High-Performance QT-7.5 Belt Drive Pump: Industry-leading 50,000+ hour pump life with an aluminum head for heat dissipation and graphite gaskets for positive sealing integrity.
• High-Efficiency Fin & Tube Intercooler: Reduces interstage temperature to enhance performance and durability.
• Fan-Type Cast Iron Flywheel: Delivers powerful cooling to the intercooler, cylinder, and heads, increasing lifespan.
• Stainless Steel Reed Valves: Corrosion-resistant design with controlled lift for maximum strength and volumetric efficiency.


Specifications:

• Engine: 13 HP Honda with 12-volt electric start and recoil backup
• CFM Output: 23.6 CFM @ 175 PSI
• Pump Material: Cast iron with aluminum head
• Max PSI: 175
• Tank Capacity: 30 gallons (horizontal)
• Pump Drive: Belt-driven, oil-lubricated, splash system
• Auto Idle Control: Yes
• Low Oil Shut-Off: Yes

Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
