QSP | Portable Alignment Kit for Roll Back Compensation - Set of 4 (CAS-1)

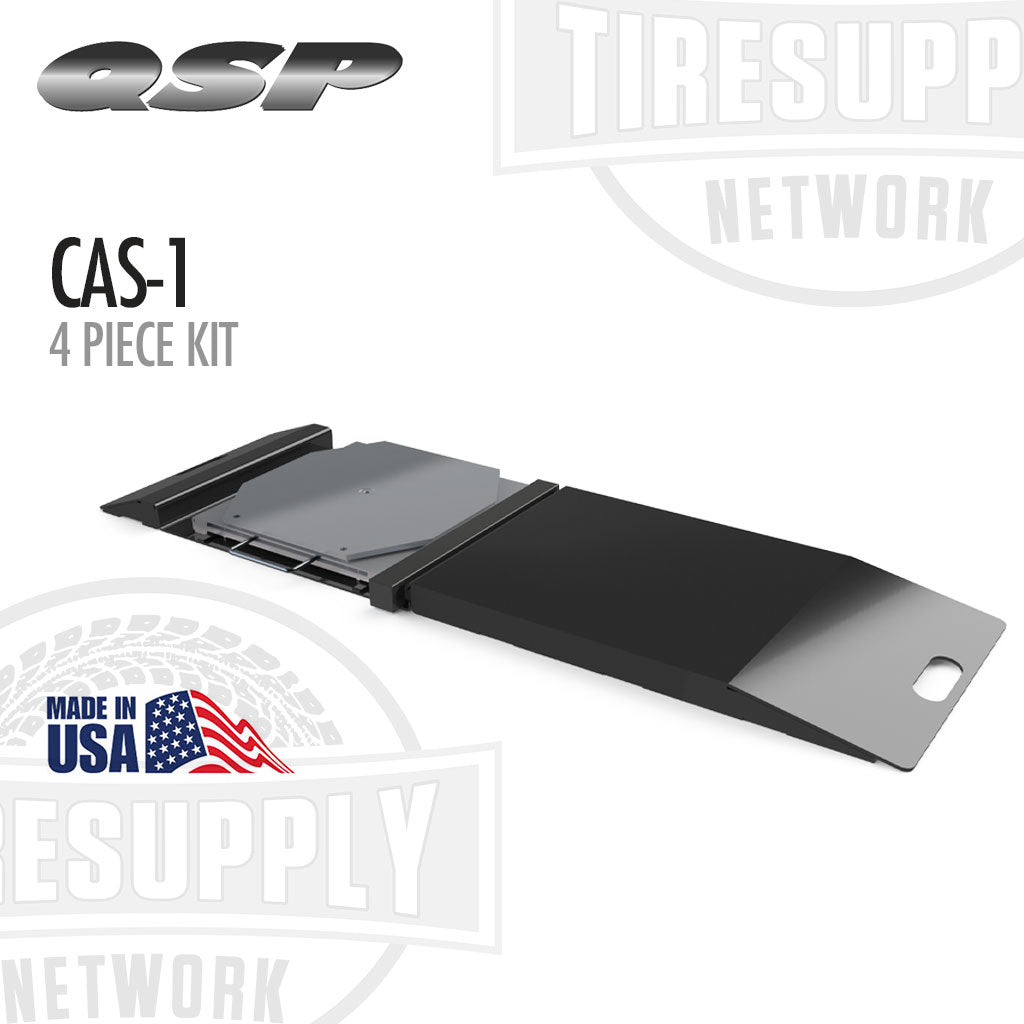

A 4 piece (one shown) portable alignment kit designed for roll back compensation. Converts any drive-on service or collision frame rack into an alignment bay. Provides the flexibility to do alignments in any stall. Comes with four complete sections including passenger/light truck turn plates (rated at 4,500lbs per plate) and roll back bridges. Powder coat black (shown in red/metallic to highlight details.
Features:
- 4 complete sections with each measuring 14.75”W x 49 - 1/4”L x 1.635”H
- 28” roll back distance
- Includes roll back bridges
- Easily assembles with interlocking sections
- Keep it portable or bolt it in place
- Turnplates included
- Custom sizes available
- Powder coat black (shown in red to highlight details)
- Convenient storage cart option Model CAS-C1
Specifications:
- Turnplate Capacity Per Plate: 4,500 lbs
- Color: Powder Coat Black
- Shipping Dimensions: 61" x 33" X 11"
- Est Shipping Weight: 244 lbs
