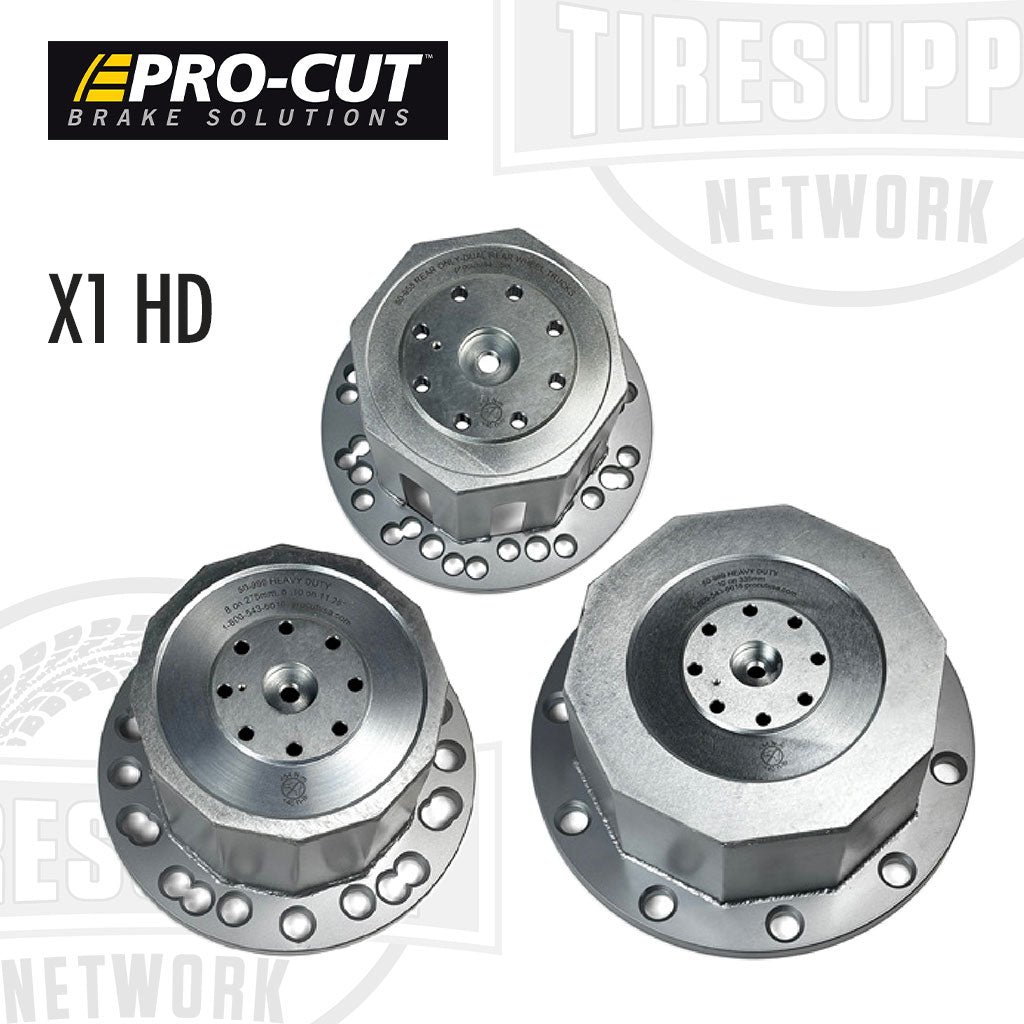

Pro-Cut | Super Duty DC Powered On-Truck Lathe with Adjustable Trolley, 3-Adapters (X1)

Sale price $34,995.00 Regular price $38,883.33

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $486.04 for 72 months Finance Now!

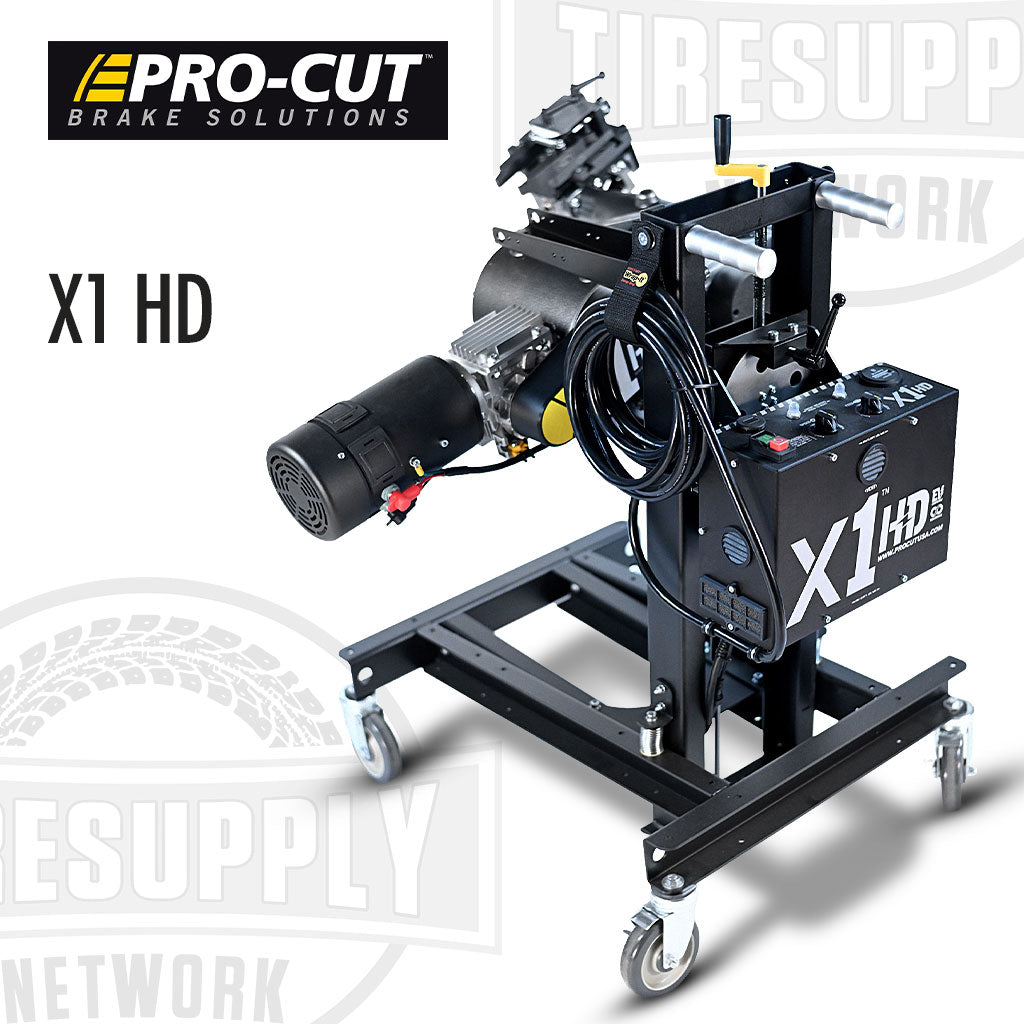

Pro-Cut | Super Duty DC Powered On-Truck Lathe with Adjustable Trolley, 3-Adapters (X1)

The X1 is powered by a 48V DC variable speed motor with the power to turn bus and truck axles. It's low range gear box provides 30% more torque while adjustable tool arms and 190mm feed screw allow techs to match-machine the largest rotors in the industry!

PRO-CUT’S X1HD ON-TRUCK LATHE: A true innovation built right here in the USA! Was your last brake job for that truck or bus 6-8 hours? How much did it cost? Forget about it! The X1HD eliminates complexity and simplifies the scope of your work. No rotors to remove: MATCH THEM on-truck anywhere, anytime. And let’s talk about cost: We’ve cut thousands of dollars from any brake job on any truck, bus or trailer. Those are big claims. You need to see this in person. Pro-Cut gives you the straight dope

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

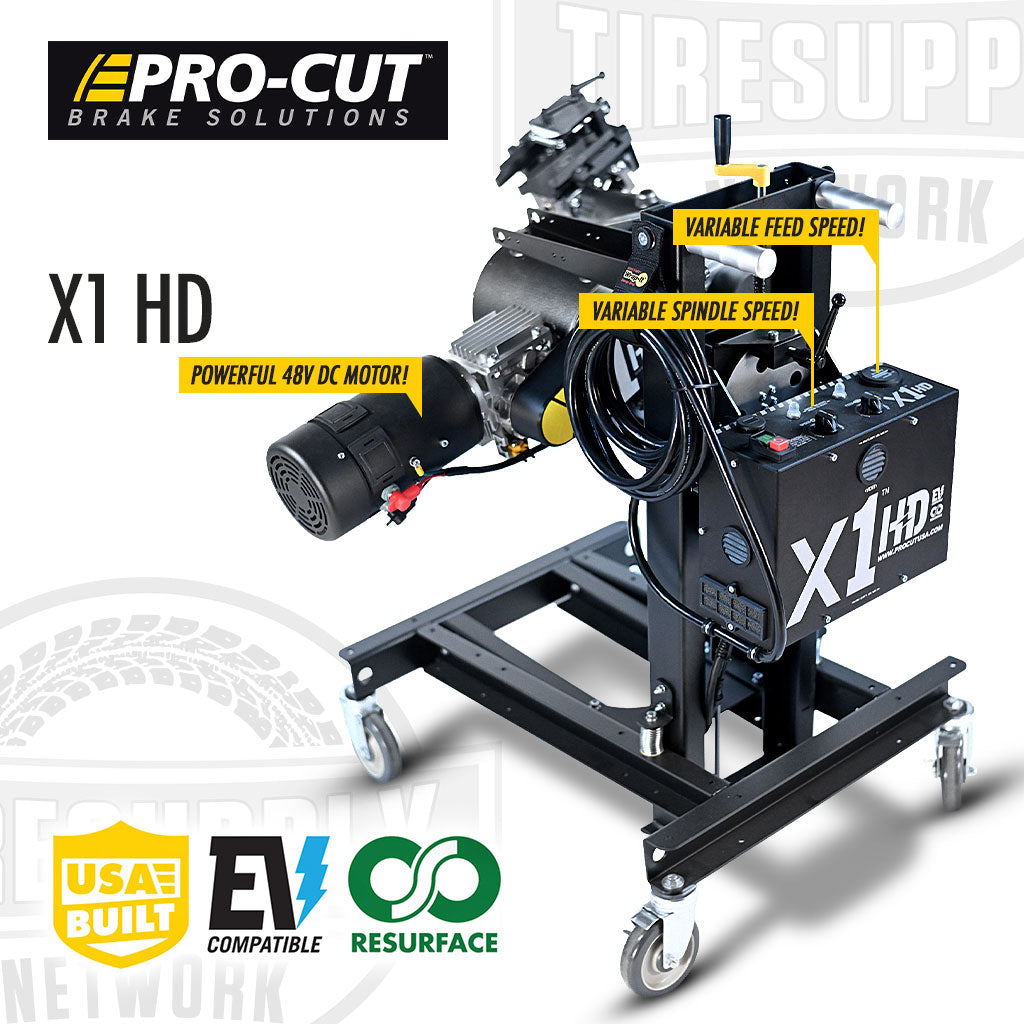

STANDARD FEATURES:

Plug-in, Variable Speed 48V DC Motor
Benefit: Power to turn bus and truck axles at a wide range of speeds.

Variable Feed Speed
Benefit: Adjustable feed allows tech control of the final surface finish.

Performance Plus Cutting Head
Benefit: Low maintenance and amazing surface finish results.

Low Range Gear Box
Benefit: Provides 30% more torque than on our car lathes.

Adjustable Tool Arms & 190mm Feed Screw
Benefit: For match-machining the largest rotors in the industry!

Accessories Included
Benefit: Cutting tips, tool kit, slide oil, chip deflectors, spacers & nuts.

4 Wheel, 4 Axis, Adjustable Trolley
Benefit: Working Range of 20”-36” works on low lift or jack stands.

2 YR Limited Parts & Labor Warranty
Benefit: *Match Rotors day in and day out with peace of mind. *Maintenance & abuse not covered.

INCLUDED:
  • Variable speed 48V DC motor
  • Performance Plus Cutting Head
  • Low-range gear box
  • Adjustable Tool Arms & 190mm Feed Screw
  • Accessories Included
  • 4 Wheel, 4 Axis, Adjustable Trolley
Performance Plus Cutting Head:
Maximum Rotor Thickness 2.00”
Minimum Rotor Thickness 0.20”
Maximum Rotor Diameter 18.0”
Maximum Rotor Diameter w/50-032 feed screw 18.5”
Maximum Friction Face 4.10”
Specifications For Machine:
Spindle Speed 0-90 rpm
Carriage Speed Variable
Motor HP 2 hp peak
Shipping Weight 350 lbs.
Electrical Supply 90-264VAC 50/60Hz 1ph
