PCL | FR Unit Filter-Regulator 1/4″ NPT (ATC6)

PCL | FR Unit Filter-Regulator 1/4″ NPT (ATC6)

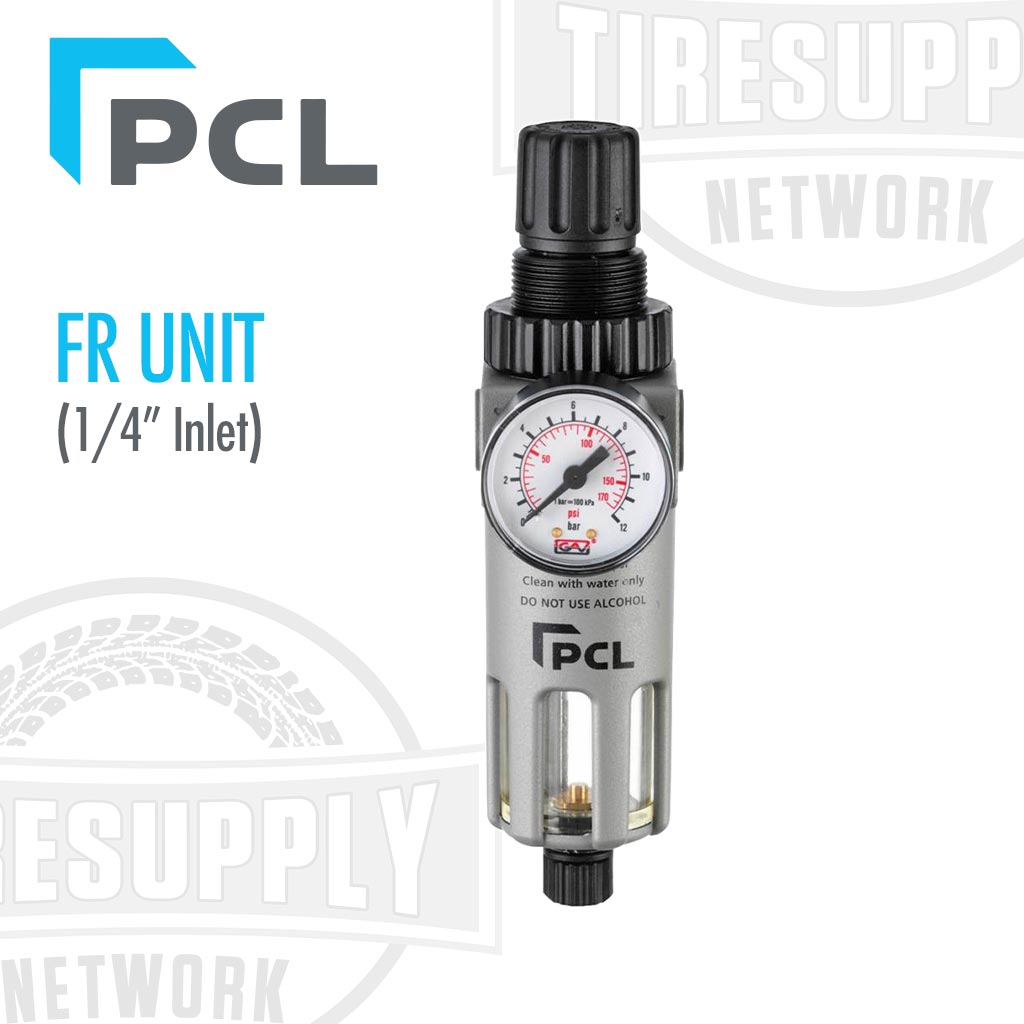

PCL’s FR Units are a 2-in-1 unit: they filter the air prior to sending it to use and they regulate the air pressure in the range set by the user. Our units come complete with a wall bracket and a pressure gauge. PCL’s Filter-Regulator units are designed to eliminate moisture and particulates from the air flow. The Filter-Regulator units come complete with wall bracket and pressure gauge.

Benefits:

• Manual/semi automatic drain
• 10 micron filter
• Locking device
• Complete with wall bracket and pressure gauge

Specifications:

• Inlet: 1/4" NPT
• Adjustment: 0-170 psi
• Max Supply Pressure: 132 psi
• Drain Bowl Capacity: 1 oz
• Max Temperature: 140°F

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
