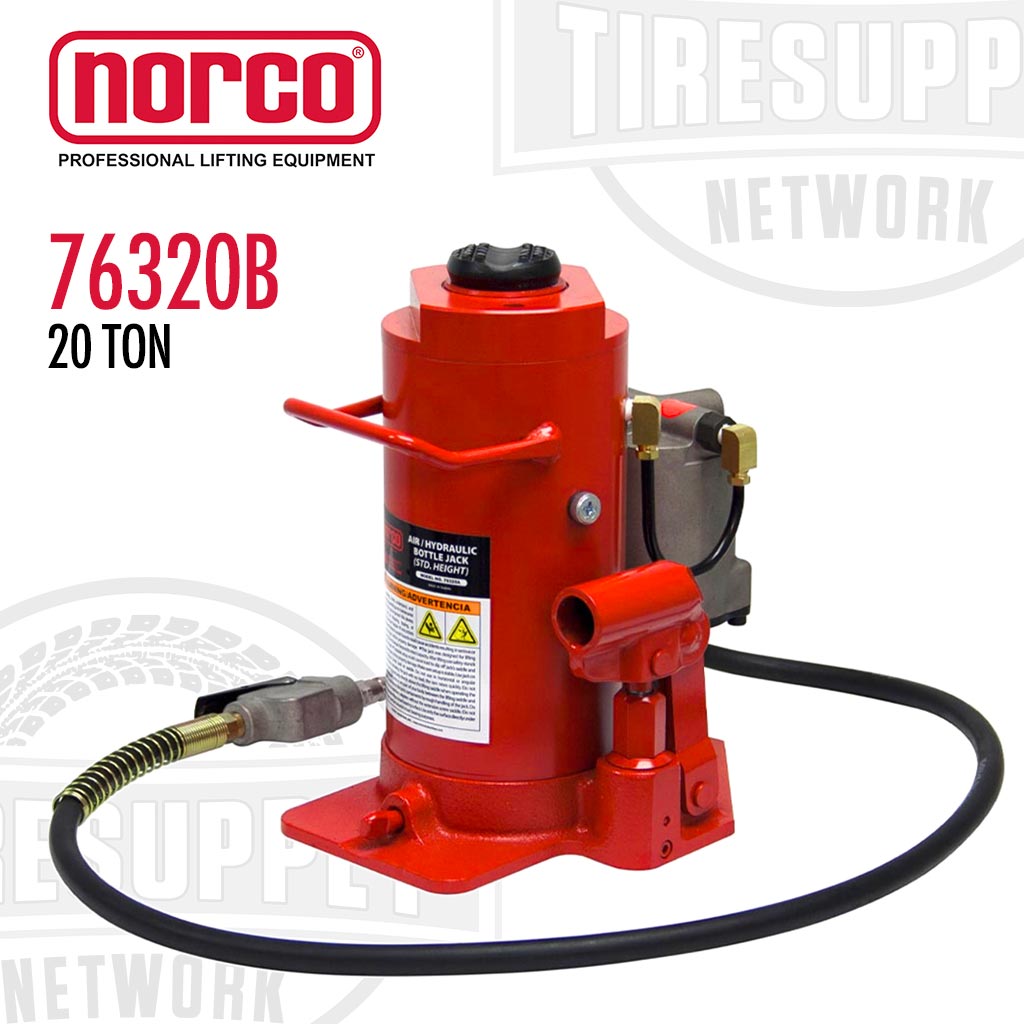

Norco | 20 Ton Air/Hydraulic Operated Bottle Jack (76320B)

Norco | 20 Ton Air/Hydraulic Operated Bottle Jack (76320B)

For heavy duty trucks, farm equipment, building construction, mining equipment, mobile home set-up and oil field applications.

Features:

• Fast and efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity.
• Convenient push button air valve connected to an in-line filter prevents contaminants from entering the air/hydraulic system.
• Unique design allows for manual operation when air is not available.
• Two piece zinc plated handle
• Parkerized coating on pump piston, extension screw, and extension adapters, as well as chrome coated ram offer protection against rust
• Longer wear life due to internally machined oil passages, smooth bearing surfaces, and close tolerances
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond ASME/PASE load-limiting standard.
• Built-in carrying handle

Specifications:

• Low lift height: 10.875"
• High lift height: 20.5"
• Stroke: 6.75"
• Screw extension: 2.75"
• Base size: 6.44" x 9"
• PSI range: 100-130
• Shipping Weight: 41 lbs
