ABS-14M-30H

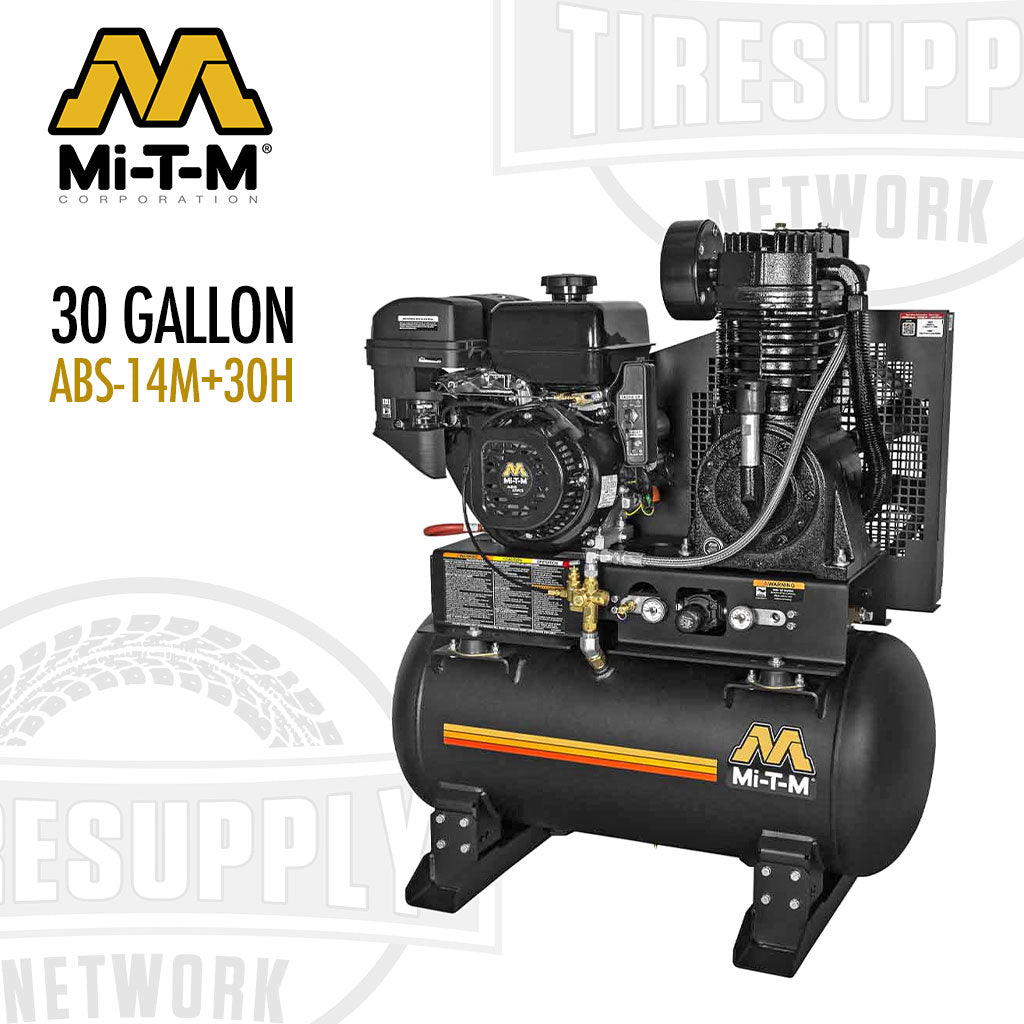

Mi-T-M Model ABS-14M-30H Two-Stage Gas-Driven 30-Gallon Tank-Mounted Air Compressor

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Mi-T-M Model ABS-14M-30H Two-Stage Gas-Driven 30-Gallon Tank-Mounted Air Compressor with Mi-T-M Motor

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Mi-T-M began manufacturing portable air compressors in 1999 as an extension of the existing industrial and contractor-grade equipment. Sixteen model were first introduced ranging from small electric hand carry 4-gallon air compressor models to gasoline models with a 20-gallon capacity. In 2000, seven more models were added to our line of air compressors, including large capacity 60 and 80-gallon air compressor models.

Today, Mi-T-M manufactures over 30 models of air compressors giving customers a choice from electric or gasoline, single-stage or two-stage, and portable or stationary.

Portable air compressors make the job easier. The dependability of Mi-T-M air compressors allows customers to get the most out of their investment. Reliability and portability make the Mi-T-M line of air compressors an asset simply because of their convenience and ease of use. Mi-T-M's portable rotary screw air compressor produces a large volume of CFM making it unique to the industry. Investing in one of these portable air compressors allows businesses to get more out of their day.

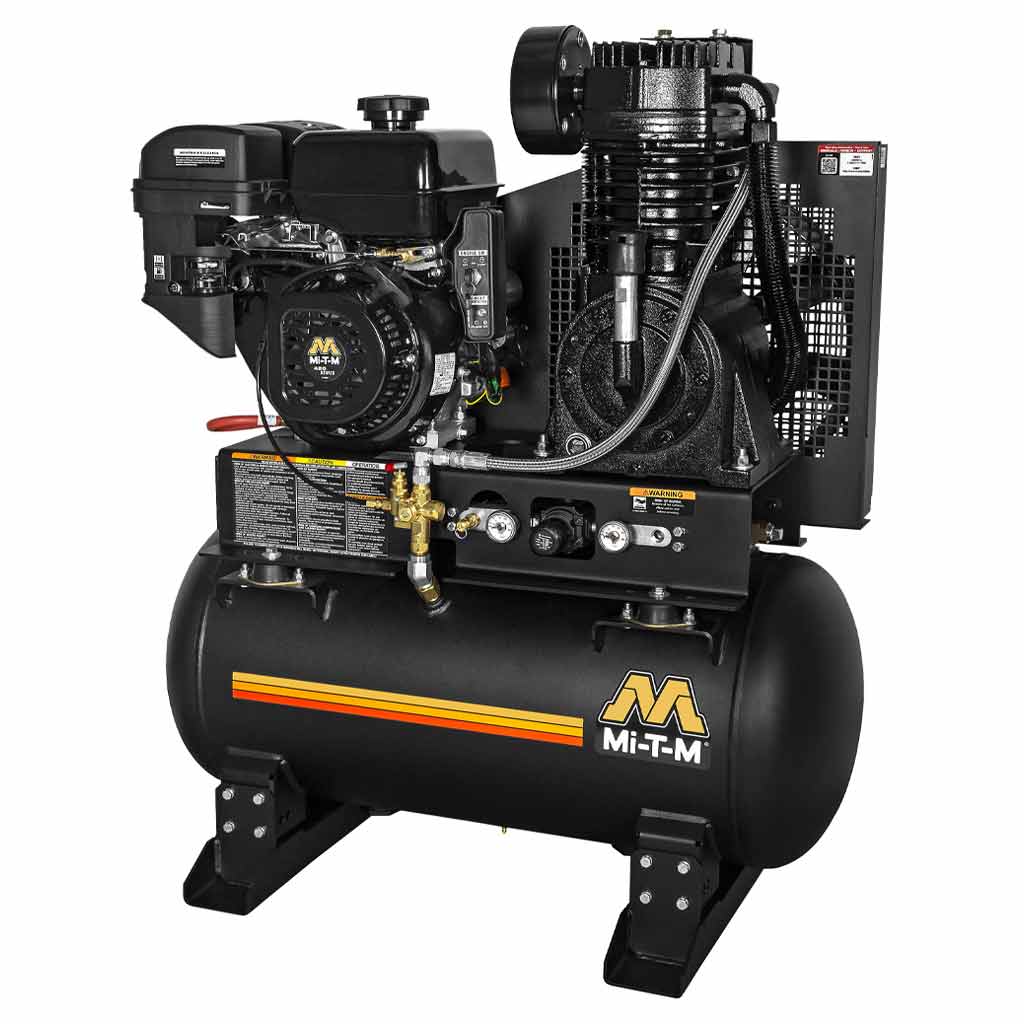

The Mi-T-M Model ABS-14M-30H Two-Stage Gas-Driven 30-Gallon Base-Mount Air Compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding job site.

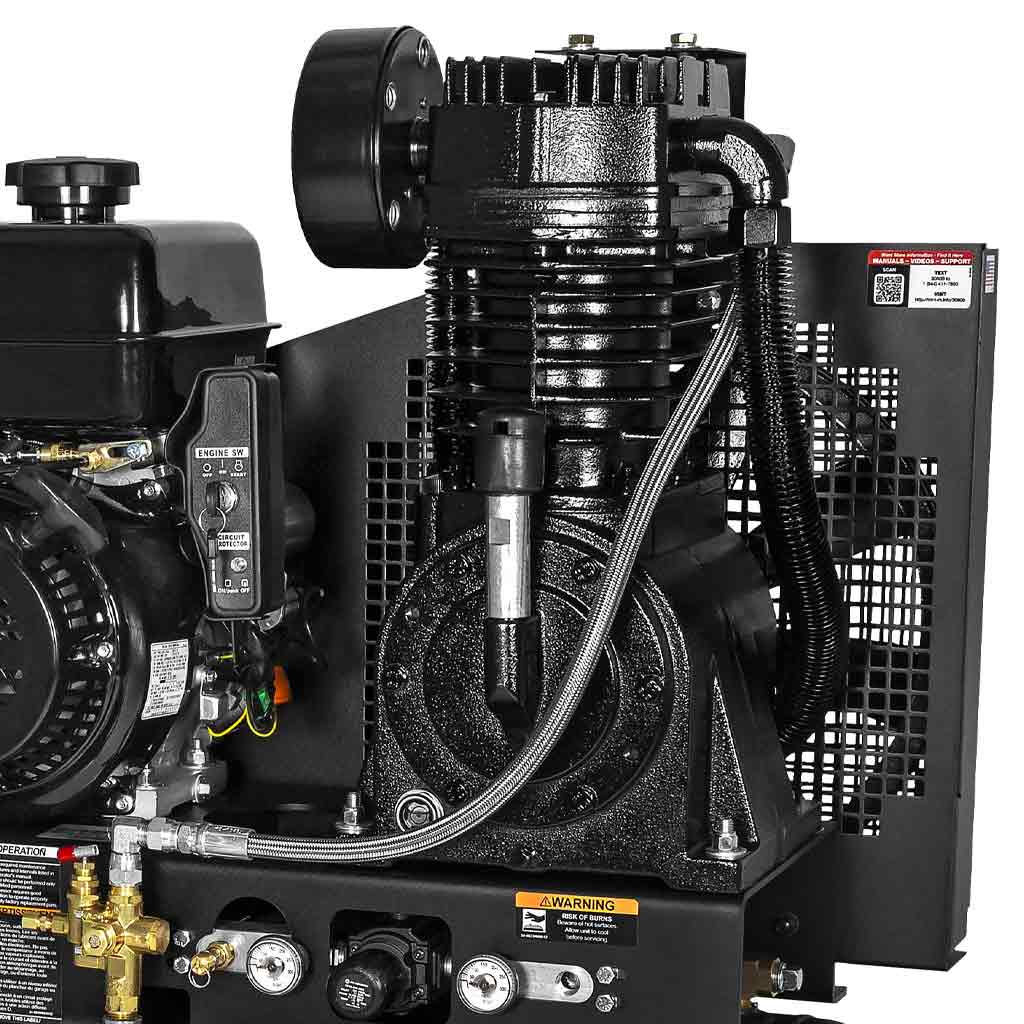

Compressor Pump:

  • Splash lubricated
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight indicator

Motor: Electric start - battery and cables not included

Frame:

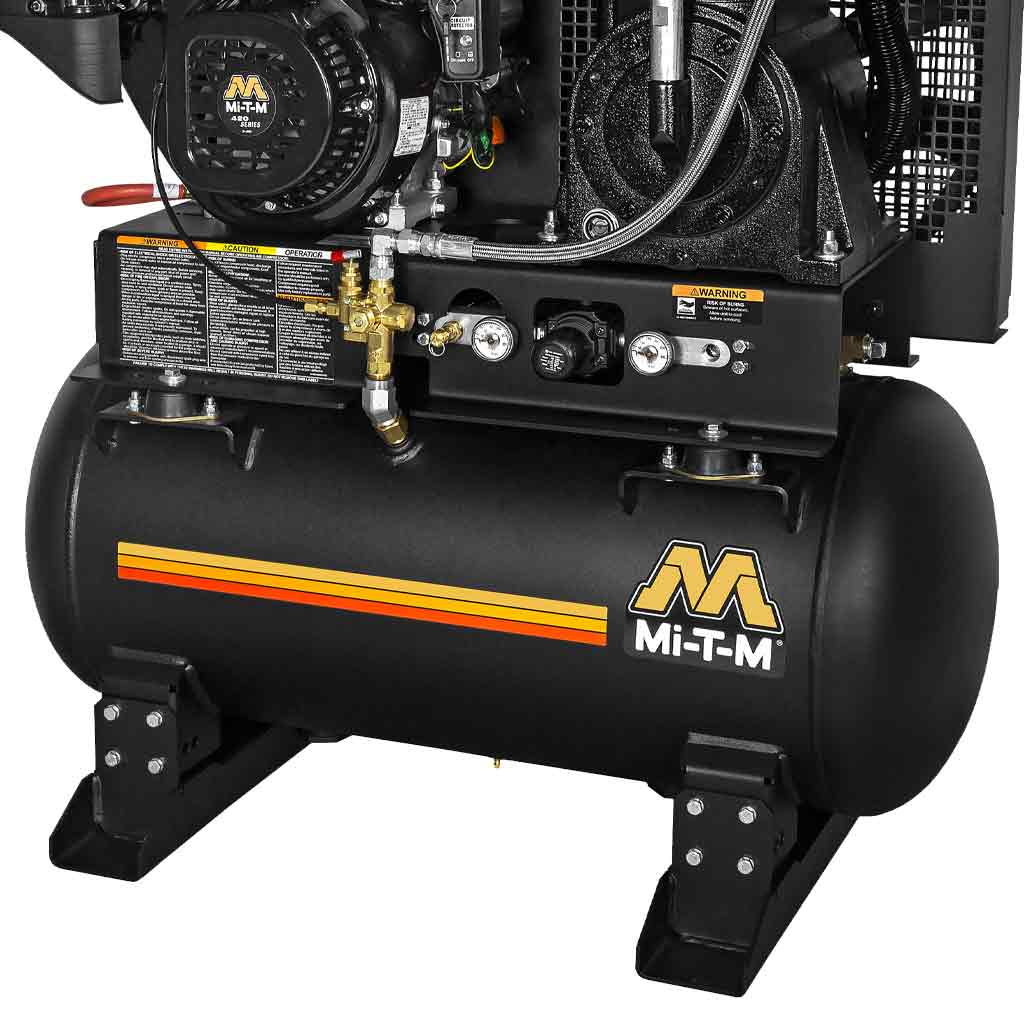

  • Powder coated ASME coded 30-gallon receiver tank
  • 3/16″ base plate to reduce vibration
  • 16-gauge powder coated two-piece belt guard
  • Removable base plate offers flexible installation

Components:

  • Regulator and two gauges for tank and outlet pressure
  • Equipped with 150-PSI maximum rated regulator
  • ASME safety valves
  • 16.5″ fly wheel
  • Tank drain valve

Limited Warranties:

  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine

Certification:

  • ASME Boiler and Pressure Vessel Code - UM (30-gallon models)
    TECHNICAL DATA Mi-T-M 30-Gallon Air Compressor
    Mi-T-M Model Number ABS-14M-30H
    Usage Commercial, Industrial, Automotive Industries
    CFM Rating 29.0 cfm @ 175 psi (Equipped with 150 psi maximum rated regulator)

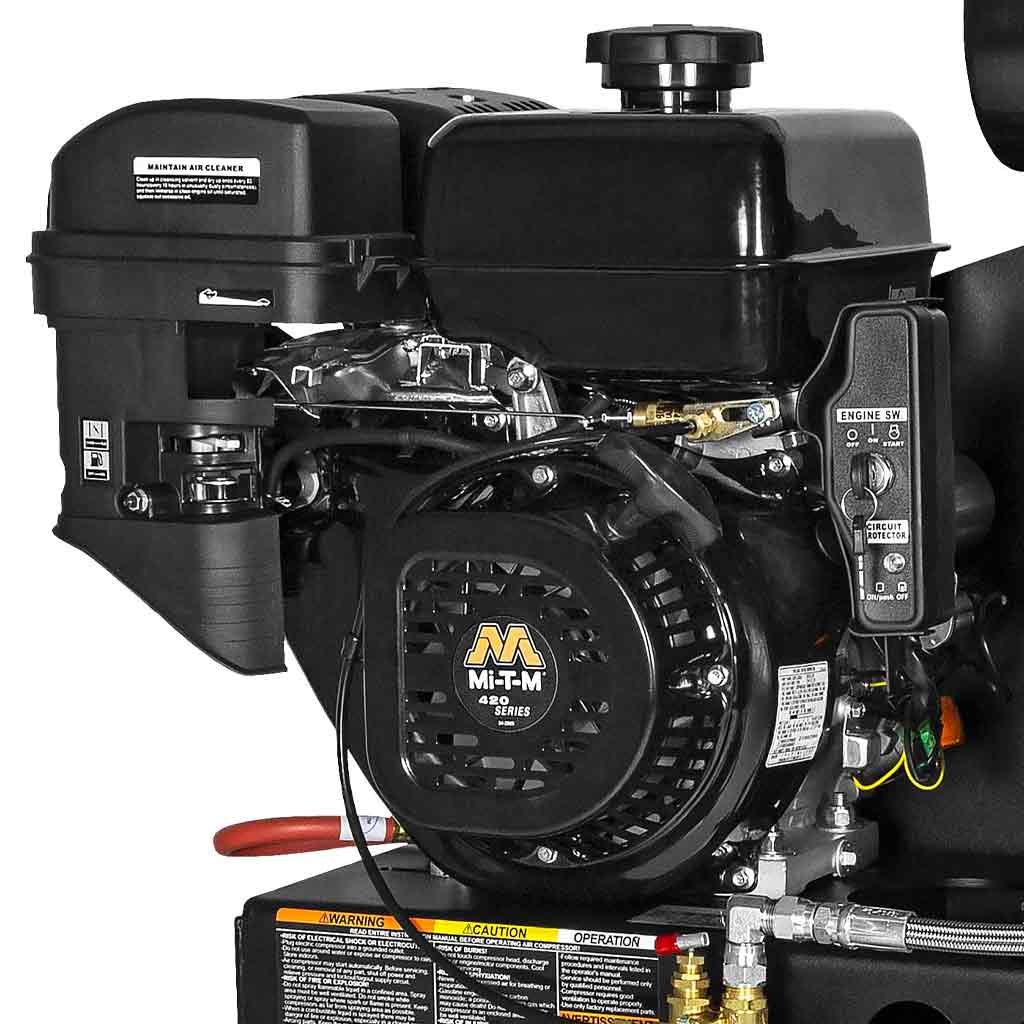

    Engine 420cc Mi-T-M OHV
    Compressor Two Stage, Cast Iron
    Tank Size 30 Gallon
    Engine Idle Control Pneumatic
    Dimensions (LxWxH) 38″ x 23″ x 46″
    Net Weight 416 lbs
    Shipping Weight 480 lbs
