PRE-ORDER: Mi-T-M Model ABS-13H-30H Two Stage Gas-Driven 30-Gallon Tank-Mounted Air Compressor with Honda Motor
This is a pre-order for the Mi-T-M ABS-13H-30H Gas-Driven Compressor with Honda Motor. The Mi-T-M ABS-13H-30H is expected to ship out in Q1 2024.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Mi-T-M began manufacturing portable air compressors in 1999 as an extension of the existing industrial and contractor-grade equipment. Sixteen model were first introduced ranging from small electric hand carry 4-gallon air compressor models to gasoline models with a 20-gallon capacity. In 2000, seven more models were added to our line of air compressors, including large capacity 60 and 80-gallon air compressor models.
Today, Mi-T-M manufactures over 30 models of air compressors giving customers a choice from electric or gasoline, single-stage or two-stage, and portable or stationary.
Portable air compressors make the job easier. The dependability of Mi-T-M air compressors allows customers to get the most out of their investment. Reliability and portability make the Mi-T-M line of air compressors an asset simply because of their convenience and ease of use. Mi-T-M's portable rotary screw air compressor produces a large volume of CFM making it unique to the industry. Investing in one of these portable air compressors allows businesses to get more out of their day.

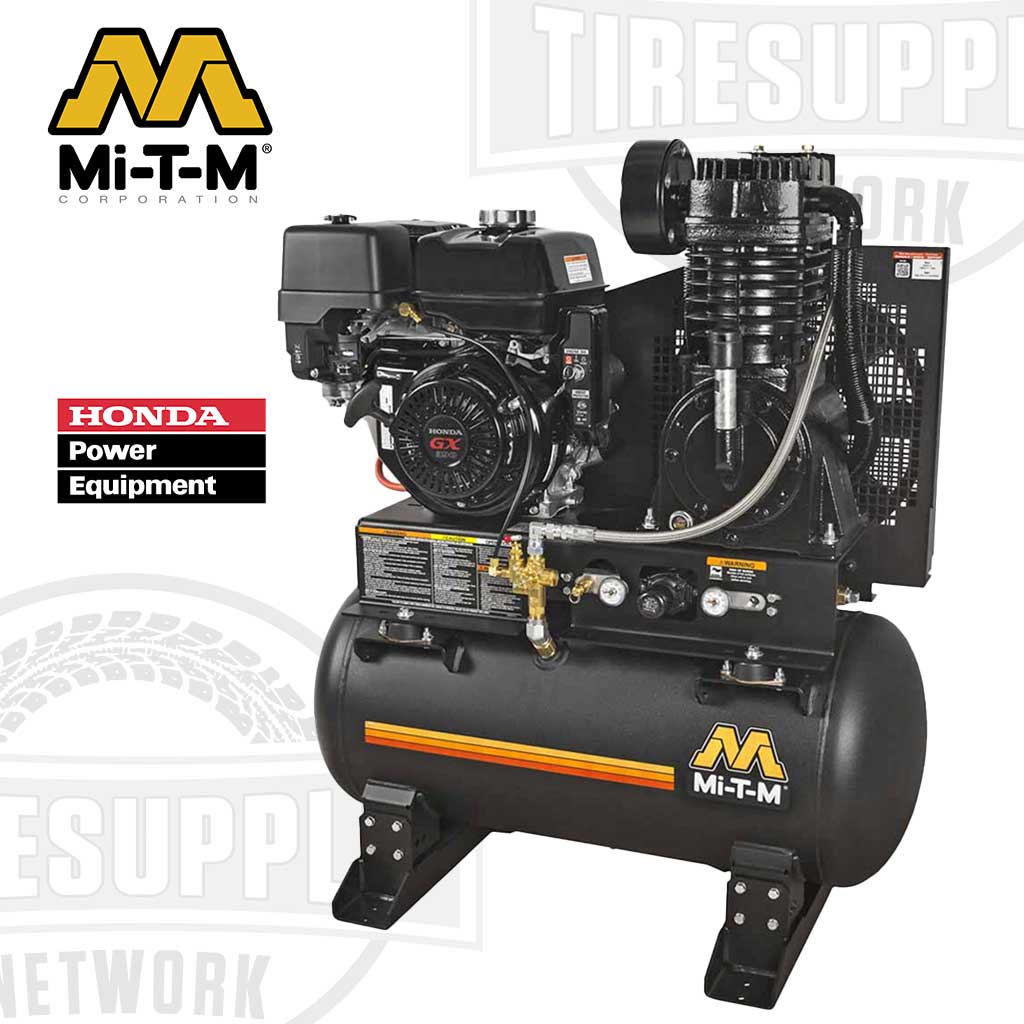

The Mi-T-M Model ABS-13H-30H Two Stage Gas-Driven 30-Gallon Base-Mount Air Compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding job site.

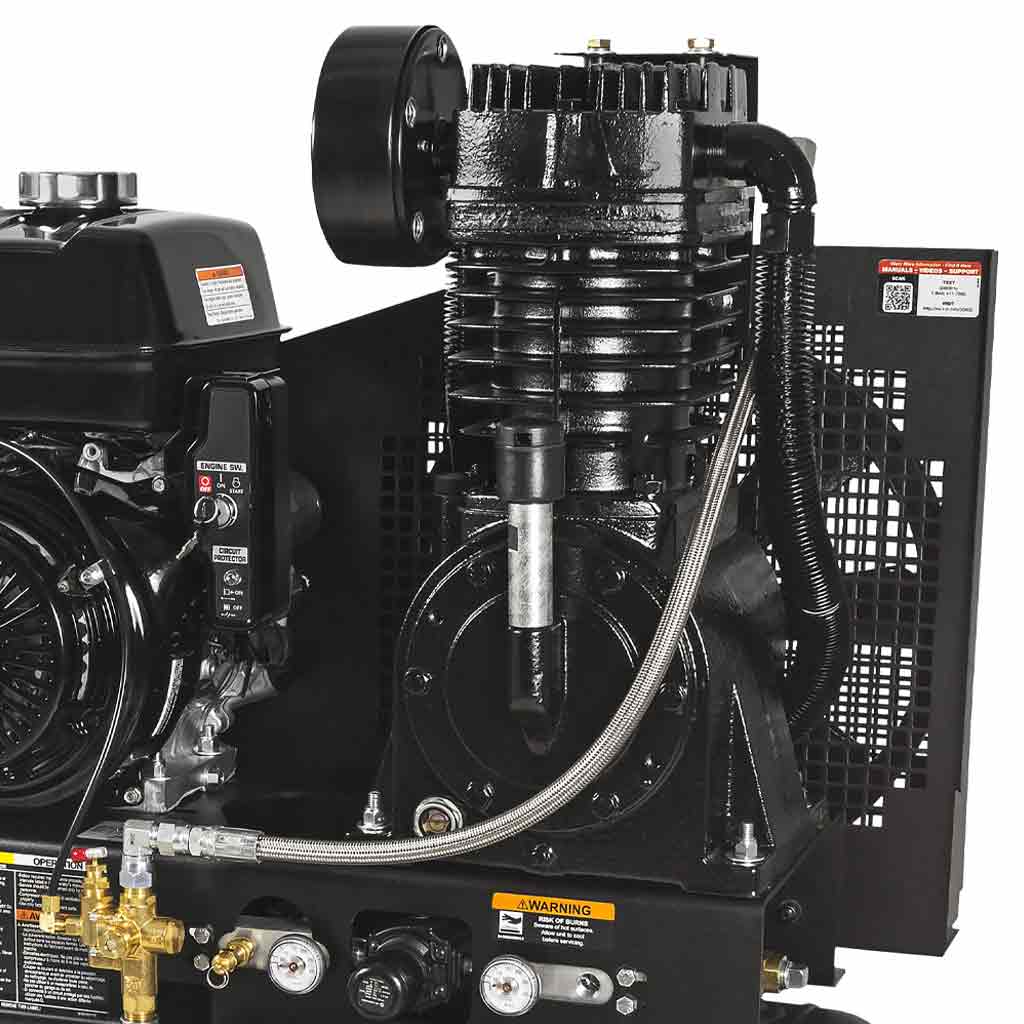

Compressor Pump:
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
Motor: Electric start - battery and cables not included

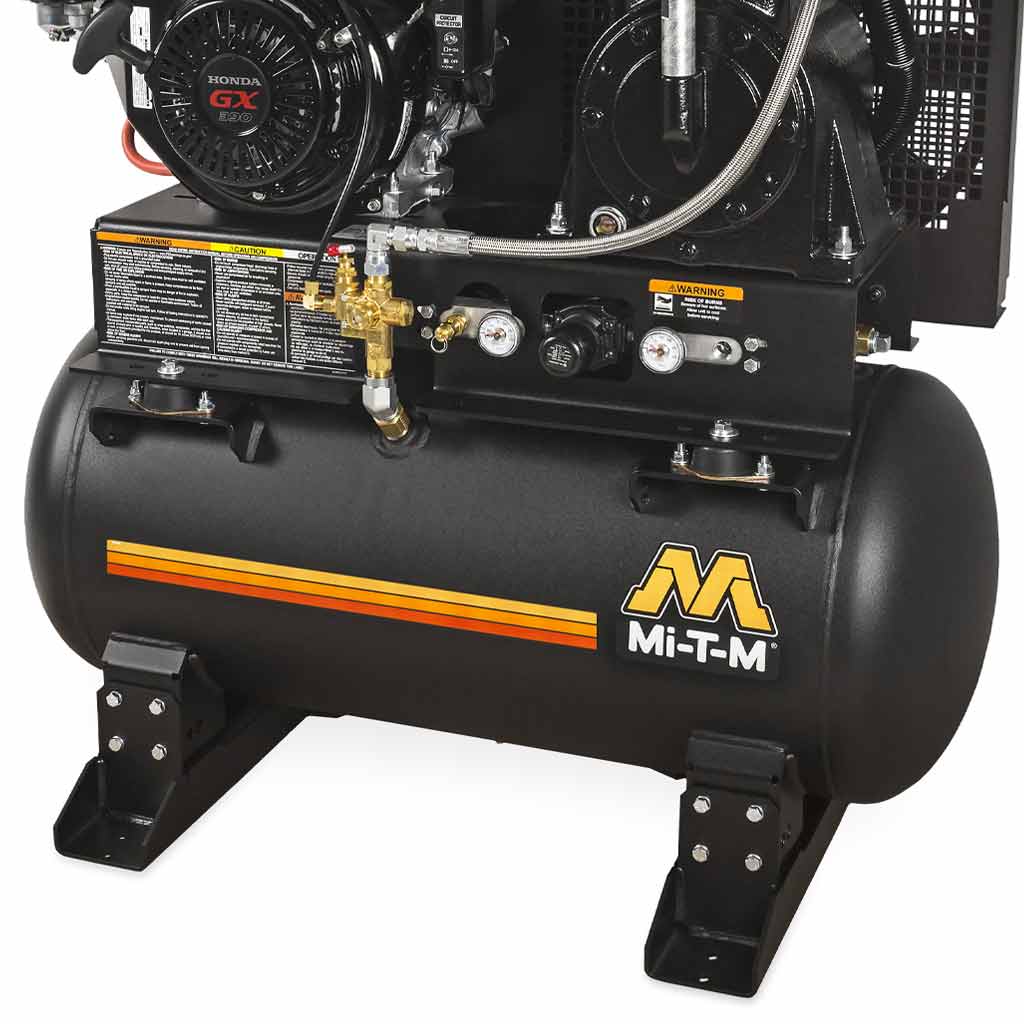

Frame:
- Powder coated ASME coded 30-gallon receiver tank
- 3/16″ base plate to reduce vibration
- 16-gauge powder coated two-piece belt guard
- Removable base plate offers flexible installation
Components:
- Regulator and two gauges for tank and outlet pressure
- Equipped with 150-PSI maximum rated regulator
- ASME safety valves
- 16.5″ fly wheel
- Tank drain valve
Limited Warranties:
- 2 Year Pump Exchange
- 3 Year Honda Engine
Certification:
- ASME Boiler and Pressure Vessel Code - UM (30-gallon models)
TECHNICAL DATA | Mi-T-M 30-Gallon Air Compressor |
Mi-T-M Model Number | ABS-13H-30H |
Usage | Commercial, Industrial, Automotive Industries |
CFM Rating | 29.0 cfm @ 175 psi (Equipped with 150 psi maximum rated regulator) |

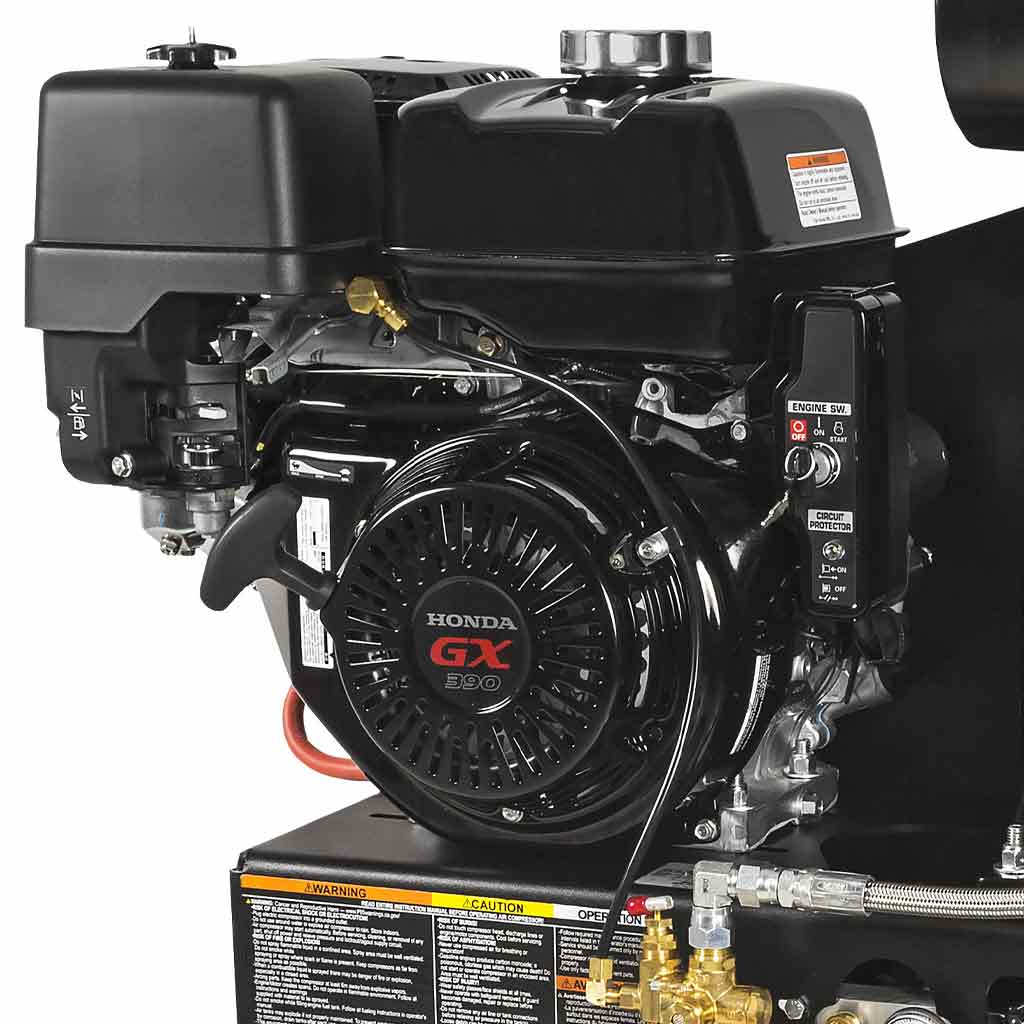

Engine | 389cc Honda GX390 OHV |
Compressor | Two Stage, Cast Iron |
Tank Size | 30 Gallon |
Engine Idle Control | Pneumatic |
Dimensions (LxWxH) | 38″ x 23″ x 46″ |
Net Weight | 416 lbs |
Shipping Weight | 480 lbs |
