Launch 702030019 | Tread Master 2.0 Digital Tread Inspection and Management Tool

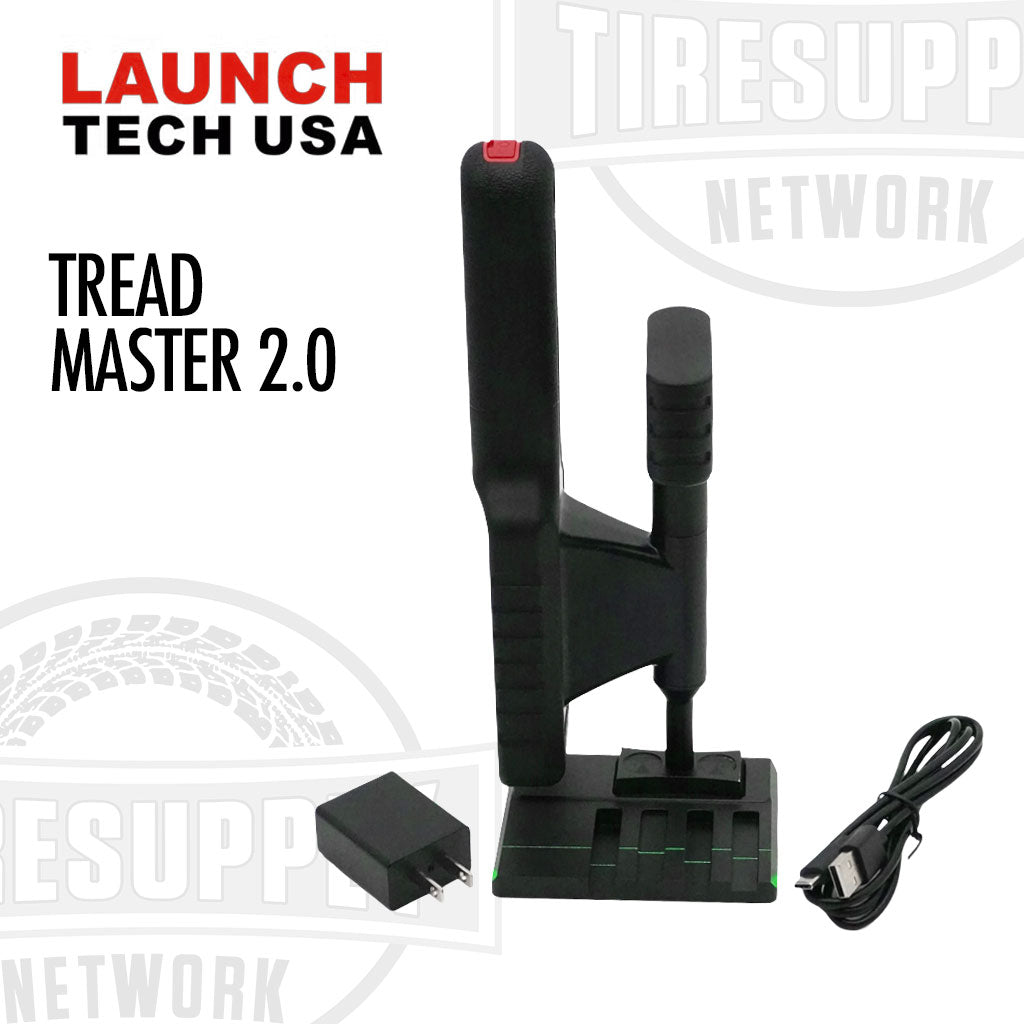

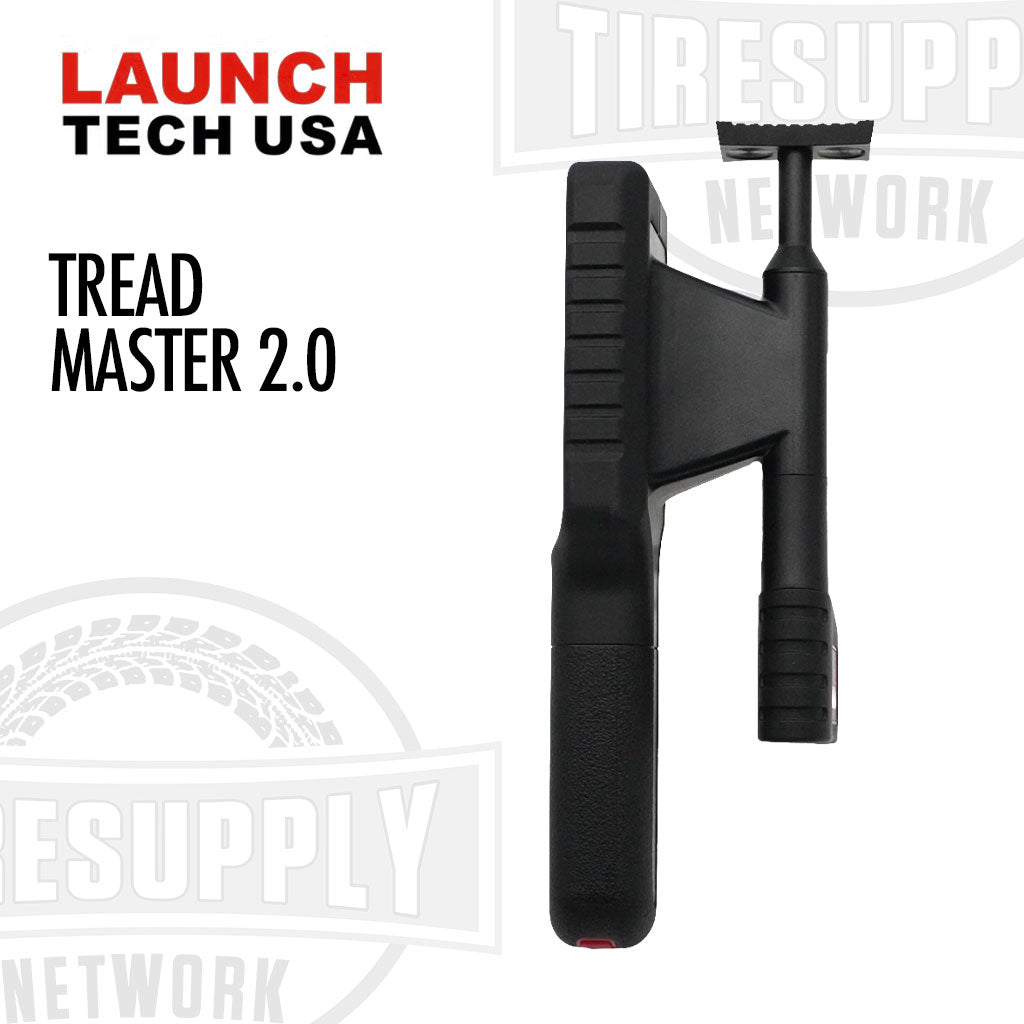

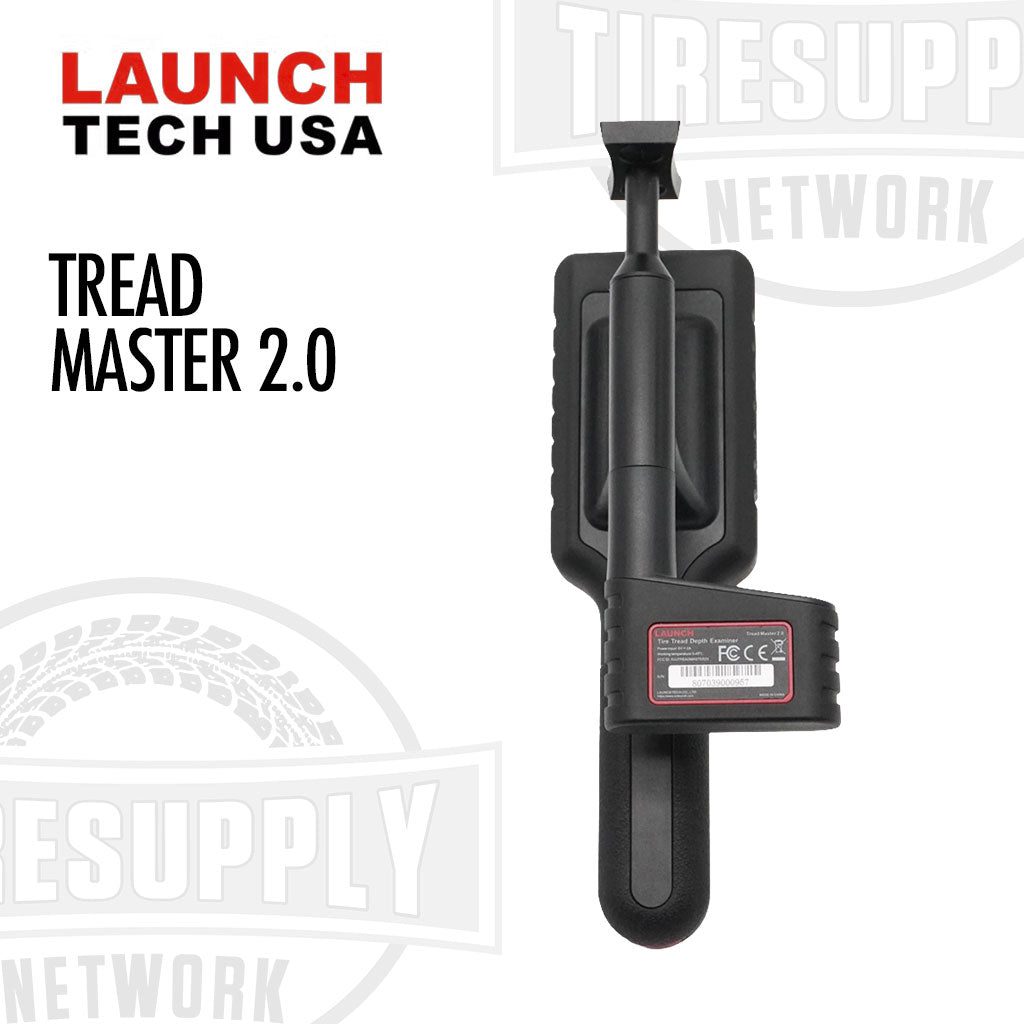

Launch Tech USA Tread Master 2.0 | Digital Tread Inspection and Management Tool (702030019)

The Tread Master 2.0 is a handheld tire depth examiner that uses laser scanning with 1/32nd accuracy. With options to scan both the full tread or a single-groove and provide detailed wear data with inspection reports, it’s ideal for workshops and fleet maintenance.

• Inspection reports include wear analysis, braking distance estimates, and service recommendations such as rotation, replacement, and alignment.
• Take high-quality photos to include in inspection reports.

Features:

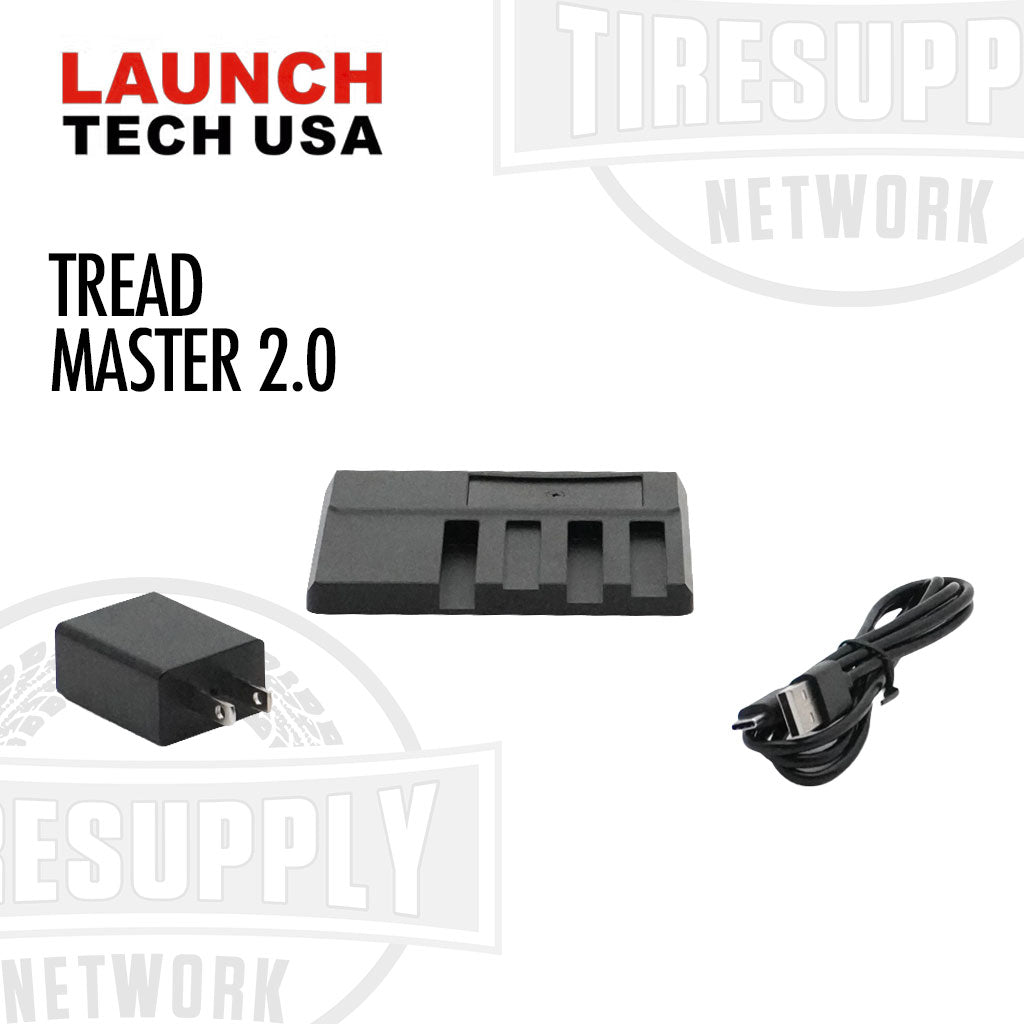

Calibration Included Tread calibration platform included.	High Accuracy 1/32nd real-time measurement.	X-431 Integration Works seamlessly with Launch ProLine scanners.
Customizable Settings Language, brightness, and measurement units.	Max Measurement Width Scan width up to 7.1 inches.	Easy Data Sharing Report sharing via QR code or email.

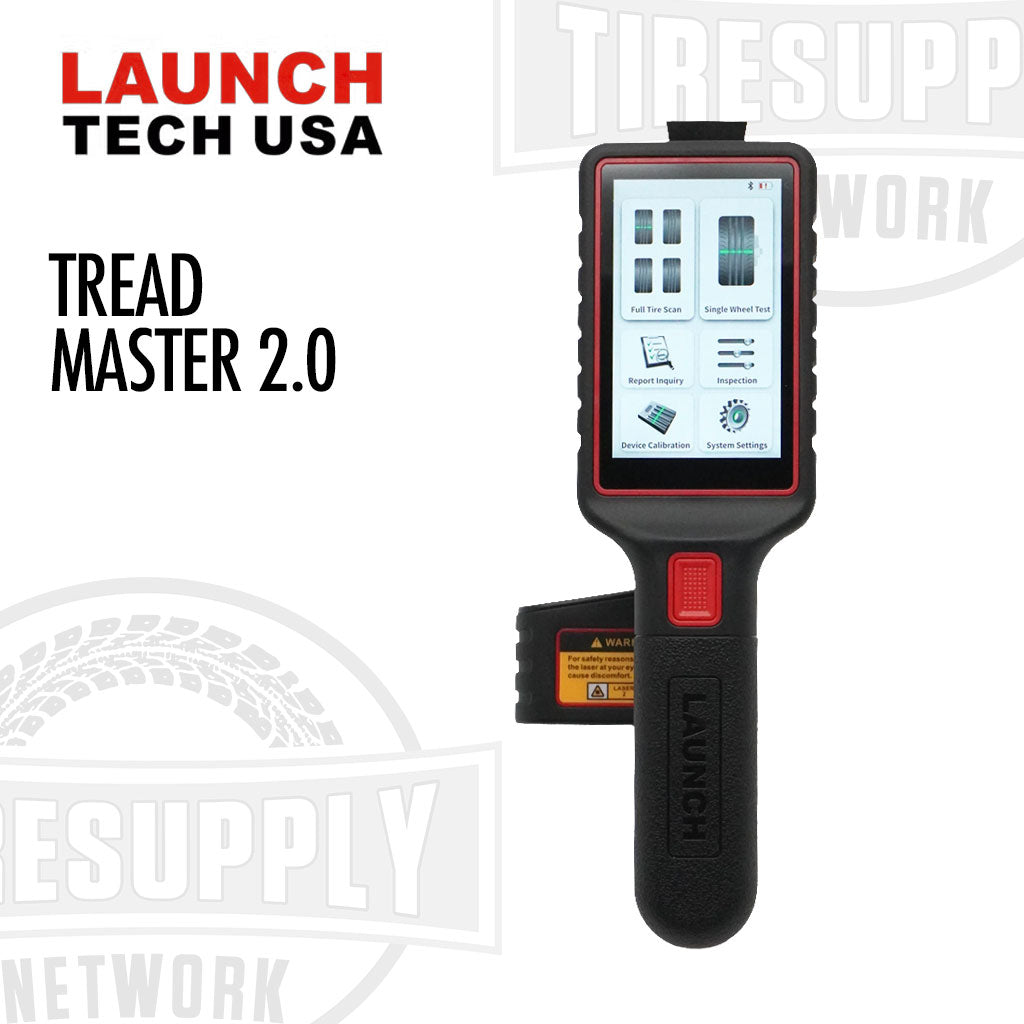

3.97" Touchscreen Clear, easy-to-use visual interface.	Single Groove Detection Supports single groove scans for special tire patterns.	Wi-Fi Connectivity Remote reporting and software updates.

3 Second Scan Reads single tire data in ~3 seconds.

Specifications:

• Camera: 2MP, 30 FPS
• Charging Port: USB Type C
• Display Types: 3.97(in), touch screen
• Laser: Class 2
• Product Dimensions: 10.5 X 4 X 3.5 (in)
• Product Weight: 1.1 lbs
• Wi-Fi: 2.4 GHz
• Working Temperature: 32F – 113F

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
