Hofmann Geodyna 980L Heavy-Duty Truck Wheel Balancer

Hofmann Geodyna 980L Heavy-Duty Truck Wheel Balancer

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

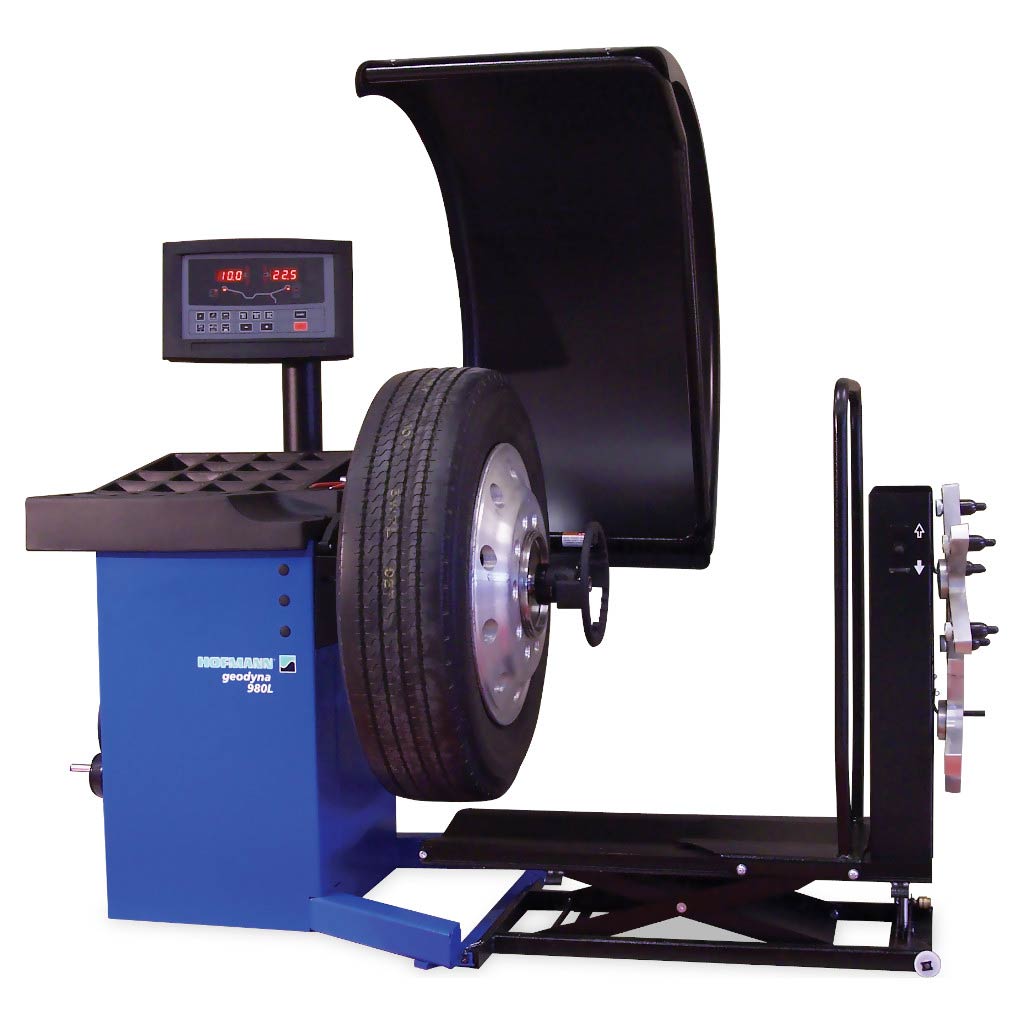

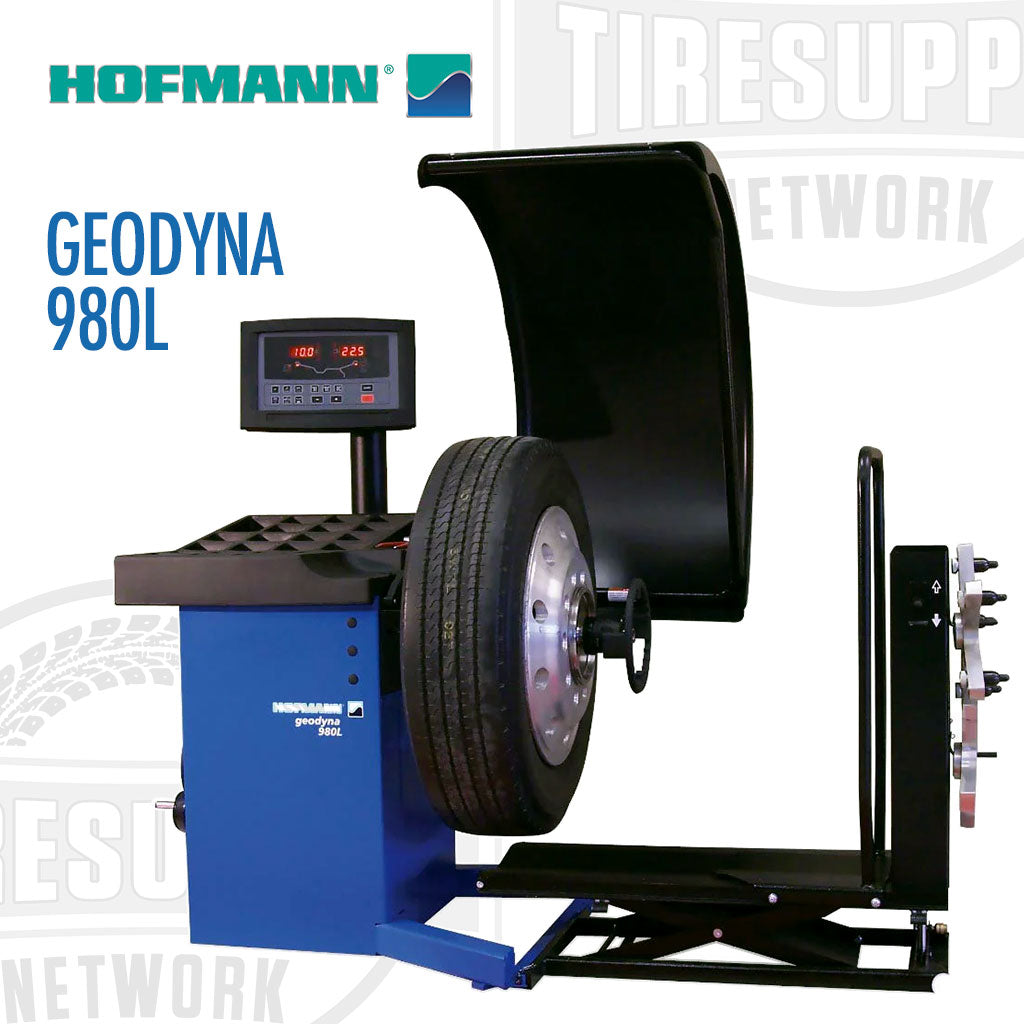

The Geodyna 980L heavy-duty wheel balancing system is designed to handle the balancing needs of trucks, buses, RV’s, and Light Truck/Automobile tires. The Geodyna 980L is equipped to handle from the smallest of wheels, 12" (30.5 cm) to heavy-duty 25" (63.5) and “super-singles”.

The Geodyna 980L assists in reducing tire tread wear with its 2-Plane/Dynamic, off-the-vehicle balancing of truck tires. A pneumatic wheel lift is included to assist with heavy lifting and proper wheel mounting. Increased accuracy with semi-automatic entries of wheel distance and diameter, along with easy re-calibration that can help save on costly service calls. The Geodyna 980L comes standard with mounting adapters for both hub-piloted and stud-piloted truck wheels and a passenger/light truck centering cone kit for automotive use.

Features:

  • 2-Plane/Dynamic wheel balancing of truck tires off the vehicle can help increase the life of the tread

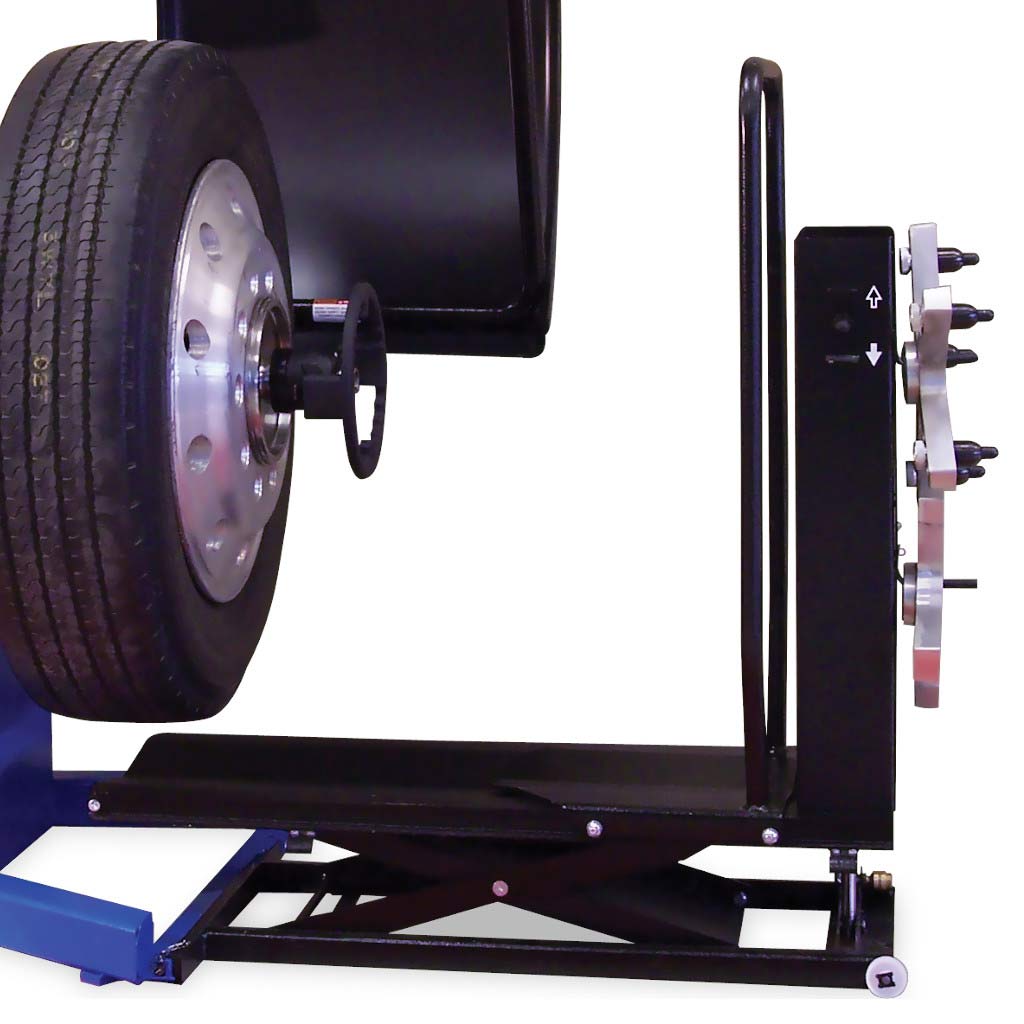

  • The pneumatic wheel lift aids in proper wheel mountings and reduces related strains caused by lifting heavy tires
  • The Geodyna 980L includes truck centering cones for hub piloted wheels, professional 4-star/5-star centering arms for stud piloted applications and passenger/light truck cones for automotive use
  • Operator can recalibrate the balancer in two easy steps to ensure accuracy
  • Semi-automatic data entry precisely enters the wheel diameter and distance utilizing the Geodata arm to help reduce operator errors
  • Flexible balancing system designed to handle from the smallest of wheels, 12" to heavy duty 24.5" and “super-singles”

Accessories Included:

  • Automotive Car/Truck Adapter Kit
  • Wheel Width Gauge
  • Weight Pliers
  • Light Truck Wheel Spacer
  • Gold Spacer
  • Calibration Tool
  • Storage Pegs
  • Truck Cone (4.25” x 6.625”)
  • Heavy-Duty Truck Cone (8” - 9”)
  • Professional Centering Arms
TECHNICAL DATA Geodyna 980L
Hofmann Part Number EEWB710BW
Wheel Clamping Quick Nut
Wheel Width 2″ - 20″ (5 - 50.8 cm)
Maximum Wheel Assembly Width 25″ (63.5 cm)
Maximum Wheel Assembly Diameter 8″ - 30″ (20.32 - 76.2 cm)
Wheel Weight 500 lbs (227 kg)
Balancing Modes 10
Motor 1 hp (Acceleration hp)
Cycle Time From 7 seconds
Measuring Time Less than 20 seconds
Measuring Speed Less than 100 rpm

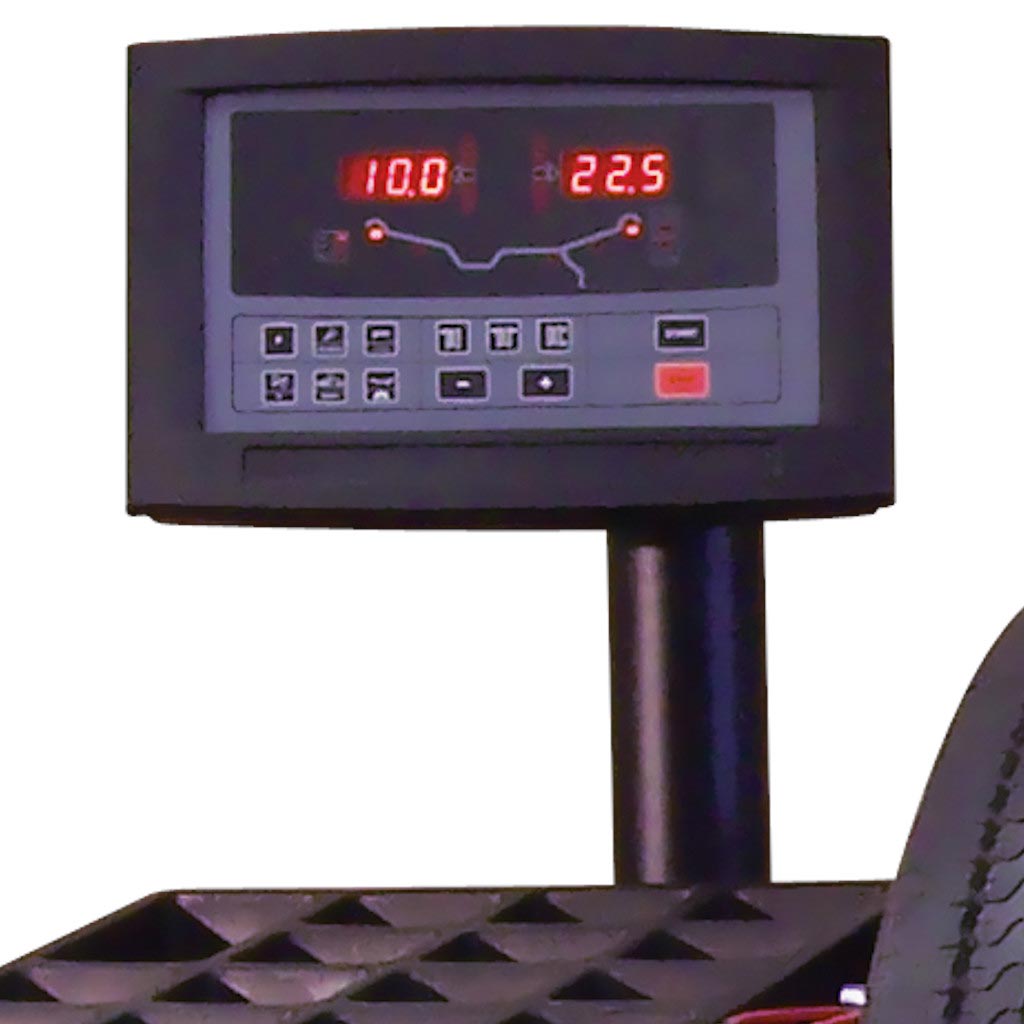

Read-Outs gram or ounce
Accuracy 1g or 0.05 oz
Dimensions (W x D x H) 55″ x 54″ x 76″ (139.6 x 137.16 x 193.04 cm)
Shipping Weight 600 lbs (272 kg)
Power Requirements 115 V, 1 Ph, 50/60 Hz, 8 Amp
    Compliance and Restrictions
