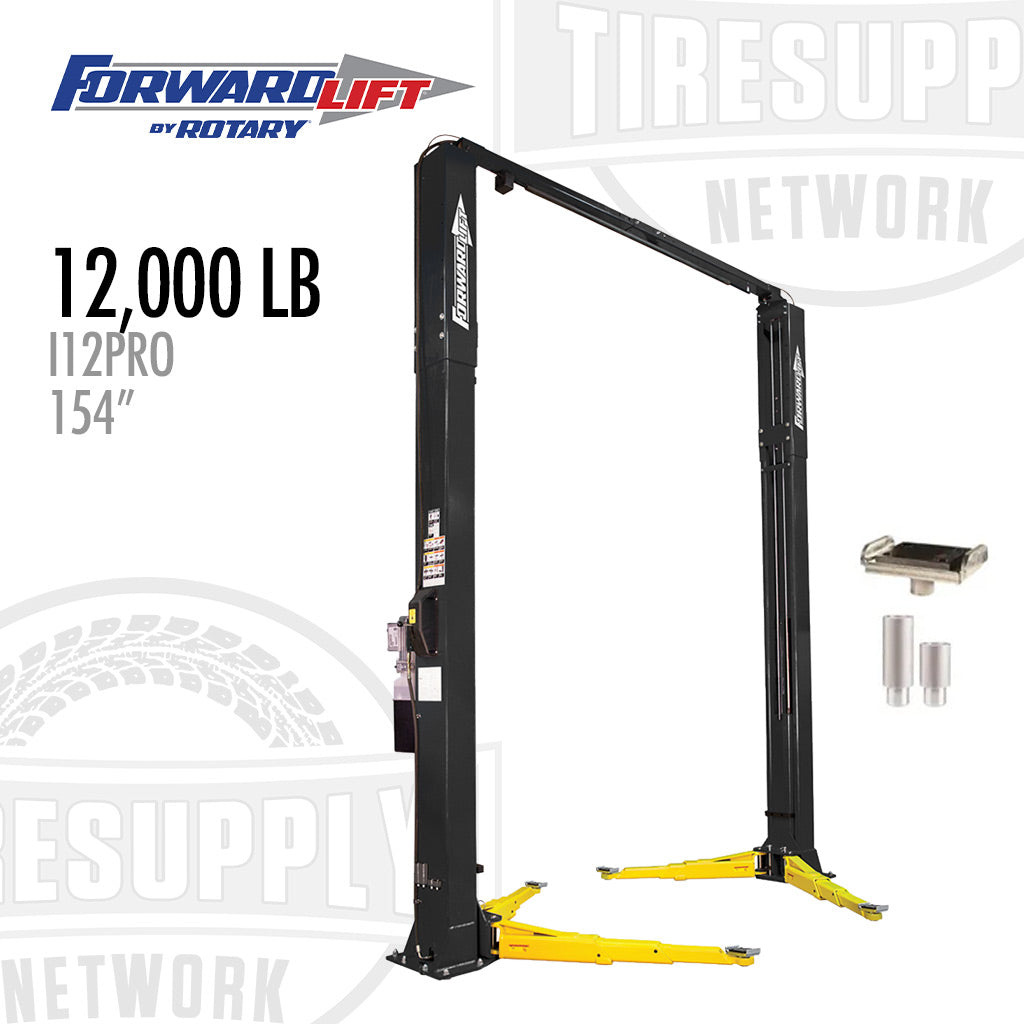

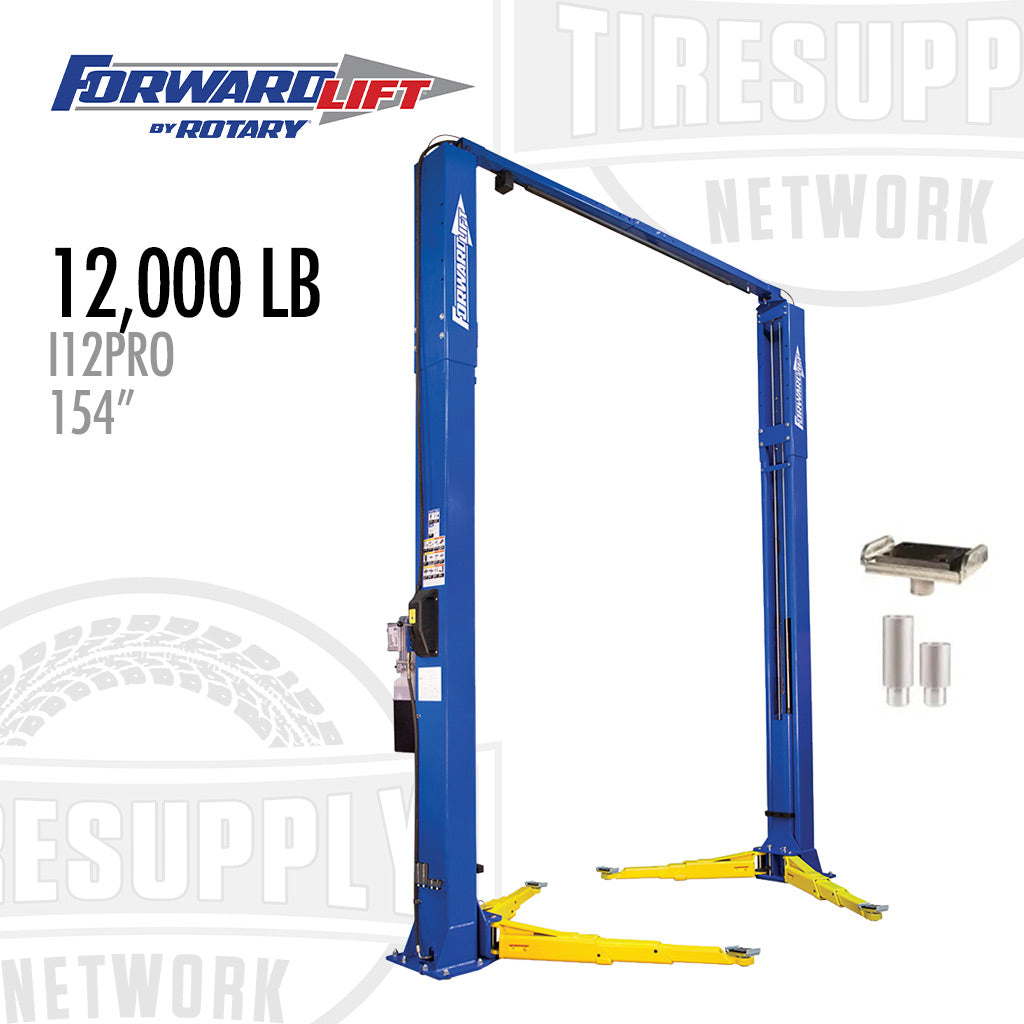

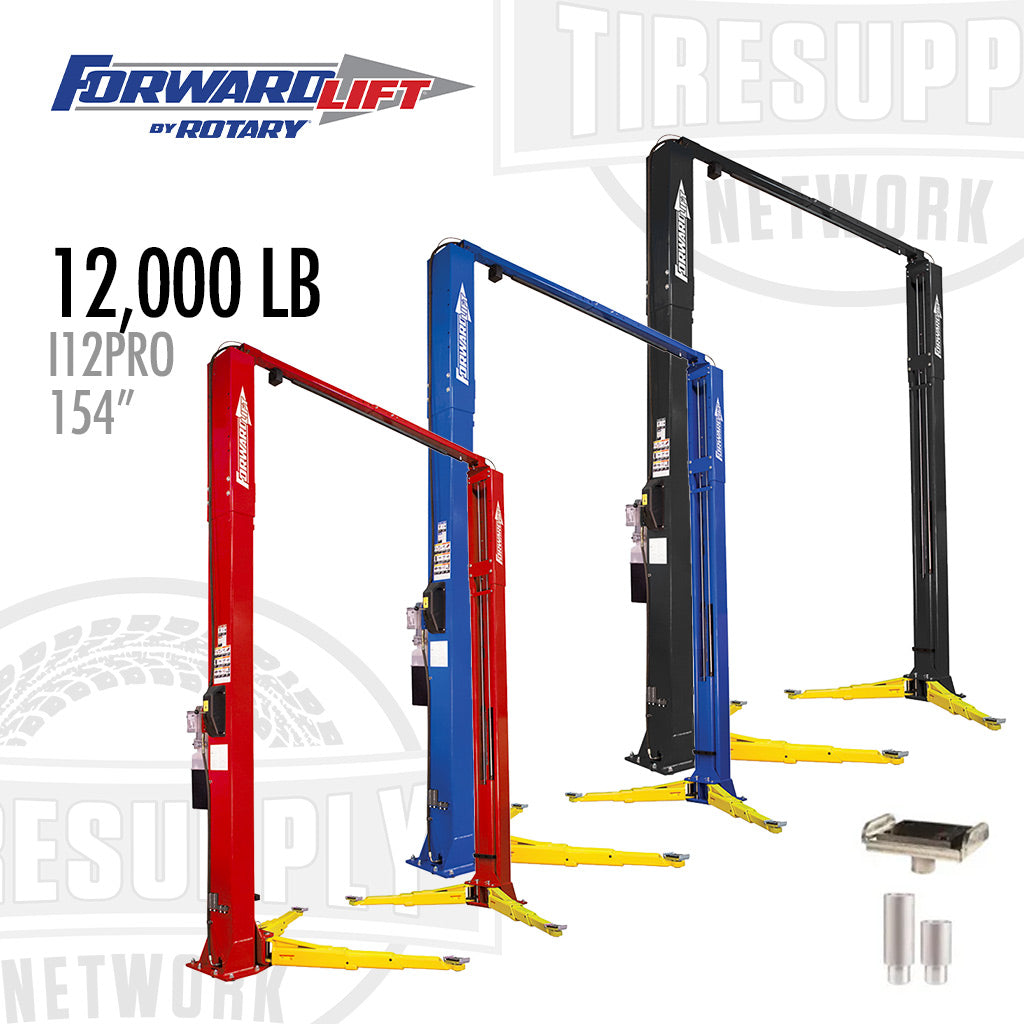

Forward Lift I12PRO | 2-Post Lift 12,000-lb Capacity - 154" Symmetric Columns 3-Stage Arms - Choose Color
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
As low as $151.43 for 72 months Finance Now!
Forward Lift I12PRO | 2-Post Lift 12,000-lb Capacity - 154" Symmetric Columns 3-Stage Arms - Choose Color - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Forward Lift I12PRO 2-Post Lift 12,000-lb Capacity - 154" Symmetric Columns 3-Stage Arms - Choose Color (I12N302)
ROTARY REBATE PROMOTION - NOW THROUGH JUNE 30th, 2026
Forward’s 12,000-pound capacity I12PRO two-post lift is gold-certified and perfect for raising most passenger cars, trucks, and vans. It has two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize downtime. The durable, powder coat finish provides exceptional protection from the wear a shop will see over the years.
Features
- Overhead cable equalization
- Single Point lock release
- Includes adapter storage bracket
- ALI Gold Certified
Front & Back Three-Stage Arms
The 112 has our special three-stage arm design in the front and back arms, which provides added versatility regarding the types of vehicles you need and want to service.
Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.
Easy to Operate
This lift features a single-point lock release for easy operation.
ALI Gold Certified
This lift has been tested and gold-certified by ALI/ETL, meeting the highest industry safety and performance standards.
*Installation not included.
Specifications
| Model |
I12PRO |
| Total Capacity | 12,000 lbs. (5443kg) |
| Max. Rise with 5″ Extension | 77 1/2″ |
| Adjustable Overall Height Options | 13′ 10″ Standard Height (SKU: I12N300), 14′ 10″ Extended Max. Height (SKU: I12N301), 12′ 10″ (SKU: I12N302), 11′ 11″ (SKU: I12N303) |
| Overall Width | 11′ 8″ or optional 12′ 2″ |
| Drive-Through Clearance | 102 3/4″ or optional 108 3/4” |
| Overhead Switch Height Options | 160 1/8″ Standard (SKU: I12N300), 172 1/8″ Extended (SKU: I12N301), 148 1/8″ (SKU: I12N302), 137 1/8″ (SKU: I12N303) |
| Front Arm Reach (Min./Max.) | 27-5/8″ min / 59″ max (700mm / 1500mm) |
| Rear Arm Reach (Min./Max.) | 27-5/8″ min / 59″ max (700mm / 1500mm) |
| Lifting Pad Height (Min./Max.) | 4-3/4″ (121mm) with no extension, 9-3/4″ with 5″ extension (248mm) |
| Width Between Columns | 114 7/8” Standard, 120 7/8″ Optional |
| Speed of Rise | 60 seconds |
| Voltage/Amps | 208-230V, 17 Amps |
| Motor/Phase | 2 HP / 60 Hz / 1 PH |
Warranty:
| 5 Years (Columns, arms, runways, and carriages) | 18 Months (Cylinder, power unit and parts) |
| 1 Year Accessories (Parts only) | 6 Month Labor |
Compliance and Restrictions:
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
