Forward Lift  |  SKU: F12N303BL

Forward Lift F12 | 2-Post Lift 12,000-lb Capacity - Symmetric Columns 2-Stage Arms - 4 Height Options - Choose Color

Sale price $8,827.17 Regular price $9,807.97

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $122.59 for 72 months Finance Now!


Height

Shipping & Delivery — Lift Gate Required

⚠ Please select a delivery option before adding to cart.

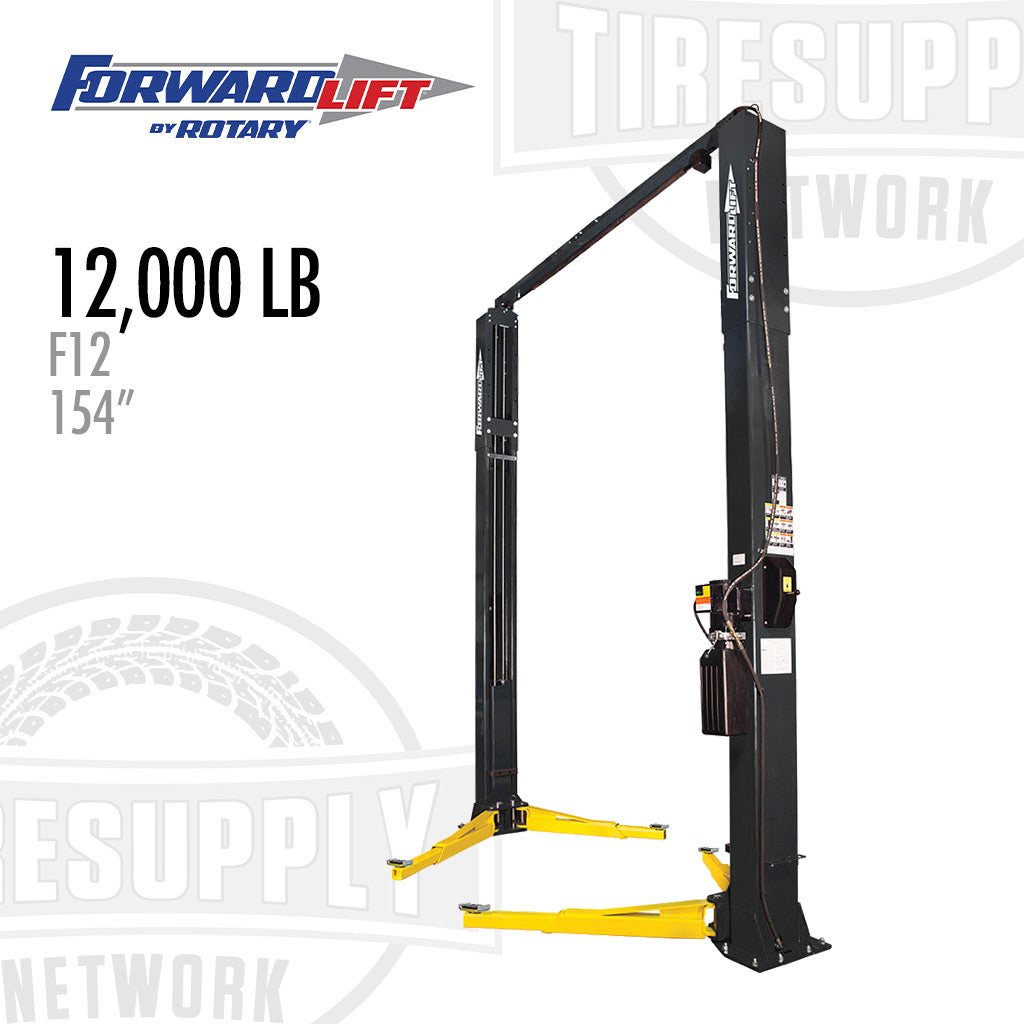

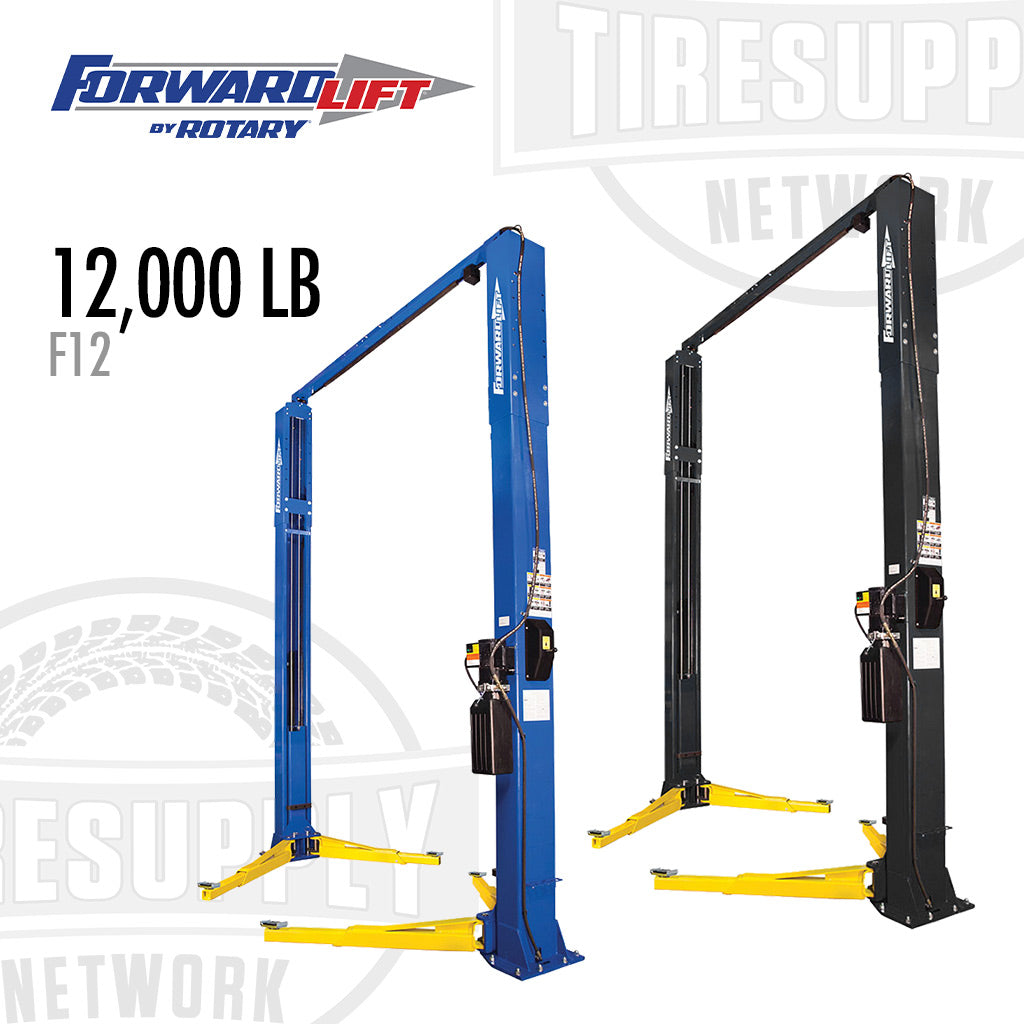

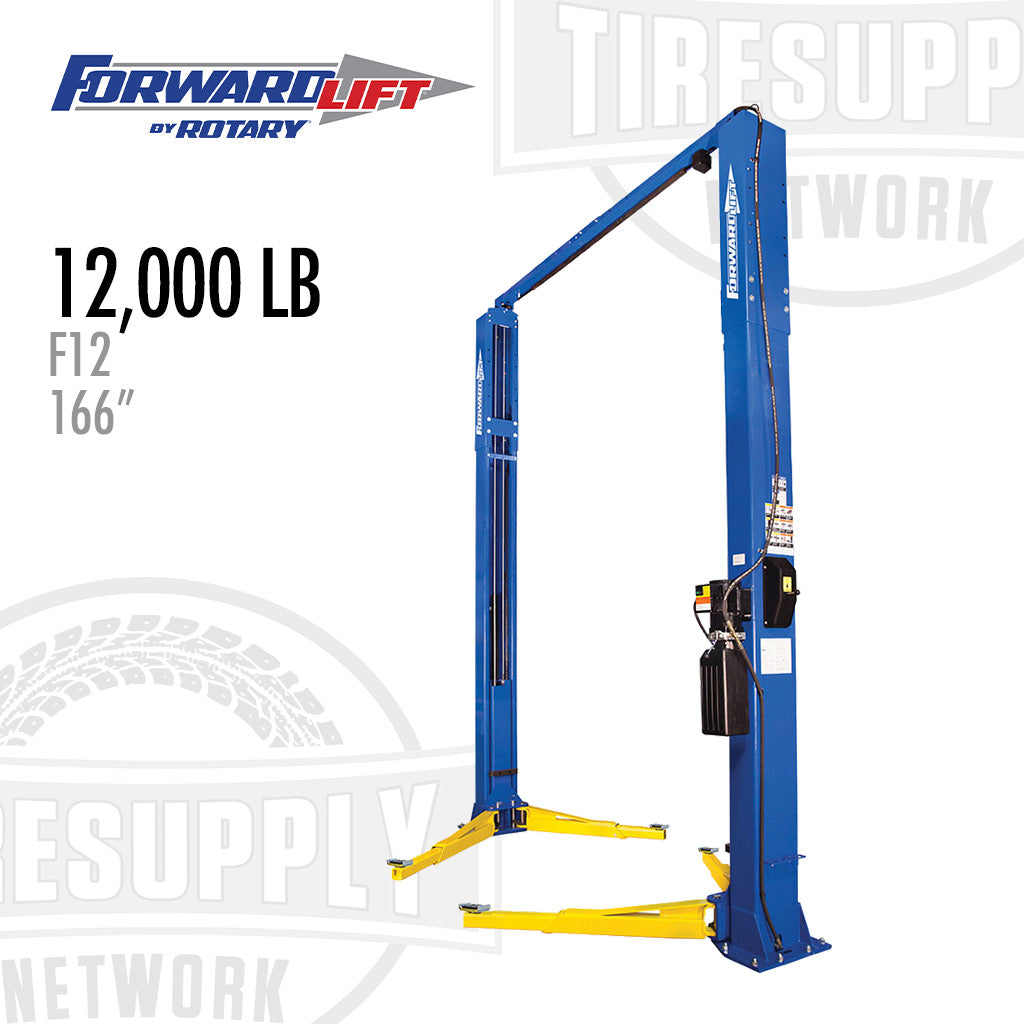

Forward Lift F12 2-Post Lift 12,000-lb Capacity - Symmetric Columns 2-Stage Arms - 4 Height Options - Choose Color (F12N30*)

Forward’s F12 (12,000-pound capacity) two-post lift is gold-certified and perfect for raising most passenger cars, trucks, and vans. It has two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize downtime. The durable, powder coat finish provides exceptional protection from the wear a shop will see over the years.

Features
  • Overhead cable equalization
  • Single Point lock release
  • Includes adapter storage bracket
  • ALI Gold Certified

Versatile Two-Stage Arms
This lift has two-stage front arms and two-stage rear arms, giving you flexibility in spotting and lifting different vehicles, depending on your needs. Forward's spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak.

Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.

Easy to Operate
This lift features a single-point lock release for easy operation.

ALI Gold Certified
This lift has been tested and gold-certified by ALI/ETL, meeting the highest industry safety and performance standards.

*Installation not included.

Specifications
Model
F12
Total Capacity 12,000 lbs. (5443kg)
Max. Rise with 5″ Extension 77 1/2″
Adjustable Overall Height Options 13′ 10″ Standard Height (SKU: F12N300), 14′ 10″ Extended Max. Height (SKU: F12N301), 12′ 10″ (SKU: F12N302), 11′ 11″ (SKU: F12N303)
Overall Width 11′ 8″ or optional 12′ 2″
Drive-Through Clearance 102 3/4″ or optional 108 3/4”
Overhead Switch Height Options 160 1/8″ Standard (SKU: F12N300), 172 1/8″ Extended (SKU: F12N301), 148 1/8″ (SKU: F12N302), 137 1/8″ (SKU: F12N303)
Front Arm Reach (Min./Max.) 35" / 54"
Rear Arm Reach (Min./Max.) 35" / 54"
Lifting Pad Height (Min./Max.) 4-3/4″ (121mm) with no extension, 9-3/4″ with 5″ extension (248mm)
Width Between Columns 114 7/8” Standard, 120 7/8″ Optional
Voltage/Amps 208-230V, 17 Amps
Motor/Phase 2 HP / 60 Hz / 1 PH
    Warranty:
    5 Years (Columns, arms, runways, and carriages) 18 Months (Cylinder, power unit and parts)
    1 Year Accessories (Parts only) 6 Month Labor
    Compliance and Restrictions:
