Forward Lift F10 | 2-Post Lift 10,000-lb Capacity - Symmetric Columns, 3-Stage Front Arms - Black
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
As low as $81.49 for 72 months Finance Now!
Forward Lift F10 | 2-Post Lift 10,000-lb Capacity - Symmetric Columns, 3-Stage Front Arms - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

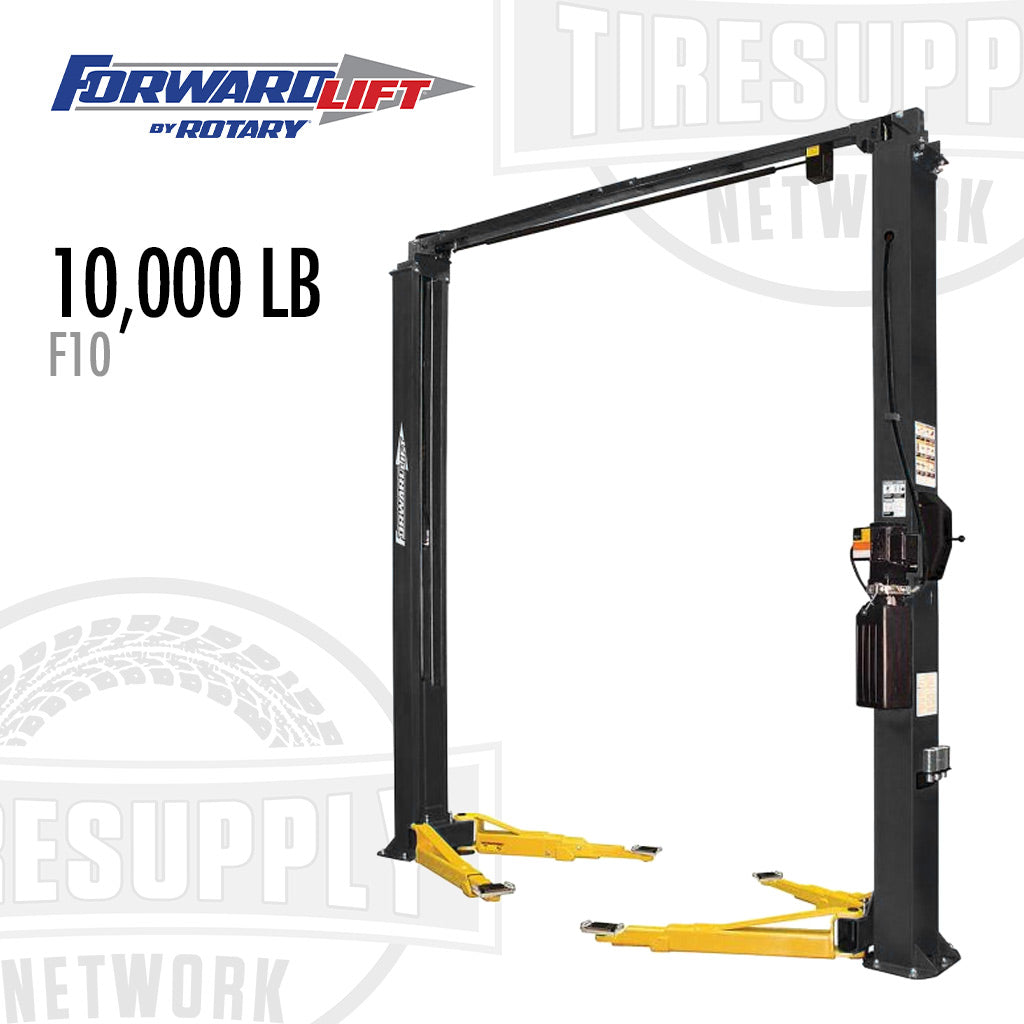

Forward Lift F10 2-Post Lift 10,000-lb Capacity - Symmetric Columns, 3-Stage Front Arms - Black (F10N500MBK)
The F10 (10,000-pound capacity) two-post lift is perfect for raising most passenger cars, trucks, and vans. It features frame-engaging rubber-padded truck adapters with multiple adapter extensions, enabling technicians to raise most vehicles on the road today.
Features
- Top mounted Direct-Pull lifting technology
- Overhead cable equalization
- Single Point lock release
- Includes adapter storage bracket
- ALI Gold Certified
Versatile Three-Stage Arms
This lift has three-stage front arms and two-stage rear arms, giving you flexibility in spotting and lifting different vehicles, depending on your needs.
Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.
Easy to Operate
This lift features a single-point lock release for easy operation.
Extended Height Kit
The column extension kit adds two feet to the top of the standard lift. It includes an extended-length hose, return line, and cables. Existing hardware included with the lift is used to attach the extensions. This kit is for use on the current 500 series model F10 Forward Two-Post Lifts.
ALI Gold Certified
This lift has been tested and gold-certified by ALI/ETL, meeting the highest industry safety and performance standards.
*Installation not included.
Specifications
| SKU |
F10N500MBK |
| Total Capacity | 10,000 lbs. |
| Max. Rise with 5″ Extension | 76-1/4″ |
| Overall Height | 11′ 9″ |
| Optional Extended Height | 13′ 9″ with T100295 kit |
| Overall Width | 10′ 9″ or optional 11′ 5″ |
| Drive Through Clearance | 99″ or optional 105″ (2515mm / 2667mm) |
| Overhead Switch Height | 137 1/8″ |
| Front Reach (Min/Max) | 24 1/2″ / 44 3/8″ |
| Rear Reach (Min/Max) | 36″ / 58″ (914mm / 1473mm) |
| Min/Max Adapter Height | 3-3/4″ (95mm) no adapter extension, 8-3/4″ (222mm) with 5″ adapter extension |
| Width Inside Column | 109″ or optional 115″ |
| Ceiling Height Required | 12′ |
| Voltage/Amps | 208-230V, 17 Amps |
| Motor/Phase | 2 HP / 60 Hz / 1 PH |
Warranty:
| 5 Years (Columns, arms, runways, and carriages) | 18 Months (Cylinder, power unit and parts) |
| 1 Year Accessories (Parts only) | 6 Month Labor |
Compliance and Restrictions:
