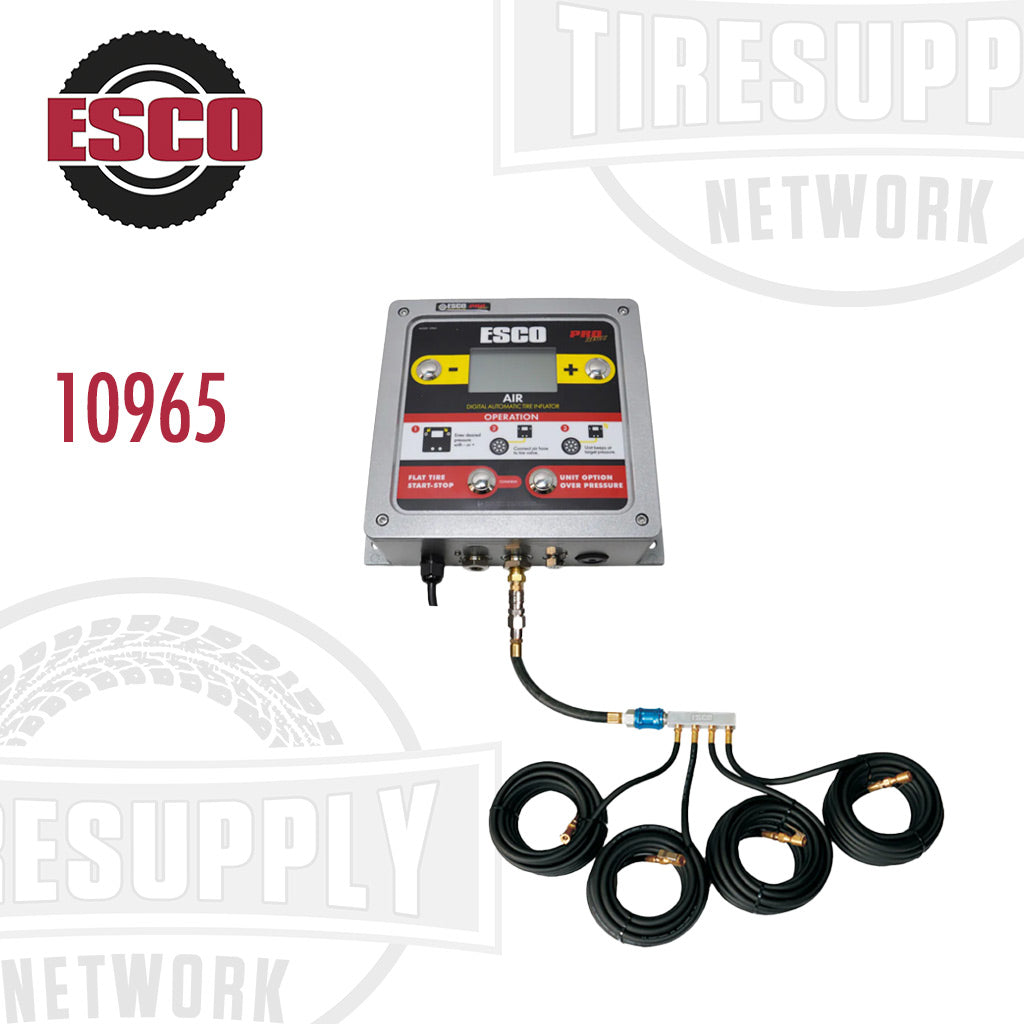

ESCO 10965-K Aluminum Wall Mounted Automatic Digital 4-Way Tire Inflator
The ESCO Digital Wall Mounted Tire Inflator with Tire Inflation 4-Way Manifold System (Model #10965-K) is a wall mountable inflation system cased in a robust die cast aluminum housed digital auto inflator is simple to use with plug and play design, all the customer needs to do is preset the required pressure, place the chuck on the tire valve and the built-in auto start inflates/deflates the tire to the specified pressure. This unit accurately inflates tires with up to 164 ft. of air hose. With an accuracy rating of +/- 0.3 psi and a 1-year warranty, this professional inflation unit is perfect for any application. This kit includes 4-Hose Manifold System for inflating 4-tires at once.
The Wall Mounted Tire Inflation System w/ 4-Hose Manifold includes the following items:
- Model 10965 – Digital Wall Mounted Tire Inflator
- Model 10967 – Four-Way Manifold (4) 25′ Hoses

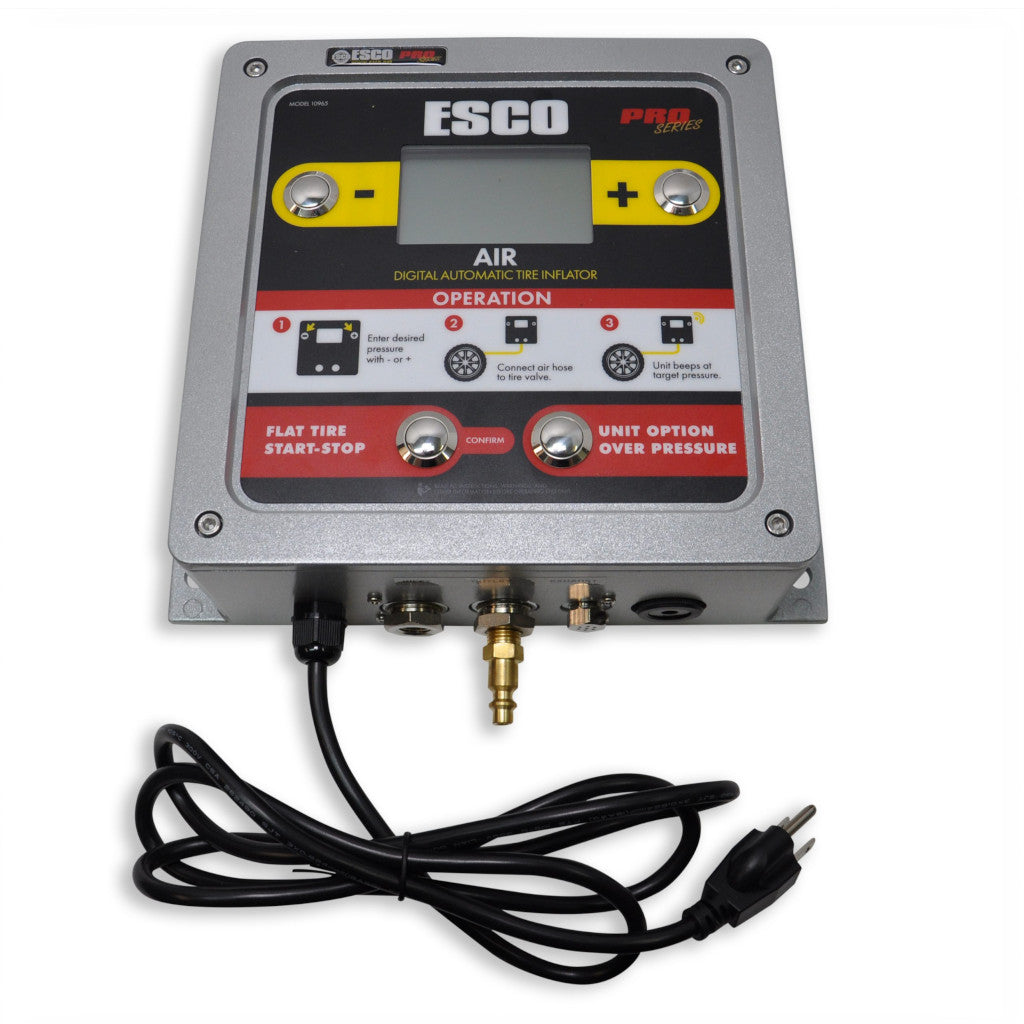

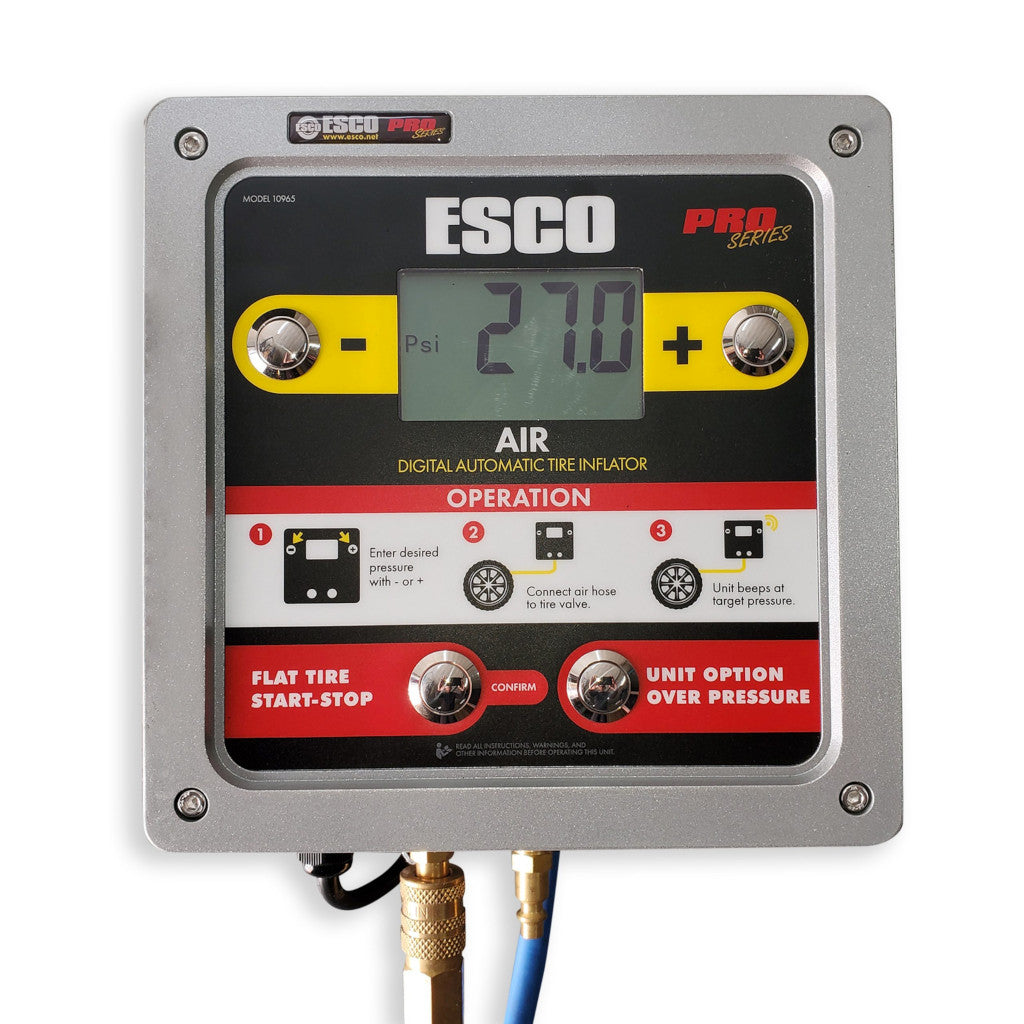

ESCO 10965 Aluminum Digital Wall Mounted Tire Inflator
Features:
- Heavy duty aluminum die-cast housing - (4) holes for wall mounting
- Mechanical anti-vandal buttons
- IP56 rated for indoor and outdoor use
- OPS system – audible warning
- Comprehensive diagnostics and error reporting
- Will inflate accurately with hose lengths up to 164 ft (50 m) long
- Easy to use programmable pre-set functions for quick use

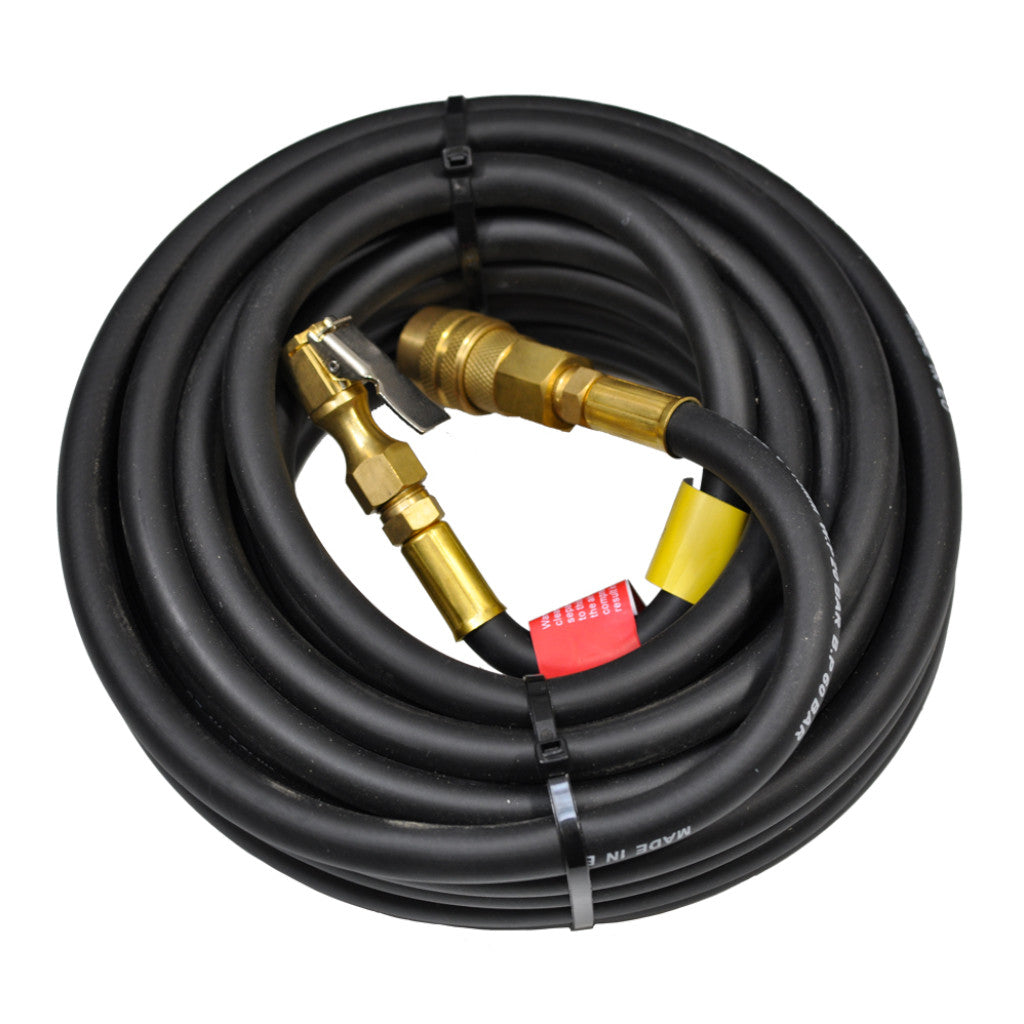

- Single straight clip-on air hose included - 25 ft (7.5 m)
- Operation: Auto-Inflate, Deflate
- Great for use in workshops, service trucks, and hobbyists.
- Digital backlit display for easy reading of psi/kpa/bar setting when inflating tire
- 110V supply voltage
Specifications:
- Reader Unit: 3″ x 2″ (76 mm x 51 mm)
- Chuck Type: Clip-On
- Chuck Style: Single Straight
- Scale: 0-145 psi, 0.5-10 bar, 0-1000 kPa
- Inlet Size: 1/4″ NPT Female
- Hose Length: 25 ft (7.5 m)
- Dimensions (L x W x H): 12″ x 12″ x 8.5″ (305 mm x 305 mm x 216 mm)
- Weight: 13 lbs (5.9 kg)
- Accuracy: ± 0.3 psi @ 25-75 psi
- Operation: Auto-Inflate, Deflate
- Supply Pressure Maximum: 182 psi (12.55 bar)
- Supply Voltage: 110-240V AC (50-60 Hz)

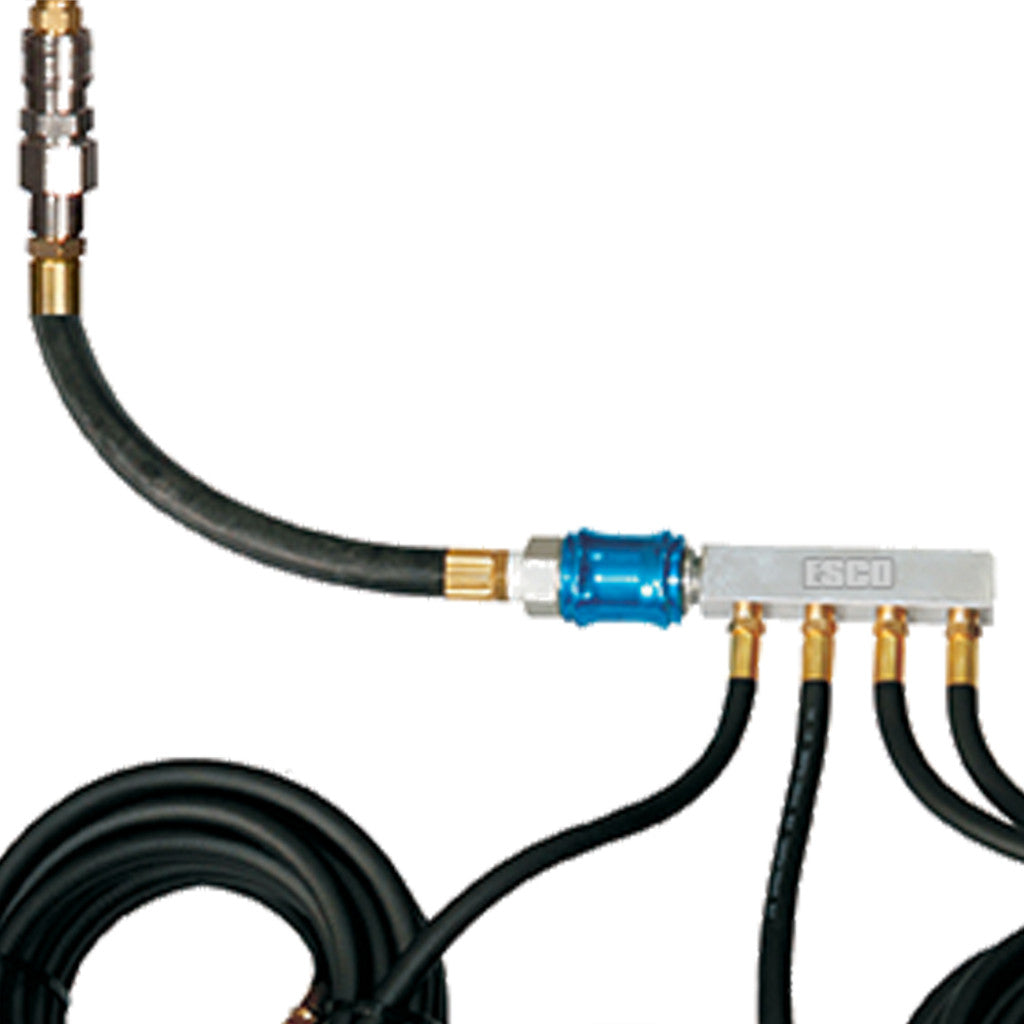

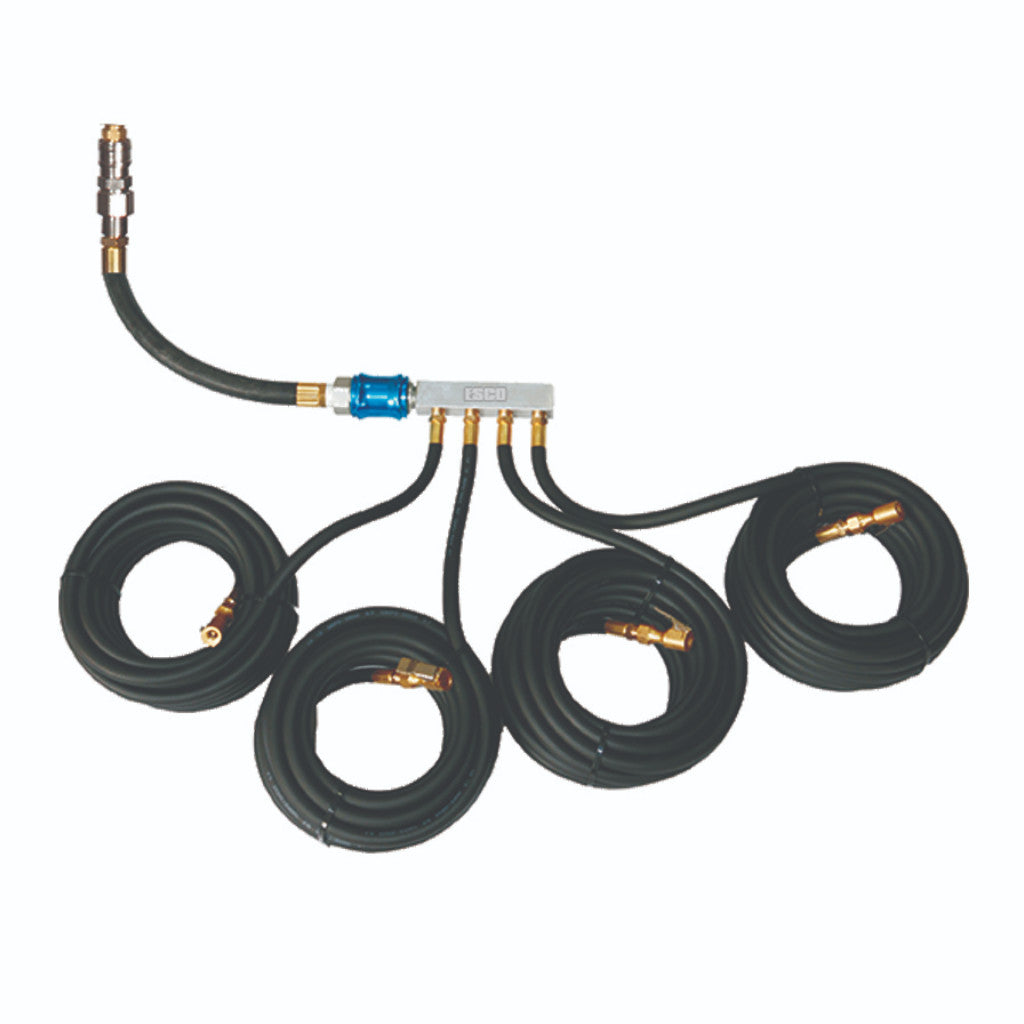

ESCO 10967 4-Way Manifold and 4 Hoses - 25′ Length with Clip-On Air Chucks
Features:
- Quick coupler connects directly to the inflator
- Slide valve turns the air supply ON/OFF to start inflation
- Includes all hoses & connections – (4) 25 ft. hoses with clip on air chucks
- Built with high quality components and parts – capable of withstanding daily use
Specifications:
- Hose Length: 25′ (7.62 m)
- Chuck Style: Clip-On
