ESCO 10965 Aluminum Digital Wall Mounted Tire Inflator

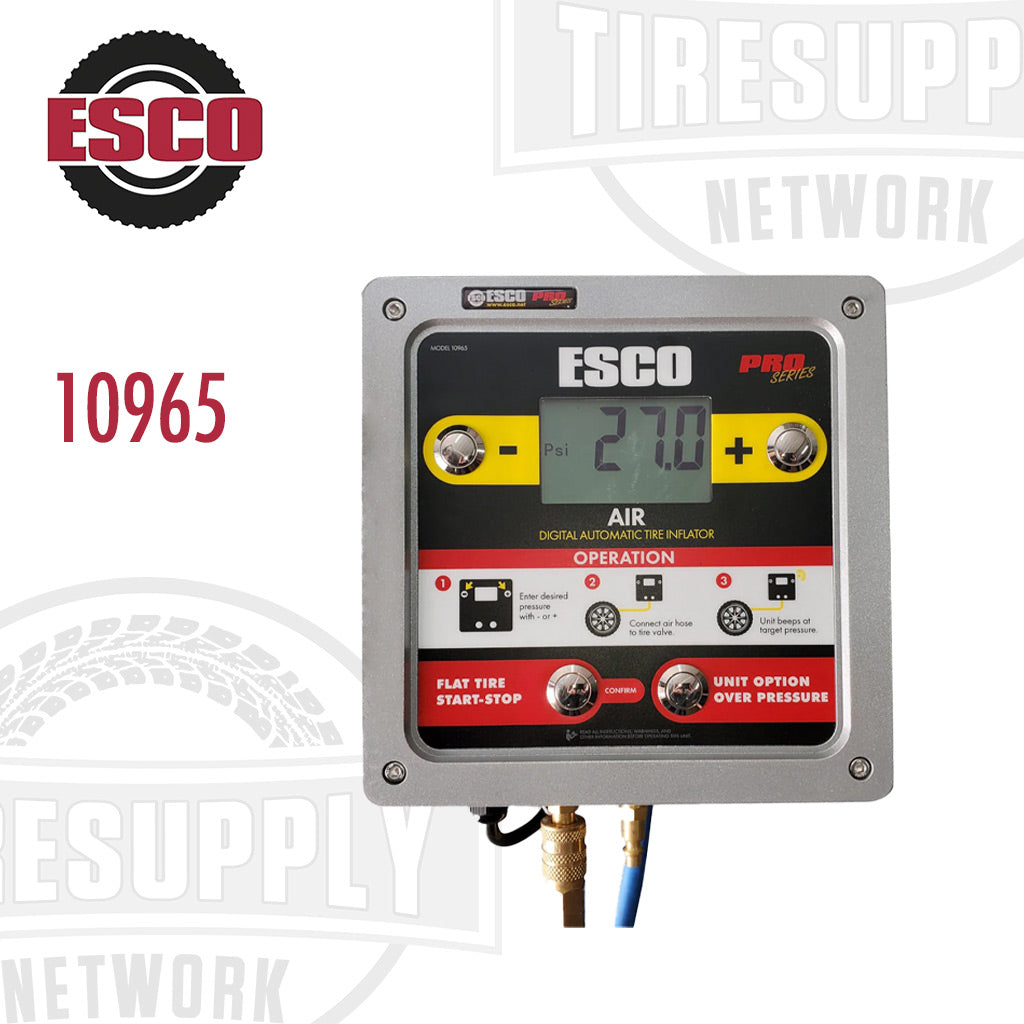

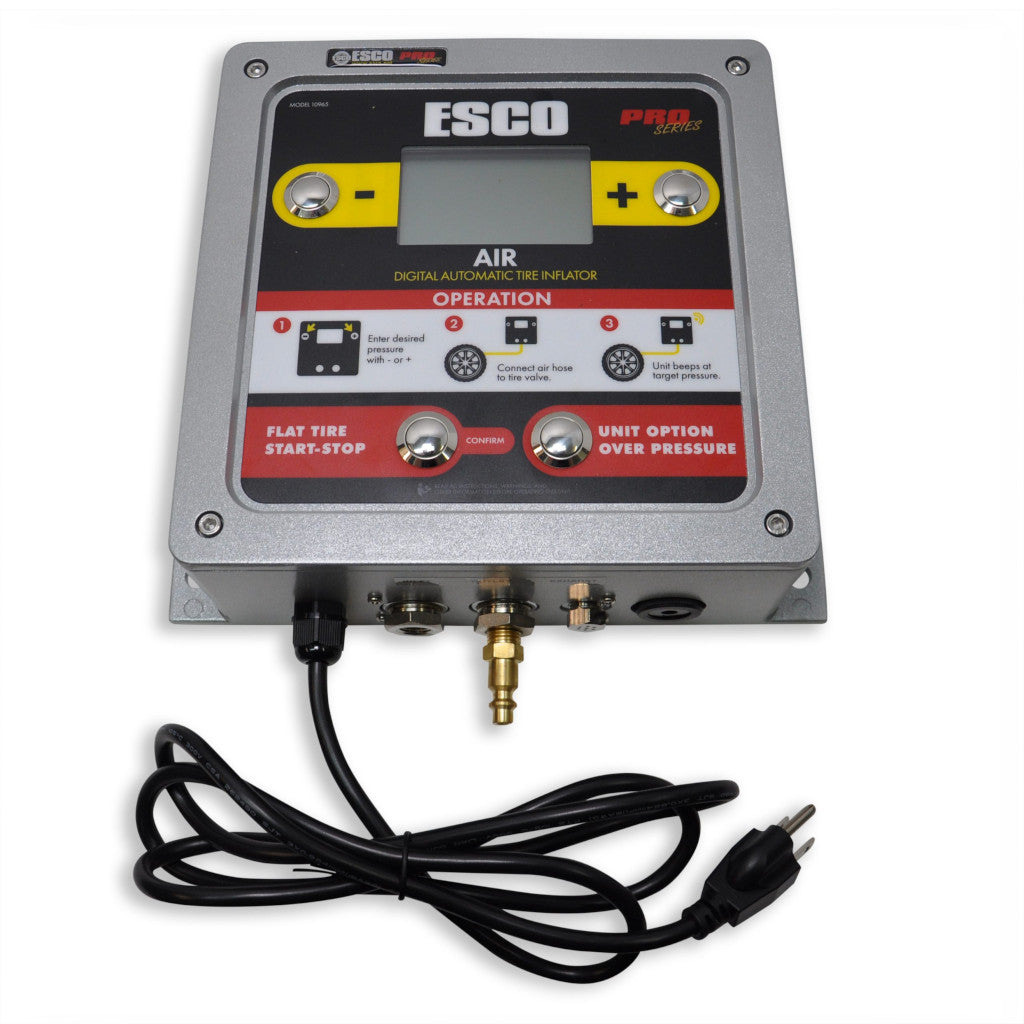

The ESCO Digital Wall Mounted Tire Inflator (Model #10965) is a wall mountable inflation system cased in a robust die cast aluminum housed digital auto inflator is simple to use with plug and play design, all the customer needs to do is preset the required pressure, place the chuck on the tire valve and the built-in auto start inflates/deflates the tire to the specified pressure. This unit accurately inflates tires with up to 164 ft. of air hose. With an accuracy rating of +/- 0.3 psi and a 1-year warranty, this professional inflation unit is perfect for any application.


  • Heavy duty aluminum die-cast housing - (4) holes for wall mounting
  • Mechanical anti-vandal buttons
  • IP56 rated for indoor and outdoor use
  • OPS system – audible warning
  • Comprehensive diagnostics and error reporting
  • Will inflate accurately with hose lengths up to 164 ft (50 m) long
  • Easy to use programmable pre-set functions for quick use

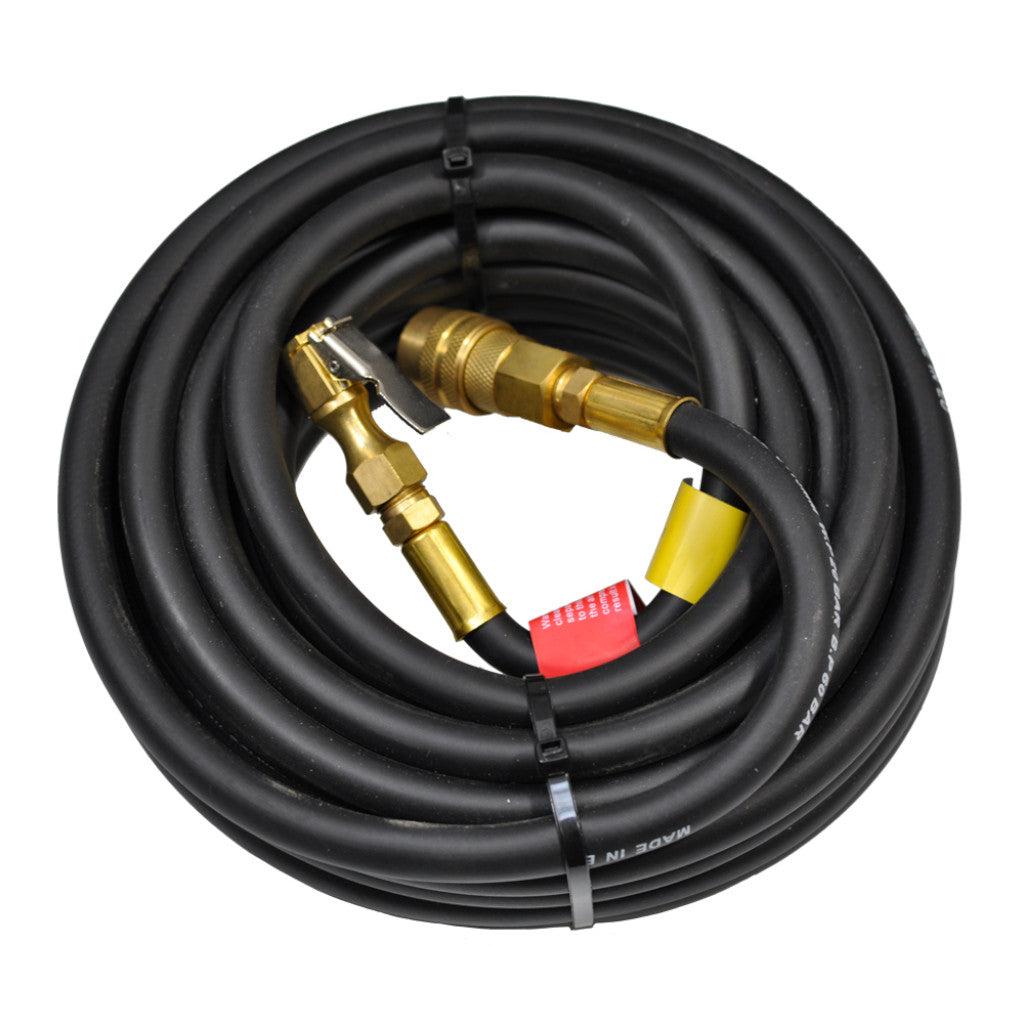

  • Single straight clip-on air hose included - 25 ft (7.5 m)
  • Operation: Auto-Inflate, Deflate
  • Great for use in workshops, service trucks, and hobbyists.
  • Digital backlit display for easy reading of psi/kpa/bar setting when inflating tire
  • 110V supply voltage


  • Reader Unit: 3″ x 2″ (76 mm x 51 mm)
  • Chuck Type: Clip-On
  • Chuck Style: Single Straight
  • Scale: 0-145 psi, 0.5-10 bar, 0-1000 kPa
  • Inlet Size: 1/4″ NPT Female
  • Hose Length: 25 ft (7.5 m)
  • Dimensions (L x W x H): 12″ x 12″ x 8.5″ (305 mm x 305 mm x 216 mm)
  • Weight: 13 lbs (5.9 kg)
  • Accuracy: ± 0.3 psi @ 25-75 psi
  • Operation: Auto-Inflate, Deflate
  • Supply Pressure Maximum: 182 psi (12.55 bar)
  • Supply Voltage: 110-240V AC (50-60 Hz)
    Compliance and Restrictions

    WARNING: Cancer and Reproductive Harm -

    Customer Reviews

    Based on 3 reviews
    Jim H
    Excellent product!

    I wasn't sure if they'd use cheap materials to build this but I am pleased and relieved to see it's definitely not.
    The housing is thick machined metal, very sturdy as befits a professional product.

    The only thing I can find wrong with it so far is the beeping! It beeps every time you go up or down one digit. It's excessive and unnecessary, in quiet environments it would be very disruptive and annoying.

    Definitely recommend, despite the high price and incessant beeping.

    Larry Anderson

    Works great

    Boa Cox
    Quick delivery of annexcellent product!
