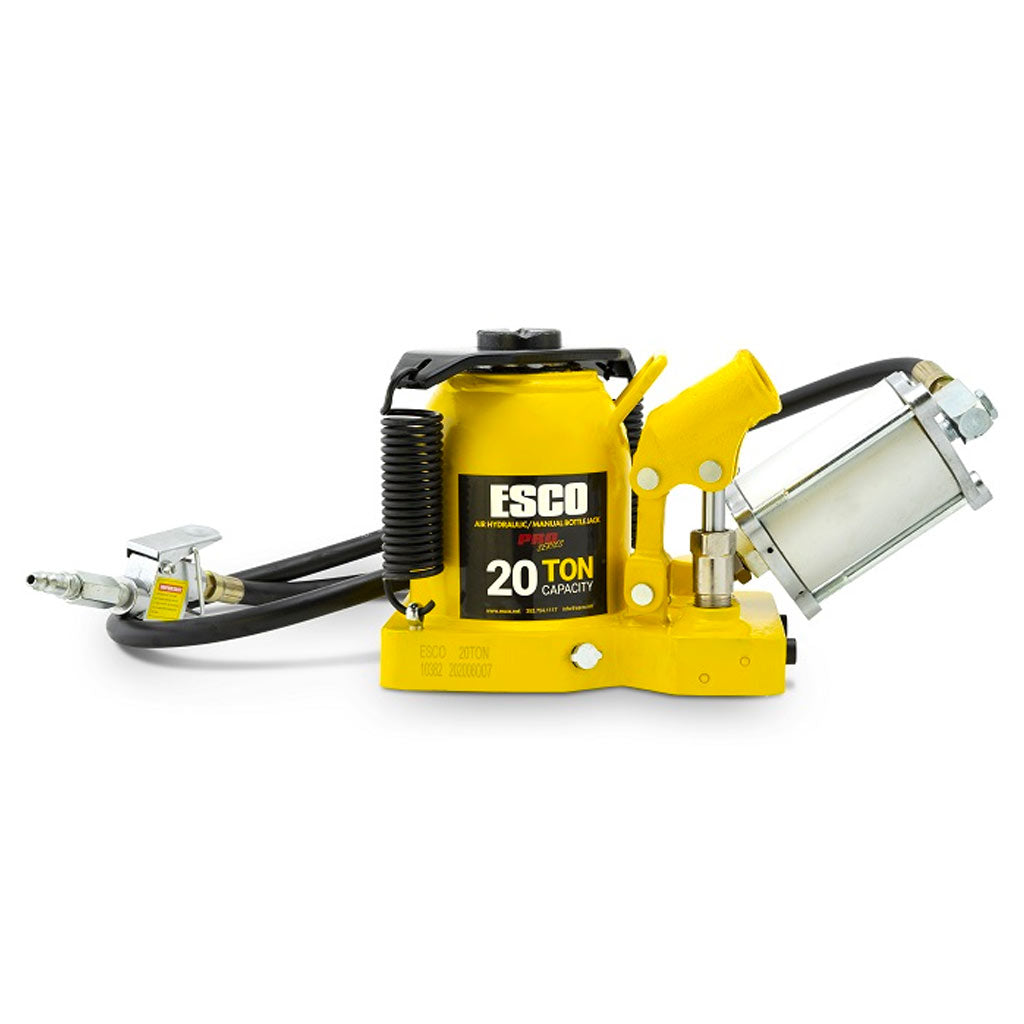

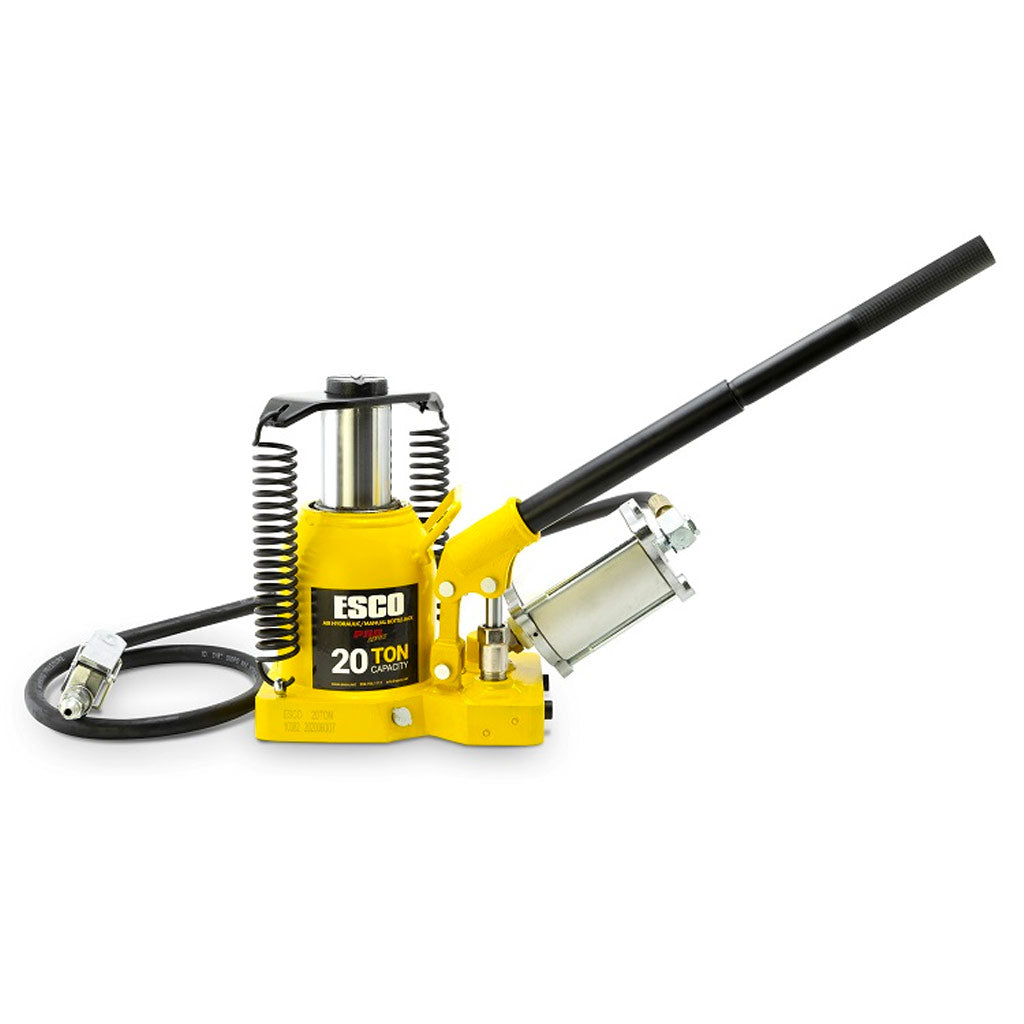

ESCO 10382 Pro Series 20 Ton Shorty Air Hydraulic Bottle Jack

The ESCO Pro Series Air Hydraulic Lifting Equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a jack that will fit any service technician’s needs. Each jack is designed uniquely for specific application including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.


  • Super low profile “shorty” design — Great for low clearance application
  • Fully welded cylinder and frame provide superior strength and extended service life
  • Extra thick jack base provides exceptional support and stability in severe conditions
  • The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
  • Chrome-plated piston for extra rust and corrosion resistance
  • Fitted with a safety valve to prevent overloading
  • Double spring design for controlled and safe decent while releasing pressure from the cylinder
  • Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights
  • Design to be operated using air or manually with included two-piece lifting/lowering handle
  • Includes 4′ swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4″ NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch for easier constant airflow while raising of the jack to load
  • Fitted with a heavy duty constructed chrome plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application


  • Capacity: 20 Ton (40,000 lbs)
  • Minimum Height: 7.125″
  • Maximum Height: 12.625″
  • Ram Travel: 3.25″
  • Screw Adjustment: 2.5″
  • Saddle Width: 1.75″
  • Base Thickness: 1.25″
  • Base Size (LxW): 8.25″ x 5.75″
  • Inner Package: 15.125″ x 7.875″ x 8.125″
  • Outer Package: 15″ x 8″ x 8″
  • Net Weight: 34 lbs
  • Gross Weight: 35 lbs
  • Air Inlet Fitting: 1/4″ NPT
  • Air Pressure: 110-125 psi
  • Warranty: 1 Year
