ESCO 10231 Yellow Jackit Giant Tire/OTR Bead Breaker Kit with 1/2 Gallon Hydraulic Air Pump

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

ESCO 10231 Yellow Jackit Giant Tire/OTR Bead Breaker Kit with 1/2 Gallon Hydraulic Air Pump

The Yellow Jackit Bead Breaker line is a “DYI” style bead breaker that is designed for easy use in the farm and heavy duty truck service market. IN addition to our “DYI” style bead breakers, ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application, along with our professional line of hydraulic equipment for constant use in the field.

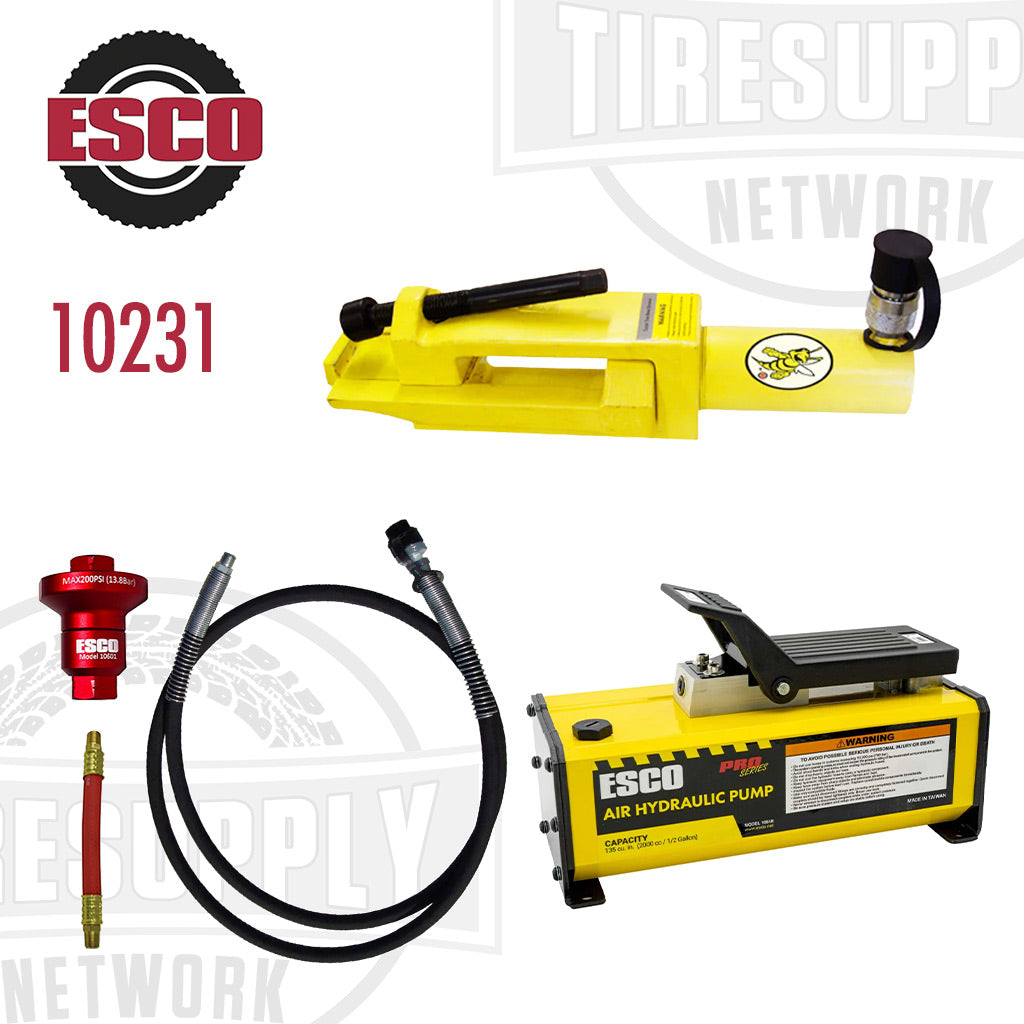

The Yellow Jackit Giant Tire/OTR Bead Breaker Kit includes the following items:

  • Model 10896 – Yellow Jackit Giant Tire/OTR Bead Breaker Tool
  • Model 10518 – 1/2 Gallon Hydraulic Air Pump
  • Model 10604 – 8′ Hose assembly with Hose Coupler
  • Model 10601K – 6″ Whip-Hose, Air Reducer

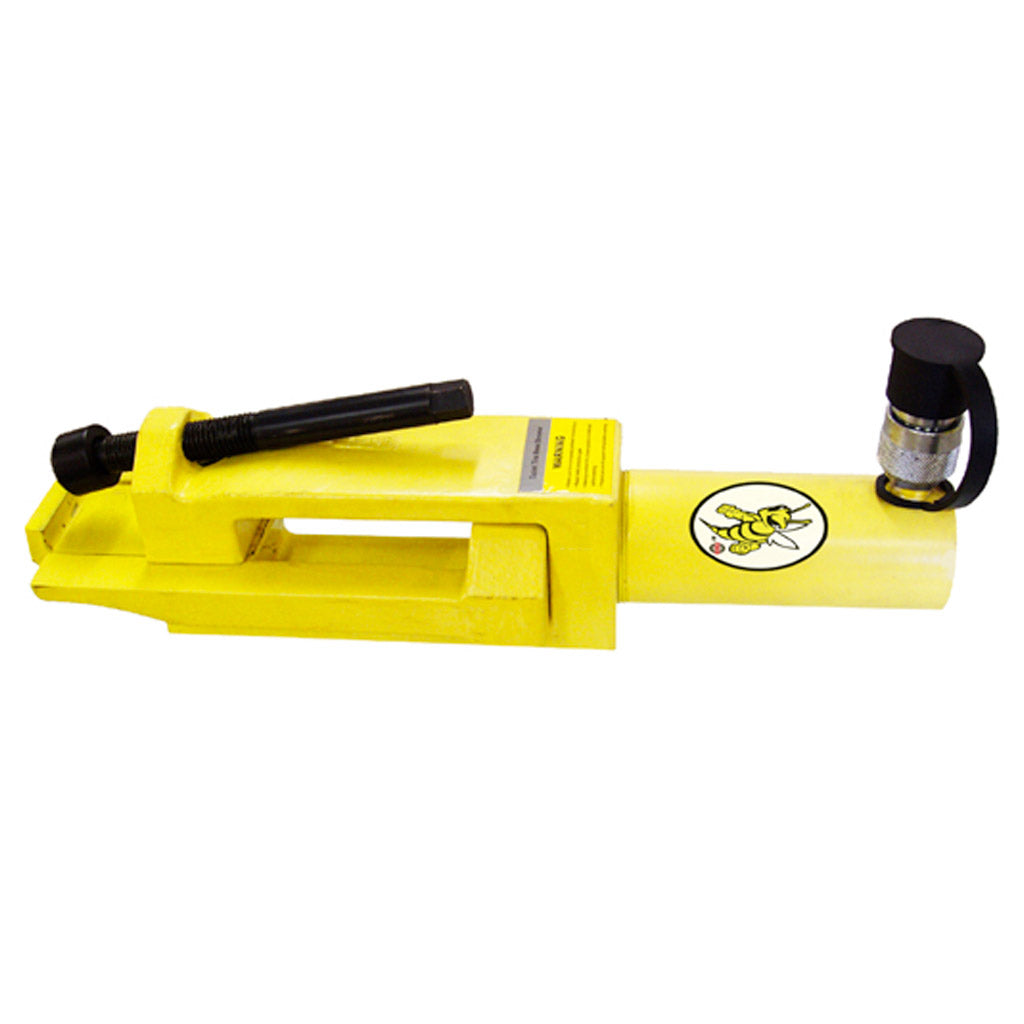

ESCO 10896 Yellow Jackit Giant Tire/Earthmover Bead Breaker


  • Use on 5-piece 25″ to 51″ rims with pry bar/bead loosening pockets
  • 4.25″ stroke (108 mm)
  • 13.8 ton ram will break the toughest beads
  • Used with 10,000 PSI air hydraulic pumps


  • Ram Tonnage: 13.8 Tons
  • Stroke: 4.25″ (108 mm)
  • Maximum Pressure: 10,000 psi
  • Length: 16.5″ (419 mm)
  • Width: 6.5″ (165 mm)
  • Weight: 29 lbs (13 kg)

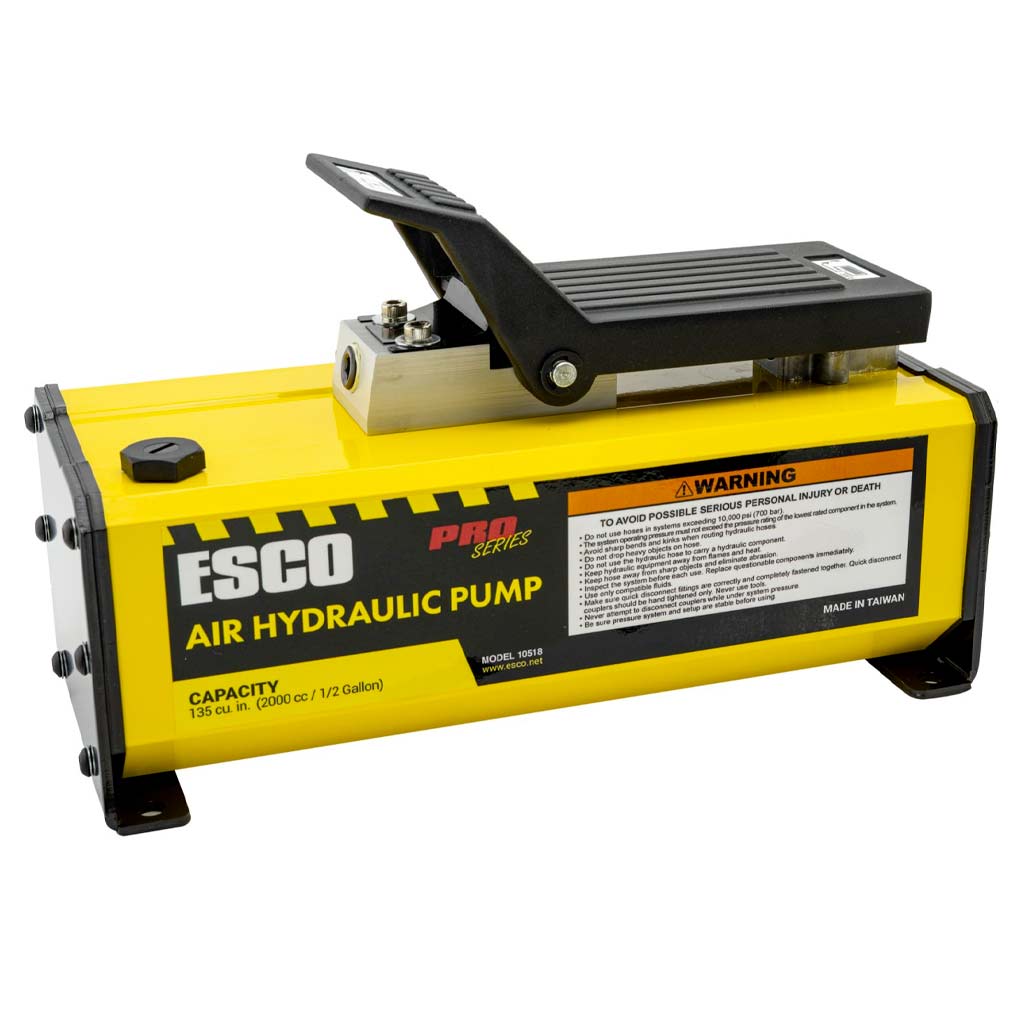

ESCO 10518 Pro Series 1/2 Gallon Air Hydraulic Pump


  • For use with a variety of hydraulic rams, cylinders, presses, bead breakers, and other hydraulic equipment requiring 10,000 psi for operation
  • Equipped with an air exhaust muffler for quiet pumping of the air motor
  • Air and oil inlet filters for reducing the risk of damage from contamination
  • Durable, lightweight design great for service trucks, shop environments, or out in the field
  • Internal pressure relief valve system (load limit device) for overload protection
  • Foot pedal design – for hands-free use of hydraulic pump
  • Engineered with a durable lightweight and corrosive resistant plastic components – increasing the life of the air motor and hydraulic pump
  • Designed with mountable feet for service trucks, shops, presses, or other hydraulic applications
  • Includes installable fluid level dip stick to check that the appropriate amount of hydraulic fluid is installed
  • Hydraulic hose sold separately


  • Hydraulic Pressure: 10,000 PSI
  • Usable Oil Capacity: 135 cu. in.
  • Output Flow Rate (No Load): 80.5 cu. in. per minute
  • Output Flow Rate (Load): 12.8 cu. in. per minute
  • Air Pressure Range: 40-170 psi
  • Air Consumption: 24 scfm
  • Valve Function: Increase Hydraulic Fluid Pressure / Release Hydraulic Fluid Pressure
  • Sound Level: 85 dbBa
  • Reservoir Material: Aluminum
  • Air Inlet Thread Size: 1/4″-18 NPT
  • Hydraulic Hose Inlet Thread Size: 3/8″-18 NPTF
  • Product Dimensions (LxWxH): 12.5″ x 5.75″ x 8″
  • Packaging Dimensions (LxWxH): 15″ x 7″ x 8.5″
  • Bottom Plate Screw Hole Size: 3/8″
  • Bottom Plate Length (from hole center): 11.73″
  • Bottom Plate Width (from hole center): 4.33″
  • Weight: 22 lbs
  • Warranty: 3 Year

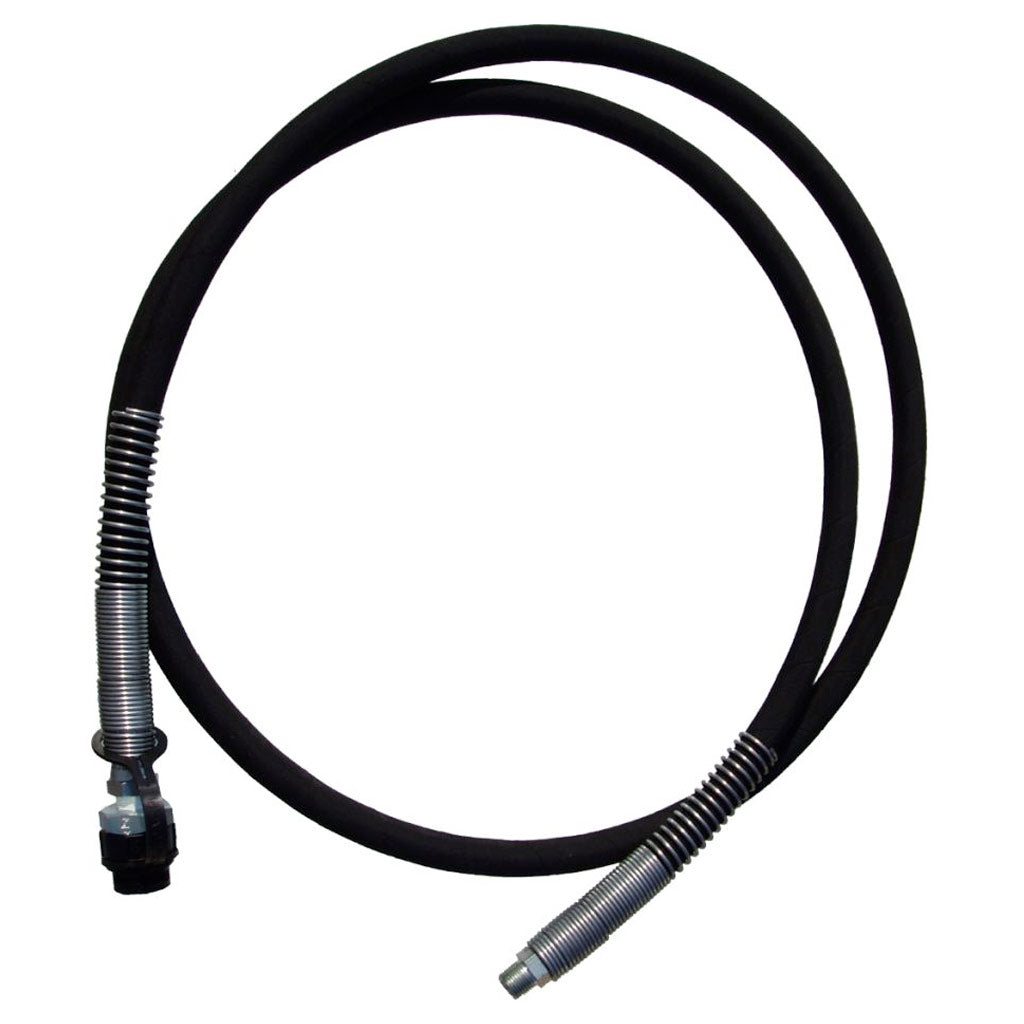

    ESCO 10604 Hydraulic Hose Kit


    • Hydraulic hose with swivel fitting and the hose won’t kink
    • Reinforced with 2 layers of braided steel
    • Hose can withstand extreme cold temperatures of -40°F (C)
    • Use with any 10,000 psi. pump, ram, or bead breaker
    • Attachments Include: ESCO 10605 Half Coupler


    • Length: 8' (8' Hose with 3/8″ 18 Male Ends)
    • Weight: 5 lbs. (2.2 kg)

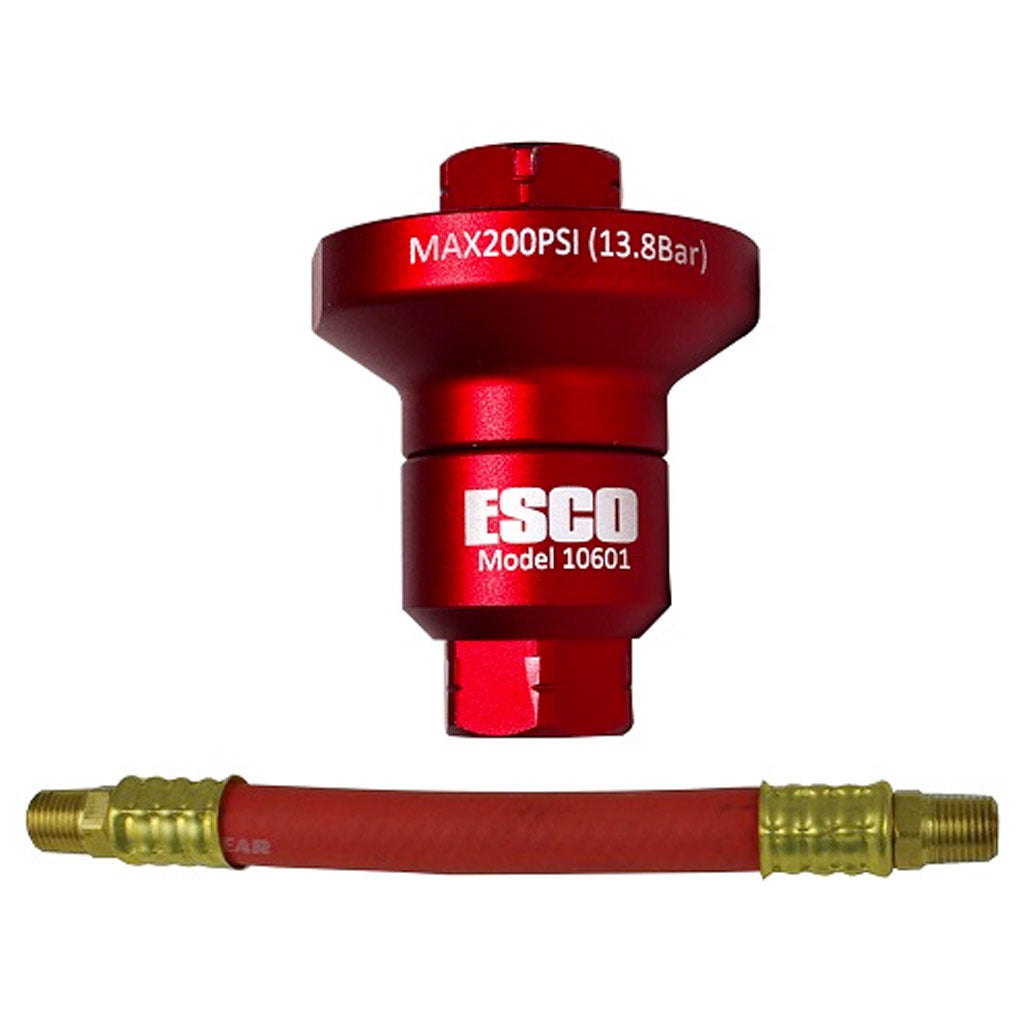

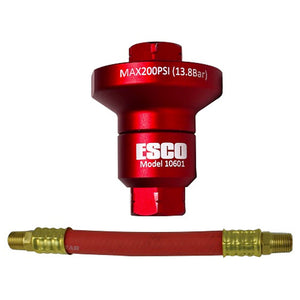

    ESCO 10601K Air Reducer With 6″ Whip-Hose

    The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.

    Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.

    The ESCO 10601K Kit Includes:

    • Model 10601 Air Reducer
    • Model 10601H 6″ Whip-Hose


    • Maintain recommended working air pressure
    • Easy installation and usage
    • Can be used in conjunction with multiple ESCO products

    Model 10601 Specifications:

    • Diameter: 15/16″ (24 mm)
    • Working Air Pressure: 110 PSI
    • Air Inlet Size: 1/4″ NPT
    • Weight: 1 lb (0.5 kg)

    Model 10601H Specifications:

    • Length: 6″ (152.4 mm)

    Compliance and Restrictions
    WARNING: Cancer and Reproductive Harm -
