ESCO 10209 Giant Tire/Earthmover Bead Breaker Kit with 5 Quart Hydraulic Pump
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

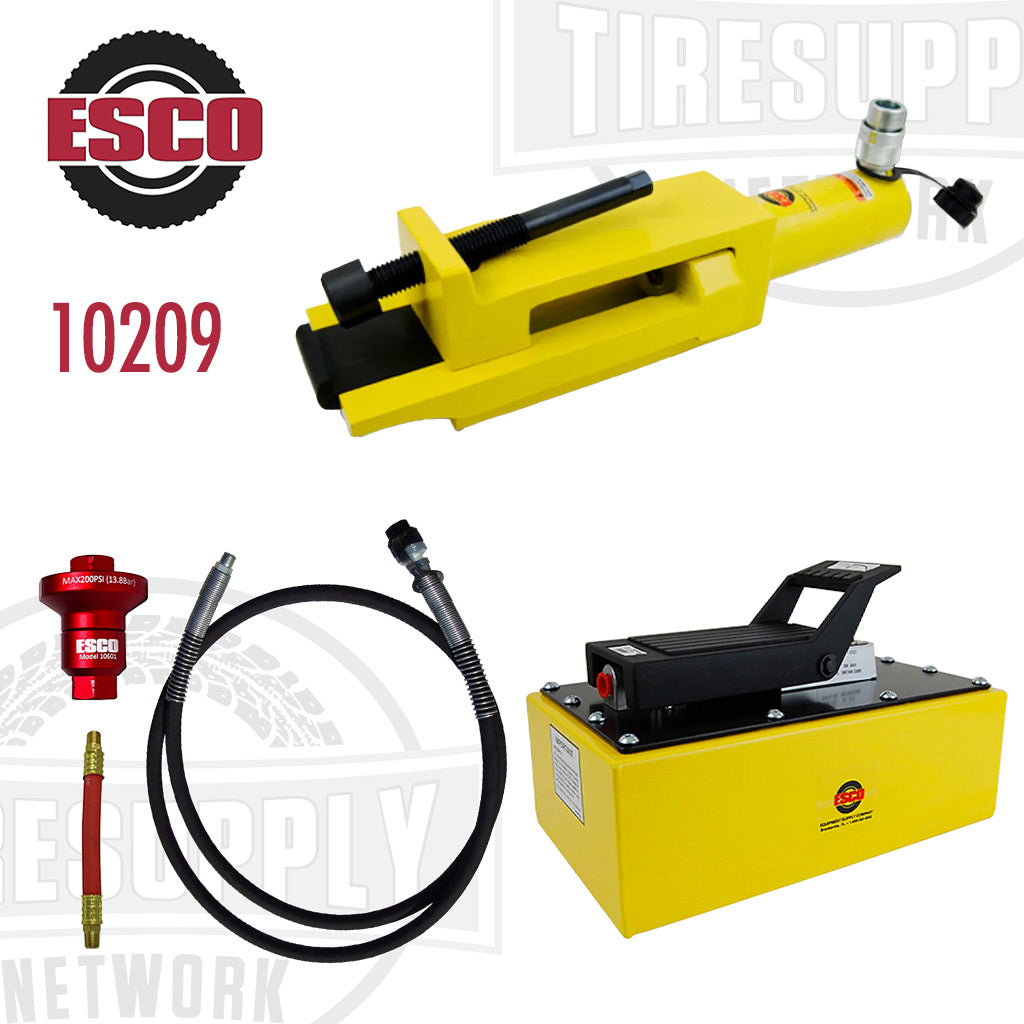

The ESCO Giant Tire/Earthmover Bead Breaker Kit includes the following items:
- Model #10100 – Giant/Earthmover Tire Bead Breaker Tool
- Model #10592 – 5 Quart Hydraulic Air Pump
- Model #10604 – 8′ Hose Assembly with Hose Coupler
- Model #10601K – 6″ Whip-Hose, Air Reducer
ESCO 10100 Giant Tire/Earthmover Bead Breaker
Features:
- Use on 5-piece rims 25” to 51” with pry bar/bead loosing pockets
- 13.8 tons of bead breaking force will break the toughest beads - 4” stroke (102 mm)
- Use with 10,000 PSI Hydraulic Pump
Specifications:
- Ram Tonnage: 13.8 Tons
- Stroke: 4” (102 mm)
- Maximum Pressure: 10,000 PSI
- Length: 18” (457 mm)
- Height: 5” (127 mm)
- Weight: 31 lbs (14 kg)
ESCO 10592 5-Quart Metal Reservoir Air Hydraulic Pump
Features:
- Rugged 5 Quart metal reservoir
- Enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools
- All metal air motor
- Air inlet filter keeps air clean
- Specifically designed for tire service trucks
- 10,000 psi hydraulic pressure
Specifications:
- Oil Capacity: 5 Quart
- Maximum Pressure: 10,000 psi
- Weight: 27 lbs (12 kg)
ESCO 10604 Hydraulic Hose Kit
Features:
- Hydraulic hose with swivel fitting and the hose won’t kink
- Reinforced with 2 layers of braided steel
- Hose can withstand extreme cold temperatures of -40°F (C)
- Use with any 10,000 psi. pump, ram, or bead breaker
- Attachments Include: ESCO 10605 Half Coupler
Specifications:
- Length: 8' (8' Hose with 3/8″ 18 Male Ends)
- Weight: 5 lbs. (2.2 kg)
ESCO 10601K Air Reducer With 6″ Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.
The ESCO 10601K Kit Includes:
- Model 10601 Air Reducer
- Model 10601H 6″ Whip-Hose
Features:
- Maintain recommended working air pressure
- Easy installation and usage
- Can be used in conjunction with multiple ESCO products
Model 10601 Specifications:
- Diameter: 15/16″ (24 mm)
- Working Air Pressure: 110 PSI
- Air Inlet Size: 1/4″ NPT
- Weight: 1 lb (0.5 kg)
Model 10601H Specifications:
- Length: 6″ (152.4 mm)
