ESCO 10204 | Giant Tire/OTR Bead Breaker Kit with 1 Quart Hydraulic Pump

ESCO Giant Tire/OTR Bead Breaker Kit with 1 Quart Hydraulic Pump (10204)

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

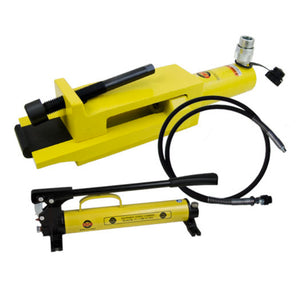

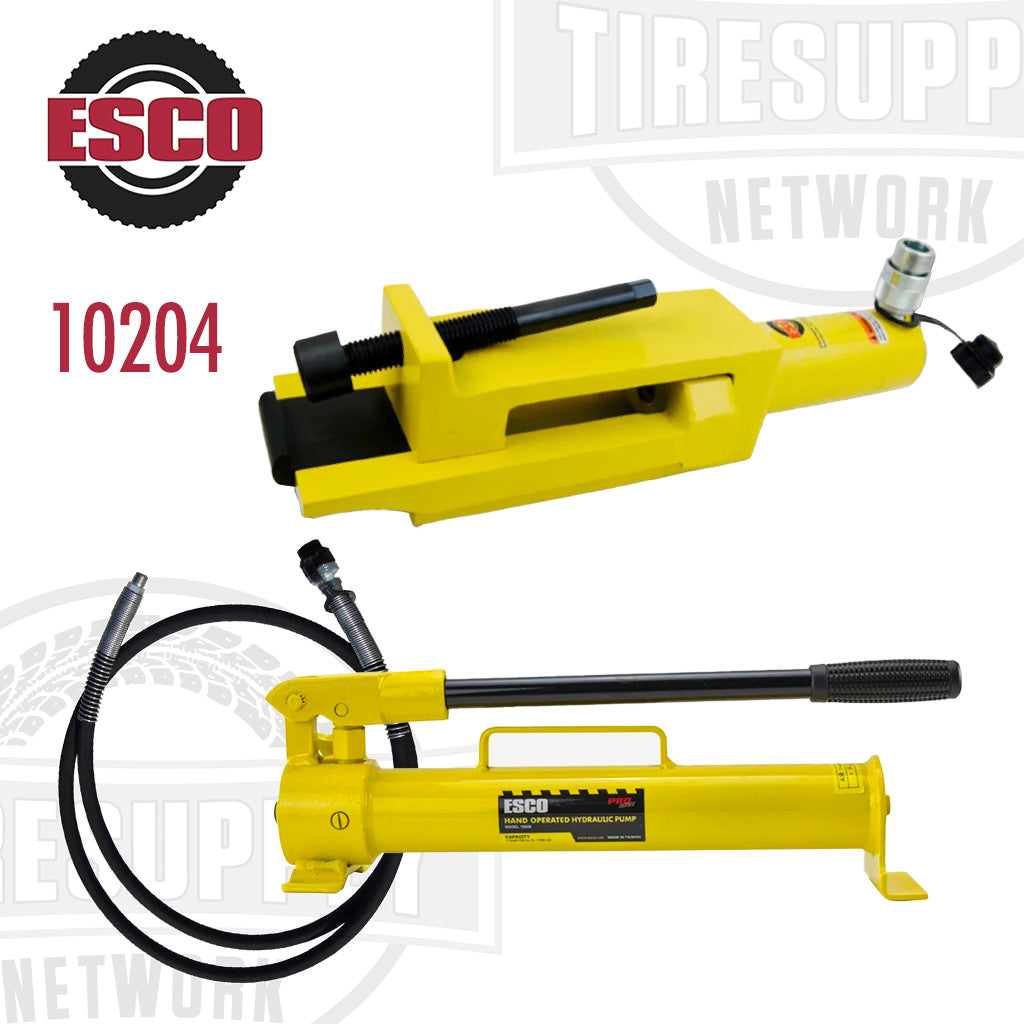

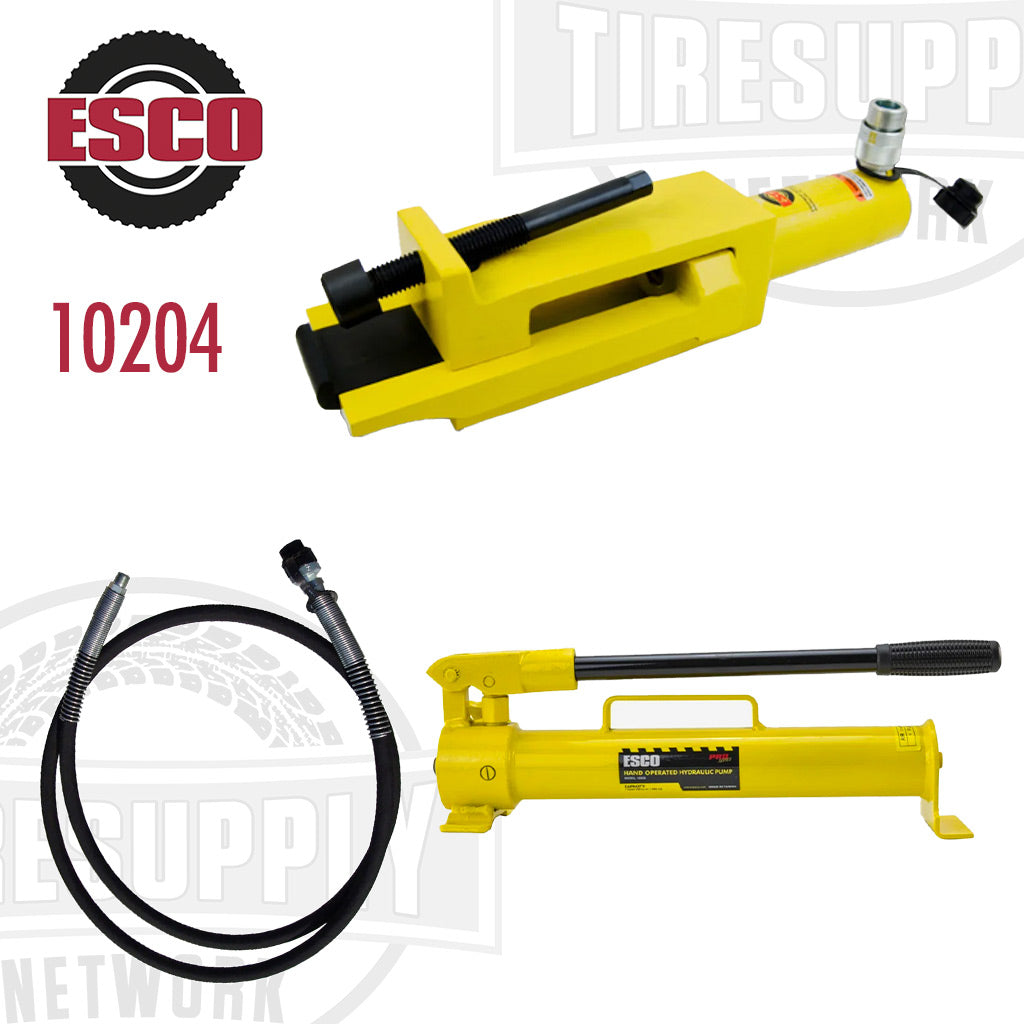

The ESCO Giant Tire/OTR Bead Breaker Kit includes the following items:

• Model #10100 – Giant Tire/OTR Bead Breaker Tool
• Model #10604 – 8′ Hose Assembly with Hose Coupler
• Model #10508 – 1 Quart Hydraulic Manual Air Pump

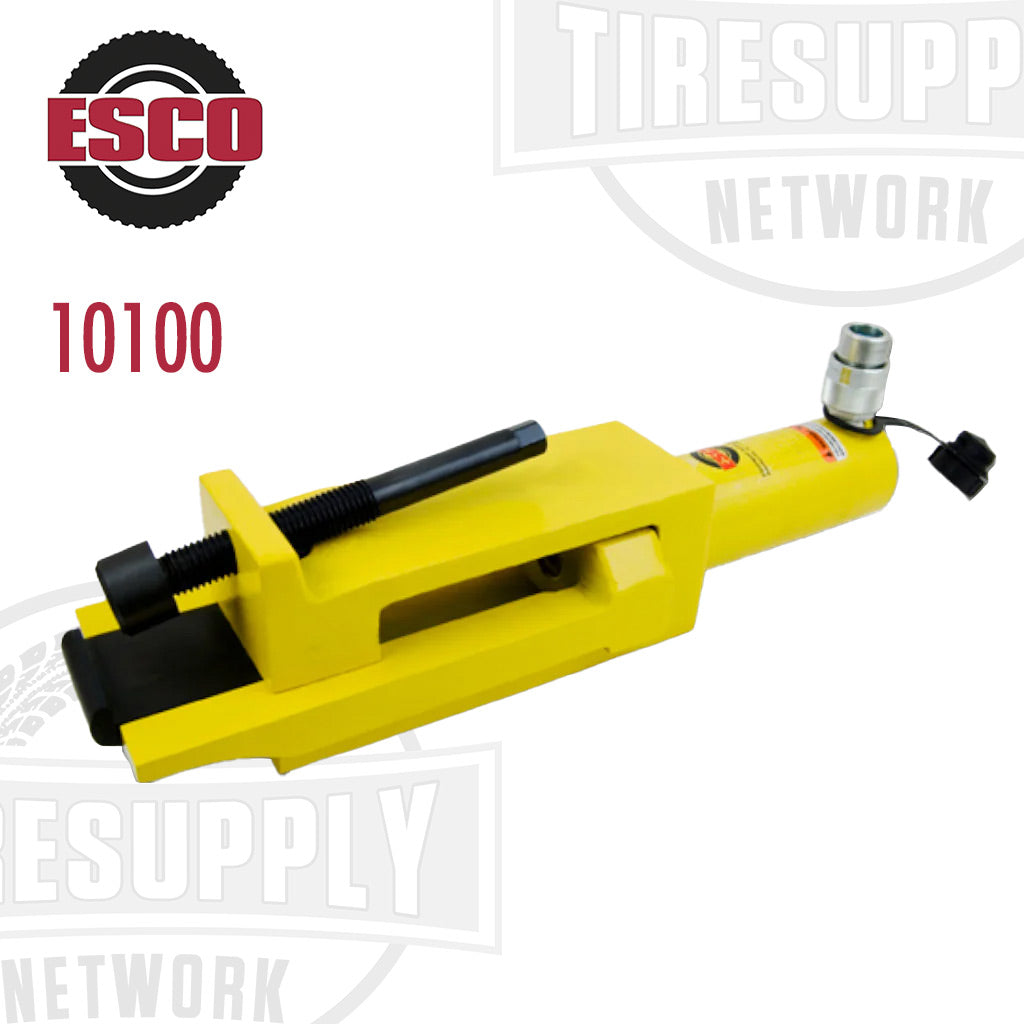

ESCO 10100 Giant Tire/OTR Bead Breaker

Features:

• Use on 5-piece rims 25” to 51” with pry bar/bead loosing pockets
• 13.8 tons of bead breaking force will break the toughest beads - 4” stroke (102 mm)
• Use with 10,000 PSI Hydraulic Pump

Specifications:

• Ram Tonnage: 13.8 Tons
• Stroke: 4” (102 mm)
• Maximum Pressure: 10,000 PSI
• Length: 18” (457 mm)
• Height: 5” (127 mm)
• Weight: 31 lbs (14 kg)

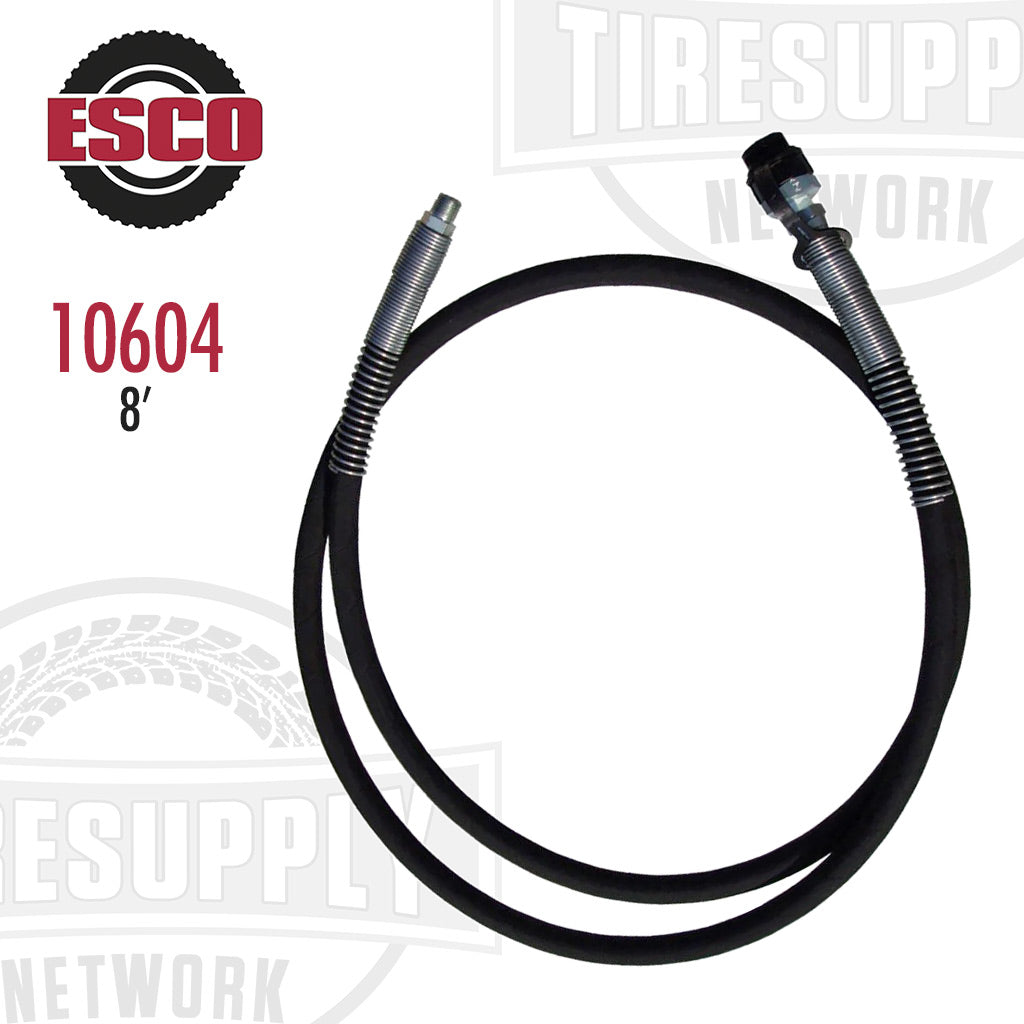

ESCO 10604 Hydraulic Hose Kit

Features:

• Hydraulic hose with swivel fitting and the hose won’t kink
• Reinforced with 2 layers of braided steel
• Hose can withstand extreme cold temperatures of -40°F (C)
• Use with any 10,000 psi. pump, ram, or bead breaker
• Attachments Include: ESCO 10605 Half Coupler

Specifications:

• Length: 8' (8' Hose with 3/8″ 18 Male Ends)
• Weight: 5 lbs. (2.2 kg)

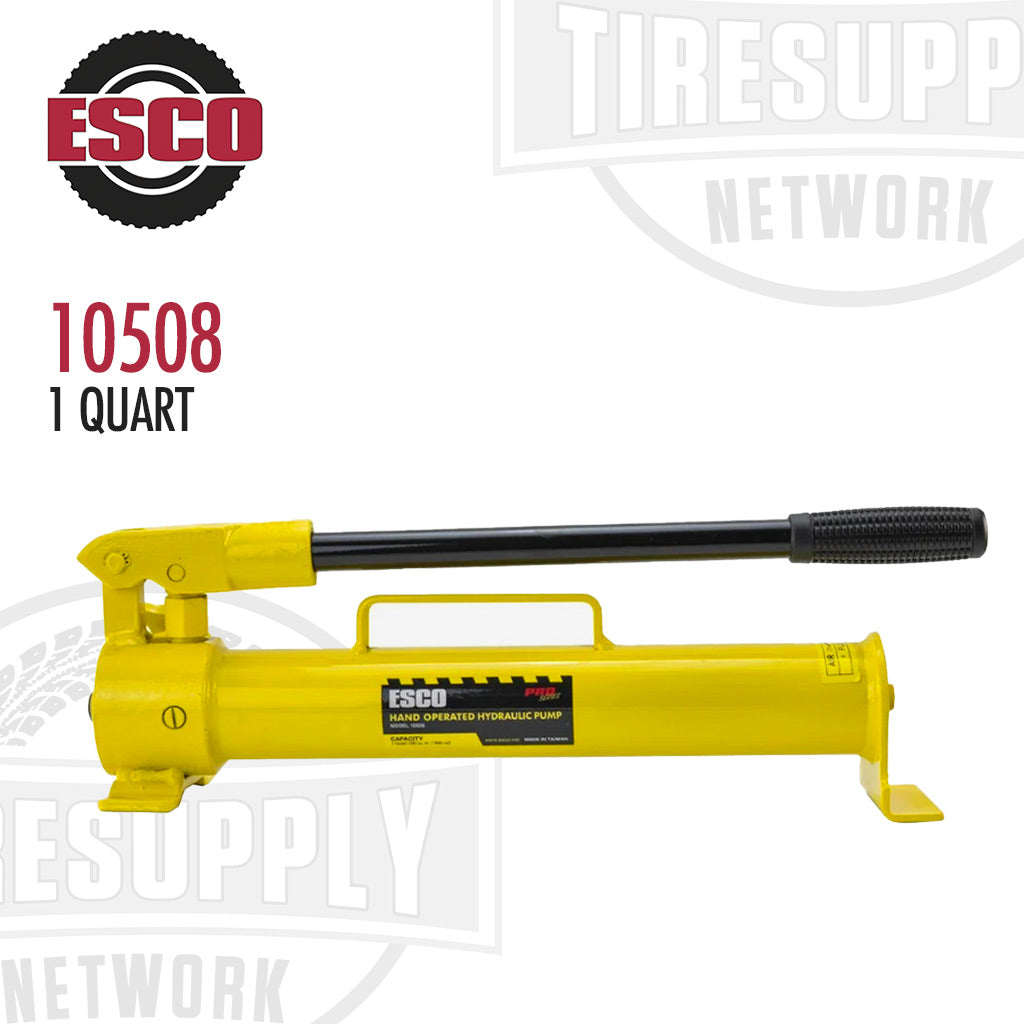

ESCO 10508 1-Quart Hydraulic Manual Air Pump

Features:

• Hand Operated Hydraulic Pump
• 1 Quart Oil Capacity
• 10,000 PSI Hydraulic Pressure
• Ships with premium hydraulic oil

Specifications:

• Oil Capacity: 1 Quart
• Maximum Pressure: 10,000 PSI
• Weight: 14 lbs (7 kg)
