ESCO 10201 Combi Bead Breaker Kit with 2.5 Quart Hydraulic Air Pump

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

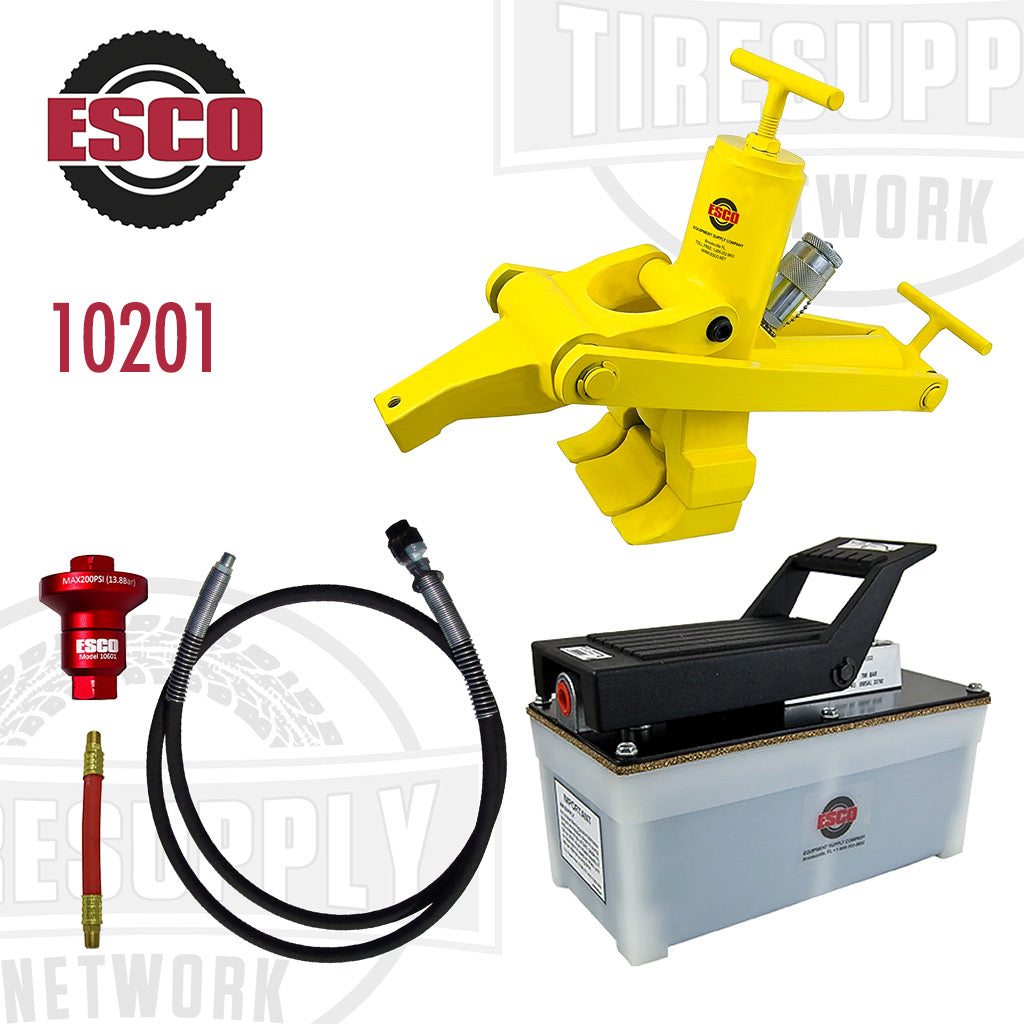

The ESCO “Combi” Bead Breaker Kit includes the following items:

  • Model #10101 – “Combi” Bead Breaker Tool
  • Model #10590 – 2.5 Quart Hydraulic Air Pump
  • Model #10604 – 8' Hose Assembly with Hose Coupler
  • Model #10601K – 6″ Whip-Hose, Air Reducer

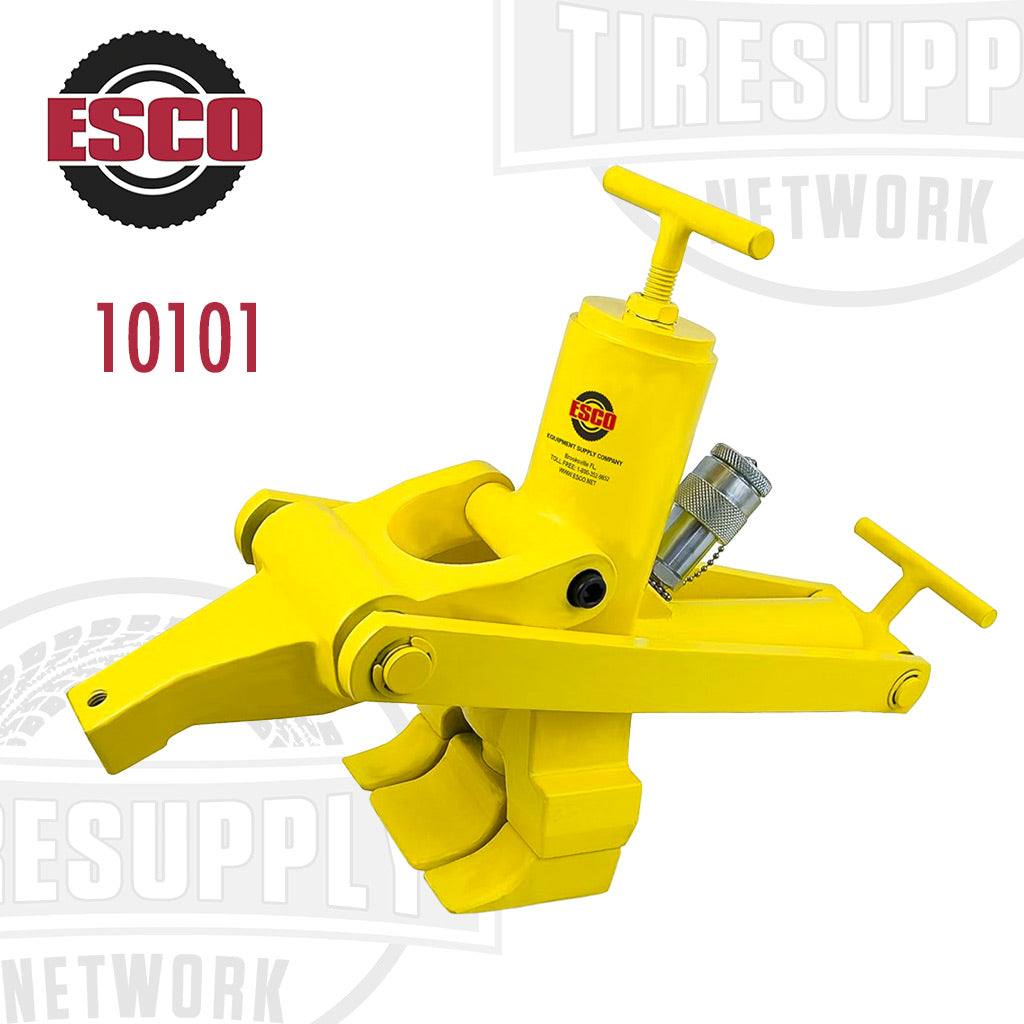

ESCO 10101 “Combi” Hydraulic Tire Bead Breaker

PLEASE NOTE: ESCO 10101 “Combi” Bead Breaker will NOT work on five-piece Earthmover giant wheel/rim. For these applications, ESCO Model #10100 or ESCO Model #10105 is required


  • Works on 1-piece, 2-piece, and 3-piece truck tires/rims
  • Breaks beads in seconds using 13.8 tons of force - 3.75” stroke (95 mm)
  • Use with 10,000 PSI Hydraulic Pump

New Design Features:

  • Adjustable redesigned sequence valve screw
  • Redesigned replaceable clamping jaw
  • Redesigned replaceable pushing foot


  • Ram Tonnage: 13.8 Tons
  • Stroke: 3.75” (95 mm)
  • Maximum Pressure: 10,000 PSI
  • Length: 18” (457 mm)
  • Height: 12” (305 mm)
  • Weight: 36 lbs (16 kg)

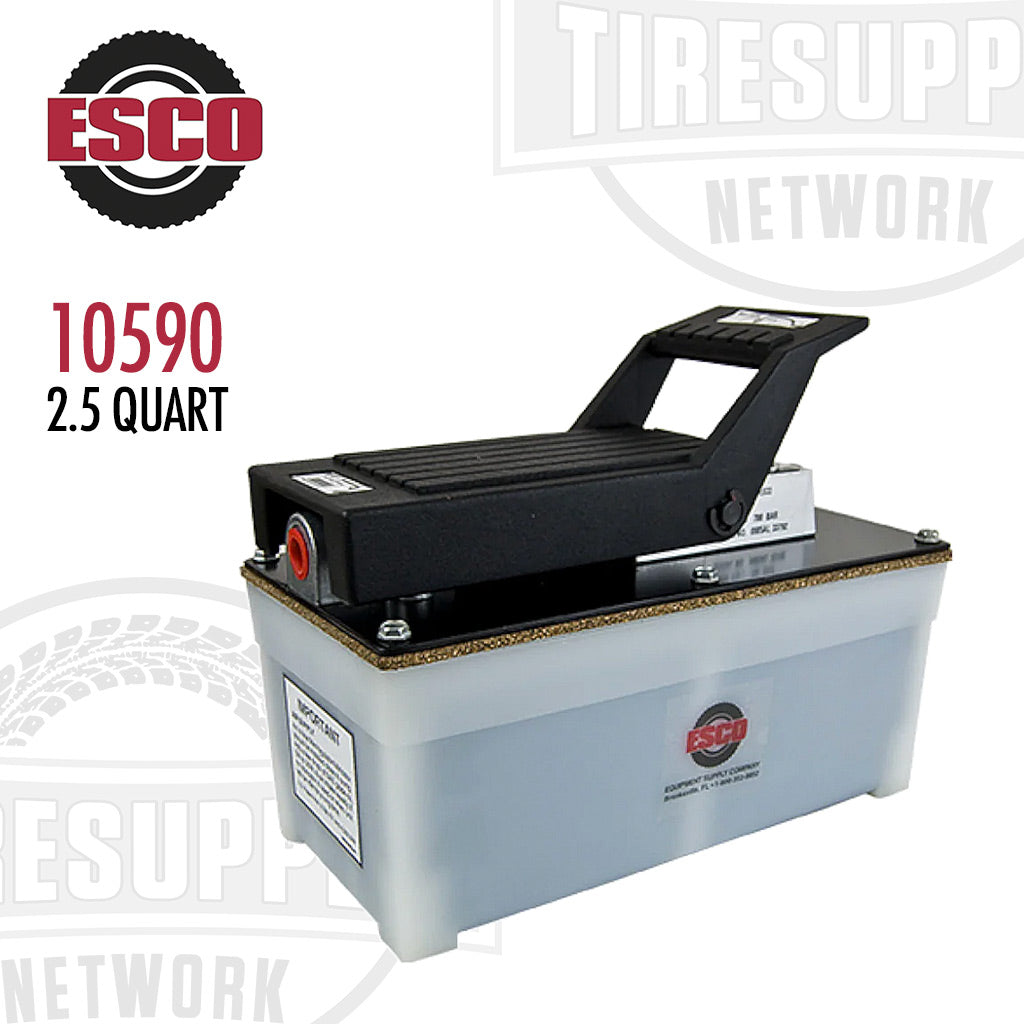

ESCO 10590 2.5 Quart Air Hydraulic Pump


  • 2.5 Quart oil capacity - Ships with premium hydraulic oil
  • Lightweight high density polyethylene reservoir
  • All metal air motor
  • Air inlet filter keeps air clean
  • 10,000 psi hydraulic pressure


  • Oil Capacity: 2.5 Quart
  • Maximum Pressure: 10,000 PSI
  • Weight: 16 lbs (7 kg)

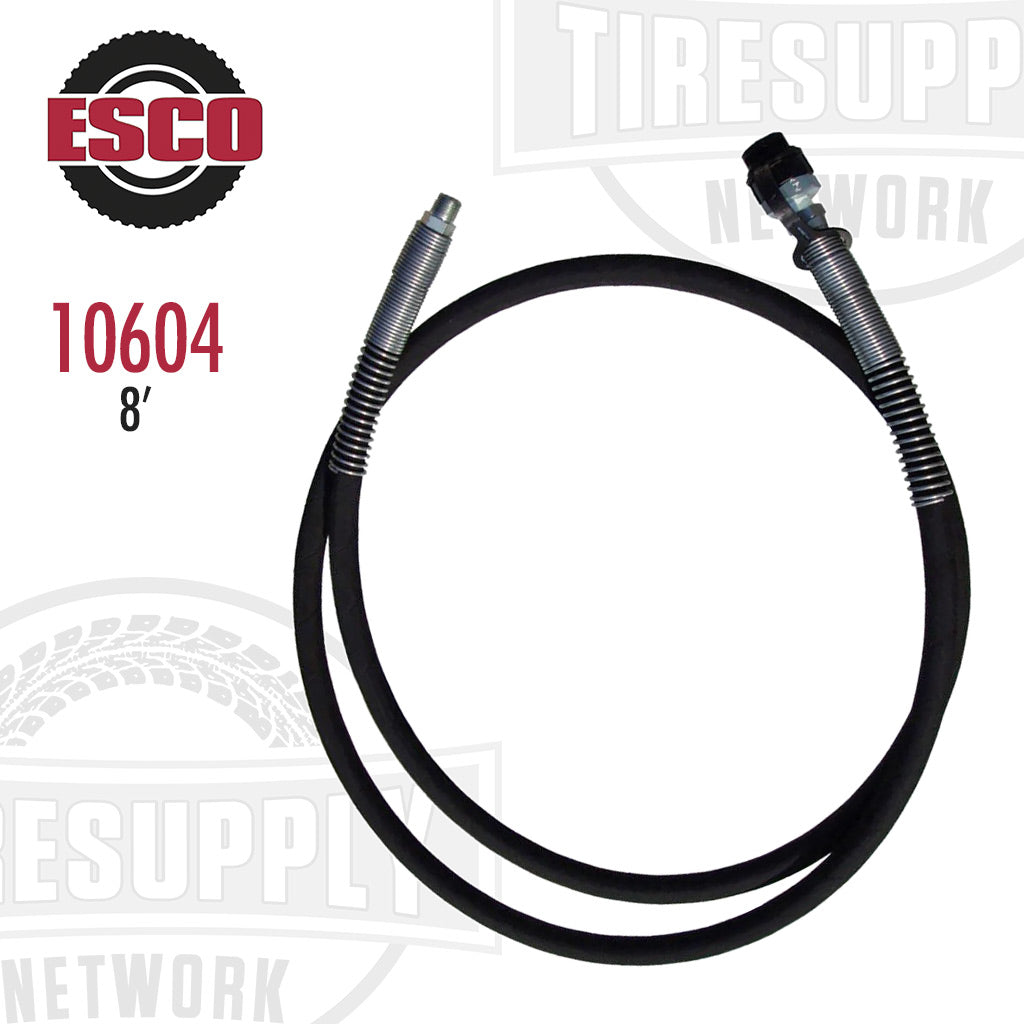

ESCO 10604 Hydraulic Hose Kit


  • Hydraulic hose with swivel fitting and the hose won’t kink
  • Reinforced with 2 layers of braided steel
  • Hose can withstand extreme cold temperatures of -40°F (C)
  • Use with any 10,000 psi. pump, ram, or bead breaker
  • Attachments Include: ESCO 10605 Half Coupler


  • Length: 8' (8' Hose with 3/8″ 18 Male Ends)
  • Weight: 5 lbs. (2.2 kg)

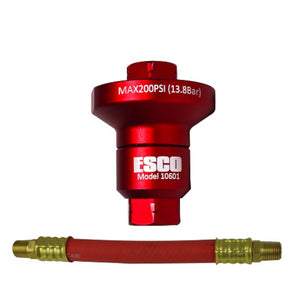

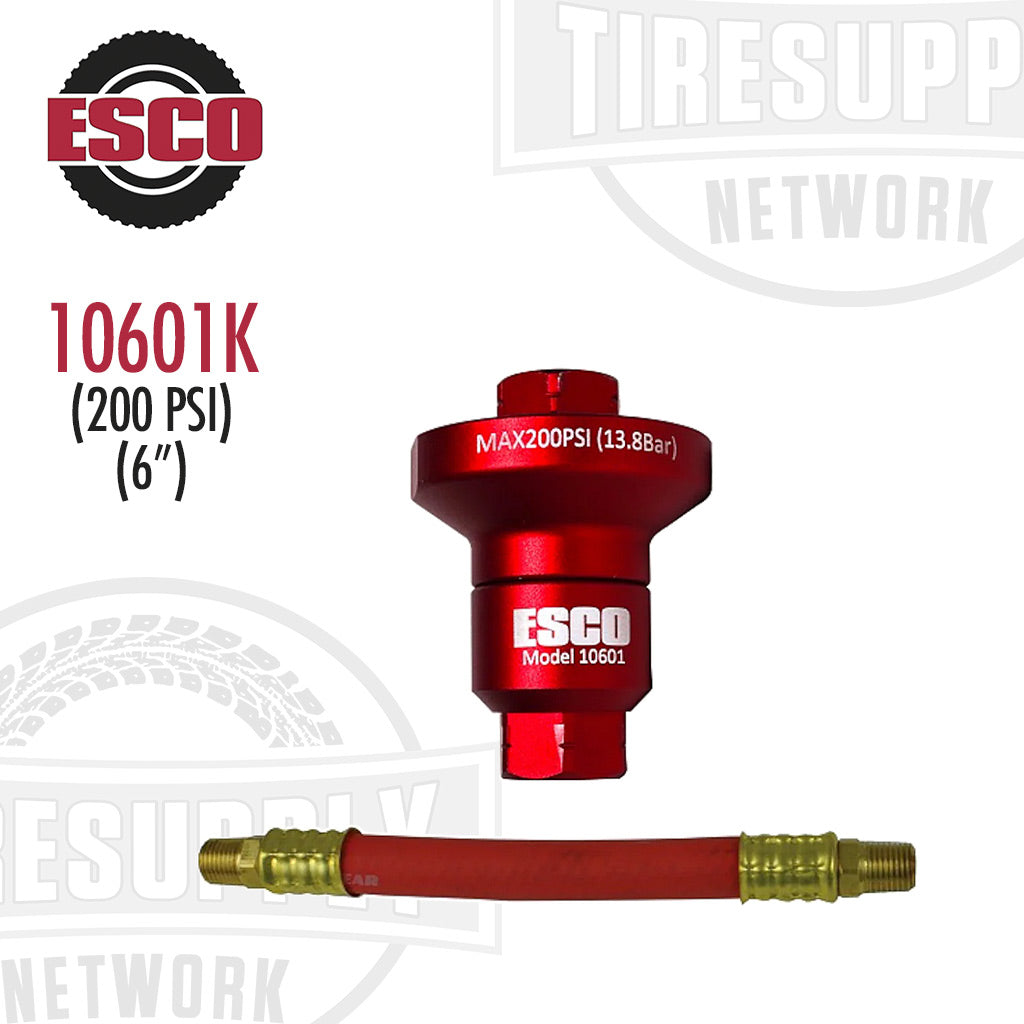

ESCO 10601K Air Reducer With 6″ Whip-Hose

The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.

Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, and Keep ESCO Hydraulic Products in their PRIME.

The ESCO 10601K Kit Includes:

  • Model 10601 Air Reducer
  • Model 10601H 6″ Whip-Hose


  • Maintain recommended working air pressure
  • Easy installation and usage
  • Can be used in conjunction with multiple ESCO products

Model 10601 Specifications:

  • Diameter: 15/16″ (24 mm)
  • Working Air Pressure: 110 PSI
  • Air Inlet Size: 1/4″ NPT
  • Weight: 1 lb (0.5 kg)

Model 10601H Specifications:

  • Length: 6″ (152.4 mm)

Compliance and Restrictions
