ESCO  |  SKU: 10024

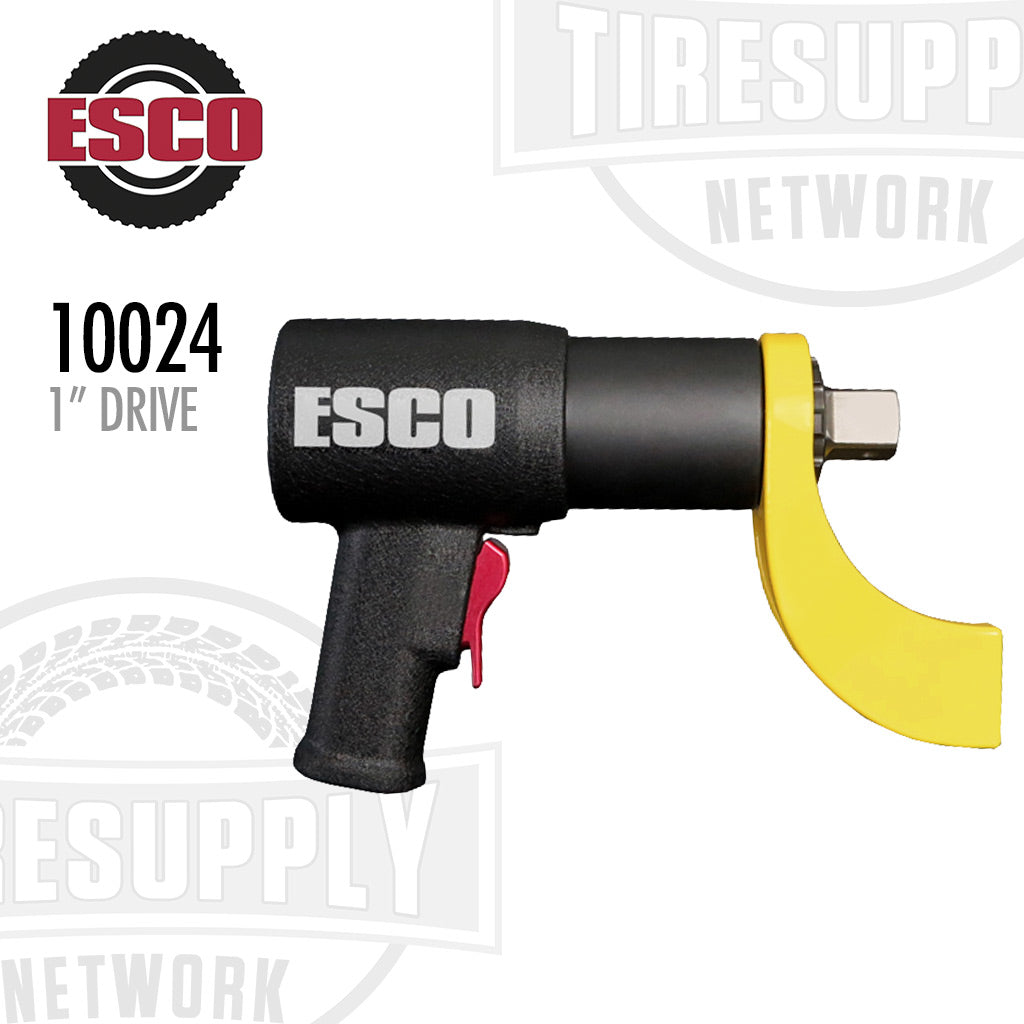

ESCO 10024 | 1" Drive Pneumatic Torque Wrench - 300-1030 ft/lbs

Regular price $8,561.25

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $118.90 for 72 months Finance Now!




ESCO 10024 | 1" Drive Pneumatic Torque Wrench - 300-1030 ft/lbs

ESCO Professional Pneumatic Torque Wrenches are designed with precise accuracy through our surgical like gear production. Designed much like an impact wrench, once the trigger is pulled, the word “IMPACT” is the last thing that comes to mind. The ESCO Pneumatic Torque Wrench Series is a smooth running instrument that can apply a vast amount of torque in a continuous fluid manner; with torque accuracy of +/- 5%. Available in Torque Ranges from 78 ft/lbs. to 5,990 ft/lbs.

Features:
  • Hardened alloy steel for durability and long cycle life.
  • Multiple stage planetary gear systems with optimized tooth design.
  • Ultra-efficient air motor designed for easy maintenance.
  • One finger trigger control for forward and reverse.
Specifications:
Square Drive  1"
Min. Torque (Ft/Lbs) 130
Max. Torque (Ft/Lbs) 1030
Min. Torque (Nm) 407
Max. Torque (Nm) 1396
Dimension A 7.89" | 200.4mm
Square Drive B 1" | 25.4mm
Dimension C  8.87" | 225.3mm
Diameter D 2.85" | 72.4mm
Weight 12 lbs. | 5.5 kg
Performance Data (RPM) ---
- RPM @ 20 psi 11
- Tool Max psi 70 psi
- RPM @ Max psi  15
Warranty 1 Year
Compliance and Restrictions:
