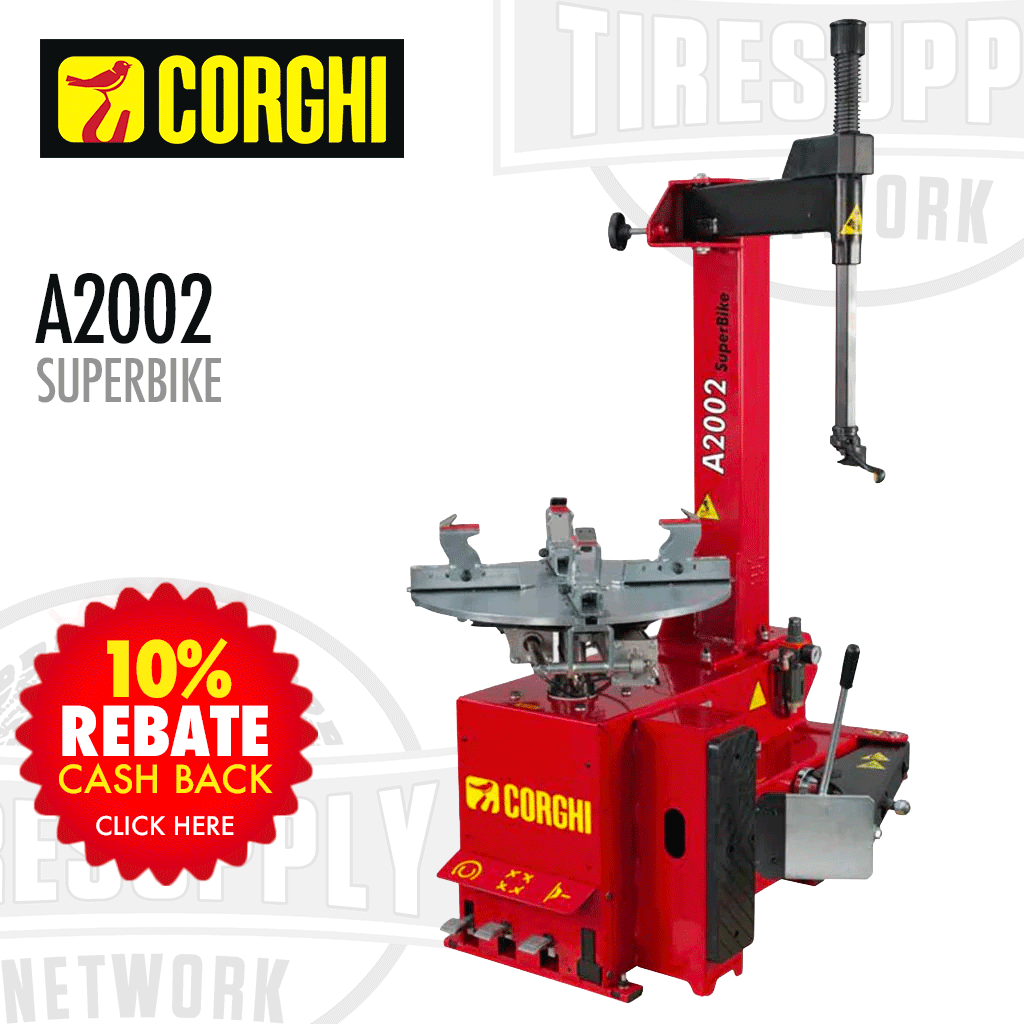

Corghi | SuperBike Semi-Automatic Swing Arm Tire Changer (A2002)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
User-friendliness, reliability and high performance are the characteristics that make the A2002 ideal for users who need a versatile tool at an extremely competitive price. Operation is semiautomatic with swinging arm and 22” turntable, and the machine is ideal for mounting and demounting car, van and motorcycle wheels. Available with traditional inflation or T.I. bead insertion and inflation system.
Semi-automatic tire changer with extremely multi-purpose swiveling arm for bike, scooter, go-kart and high-profile wheels such as Quad wheels.
Clamping capacity from 4" to 26".
Great attention has been paid to the wheel clamping system. Both standard and special jaws allow correct clamping and protection of the rim profile. The tire changer structure is intentionally derived from car tire changer to offer greater robustness and performance.
Semi-Automatic swing-arm tire changer for rims up to 22”.Strong and reliable.
Tire changer specifically manufactured for bikes, scooters and Quad bikes.
FEATURES:
TURNTABLE PLATE WITH NEW MODULAR JAWS
New modular clamping system with plastic protections for resting both the rim and the clamping part on the profile.
OPERATING ARM
It's use is extremely simple, and it is robust at the same time. The technology derived from the car world ensures excellent performance. The rim diameter is manually adjusted using the dedicated knob. The tool head is then locked with the lever at the end of the vertical arm.
BEAD BREAKER SHOE
New dedicated bead breaker with smaller and profiled blade for bike-scooter rims. Plastic protection always available to avoid scratching the rims.
SPECIFICATIONS:
| Self-centering |
| Rim clamping capacity | 4” ÷ 26” |
| Maximum tire diameter | 980 mm (38.5”) |
| Maximum tire width | 305 mm (12”) |
| Rotation torque | 8.5 rpm |
| Height above the ground | 665 mm |
| Bead breaker |
| Maximum opening | 320 mm |
| Blade force | 15,500 N - 10Bar |
| Tool |
| Working range | 4” ÷ 26” |
| Pole | Swing arm |
| Power supply |
|
Power supply voltage |
230/400 V - 3Ph - 50 Hz 230V - 1Ph - 60Hz 115 - 1Ph - 60Hz |
