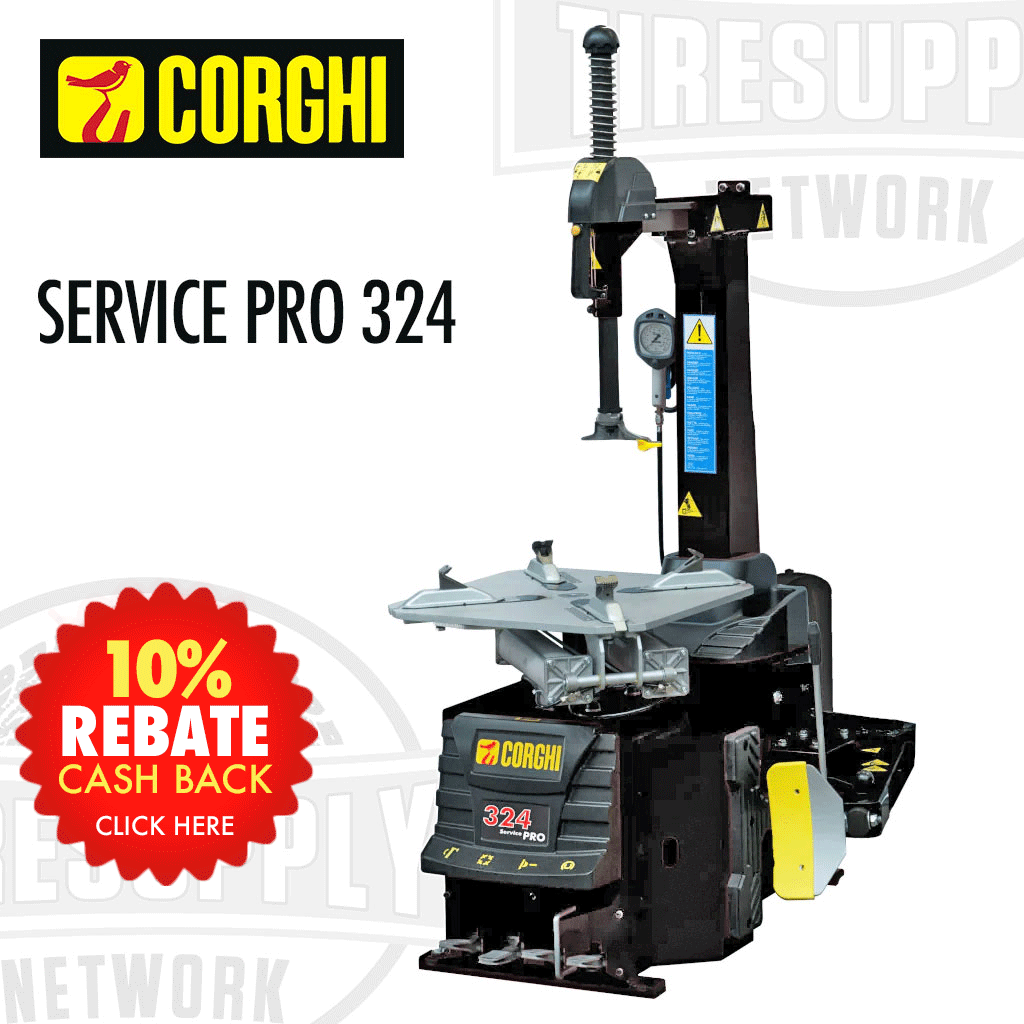

Corghi Service Pro 324 Electric Tilt-Back Tire Changer

Choose Accessory Option

Corghi Service Pro 324 Electric Tilt-Back Tire Changer

Bundle & Save: Buy a helper arm with your tire changer purchase now and save up to 10% on the price of the arm (if purchased separately). Simply add the “tire changer with helper arm” option to your cart to purchase the bundle.

Automatic tire changer for cars, lightweight transport vehicles, and motor vehicles.

Helper Assist Arm Accessory Option: The helper arm is specifically designed for the Service Pro 324 to assist the operator in the tire changing process with its bead pressing functionality. The HTB24 is similar to helper arms for other Corghi tire changer models.

Technical Data Service Pro 324
Corghi Part Number 0-11901304/00
Outside Clamp 11″ - 24″
Inside Clamp 13″ - 26″
Maximum Wheel Diameter 43.3″ (1100 mm)
Tire Width 3″ - 14″
Bead-Breaker Opening 15″ (380 mm)
Bead-Breaking Power 3372 lbf (15000 N)
Working Air Pressure 116 - 145 psi (8 - 10 bar)
Motor Power 1.1 hp - 1.47 hp (0.85 kW - 1.1 kW)
Power Unit 115 V / 60 Hz / 1 Ph
Chuck Rotation Speed 7 rpm - 2V 6.5 - 13 rpm
Noise Level Running less than 70 dB
Net Weight Machine 562 lbs (255 kg)
Gross Weight Machine 650 lbs (295 kg)
Maximum Dimensions (W x D x H) 52″ x 71″ x 80″ (1320 x 1810 x 2050 mm)
