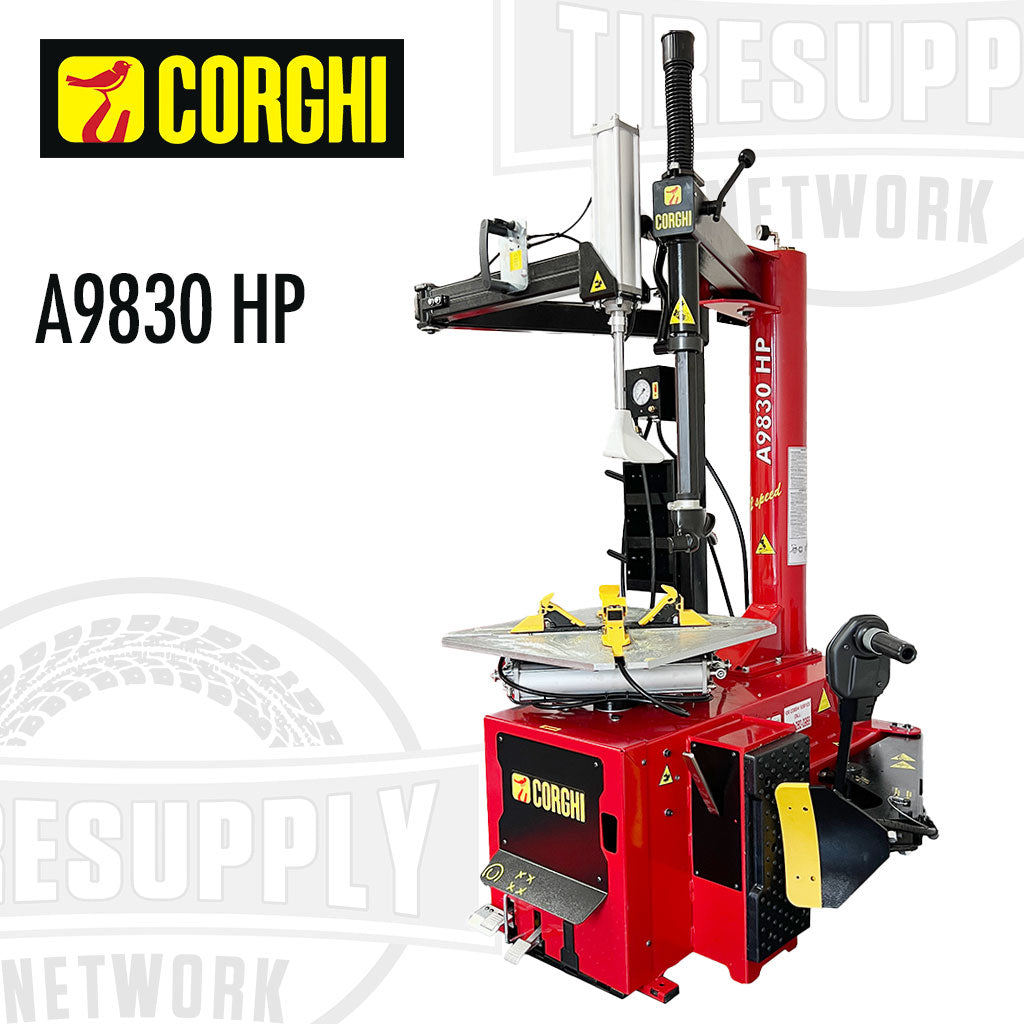

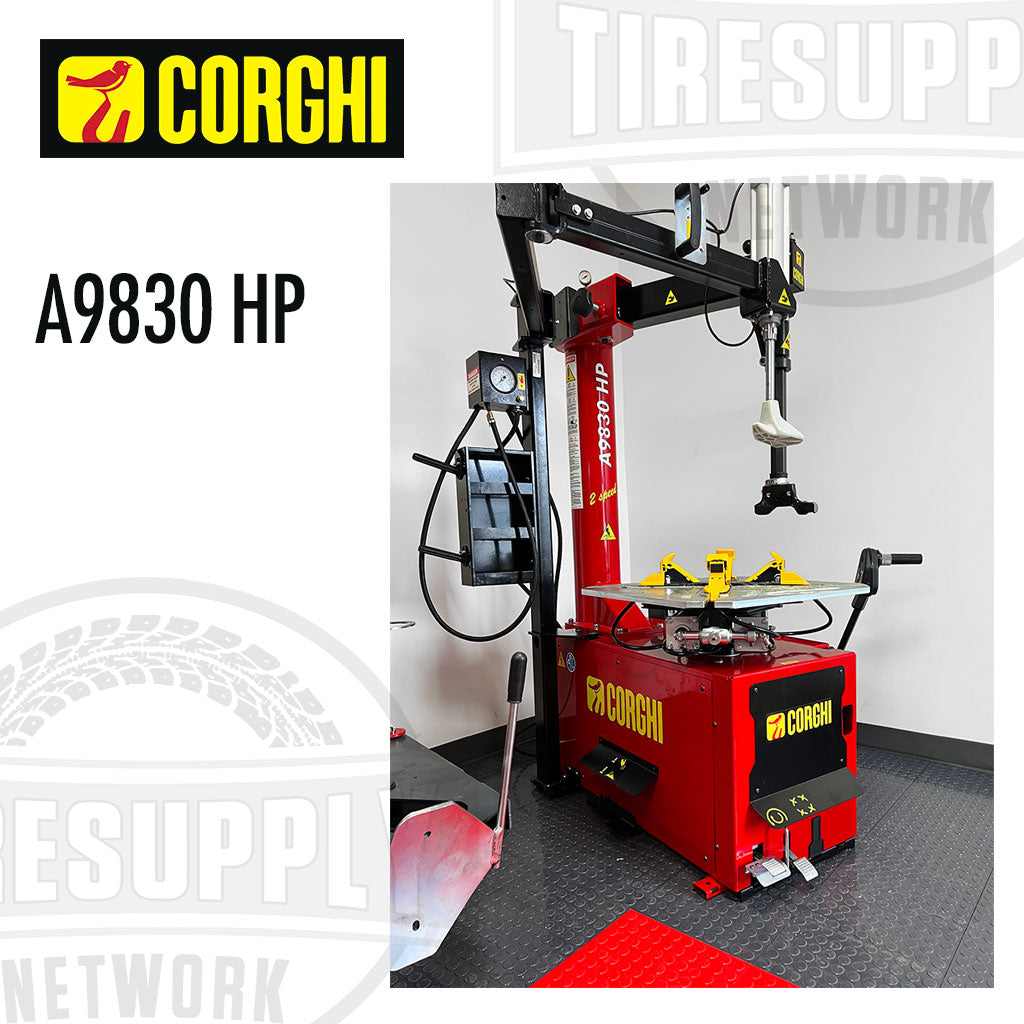

Corghi | High Performance Hand Operated 26" Tire Changer With PU1500 Swing Arm (A9830)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
A quantum leap in terms of quality that enhances the reliability of Corghi products. New swing arm tire changer with 26” turntable - robust, reliable, versatile. A wide range of optional accessories are supplied on request, enabling a host of different machine configurations to be achieved.

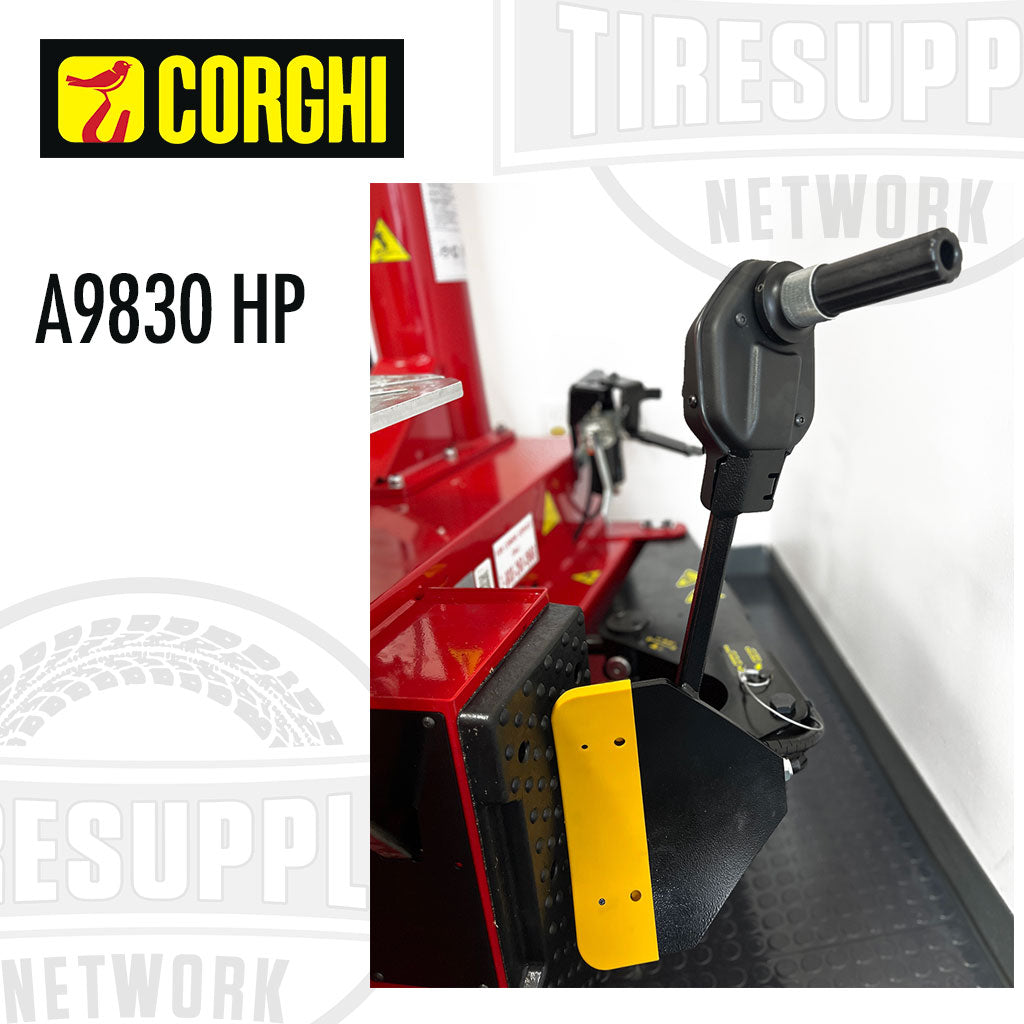

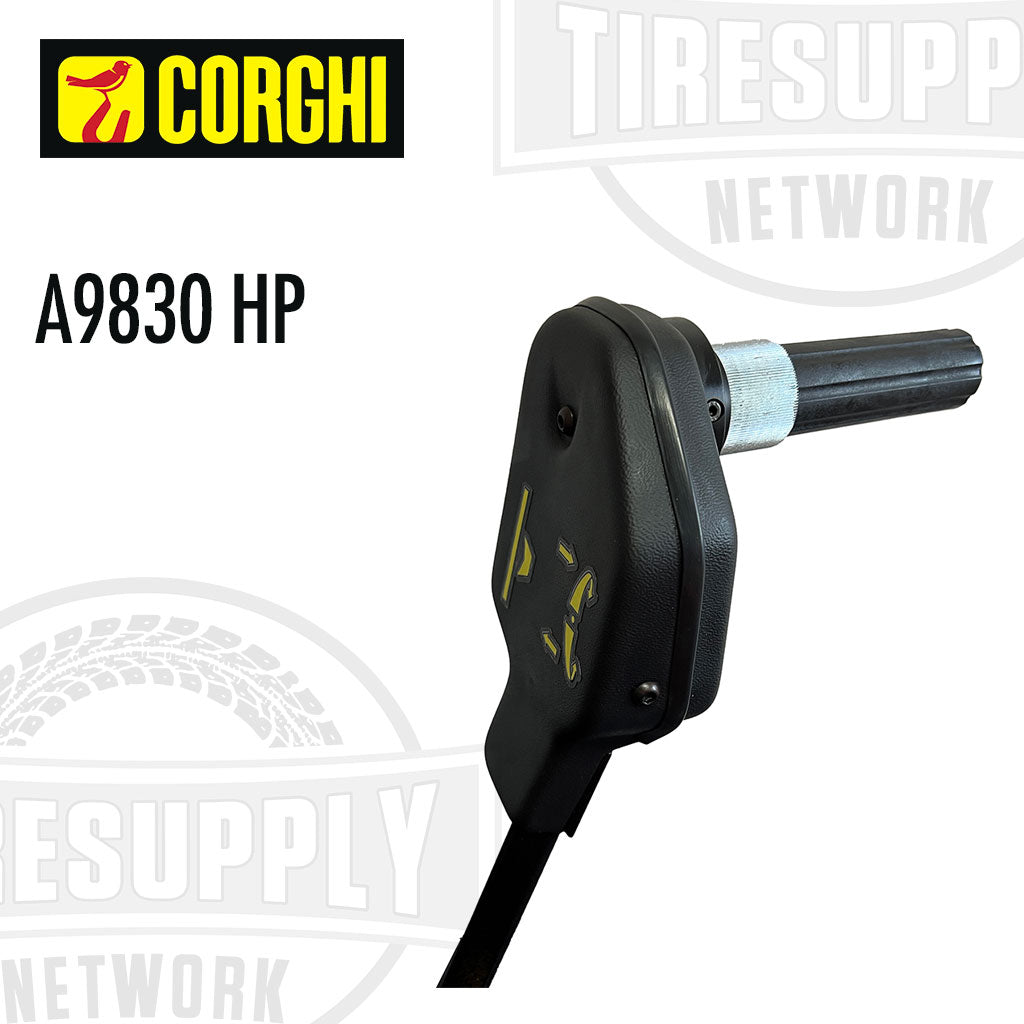

- Hand Operated (easy grip) bead breaker w/full control
- Integrated Wheel Lift up to 165 LBS
- 30" capacity w4" adapters (optional)
- Corghi Patented Plastic Winged Duck-head

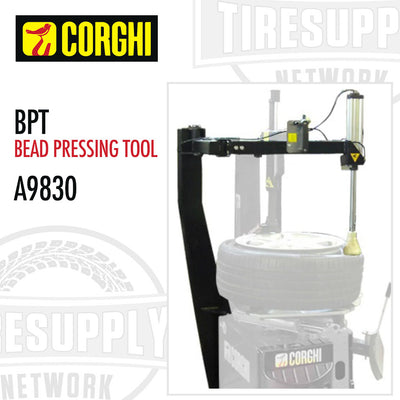

- PU1500 Helper (shown) optional or get with BPT helper
Features:
- 2 speed turn table
- Built-in table inflator with jets in the jaws
- Locking handle locks head away from the rim
- Powerful action bead-breaker blade follows bead to inside rim contour
- Heavy-duty turntable rotates in either direction
- Rebuildable stainless steel cylinders
- Heavy-duty stainless steel turntable
- Safe, fast, profitable and affordable
- Bead-pressing lever
- Upper arm assembly swings out-of-way
- Also available with air motor
-
Warranty: 2 years parts, 1 year labor
Specifications:
| Inside clamping capacity |
13” ÷ 29” |
| Outside clamping capacity |
10” ÷ 26” |
| Maximum tire diameter |
1200 mm (47") |
| Maximum tire width |
14" |
| Rotation torque |
1200 Nm |
| Rotation speed |
6-15 rpm |
| Height of the plate above the ground |
715 mm |
| Type |
Showel wheel on the ground |
| Maximum opening |
min 40 - max 420 mm |
| Shoe force |
2756 lbs |
| Support |
Fixed rubber pad |
| Working range |
8-29" |
| Column |
Manual opening |
| Head clamping |
Manual |
| Electrical 1ph |
115/1/60 Hz MI 2V |
| Pneumatic |
On request |
| Operating pressure |
10 bar / 145 psi |
| Dimensions L x D x H |
Min. 38,5-Max 55" x 44" x 79" |
