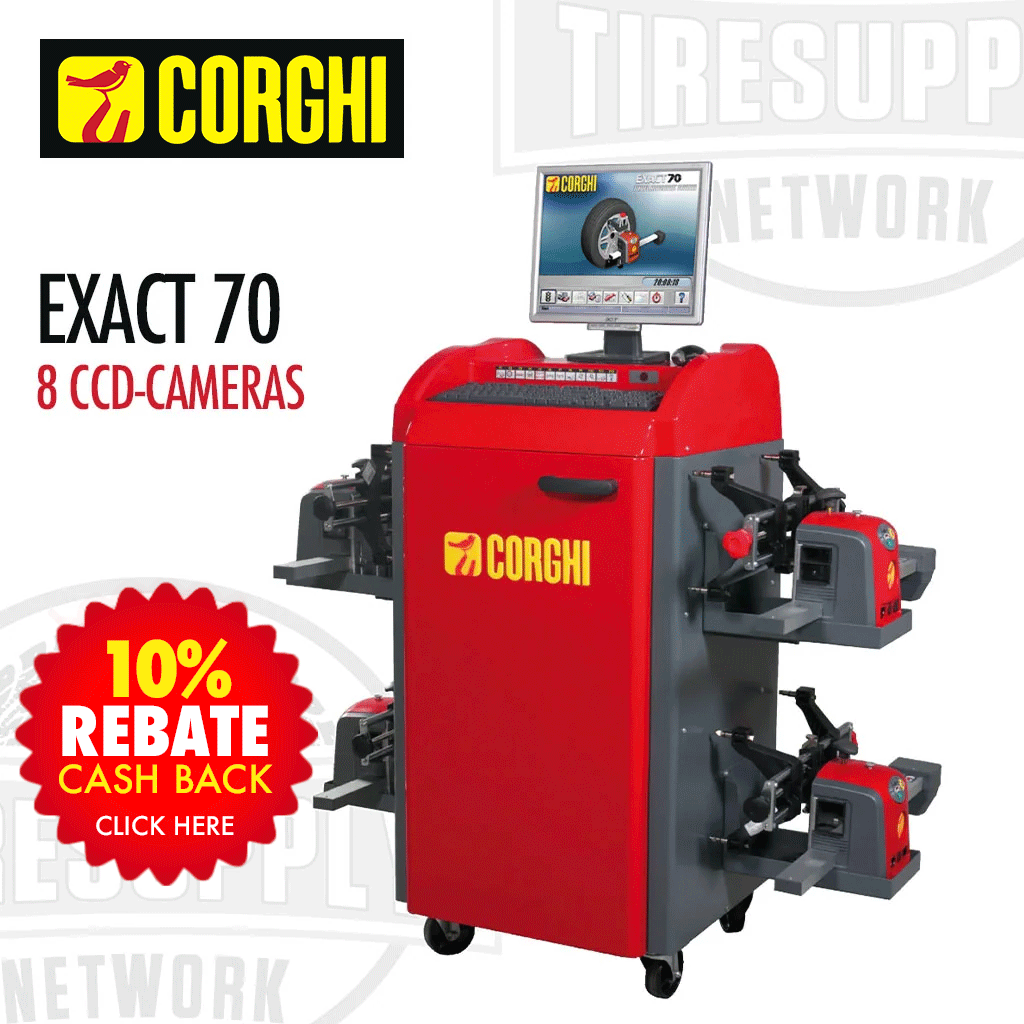

Corghi | Exact 70 Wheel Alignment System with 8-CCD-Camera Sensor Heads

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Corghi | Exact 70 Computerized Wheel Alignment System with 8-CCD-Camera Sensor Heads

 2024 4th Quarter Rebate: 10% Cash Back!

10% Cash Back Rebate direct from Corghi on ALL Machines, Helper Arms & related Accessories. Based on Availability - Hurry Now and Get Cash for the Holidays! >  Details Here

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

CCD sensor heads available in wireless or cable versions. Wireless version on 2.4 GHz industrial radio frequency. Battery charging on cabinet. The battery charger can support both the sensor heads and the clamps.

Roomy internal storage space for protecting PC and printer. Document wallet. Professional PC.

EXACT PLUS, the Corghi wheel alignment program for the most demanding professional. EXACT PLUS works with the Windows XP EMBEDDED operating system. Clear, intuitive graphics, user-friendly, complete and customizable.

Features:

  • Manual toe curve measurement and adjustment procedure.
  • Push-type, 2 and 3 point and single- sensor ROC and ROC skip option.
  • Car and van databank with more than 18,000 vehicles. Optional truck and bus databanks with more than 3,000 vehicles.
  • “Easy Caster”: quick caster measurement with no brakes on sensor heads.
  • Animated tutor guides preparation of vehicle for alignment.
  • “Quick Check”: complete 2-head front axle measurement and adjustment procedure. Cradle Adjustment.
  • Quick job record data input.
  • Continuous sensor calibration checking.
  • Truck and trailer procedure (optional).
  • Adjustment help, schematic slides or animations (optional).

Operating Configuration:

  • Wheeled cabinet
  • Wireless or cable sensor heads
  • Professional PC
    • INTEL motherboard
    • 2 GB RAM (256 MB RAM minimum)
    • 500 GB HD (80 GB HD minimum)
    • DVD reader
    • High-speed USB 2.0 port
    • Ethernet network circuit board
    • Keyboard
  • Windows XP Embedded
  • EXACT PLUS alignment program
  • Asa Network, RH-Meter and Romess CM-09606 compatible
  • Pedal depressor
  • Steering clamp
  • 10-26’’ or 10-21’’ car wheel brackets with self-centering system
  • Adjustment help, schematic slides or animations
  • External battery charger for charging batteries with PC off

Optional Accessories:

  • Optical mouse
  • IR remote control
  • Universal support for LCD monitor
  • 17” - 19” - 20” LCD color monitor
  • Color inkjet printer
  • 9 - 21’’ quick wheel clamps
  • BMW - Mercedes wheel clamps
  • 10 - 25’’ truck wheel clamps with self-centering system
  • ROC skip clamps for fleet hd trucks
  • Special procedures: MULTILINK, RADAR, trucks and trailers, vehicle weight and Specialty Product catalog
  • Special car constructor configurations
  • Complete range of accessories

TECHNICAL DATA:

 Measuring Ranges
Total Toe ±48°
Half Toe

±24°
Camber

±10°
Caster

±30°
King-Pin

±30°
Set Back

±22°
Thrust Angle

±22°
Steering Angle

±22°
 Power Supply
 Central Unit 50 - 60 Hz. 1ph
Central Unit Consumption 0, 4 kW
Sensors 31.5″ x 5.3″ x 8.3″ (800 x 135 x 210 mm)
 Dimensions
 Width x Depth x Height 31.5″ x 24.8″ x 67.3″ (800 x 630 x 1710 mm)
With Sensors 53.1″ x 52″ x 67.3″ (1350 x 1320 x 1710 mm)


Compliance and Restrictions
