Coats | RC 45 Rim Clamp Tire Changer - Electric or Air Motor (85609949*)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Motor: Electric

Coats RC 45 Rim Clamp Tire Changer - Choose Electric (8560994901) or Air Motor (85609949)

PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

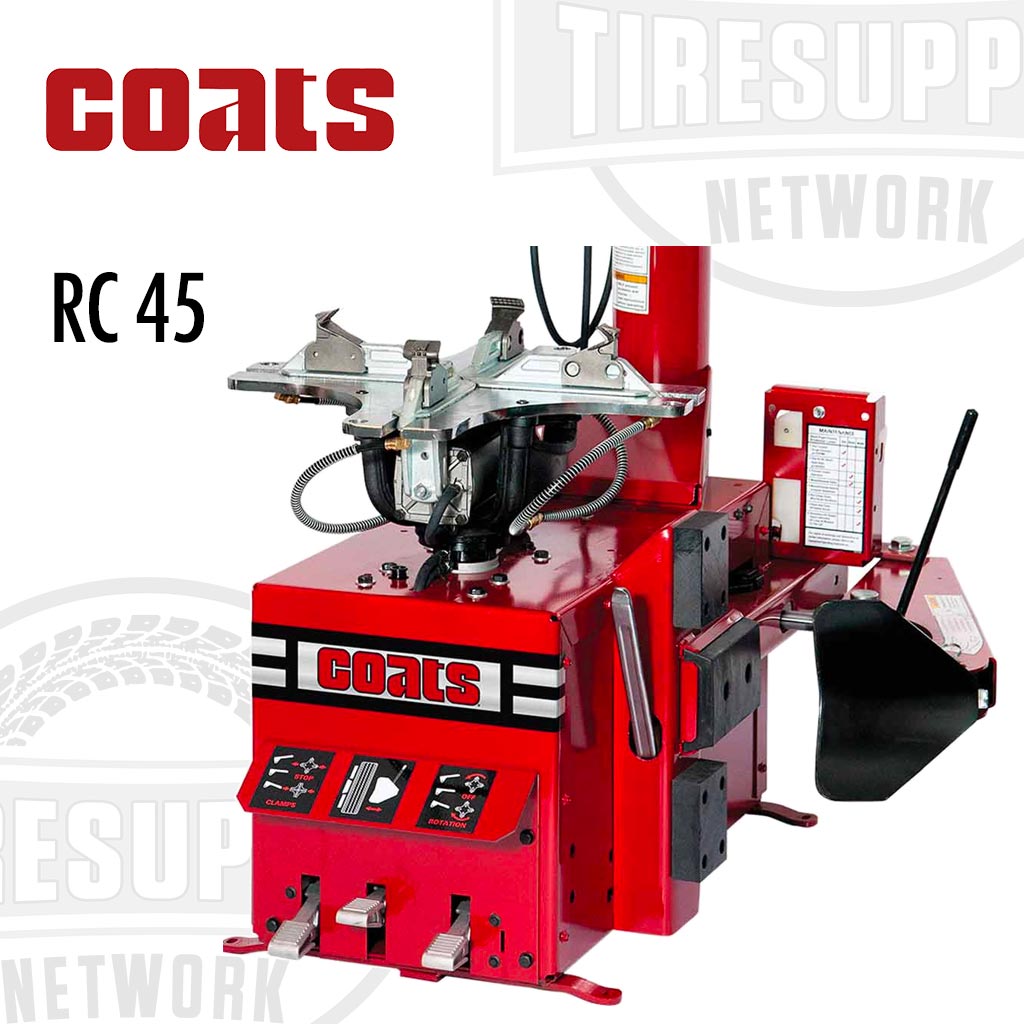

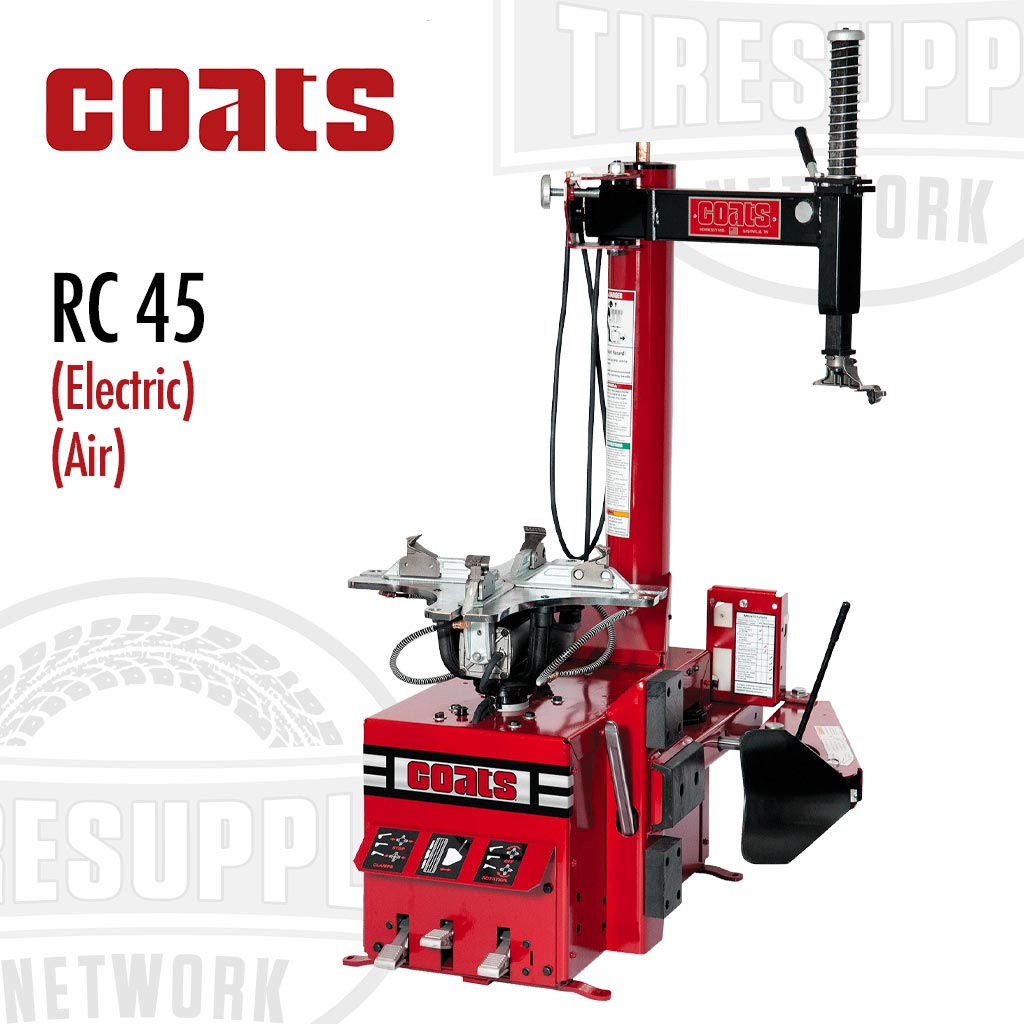

The Coats RC Series Rim Clamp tire changers are built upon the standards of the legendary Coats Rim Clamp tire changer. Updated for todays high-speed, general service repair shop, the RC Series will execute day after day, which your shop not only demands, but also deserves.

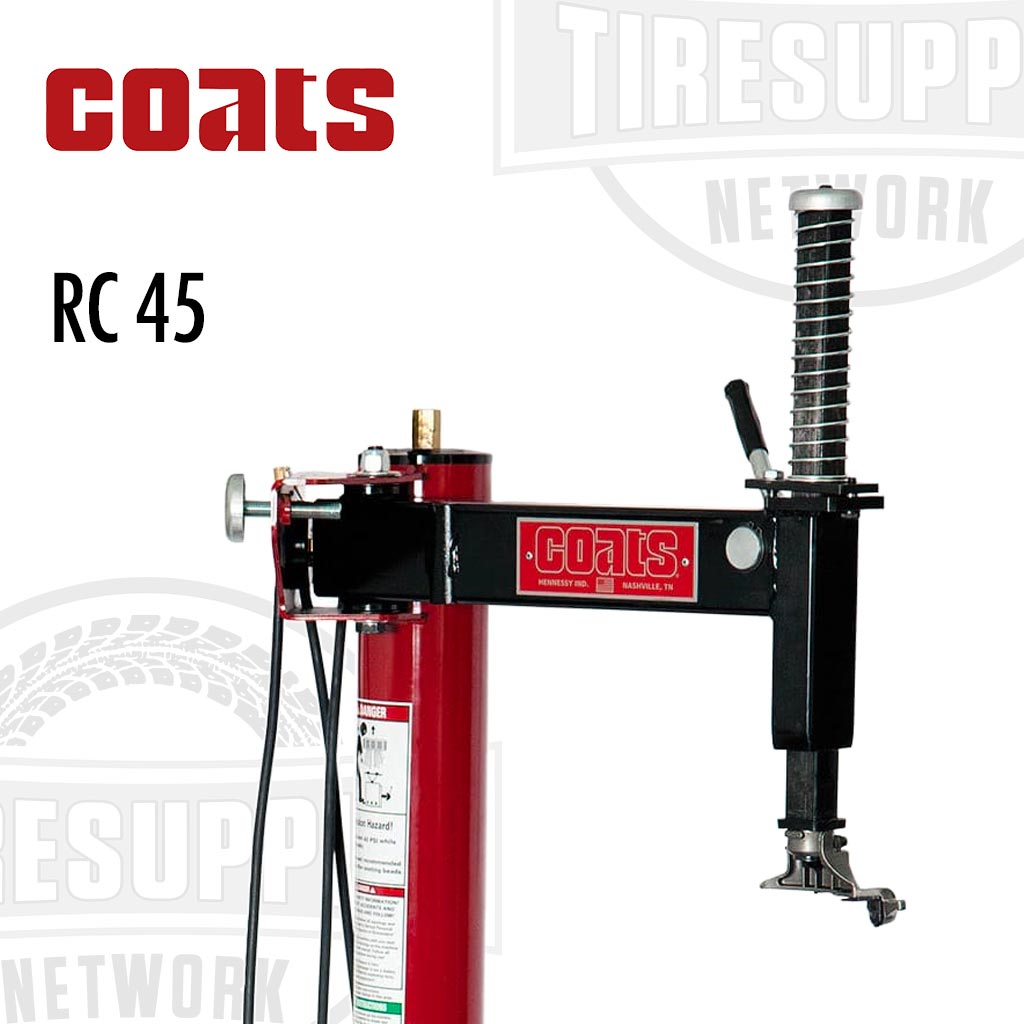

Manual Swing Arm: The Manual Swing Arm is easily adjusted so that the Coats Duckhead® Mount/Demount Tool is properly fitted to the tire rim. This will reduce the risk of damage when mounting and demounting the tire.

Built-In Bead Sealing Jets: Quickly seals beads while tabletop inflation provides a faster workflow.

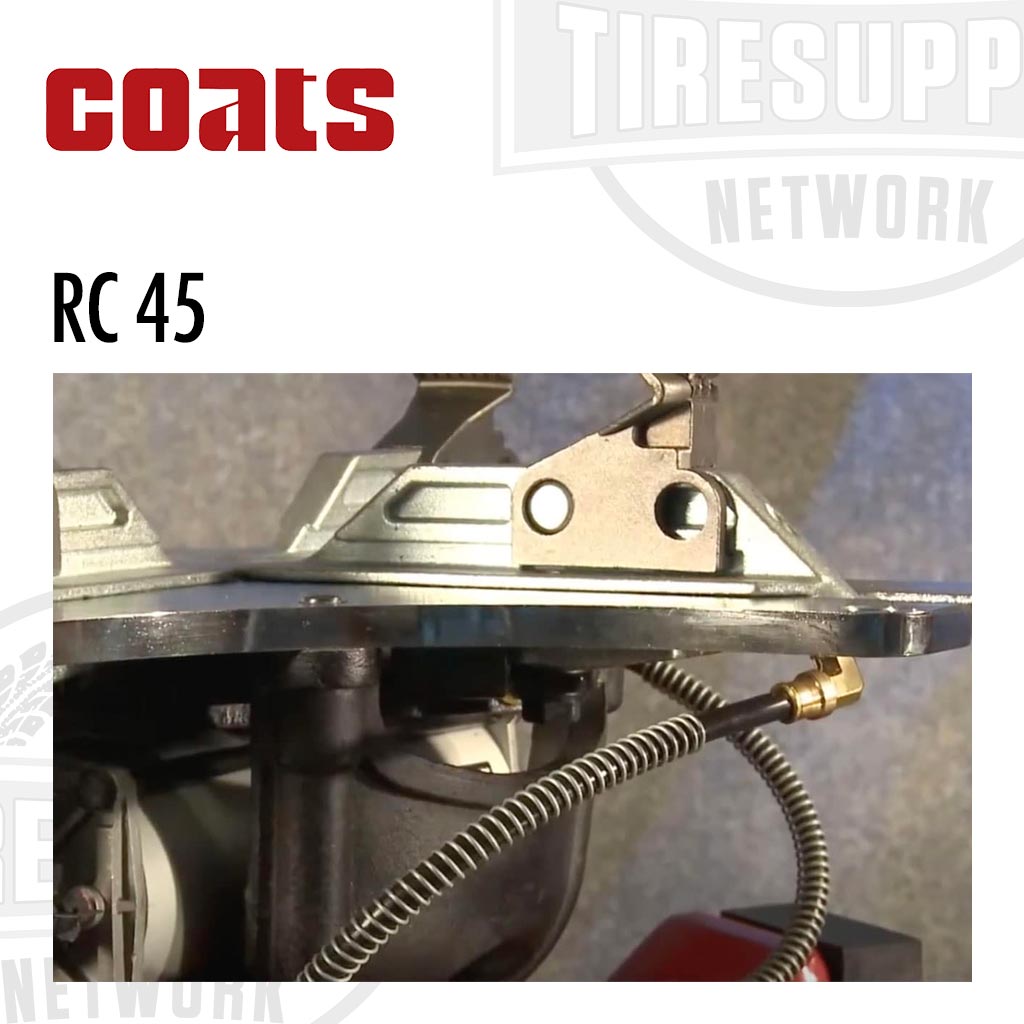

Best-In-Class Clamping Capacity: External clamping from 6″ up to 22″.

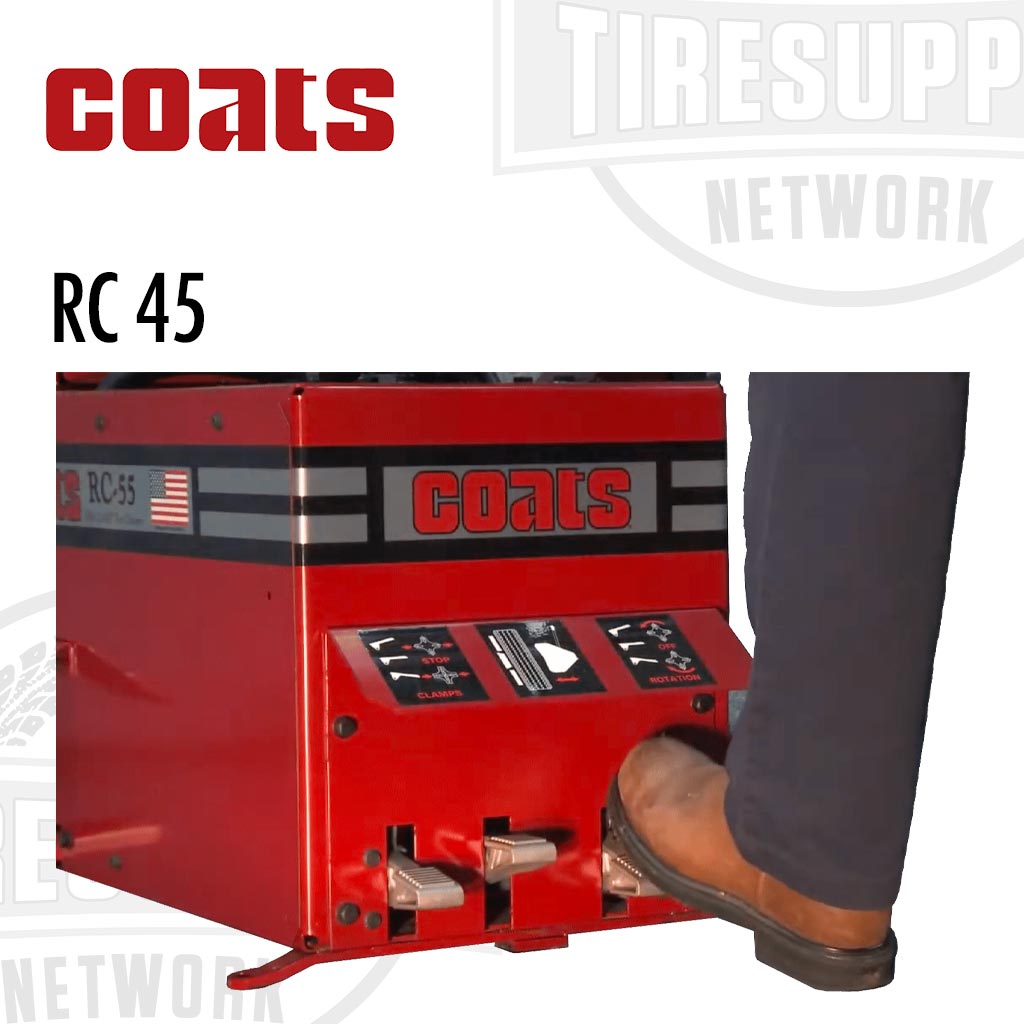

Conveniently Placed Foot Pedals: Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.

Inflation Gauge: The easy-to-read gauge accurately displays tire pressure and includes a damage resistant Lexan faceplate. You can easily inflate from 0 to 60 PSI, with a built-in pressure limiter, ensuring technician safety.

Compact Chassis: The machine fits easily into limited space applications with its small footprint.

Powerful 1 Hp Motor: The air and electric drive system provides ample power. The air motor allows for advanced wheel control.

Included Accessories:

  • (2) Coats 8182961 Duckhead® Mount/Demount Tool Inserts


            Coats Part Number Electric Model: 8560994901, Air Model: 85609949
            Wheel Handled
            Alloy and Steel for Car and Light Truck
            Rim Diameter
            6″ - 24″ External
            Maximum Tire Diameter
            Maximum Rim Width
            Bead Loosening System
            Foot Controlled, Up to 10.5″ Wide

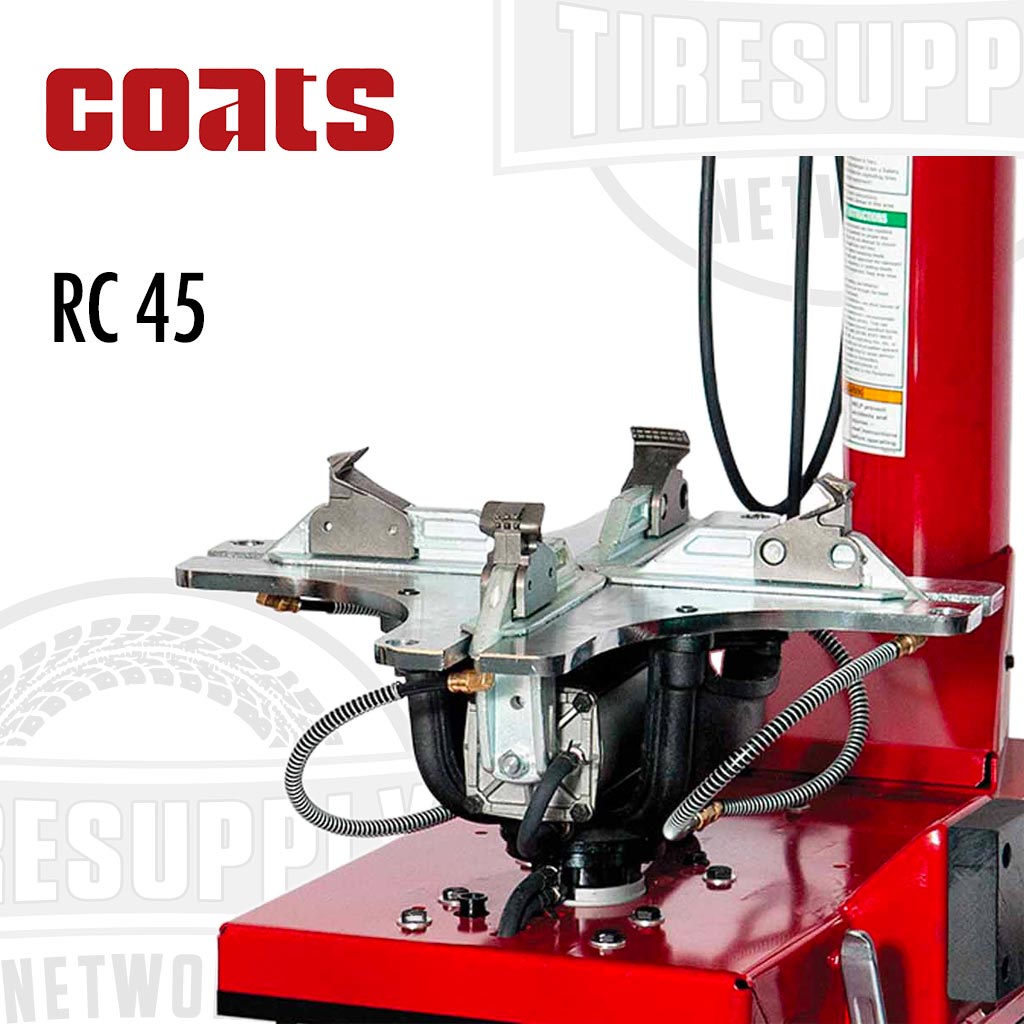

            Wheel Clamping System
            4 Clamps, Air Cylinder Operated
            Mount/Demount Mechanism
            Swings for Better Access and Durability
            Helper Devices
            Bead Seating Air Volume
            3.4 Gallons in Tower
            Inflation Gauge
            0 - 60 psi
            Air Supply Gauge
            0 - 300 psi
            Air Drive System
            1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only)
            Electric Drive System 1 HP Electric Motor, 115 V, 60 Hz, 15 Amp (Electric Model Only)
            Footprint (WxDxH) 35″ x 44″ x 70″
            Weight 600 lbs
            Warranty 1 Year Parts, 6 Months Labor

             Need replacement parts? Call or email us and we can special order them for you!

            Compliance and Restrictions
            ⚠️WARNING: Cancer and Reproductive Harm -
