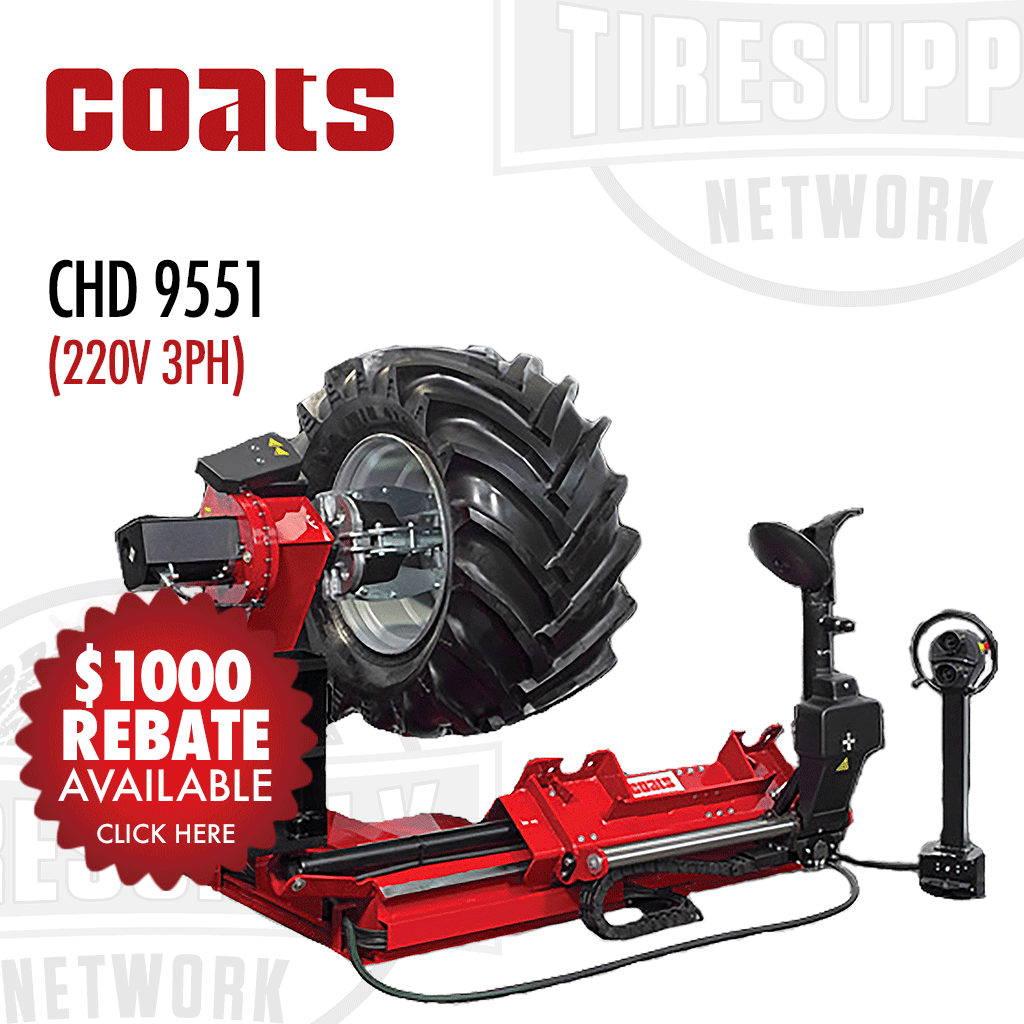

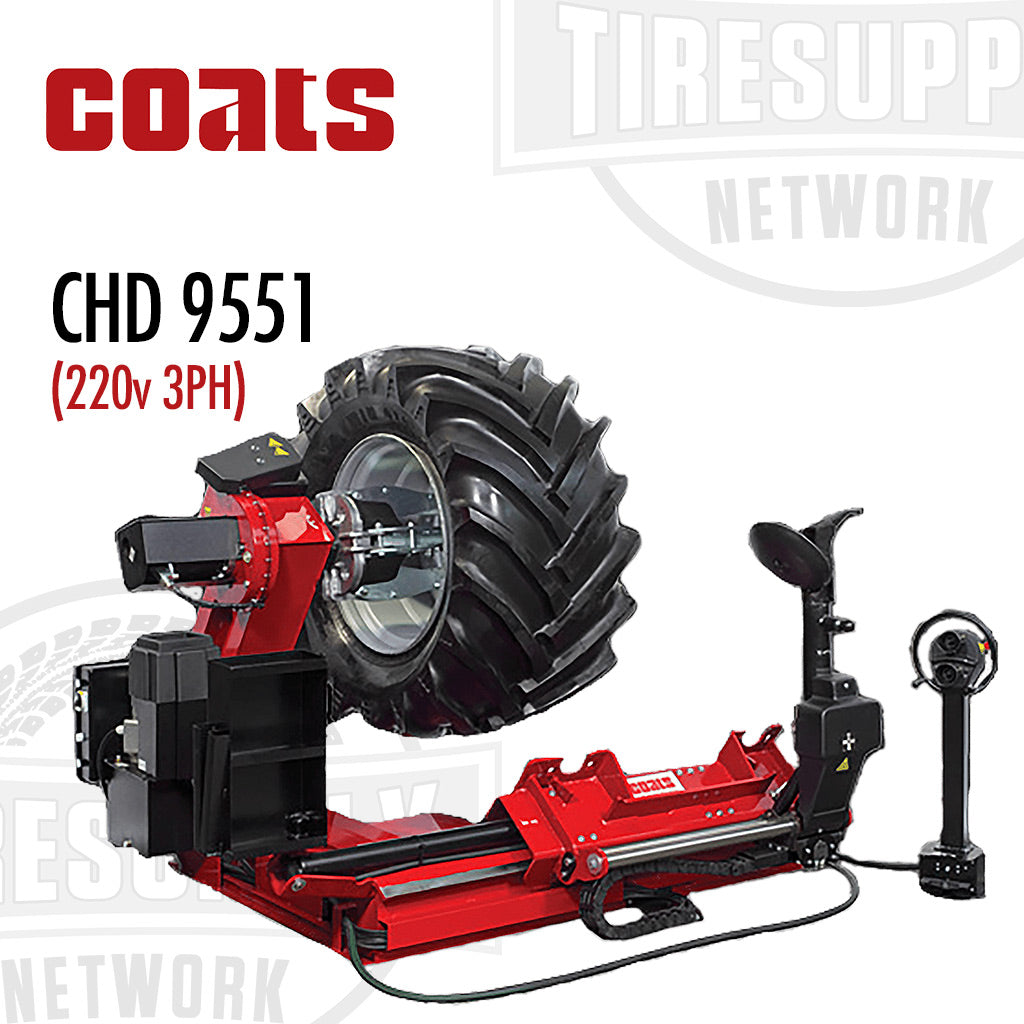

Coats CHD 9551 | Heavy Duty Tire Changer - Electric

Coats CHD 9551 | Heavy Duty Tire Changer - Electric 220v 3PH (CHD9551-220V3)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

🏁TSN TIP :

The CHD 9551 sits at the top of the CHD lineup and was built for shops that routinely service the industry's largest and heaviest wheel assemblies. Compared with the CHD 6330 and CHD 9041, the CHD 9551 adds wireless controls, a remote-operated hydraulic tool arm, increased tire capacity, and greater lifting capability. For mining operations, agricultural equipment dealers, and high-volume heavy-duty service centers, the CHD 9551 delivers the highest level of productivity available within the CHD family.

Our premier model is specially designed to handle the really tough jobs Our top-of-the-line changer is designed for high-volume shops. The CHD-9551 makes it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.

• Offers the most automated features and widest range of fittings in the CHD line

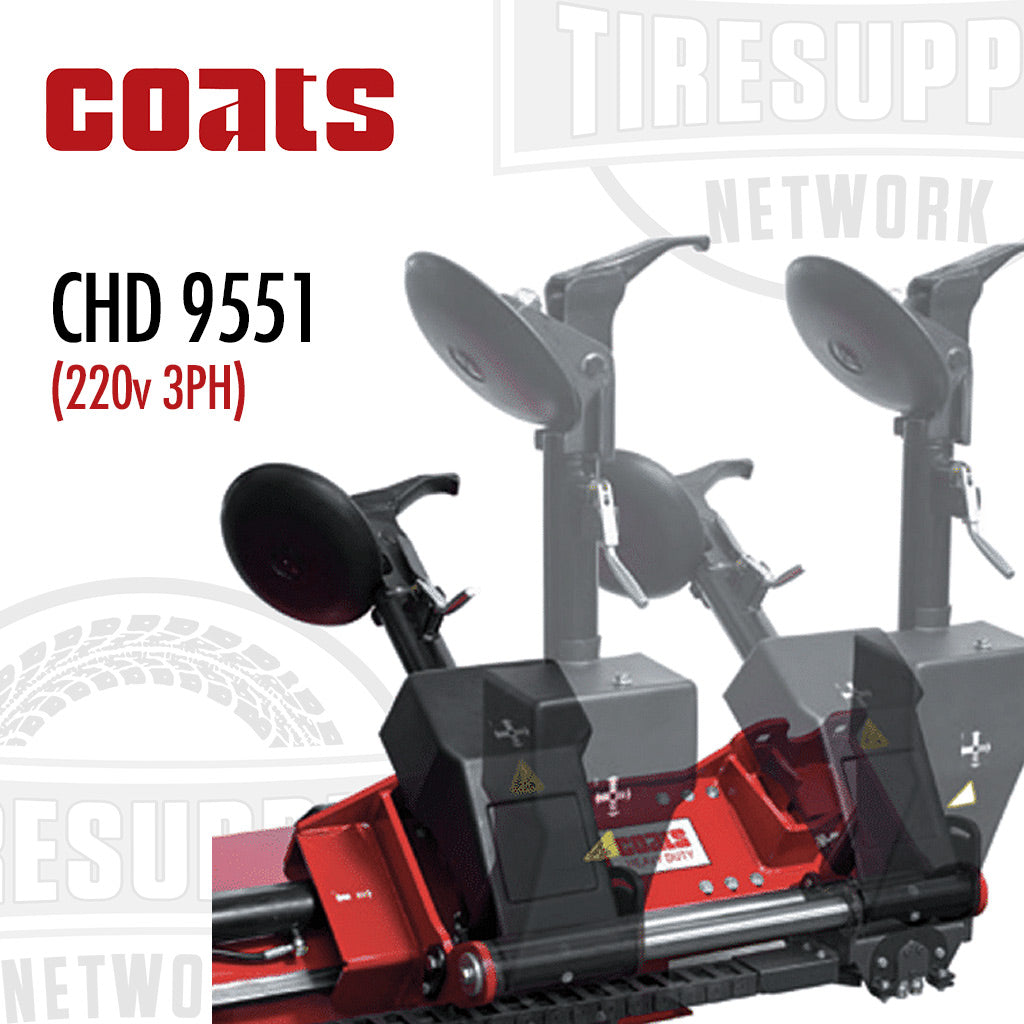

• Remote control rotating tool head/arm for the fastest, easiest tool changes in the business

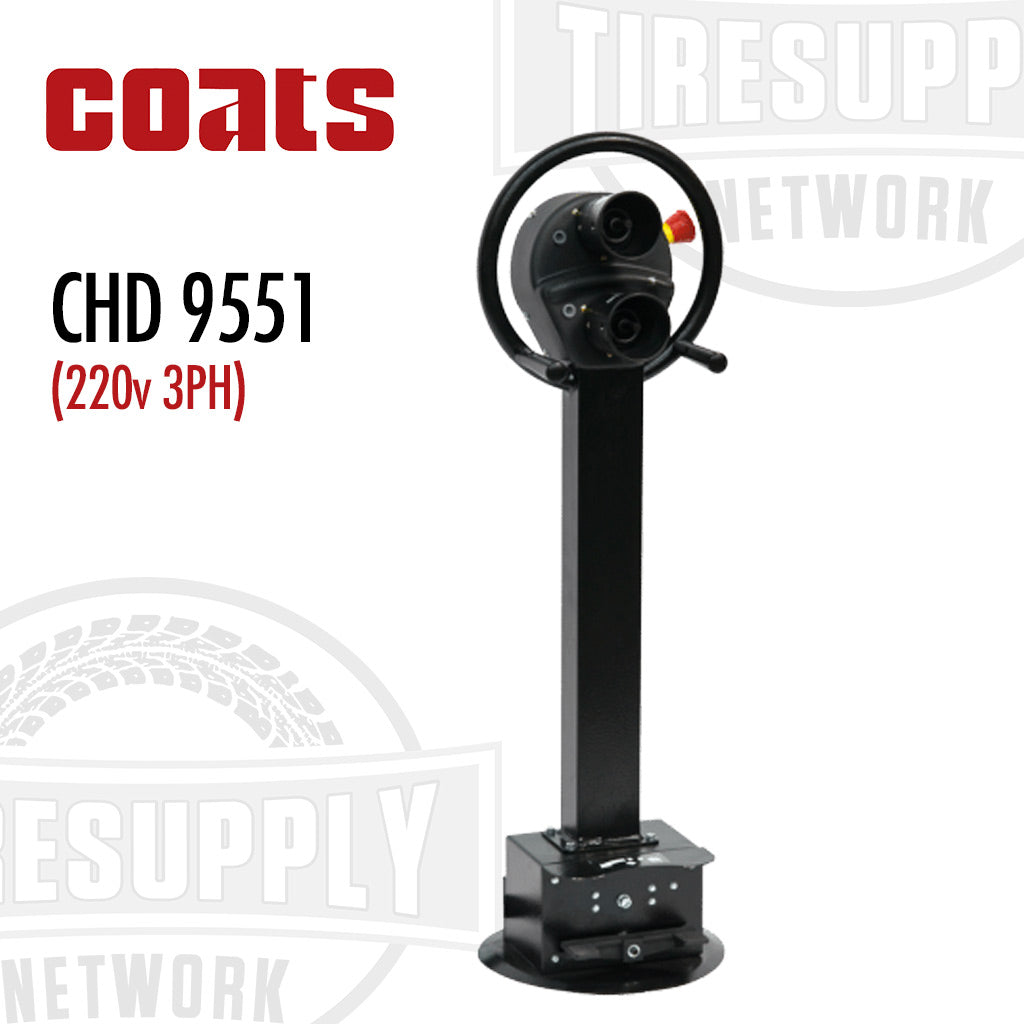

• Optional wireless remote gives you freedom to move around the machine without cumbersome cables
• Handles rims from 14” to 46” (up to 56” with clamp extensions) and tires up to 95” in diameter and 51” wide

Hydraulic Clamping Chuck: Extended capacity four-jaw chuck, which allows for use on a massive range of applications.

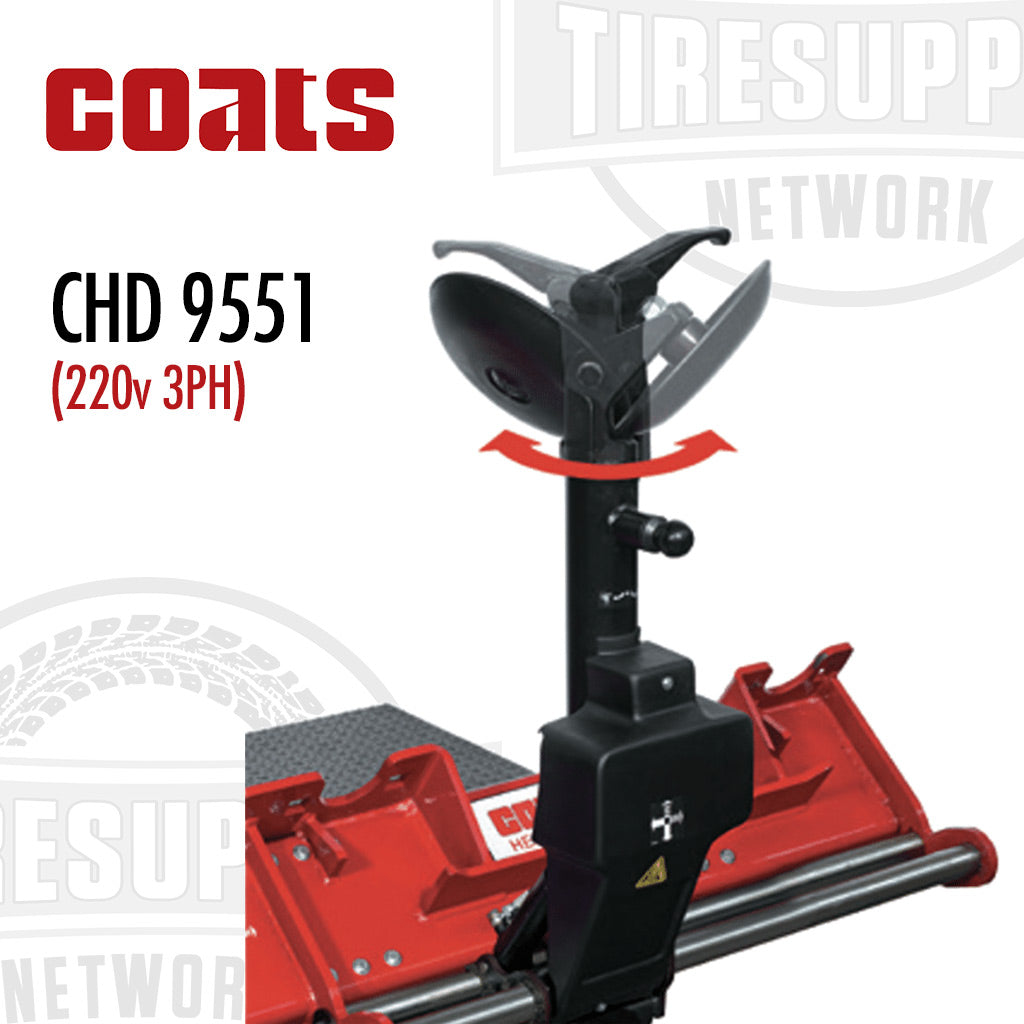

Manually Controlled Tool Head: Use the manually controlled tool head to assist with the mounting and demounting of tough applications.

Sturdy, Solid Frame: The solid, single piece frame is for added capacity and dependability, and the open frame is designed for easy wheel movement.

The All-Around Solution: A great solution for moderate to high volume shops and fleets where fitments vary widely, including agricultural applications.

Specifications:

Standard & Optional Accessories:

 Need replacement parts?  Call or email us and we can special order them for you!

Compliance and Restrictions:
